- Long-Range LiDAR: Scan range of 80–140m with a 40–70m radius depending on surface reflectivity.
- 8K HDR Imaging: Four 48MP fisheye cameras for vivid, high-resolution color capture.
- SLAM + GPS: Seamless data collection across complex indoor and outdoor environments.
- Wide Field of View: 360°×59° coverage captures an entire room in a single rotation.
- High Accuracy: Down to 2cm accuracy at 10m distance.
- 3D Gaussian Splatting: Converts captures into realistic 3D scenes compatible with Unreal Engine.
- On-Site Review: 3.5-inch screen with point cloud, photo, and split-screen live display modes.
- Mobile-Ready: Collects up to 200,000 points/second, stable at speeds up to 20km/h.
- Flexible Mounting: Compatible with drones, vehicles, bicycles, and tripods.
- Free Software: Includes RayStudio with AI denoising and export to PLY, OBJ, and Gaussian Splatting formats.
₹474,999.00 Including Tax
Out of stock
Out of stock for now. Leave your details and we will tell you the moment it is back.
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:

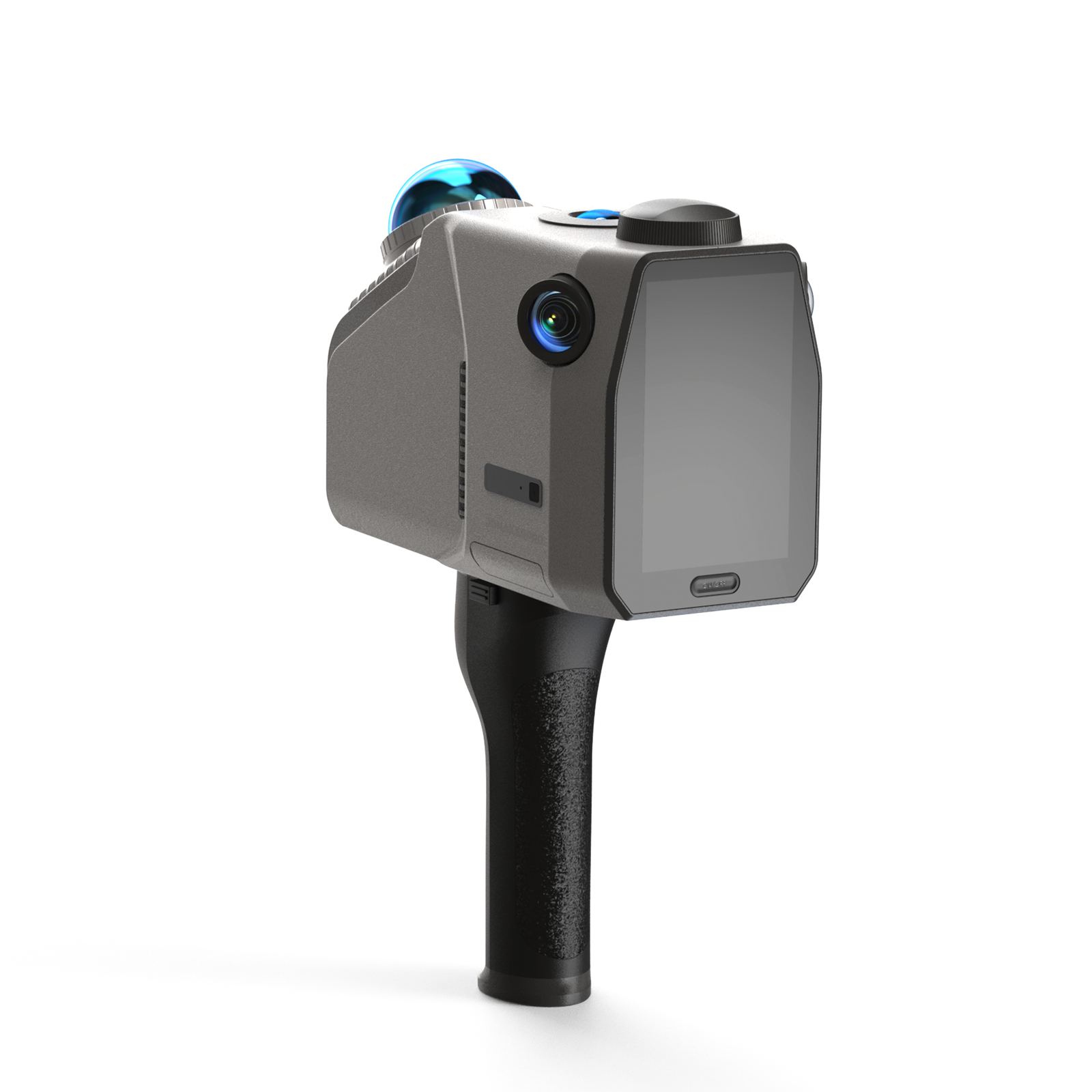

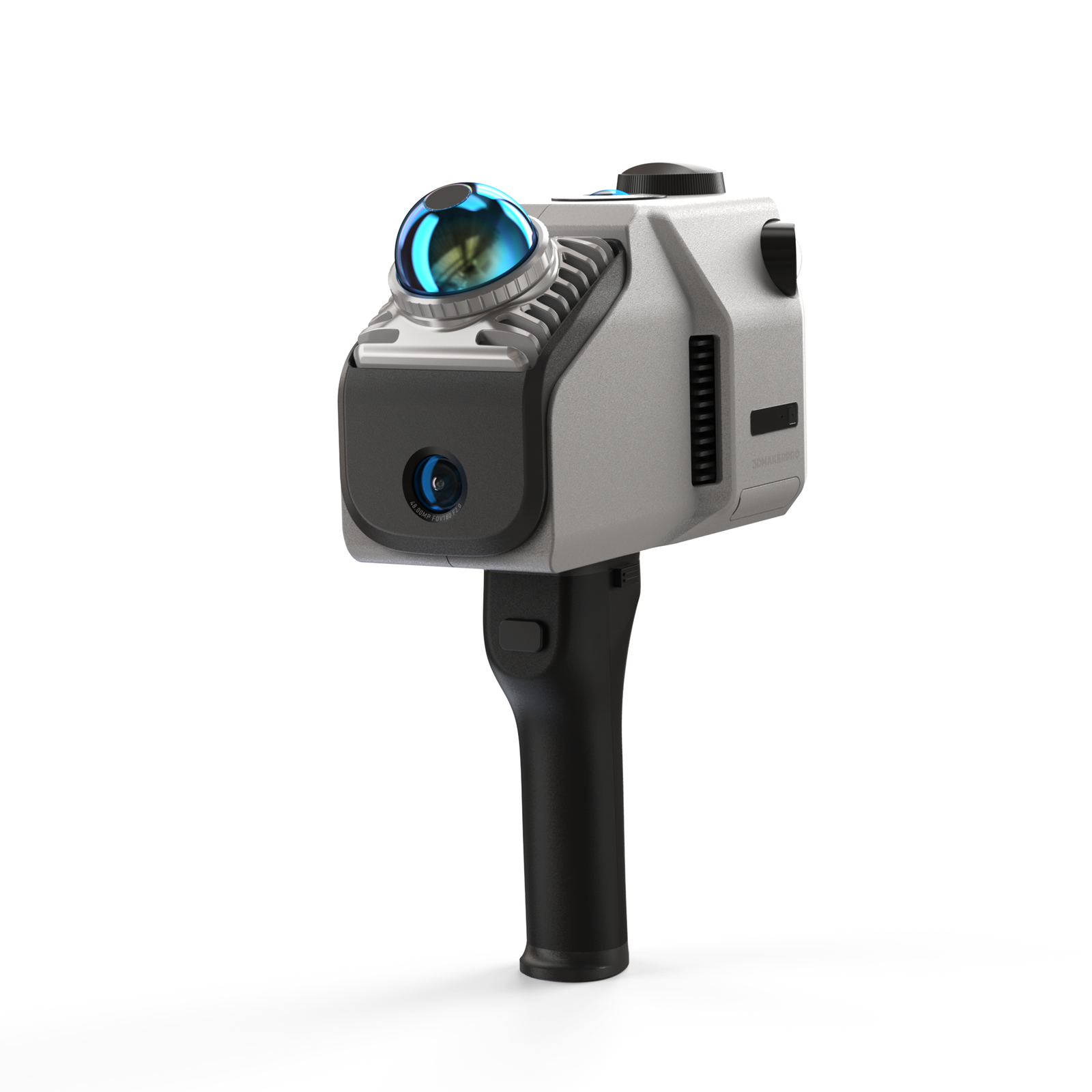

3DMakerpro Eagle Max LiDAR Scanner

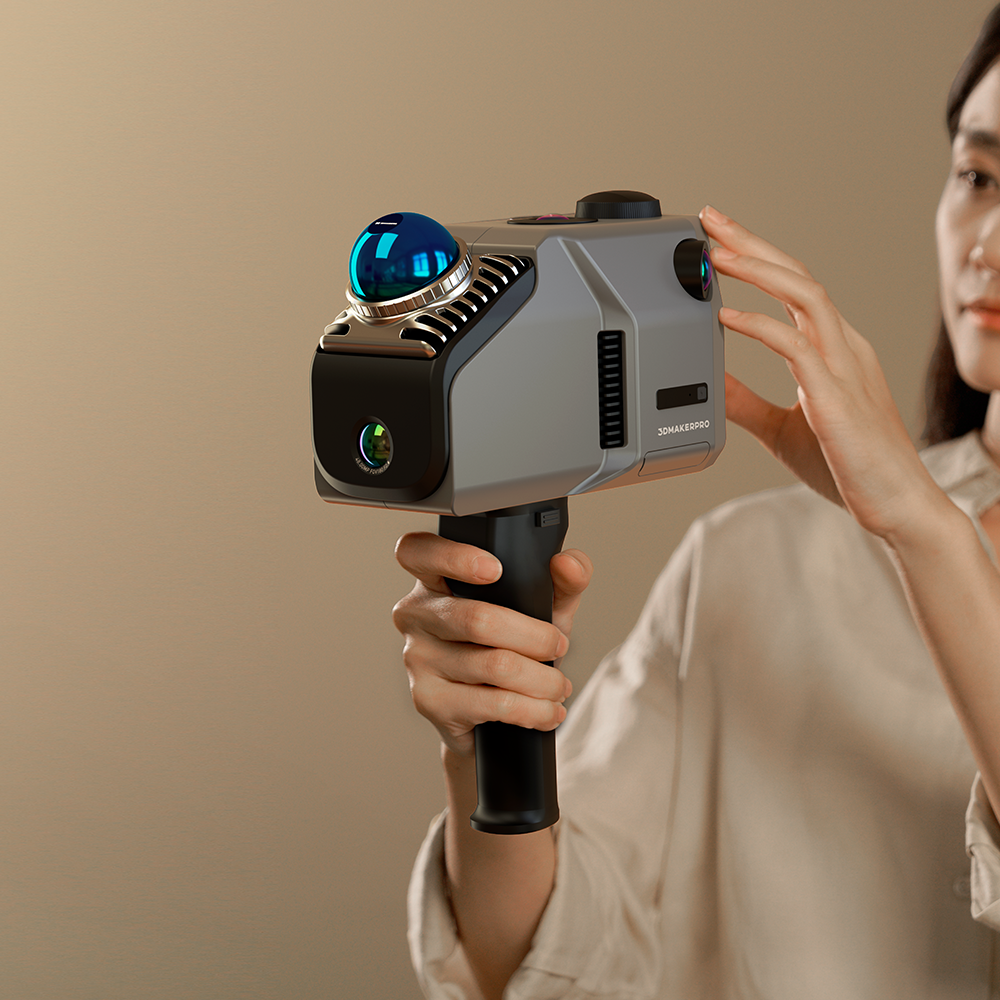

Eagle Max is a high-performance, all-in-one handheld LiDAR scanner built for large-scale 3D scanning and environmental mapping. It combines long-range LiDAR, SLAM technology, and GPS with high-resolution imaging to deliver accurate 3D data both indoors and outdoors — from architecture and construction to film and virtual exhibitions.
Long-Range LiDAR with Wide Coverage
Eagle Max scans radii of 40–70m depending on surface reflectivity, with a maximum scan range of 80–140m. Its 360°×59° field of view gives roughly 30% more coverage than typical LiDAR scanners, letting a single rotation capture an entire room.
8K HDR Color Imaging
Eagle Max carries four 48MP fisheye cameras for 8K HDR imaging with vivid color and dynamic range — ideal for film production, game development, and virtual exhibitions.
3D Gaussian Splatting & Panoramic Tours
Captured photos convert into Gaussian distributions for highly realistic 3D scenes compatible with Unreal Engine, and Eagle Max supports immersive 8K HDR panoramic tours.

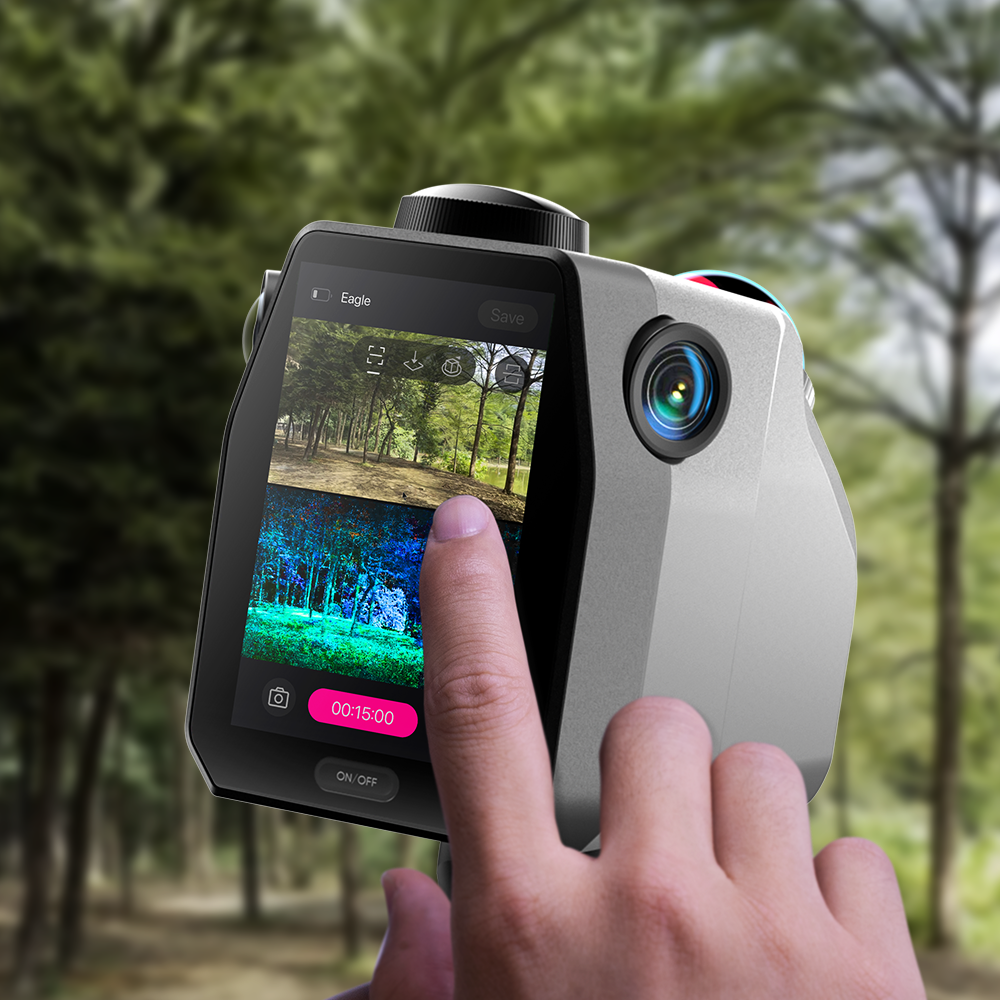

Ready to Use, On-Site Review
No complex calibration is required — 3DMakerpro states it saves up to 50% of prep time versus traditional devices. The onboard 3.5-inch screen offers three real-time display modes (point cloud, photos, or split-screen) during capture, with instant review of point cloud projects, GPS trajectories, and photos afterward.

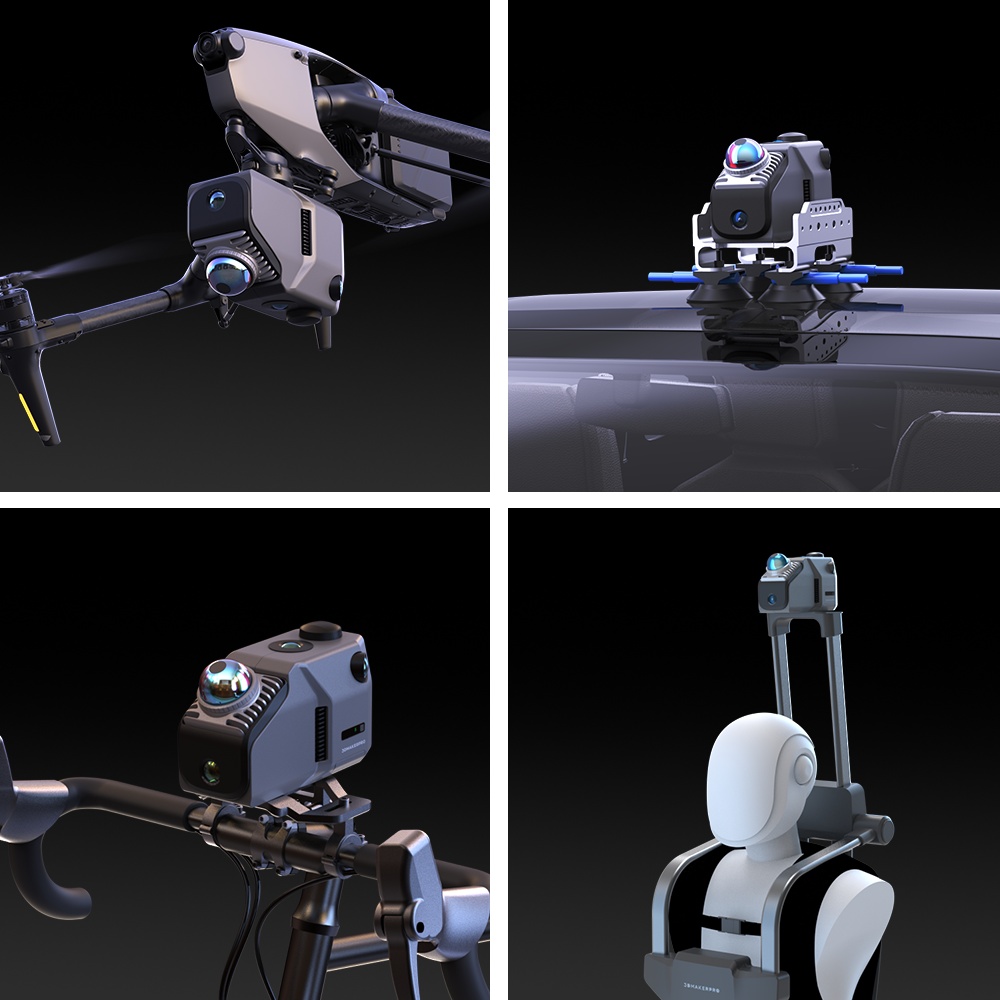

Built for Mobile and Vehicle-Mounted Capture
Eagle Max collects up to 200,000 points per second and maintains data quality at speeds up to 20km/h, with mounting options for drones, vehicles, bicycles, and tripods.

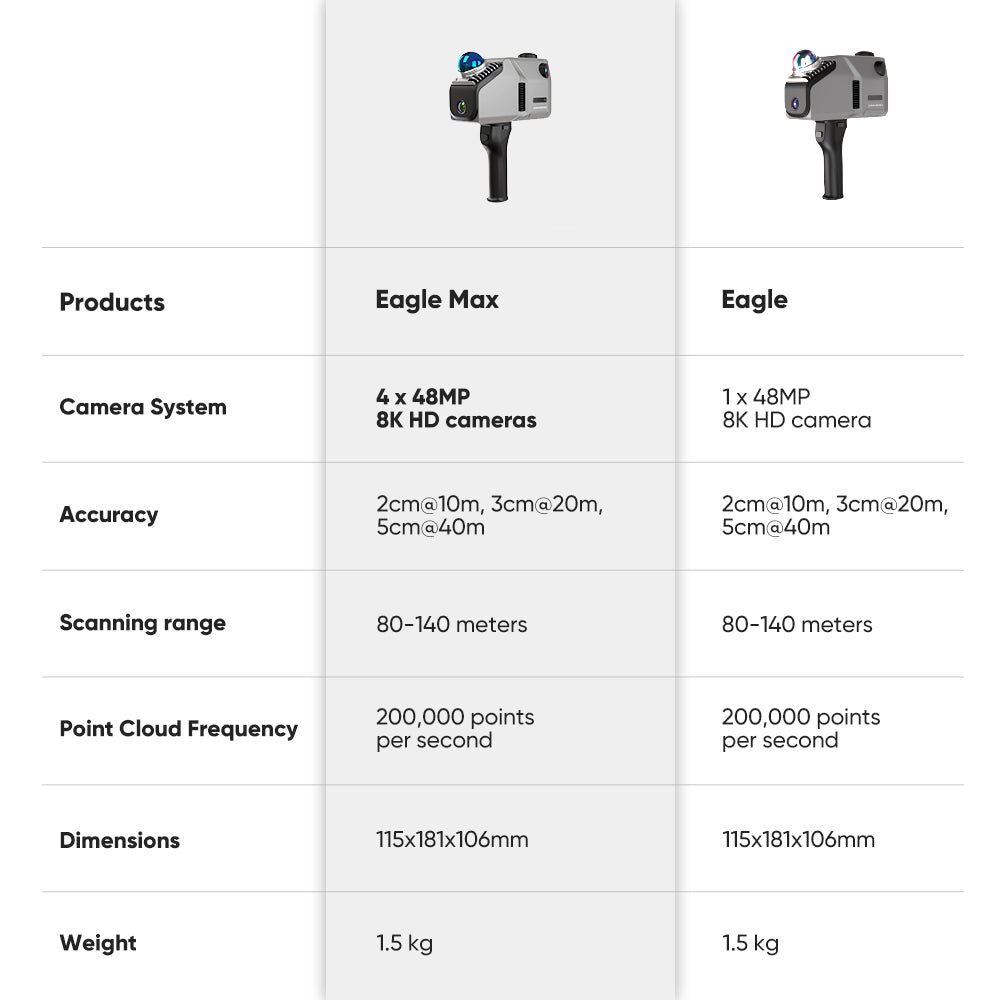

Specifications
| Accuracy | 2cm @ 10m / 3cm @ 20m / 5cm @ 40m |
| Scan radius | 40–70m (at >10%–>80% reflectivity) |
| Scan range | 80–140m |
| Scan angle (FOV) | Horizontal 360°, Vertical 59° |
| Point cloud frequency | 200,000 points/second |
| Laser light source | 905nm |
| Eye safety | Class 1 (IEC 60825-1:2014) |
| HDR mode | 3–5 EV exposure levels |
| Cameras | 4× 48MP fisheye cameras |
| Imaging output | 8K HDR |
| Display | 3.5-inch screen, 3 real-time display modes |
| Capture speed tolerance | Up to 20 km/h moving-platform capture |
| Optional add-on | RTK module |
Specifications are subject to change. Actual accuracy depends on scanning conditions and object surface.

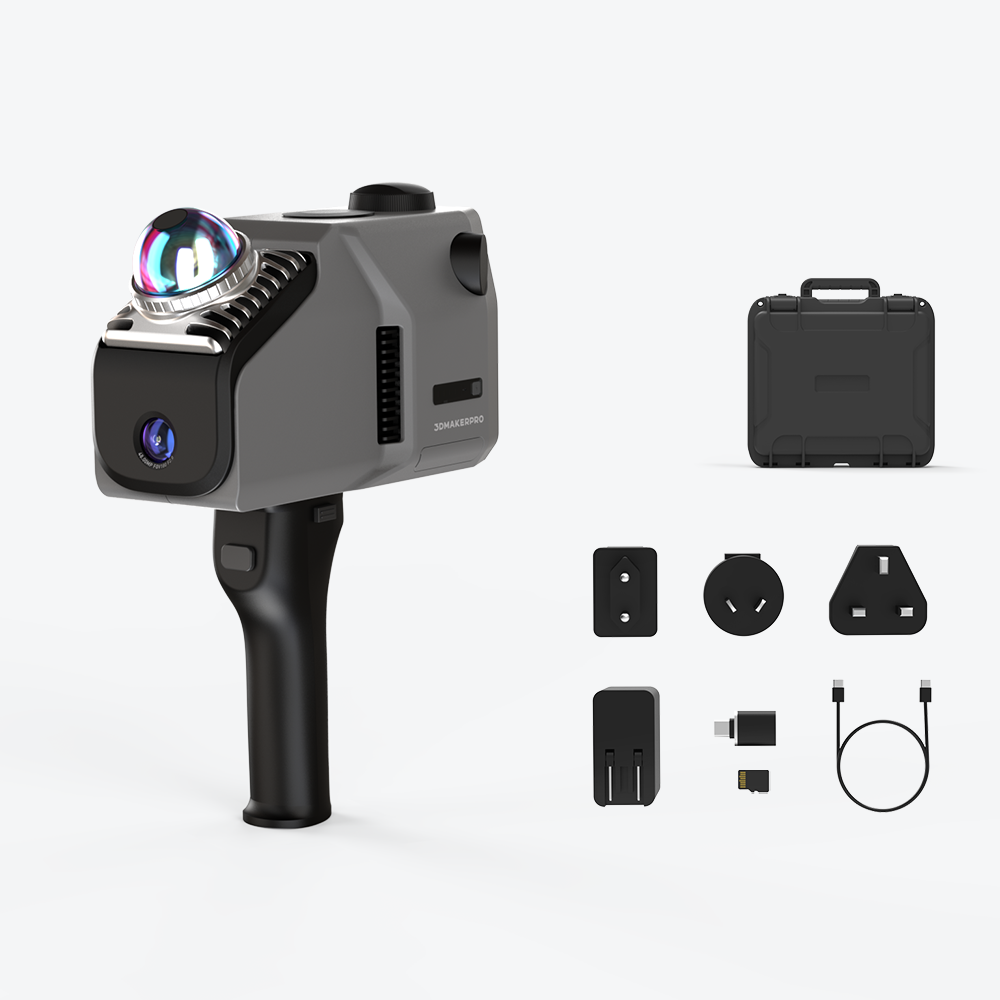

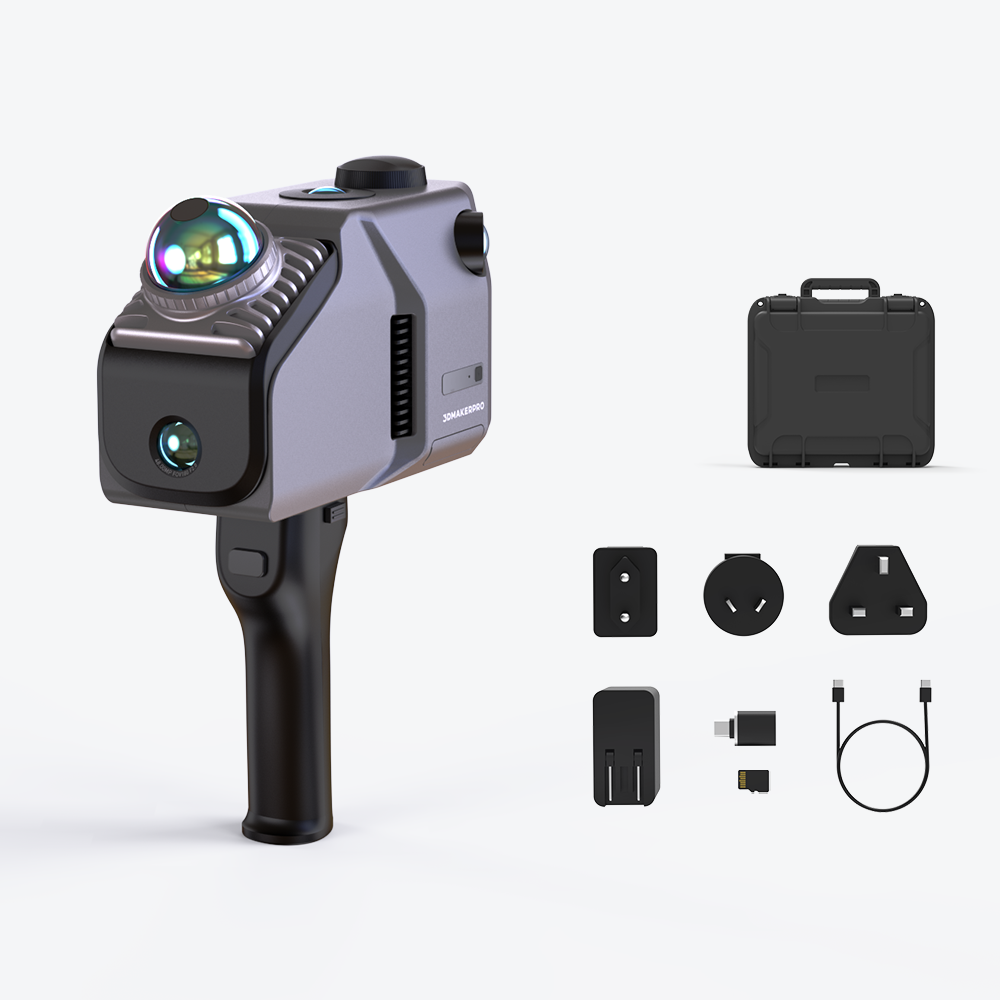

What’s Included
Eagle Max LiDAR Scanner ×1, Handle ×1, PD Power Adapter ×1, 1.5M Dual-Ended Type-C Cable ×1, TF Card (128GB) ×1, USB-C to USB-A Adaptor ×1.
Software
Free companion RayStudio software: real-time point cloud processing and editing, AI-powered denoising, algorithmic optimization for surface accuracy, and export to PLY, OBJ, and Gaussian Splatting PLY — compatible with Revit, Unreal Engine, and Blender.
