Multi Jet Fusion (MJF)

MJF 3D Printing Services in India

Short lead times, low porosity and excellent surface quality. Multi Jet Fusion builds functional prototypes and small series in nylon without a laser.

MJF 3D printing sample 1 by VoxelstudioMJF 3D printing sample 2 by VoxelstudioMJF 3D printing sample 3 by VoxelstudioMJF 3D printing sample 4 by Voxelstudio
Nylon PA-12Production-grade material
±0.3%Accuracy, minimum ±0.3 mm
380 x 284 x 380Largest build area in mm
1 mmMinimum wall thickness

Powder-based printing without a laser

Multi Jet Fusion is a powder-based technology that uses heat, fusing agents, detailing agents and polyamide powder to build parts. Fusing and detailing agents are applied across each powder layer, then heat fuses the shape. The result is a consistent, smooth part that suits functional use.

Best for

  • Functional prototypes
  • Small series and end-use parts
  • Jigs and fixtures
  • Complex shapes and assemblies
  • Parts that need short lead times

Technical specifications

Standard figures for this process. Ask us if your part needs something outside these limits.

SpecificationDetail
Maximum build volumeUnlimited, as parts can be made of several sub-parts. Our largest machine has a 380 x 284 x 380 mm build area.
Dimensional accuracy±0.3% (lower limit ±0.3 mm)
Minimum wall thickness1 mm. Living hinges are possible at 0.5 mm.
Surface structureUnfinished parts have a smooth surface without visible layers and a stone-grey colour. Parts can be sandblasted and coloured or impregnated.
MaterialNylon PA-12

MJF material

One proven nylon for strong, consistent parts.

Nylon PA-12

Strong, tough and durable with low porosity. Good for functional prototypes, jigs, fixtures and end-use parts.

Applications of MJF 3D printing

Functional prototypesProduction partsJigs and fixturesEnclosures and housingsBrackets and clipsComplex assemblies

How MJF 3D printing works

MJF relies on heat, fusing agents, detailing agents and polyamide powder. It starts with a 3D model and a five step process.

1

3D model

The part is designed in CAD software.

2

Powder layer

A single layer of material is applied to the full working area.

3

Agents applied

Fusing and detailing agents are applied across the working area.

4

Parts removed

Parts are removed from the loose powder.

5

Parts complete

Parts are cleaned and finished as agreed.

MJF design guidelines

Simple rules that give you a better part and a faster quote.

Wall thickness

Keep walls at 1 mm or thicker. Living hinges can go down to 0.5 mm.

Hollowing

Hollow parts need escape holes to remove powder.

Warpage

Large flat parts can warp. Add ribs or curves to keep them stable.

Moving parts and assembly

Leave clearances so moving parts work and powder can be cleaned out.

Strength and fragility

Thicken thin features and add fillets where parts take load.

File requirements

Send STL or STEP files with the correct scale and units.

Samples from our workshop

Real parts made by Voxelstudio. See more on our work samples page.

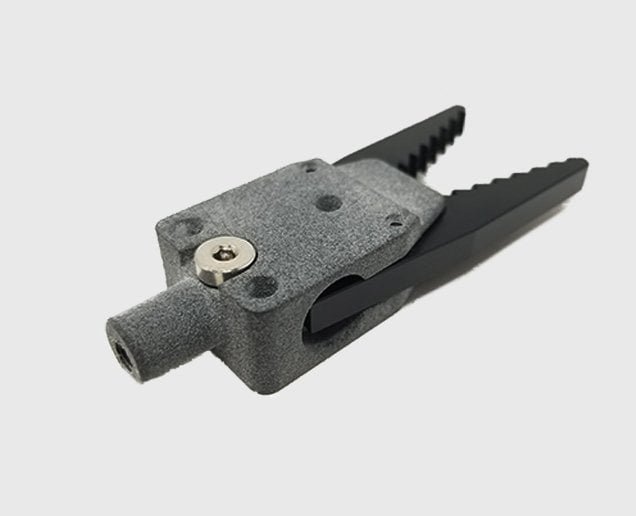

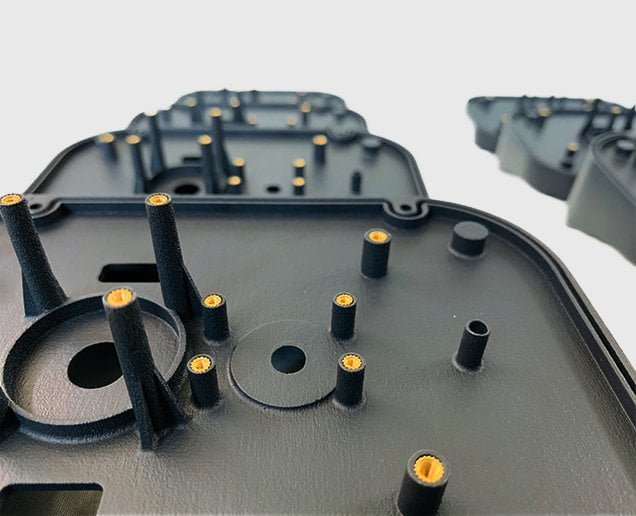

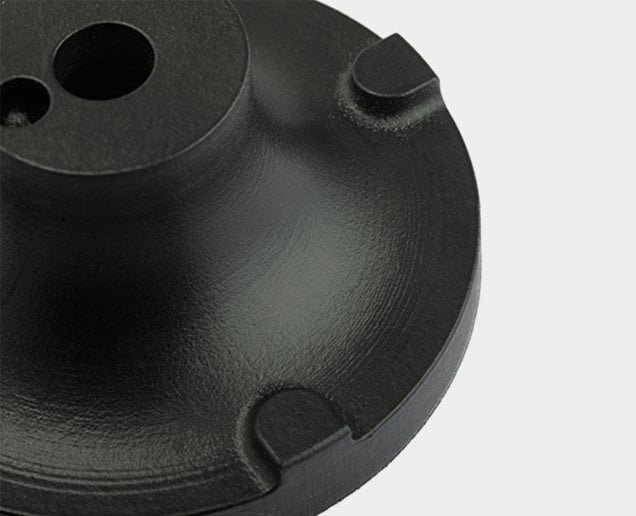

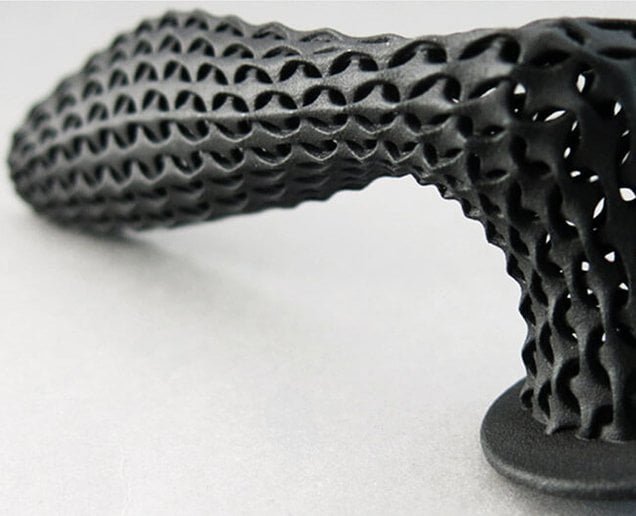

MJF 3D printing sample 1 by VoxelstudioMJF 3D printing sample 2 by VoxelstudioMJF 3D printing sample 3 by VoxelstudioMJF 3D printing sample 4 by VoxelstudioMJF 3D printing sample 5 by VoxelstudioMJF 3D printing sample 6 by Voxelstudio

MJF 3D printing FAQ

What is MJF 3D printing?

Multi Jet Fusion is a powder-based process that uses fusing and detailing agents with heat to build nylon parts, without a laser.

Which material do you use for MJF?

We print in Nylon PA-12.

How big can an MJF part be?

Our largest machine has a 380 x 284 x 380 mm build area. Larger parts can be made in sections.

How does MJF compare with SLS?

Both use nylon powder. MJF gives a smooth, stone-grey surface and consistent parts. SLS gives a grainier finish.

Can MJF parts be coloured or finished?

Yes. Parts can be sandblasted and coloured or impregnated.

Is MJF good for small production runs?

Yes. It suits functional prototypes and small series where tooling is not worth the cost.

Ready to get your MJF quote?

Send your file or idea and we will reply with a suggestion and a quote.
