Vacuum Casting (VC)

Vacuum Casting Services in India

Small series with big impact. Vacuum casting copies a master model in a silicone mold to give parts that are close to injection-molded quality, without the cost of steel tooling.

Vacuum casting sample 1 by VoxelstudioVacuum casting sample 2 by VoxelstudioVacuum casting sample 3 by VoxelstudioVacuum casting sample 4 by Voxelstudio
10 copiesWithin 15 working days
25 copiesTypical per mold
±0.3%Accuracy, minimum ±0.3 mm
1900 x 900 x 750Vacuum chamber in mm

What is vacuum casting?

Silicone molding gives high-quality parts comparable to injection-molded components. That makes vacuum cast models suited to fit and function testing, marketing and limited series of final parts. Vacuum casting also supports many finishing degrees, and we can match the finish you need.

Best for

  • Low-volume production
  • Pre-launch product testing
  • Small series of housings and covers
  • Concept models and prototypes

Technical specifications

Standard figures for this process. Ask us if your part needs something outside these limits.

SpecificationDetail
Standard lead timeUp to 10 copies within 15 working days
Standard accuracy±0.3% (lower limit ±0.3 mm on dimensions smaller than 100 mm)
Minimum wall thicknessAt least 0.75 mm so the mold fills properly. We recommend at least 1.5 mm for best results.
Maximum part dimensionsLimited by the vacuum chamber (1900 x 900 x 750 mm) and by part volume (maximum 10 litres).
Typical quantitiesUp to 25 copies per mold, depending on the complexity of the mold and the casting material
Surface structureHigh-quality finish comparable to injection molding

Vacuum casting materials

Material grades are confirmed in your quote.

ABS

Rigid and tough for housings and functional prototypes.

PC

Strong and heat resistant, including clear grades.

Rubber

Flexible parts such as seals, grips and soft-touch covers.

Wax

Wax copies for casting and jewellery work.

PP

Flexible and impact resistant for hinges and everyday parts.

Benefits of vacuum casting

High accuracy

Parts follow a high-quality master model, so intricate details stay in place.

Economical

Equipment and materials cost less than steel tooling, which suits small businesses and start-ups.

Short lead time

Once the mold is made, no extra tooling or machining is needed, so parts can be ready within days.

Wide range of materials

Thermoplastic-like and thermoset-like materials let you match your requirements.

Vacuum casting applications

AerospaceMedical modelsAutomotiveConsumer goodsElectronicsProduct launch samples

How vacuum casting works

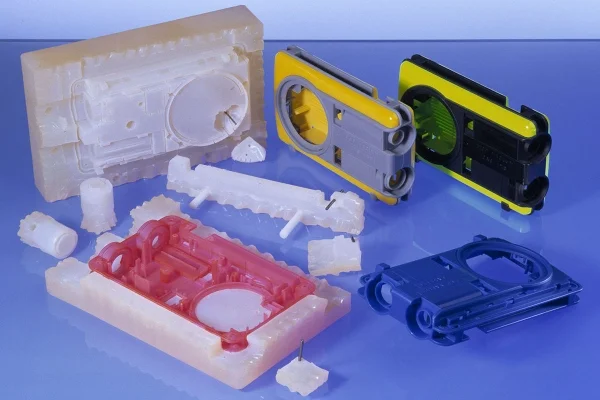

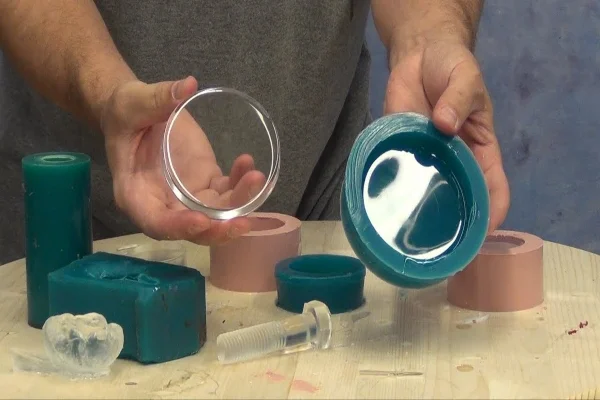

It starts with a master model, usually made by stereolithography or laser sintering with a high-quality surface. A silicone mold is cast around the master under vacuum to avoid air bubbles. After curing, the mold is cut open and the master is removed, leaving a cavity for copies.

1

The 3D model

Your CAD file is prepared for the master.

2

Master is built

The master part is built with SLA for a smooth surface.

3

Master is finished

Support is removed and the master is finished.

4

Silicone mold

The master is immersed in silicone to form the mold.

5

Casting under vacuum

Polyurethane is poured into the mold and cast under vacuum.

6

Finishing

Excess material is removed and the part is finished.

Vacuum casting design tips

Simple rules that give you a better part and a faster quote.

Wall thickness

Use at least 1.5 mm for best results. 0.75 mm is the minimum for the mold to fill.

Part size

Parts must fit the vacuum chamber and stay under 10 litres in volume.

Quantity

Plan for up to 25 copies per mold. Order more molds for larger runs.

Finish

Tell us the colour, gloss or texture you need so we can match it.

Master quality

The surface of the master is copied, so a smooth master gives smooth copies.

File requirements

Send STL or STEP files with the correct scale and units.

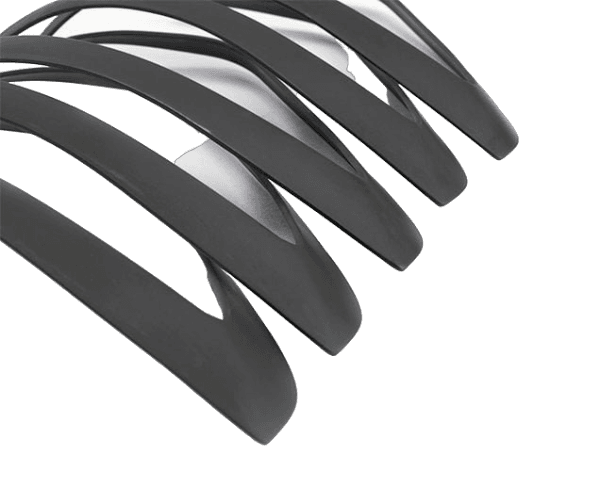

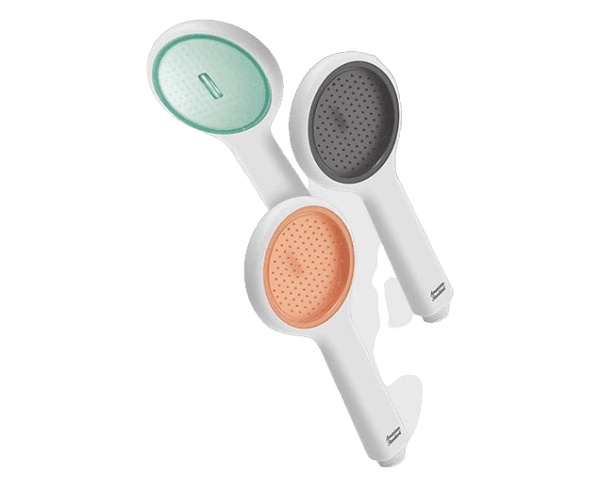

Samples from our workshop

Real parts made by Voxelstudio. See more on our work samples page.

Vacuum casting sample 1 by VoxelstudioVacuum casting sample 2 by VoxelstudioVacuum casting sample 3 by VoxelstudioVacuum casting sample 4 by VoxelstudioVacuum casting sample 5 by VoxelstudioVacuum casting sample 6 by Voxelstudio

Vacuum casting FAQ

How many copies can one mold make?

Typically up to 25 copies per mold, depending on the complexity of the mold and the casting material.

How long does vacuum casting take?

Up to 10 copies can be ready within 15 working days.

What is the maximum size?

Parts are limited by the vacuum chamber, 1900 x 900 x 750 mm, and by a maximum part volume of 10 litres.

How accurate are cast parts?

Standard accuracy is ±0.3% with a lower limit of ±0.3 mm on dimensions smaller than 100 mm.

Is vacuum casting better than 3D printing?

For small series of 10 to 25 parts with a smooth finish, it often is. It copies one master many times at a lower cost per part.

Do I need to provide a master?

No. We build the master from your CAD file, usually with SLA, then make the mold.

Ready to get your vacuum casting quote?

Send your file or idea and we will reply with a suggestion and a quote.
