3DMakerpro Toucan Standard 3D Scanner

SKU: Toucan Standard 3D Scanner Categories: 3D SCANNERS, 3DMakerpro 3D SCANNERS Tag: Toucan

All-in-One Workflow: Scan, edit and export complete 3D models with no computer required.
High Precision: Up to 0.03mm accuracy and 0.05mm resolution in small/fine mode.
Large Field of View: Up to 1000×750mm scanning range for large objects.
High-Power MEMS Optics: Upgraded projector for finer detail and larger, brighter captures.
Deep Cavity Scanning: Super Scan Depth reaches 200–1000mm into recesses like vase interiors.
Smart Resume Scan: Automatically fills gaps across object orientations, including undersides.
Three Scan Modes: Continuous handheld, single-shot photo, and fixed table scanning.
Camera-Like Controls: Multi-level damping wheel plus quick buttons for start/pause/end/photo.
48MP Color Capture: 4 3D cameras plus a dedicated 48MP RGB camera with 24-bit color texture.
Free Scanning Software: Includes JMStudio with one-click optimization and multi-format export.

Original price was: ₹354,478.00.Current price is: ₹153,898.00. Including Tax

Fast Shipping

Secure Payment

Tracking Updates

Best Prices

Chat Support

In Stock Alert

Payment Methods:

Description
Reviews (0)

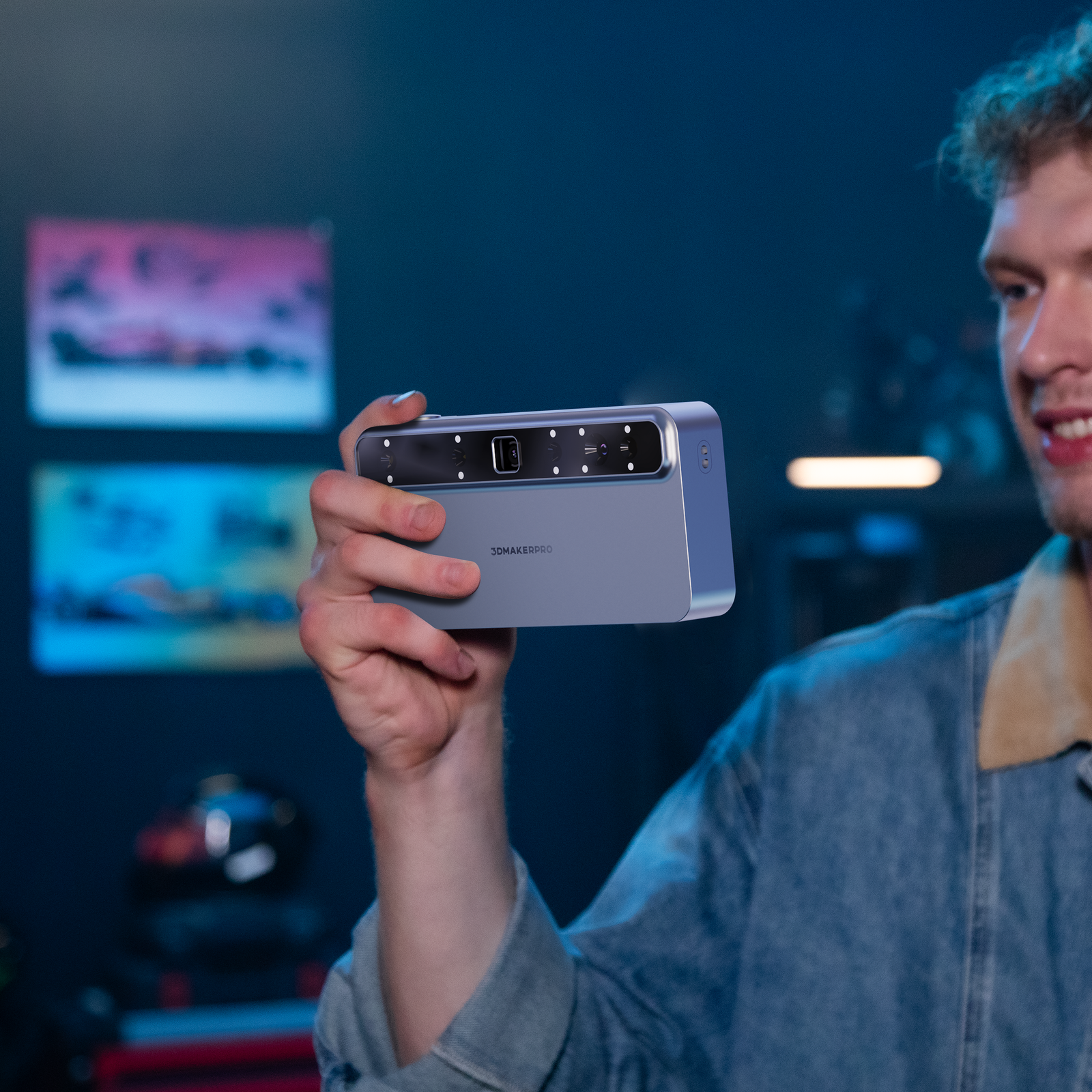

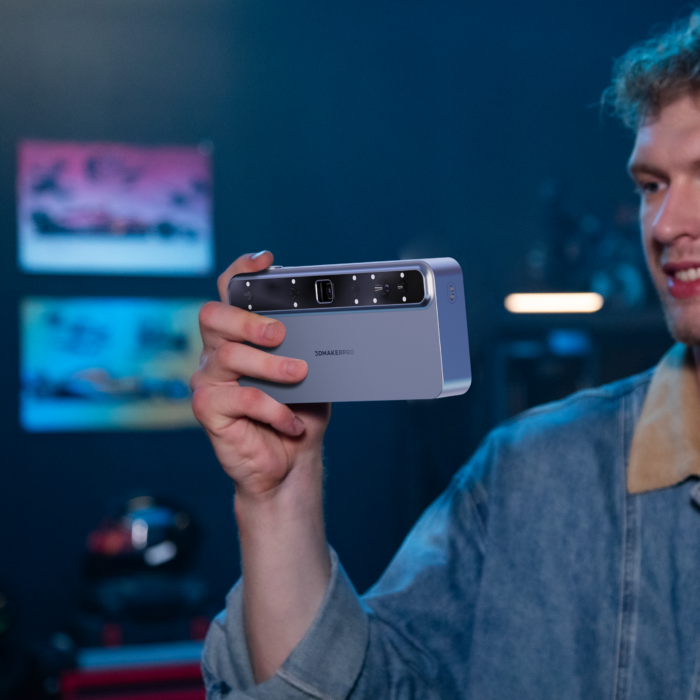

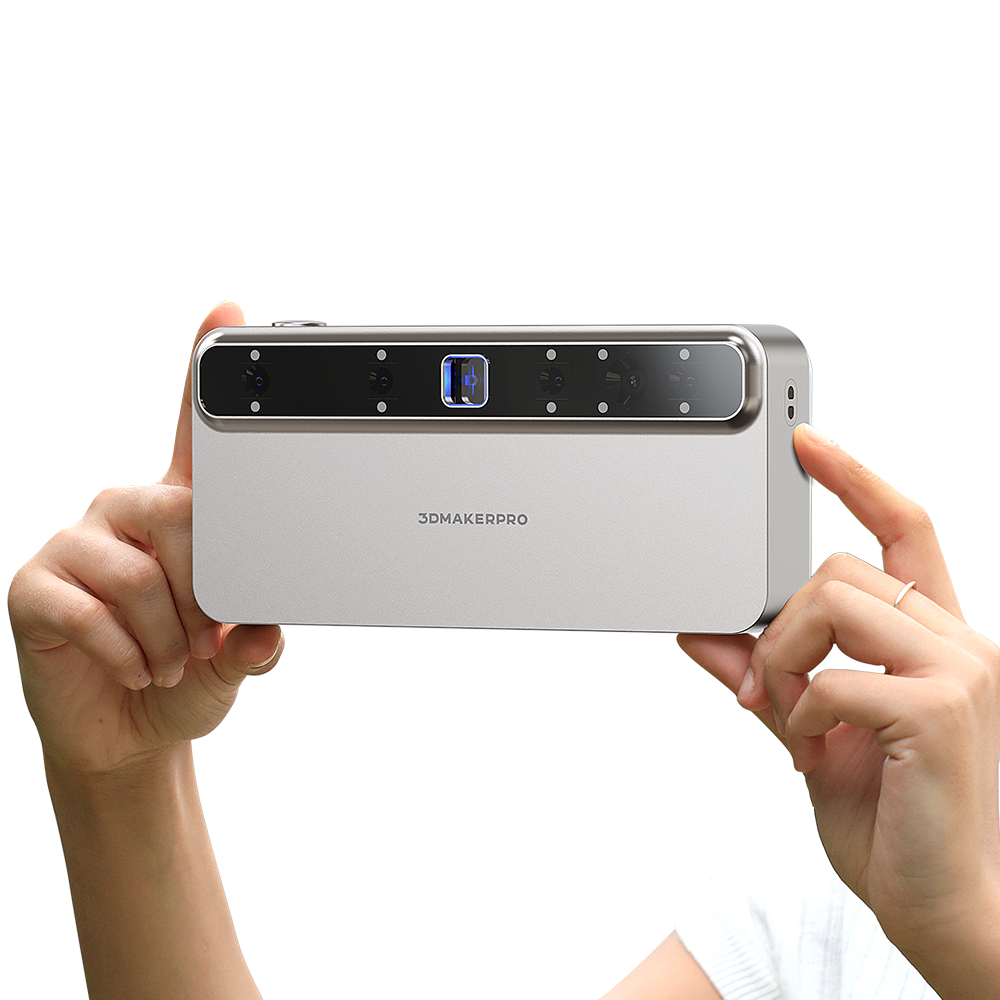

3DMakerpro Toucan 3D Scanner

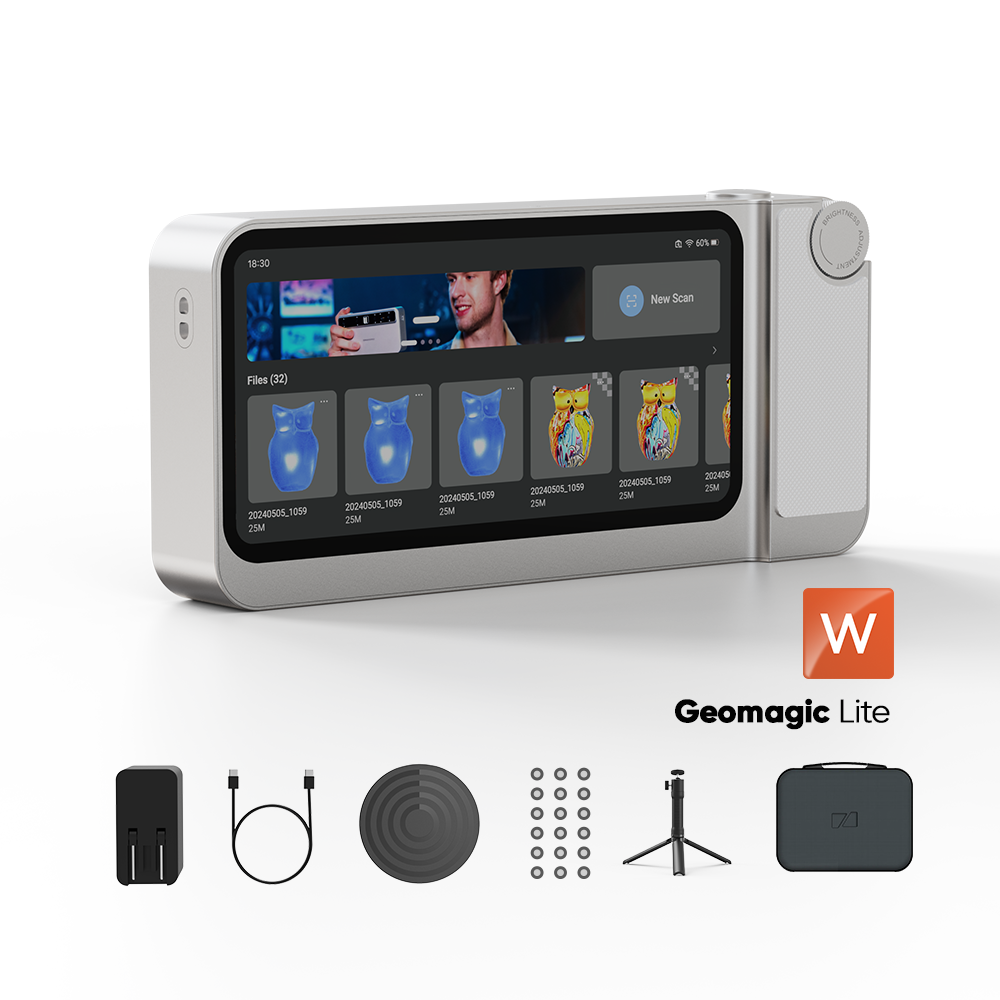

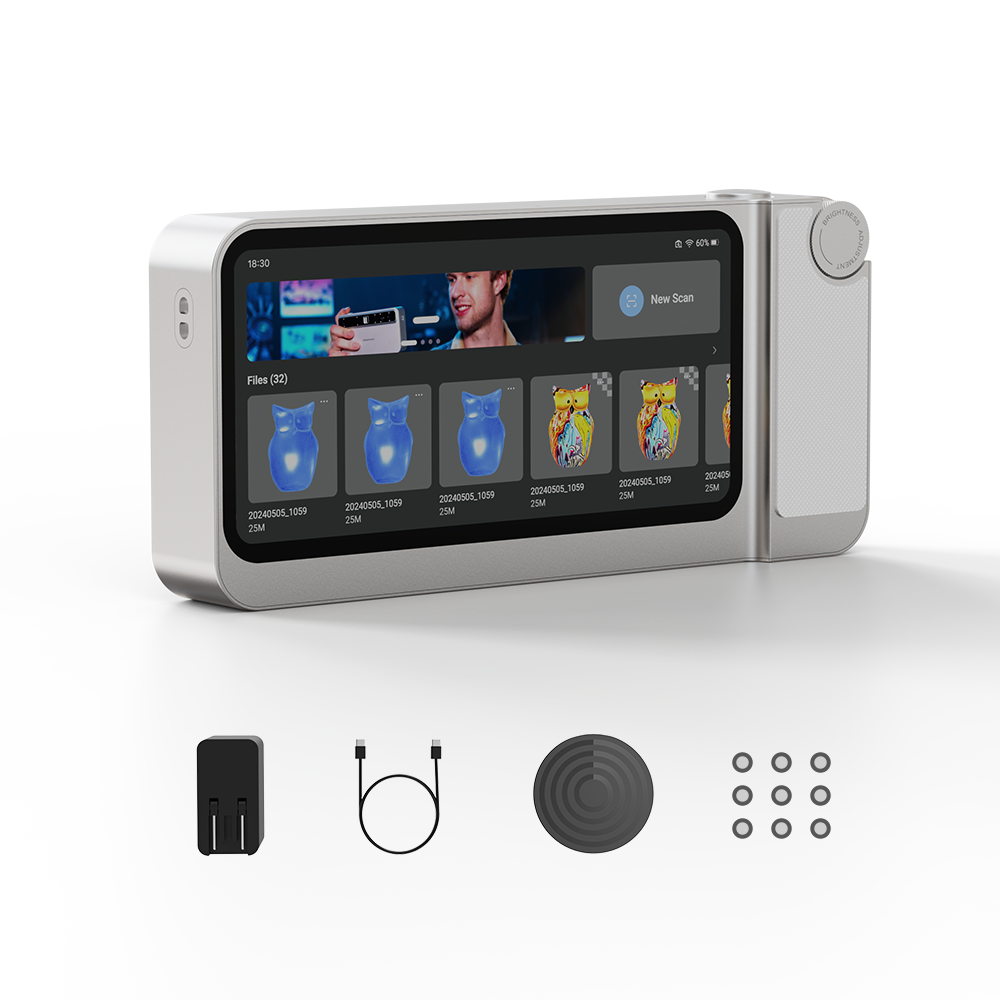

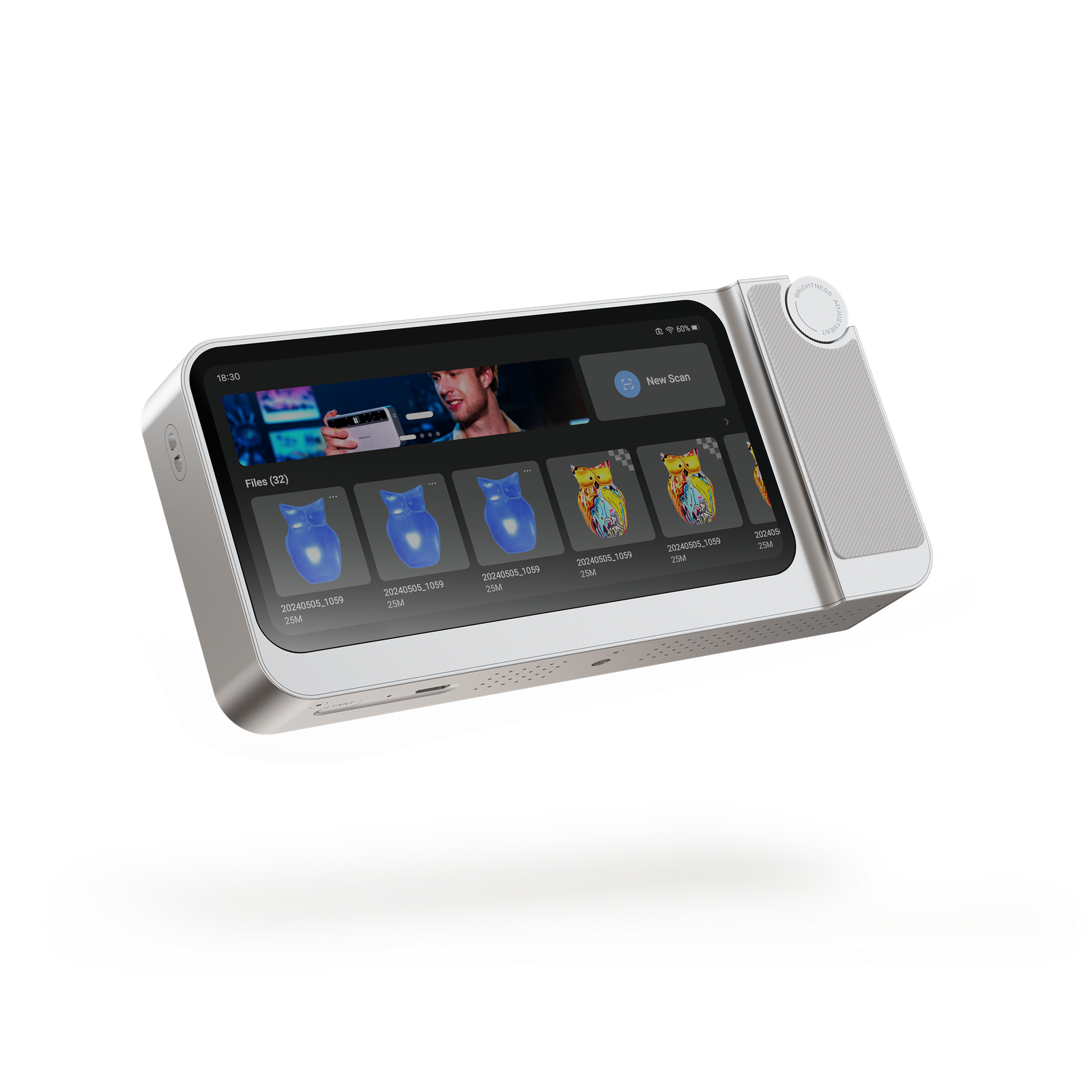

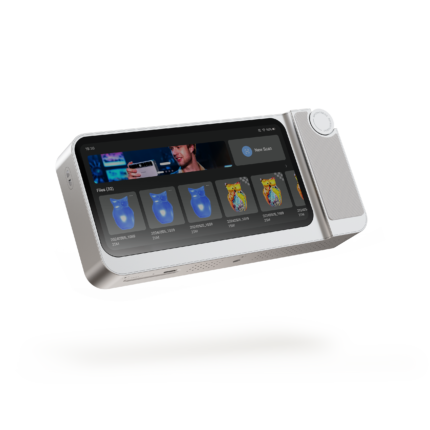

Toucan is 3DMakerpro’s all-in-one standalone flagship scanner — scan, edit, and export complete 3D models entirely on the device, no computer required. It pairs phase-shifting structured light optics with an onboard touchscreen and processor for a full scan-to-export workflow.

One for All, All in One

From desktop figurines to life-size sculptures, Toucan handles the full range with near/far scan modes, capturing continuous handheld scans, single-shot photo scans, or fixed table scans.

Finer, Larger, Brighter

An upgraded MEMS projector improves accuracy and adaptability for both small, detailed work and large-scale objects: up to 0.03mm accuracy and 0.05mm resolution on the small/fine setting, with working distance reaching 1000mm for large-object scanning.

Large mode covers cars, bodies, and furniture with expansive coverage for full models in seconds
Small/fine mode captures portraits, figurines, electronics, and car parts with sharp accuracy

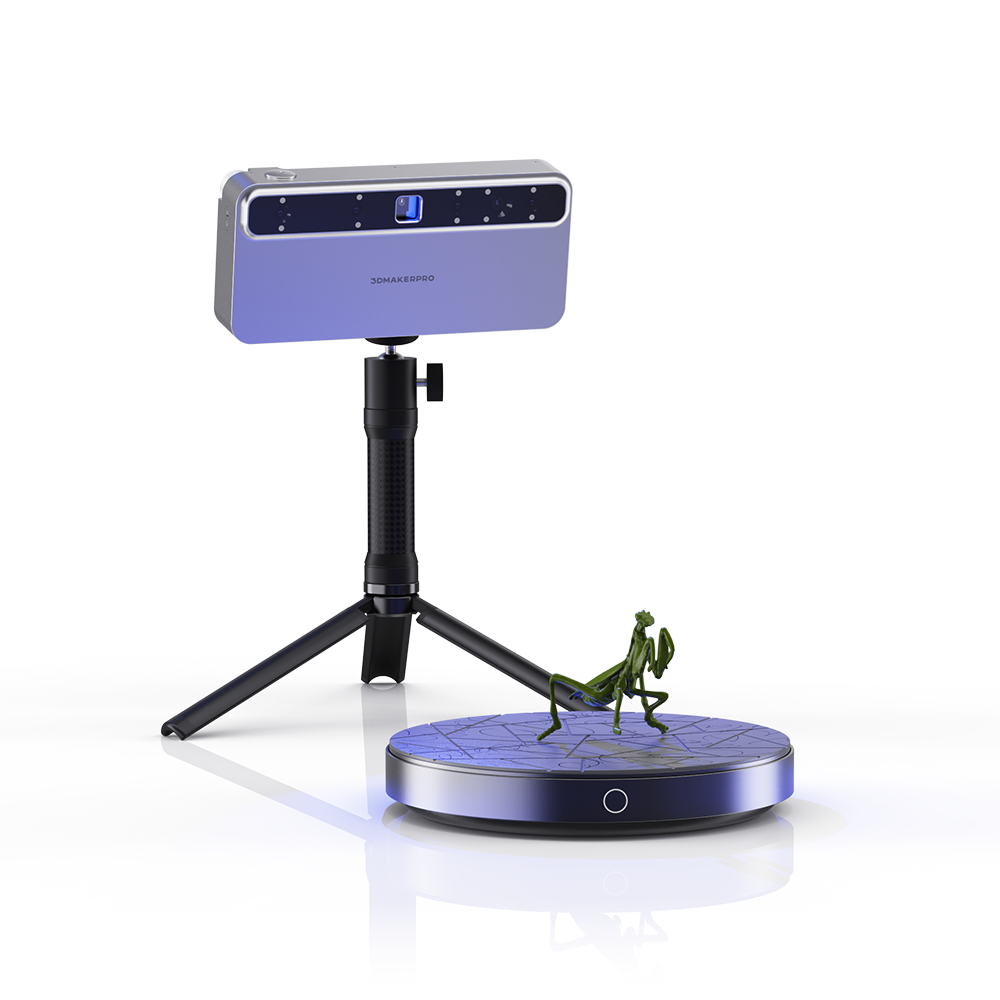

Fixed-shot mode (with electric turntable, sold separately) targets specimens, jewelry, and dental molds using Phase-Shifting Structured Light

Super Scan Depth

Scans 200–1000mm deep, able to probe cavities such as the interior of a 33cm vase.

Smart Resume Scan Mode

Toucan recognizes different object orientations and fills in gaps during scanning, capturing undersides and internal structures without restarting.

Camera-Like Controls

A multi-level damping wheel adjusts parameters, modes, and zoom, and dedicated quick buttons handle scan start, pause, end, and single-shot photo capture.

Specifications

Scan type	Continuous Handheld Scan / Photo Scan / Table Scan
Cameras	4× 3D cameras + 1× 48MP RGB camera
Light source	Blue Laser Structured Light (Class 1 / Class 3R)
Single-frame accuracy	≤0.03mm (Small) / ≤0.10mm (Large)
Resolution	≤0.03mm (Fixed Shot) / ≤0.05mm (Small) / ≤0.10mm (Large)
Scanning range (FOV)	135 × 185mm (Small) / 1000 × 750mm (Large)
Working distance	200–1000mm
Scan speed	Up to 15 fps
Processor	8-core 2.4GHz CPU + Mali-G52 GPU
Memory / storage	32GB DDR4 / 256GB eMMC
Color texture	24-bit color texture
Typical object sizes	15–4000mm
Dimensions	200 × 93 × 37.5mm
Weight	735g
