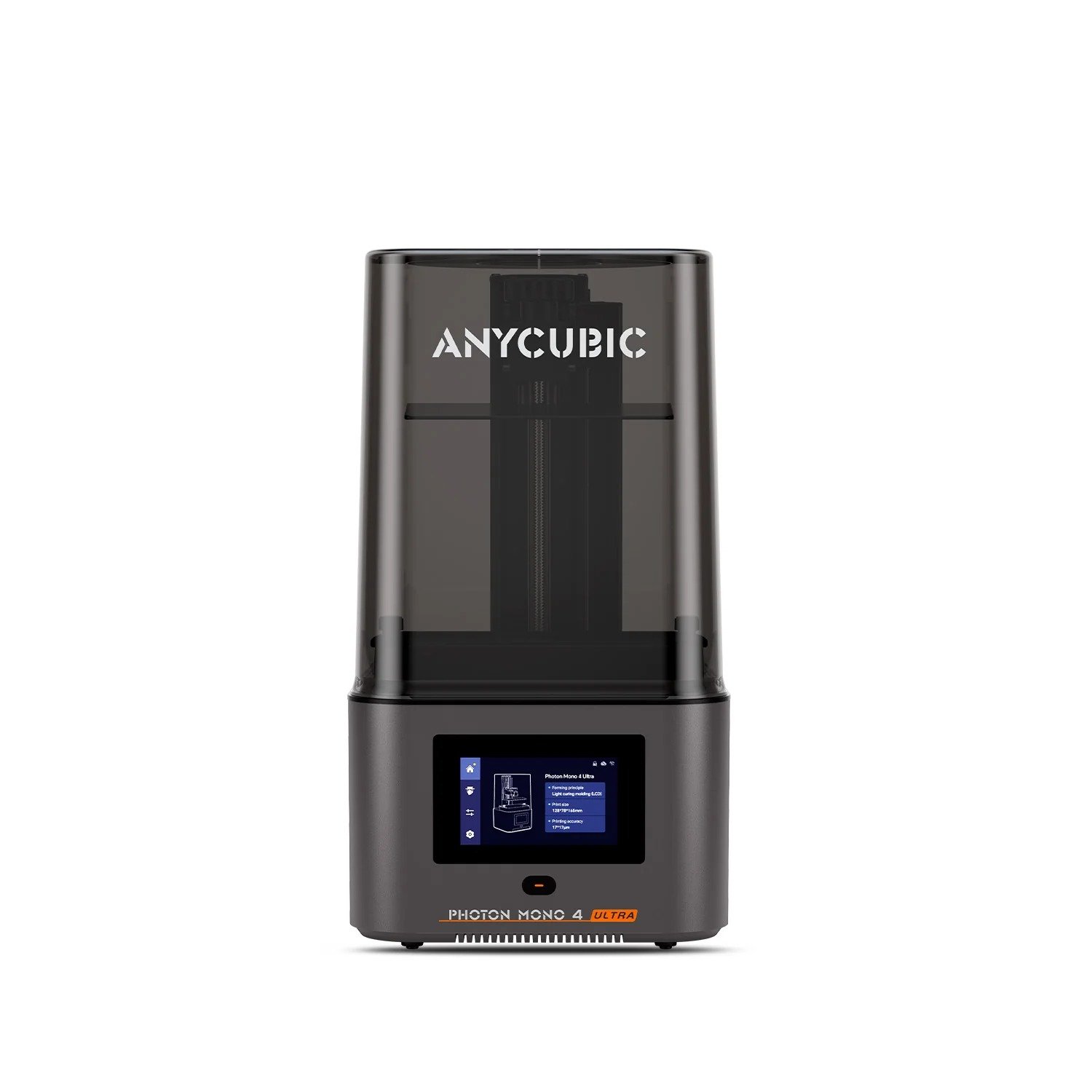

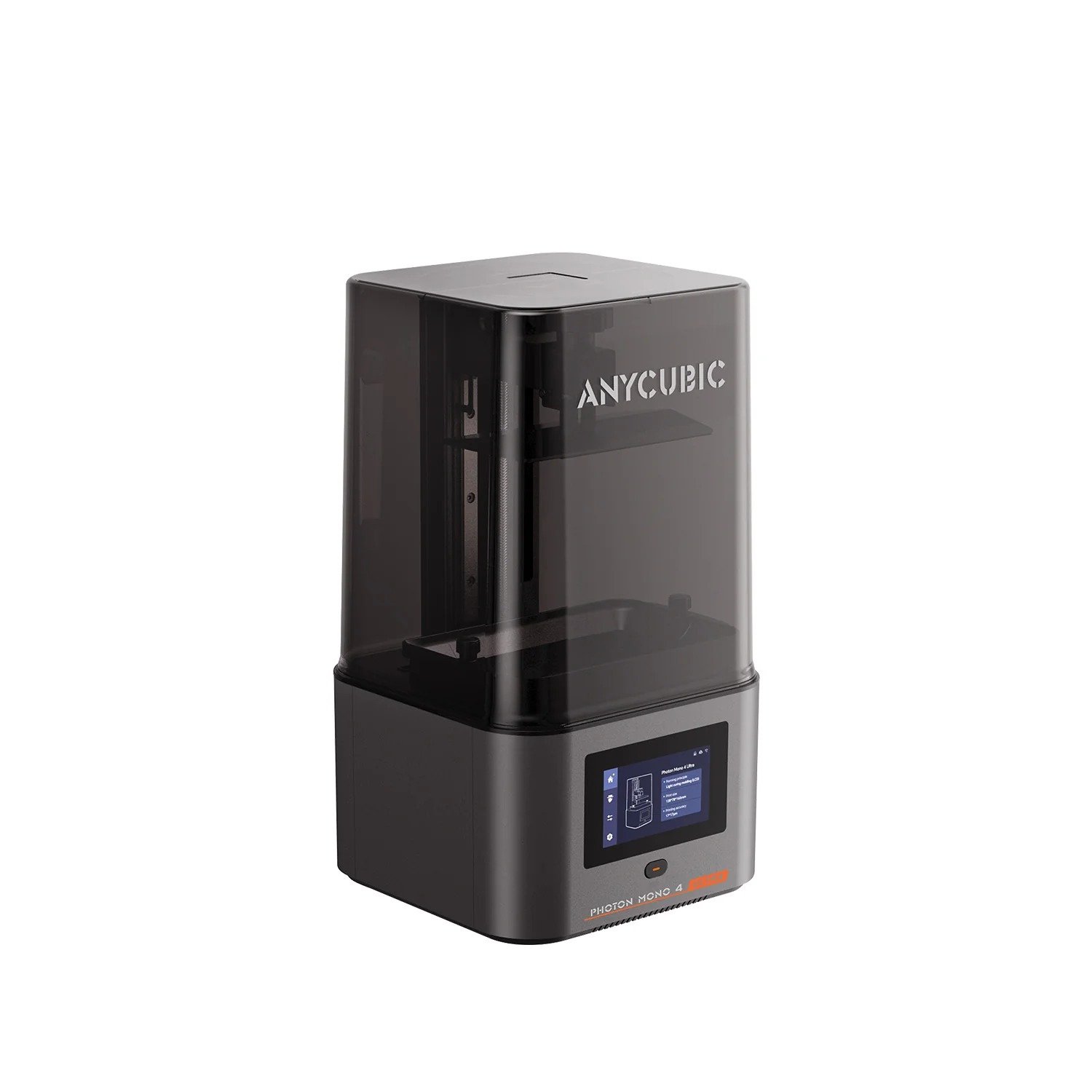

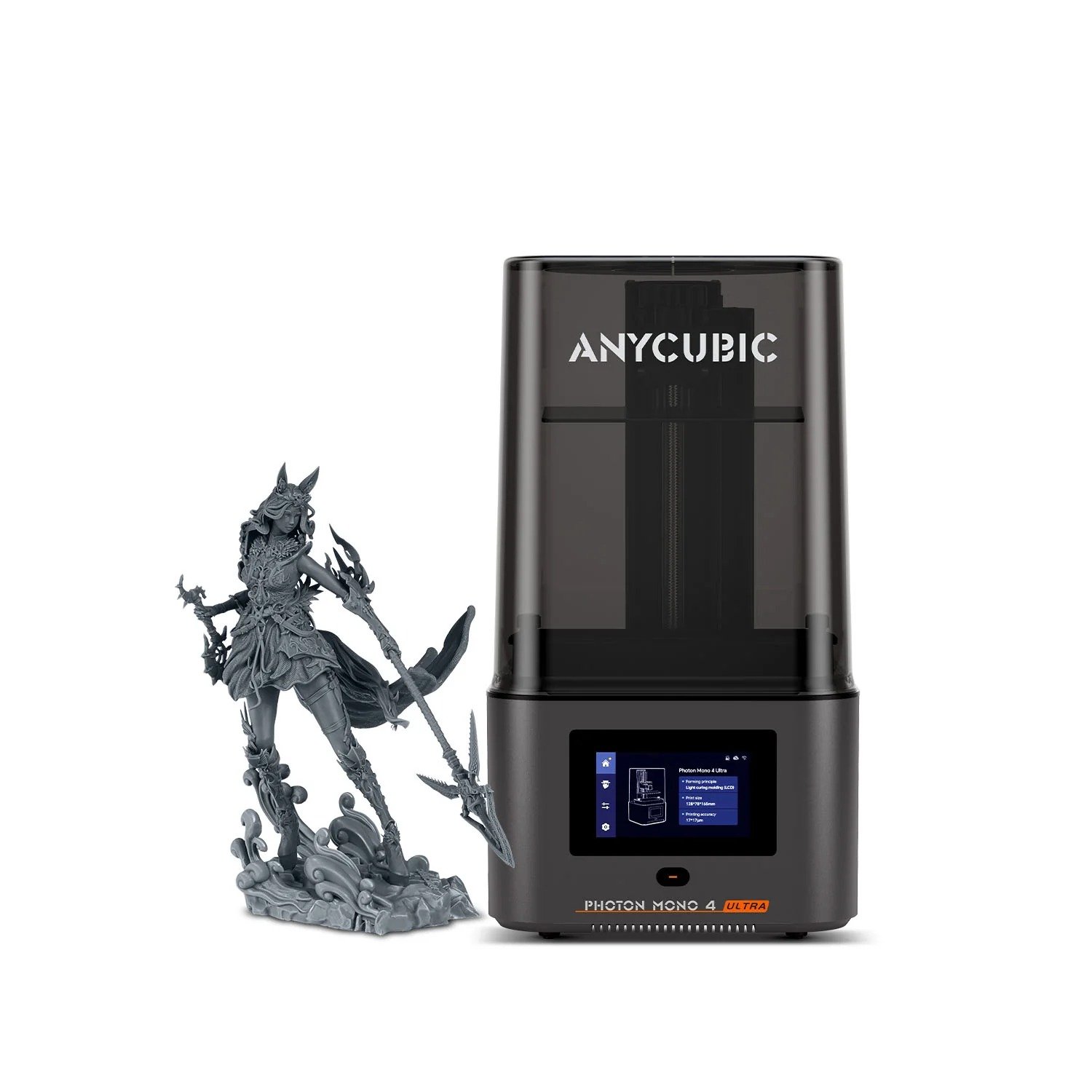

Anycubic Photon Mono 4 Ultra Resin 3D Printer | 10K | 153.4 × 87 × 165mm

Product Features

● 7” 10K screen (9024×5120 resolution) with 17×17μm pixel size
● Advanced COB Light Source and Fresnel Lens
● Intelligence Assisted Printing System
● Faster Printing: 0.1mm at max. 120mm/h with High Speed Resin 2.0

₹31,999.00 Including Tax

Ask for Help
Recommended for this printer
Complete your setup

Everything you need to start printing, picked for this printer.

0 selected With printer

Fast Shipping

Secure Payment

Tracking Updates

Best Prices

Chat Support

In Stock Alert

Payment Methods:

Visa payment accepted
Debit and credit card payment accepted
Net banking payment accepted
Google Pay accepted
Paytm payment accepted
Amazon Pay accepted
UPI payment accepted

Why Choose Photon Mono 4 Ultra

Anycubic Photon Mono 4 Resin 3D Printer - product image 12
10K Precision, Almost Detail-Perfect
Anycubic Photon Mono 4 Ultra Resin 3D Printer - product image 5

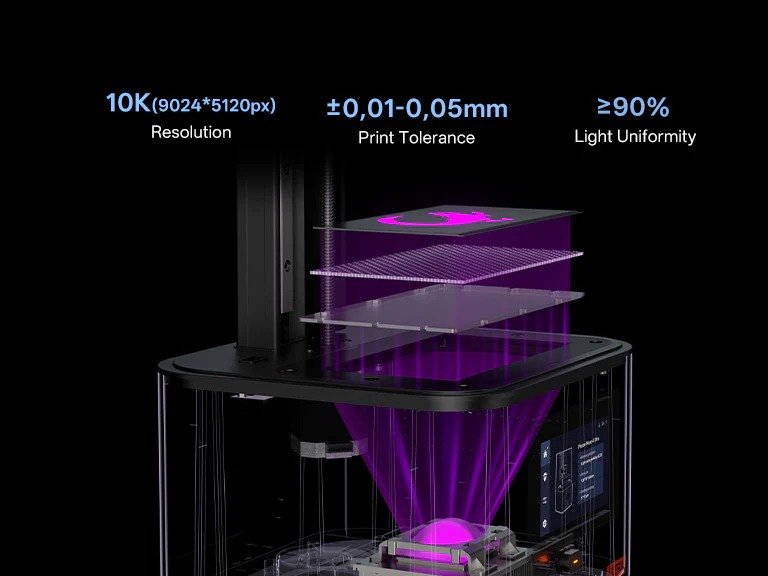

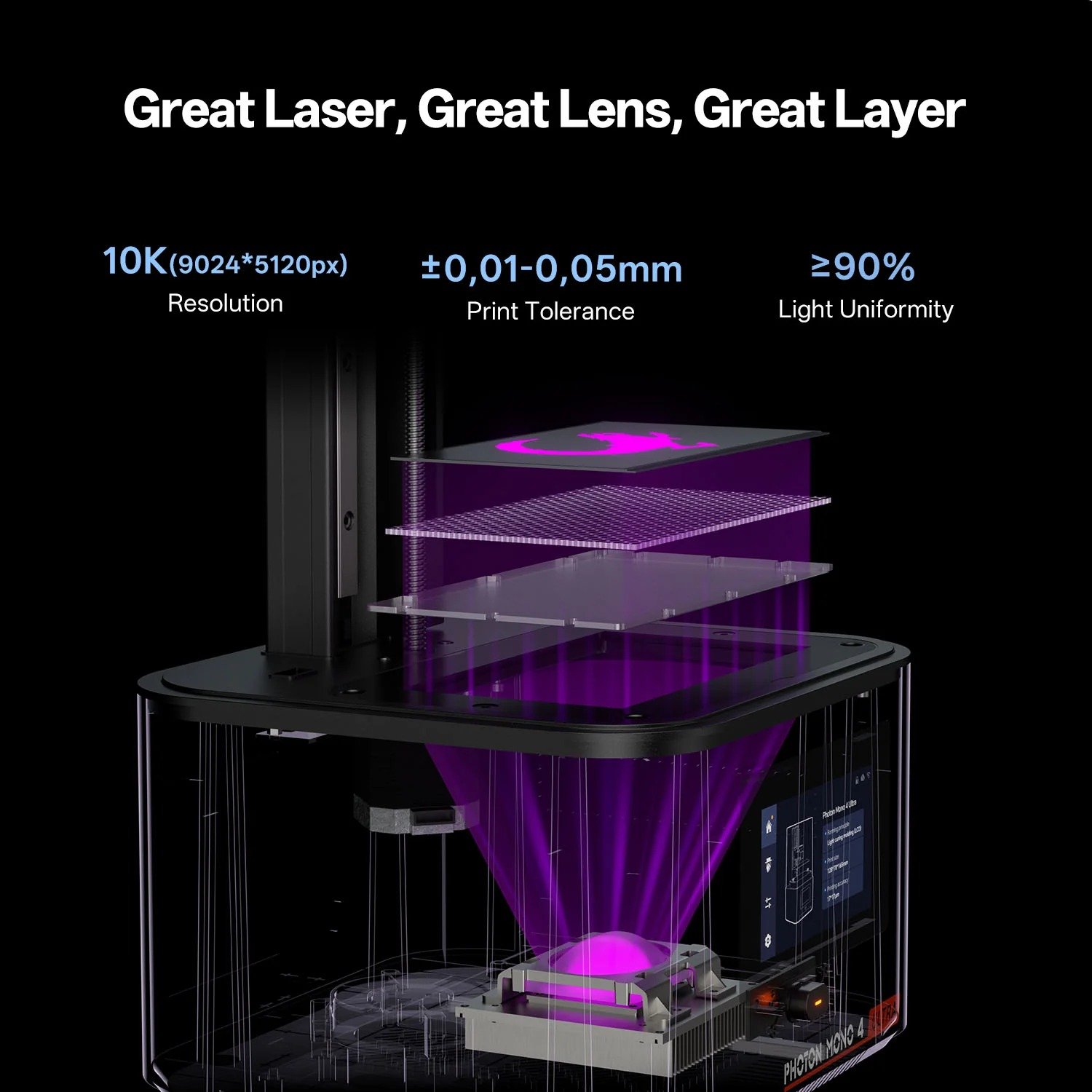

Great Laser, Great Lens, Great Layer
Anycubic Photon Mono 4 Ultra Resin 3D Printer - product image 3
There's No Resin to Print Slow
Anycubic Photon Mono 4 Ultra Resin 3D Printer - product image 4

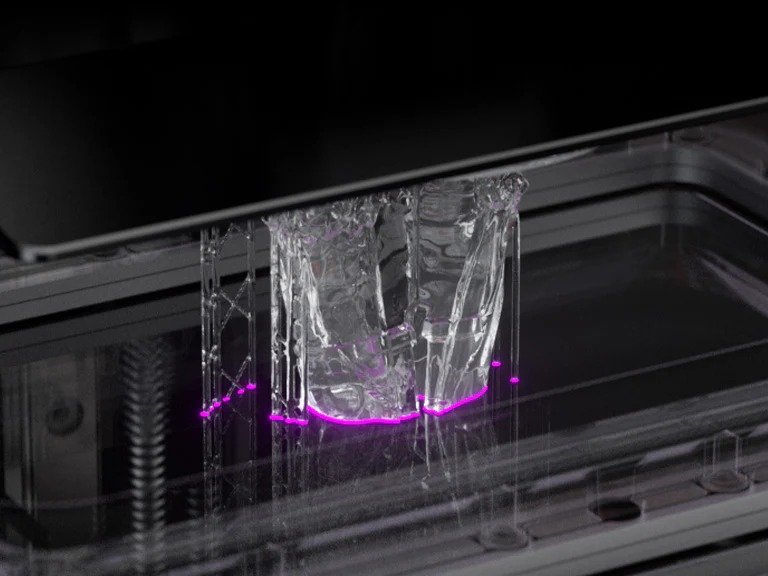

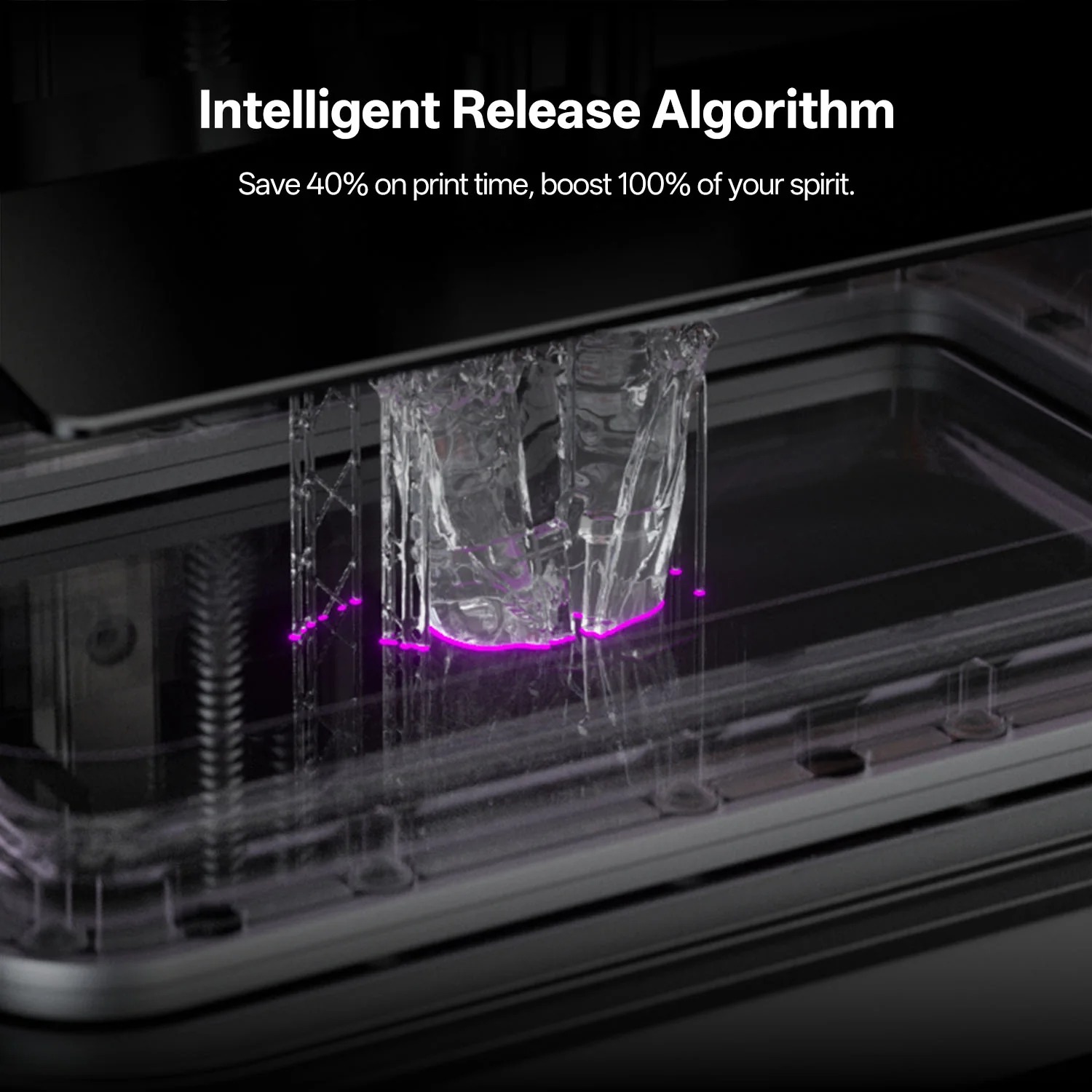

Intelligent Release Algorithm
Anycubic Photon Mono 4 Ultra Resin 3D Printer - product image 6

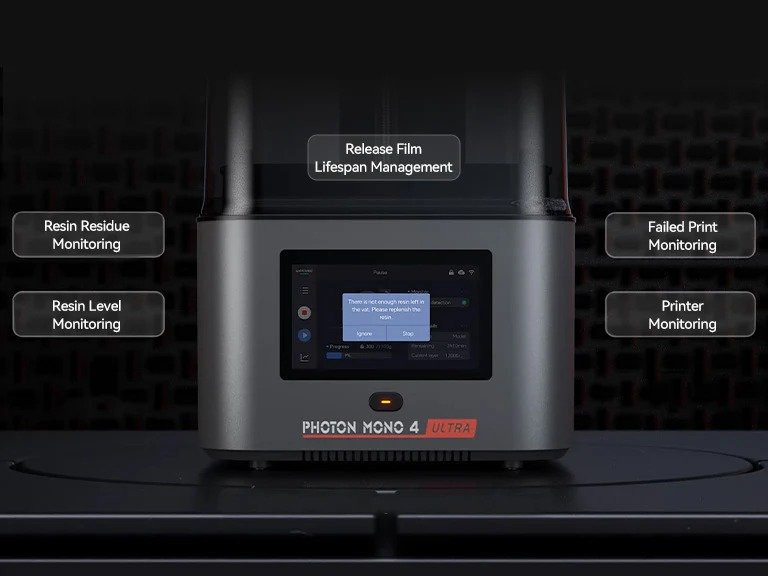

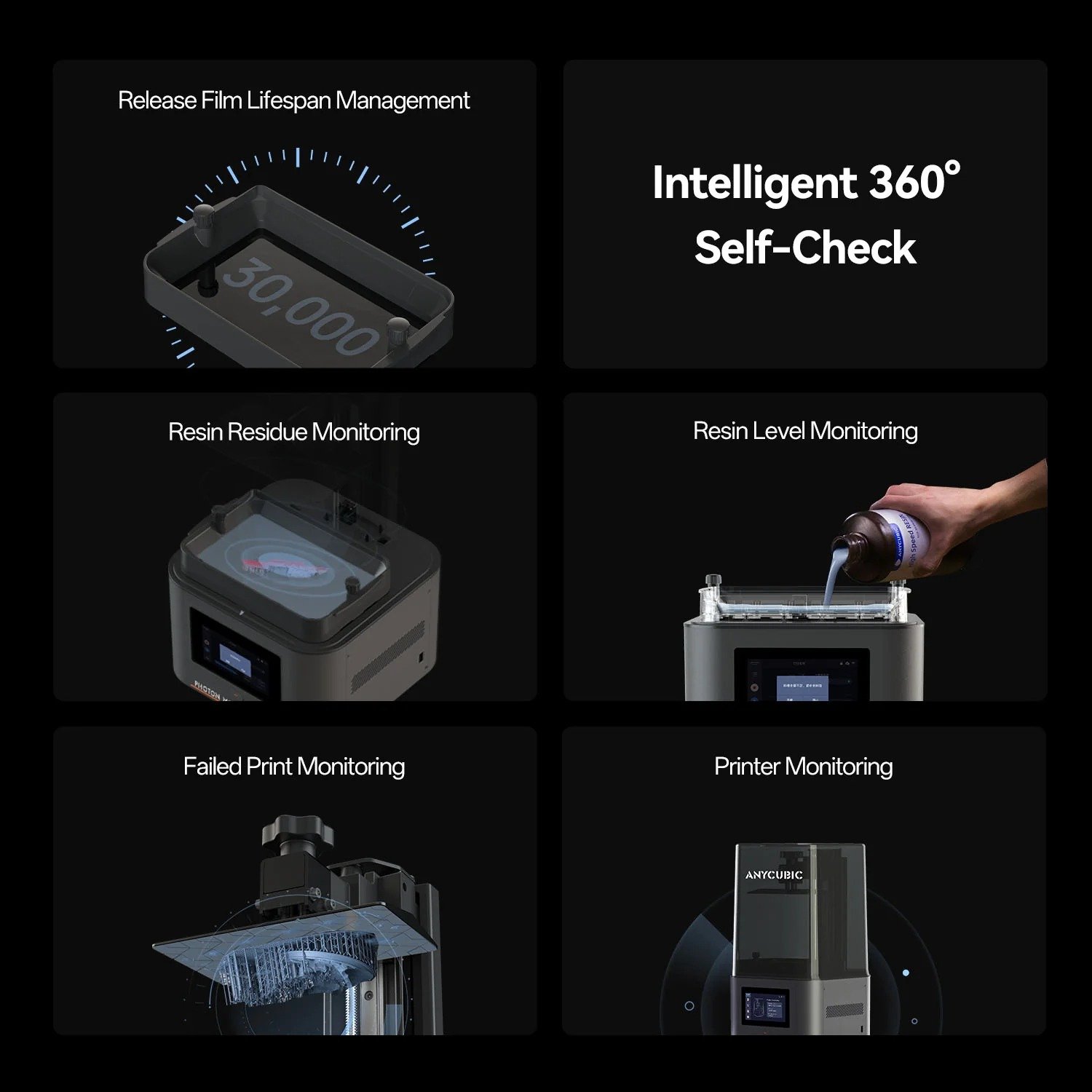

Intelligent 360° Self-Check
Anycubic Photon Mono 4 Resin 3D Printer - product image 16

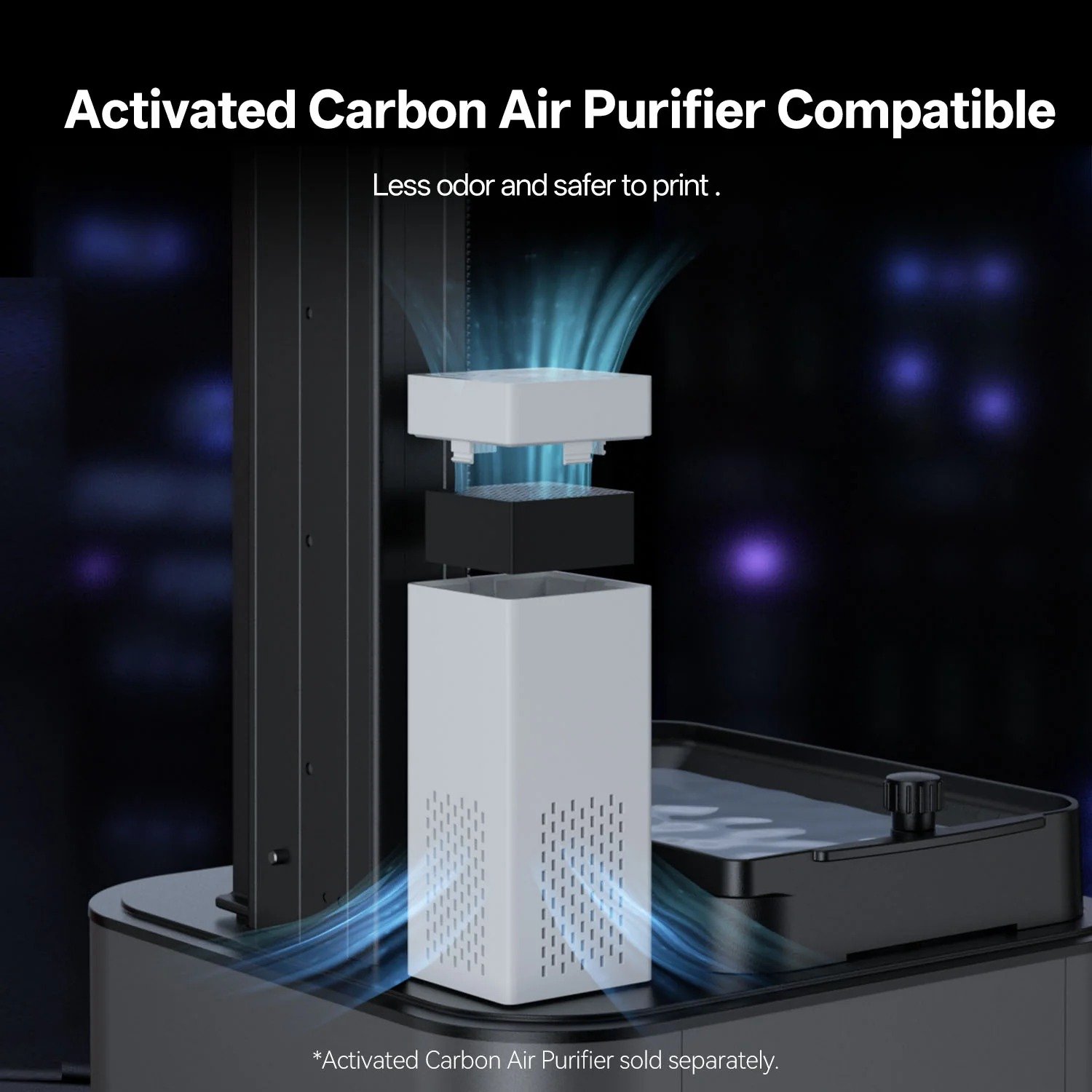

Activated Carbon Air Purifier
Anycubic Photon Mono 4 Resin 3D Printer - product image 24
Anycubic Photon Mono 4 Resin 3D Printer - product image 25
Anycubic Photon Mono 4 Resin 3D Printer - product image 26

10K Precision, Almost Detail-Perfect

Printing with 0.02mm Layer Height

105% precision increase compared to Mono 2

X/Y-axis pixel precision reaches 17*17 μm

Anycubic Photon Mono 4 Resin 3D Printer - product image 12
Anycubic Photon Mono 4 Ultra Resin 3D Printer - close-up detail

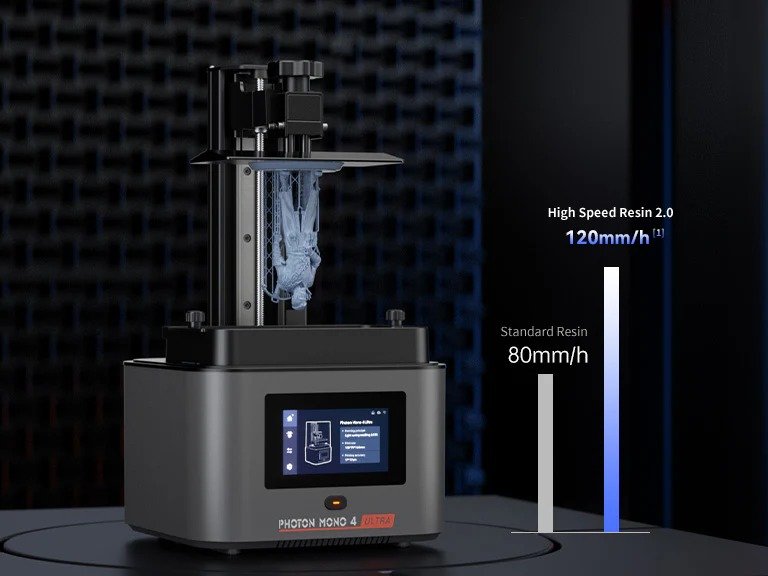

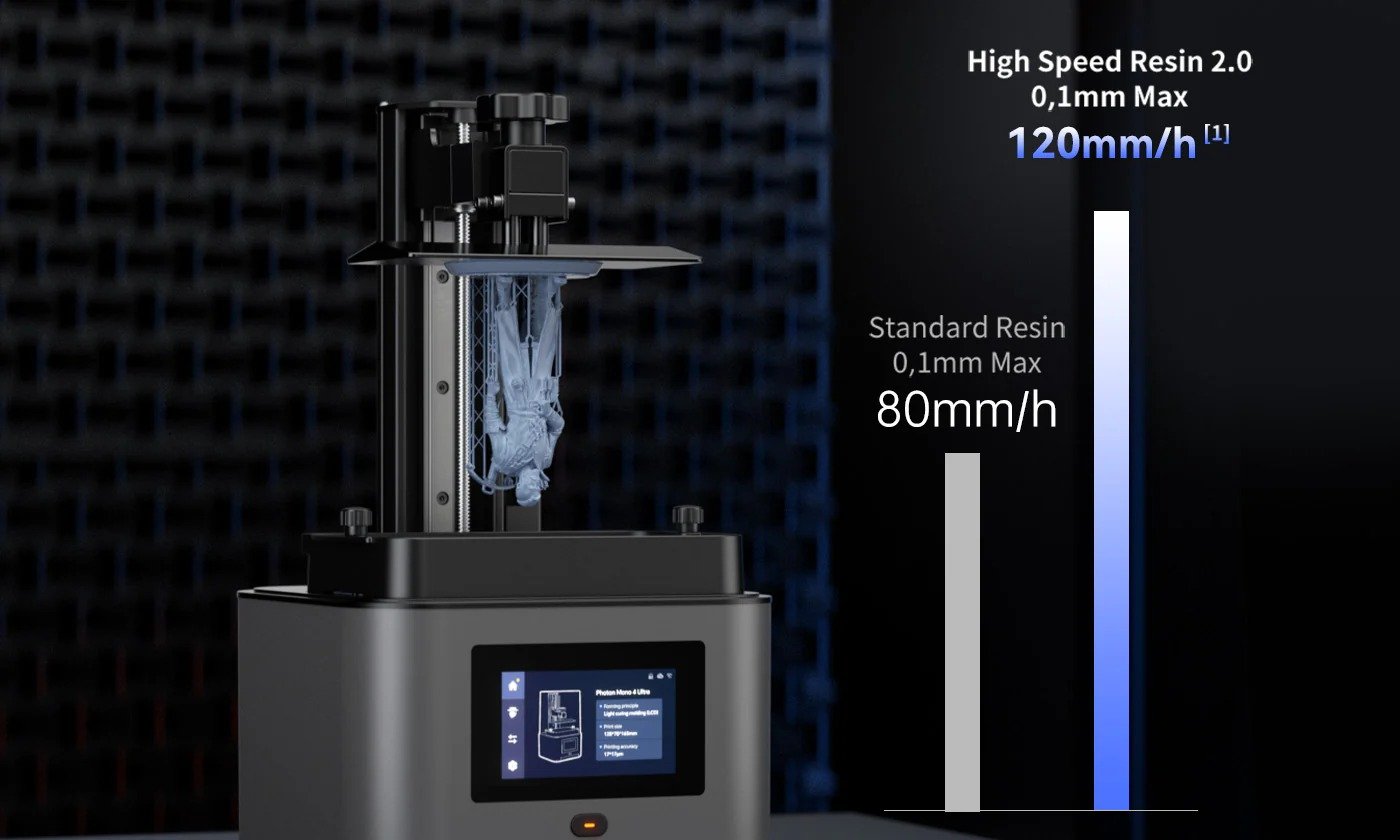

There's No Resin to Print Slow

0.1mm Layer Height Test StandardStandard Resin: Max. 80mm/hHigh Speed Resin 2.0: Max. 120mm/h*

*Experience high-speed printing under the most challenging printing conditions, even with a layer height at just 0.1mm

Specification

Core Printing Performance​
Printing Speed
Max Speed ≤80mm/h; Standard Resin (0.1mm): ≤80mm/h; High-Speed Resin (0.1mm): ≤120mm/h
Printing Volume
153.4*87*165mm (2.2L)
Layer Height Range
0.02-0.15mm
X/Y Axis Resolution
17 × 17μm
Light Source
COB light source + Fresnel lens + Light uniformity algorithm
Light Intensity
≥3500μW /cm²
Material Compatibility
High-speed, water-washable, standard, ABS-like, and plant-based resins, etc
Operating Screen
4.3" Touch-Control
Air Purifier
Optional accessory
Hinged Cover
-
LCD Screen
7-inch monochrome LCD, 10K resolution
Anycubic App
Not supported
Multilingual Support
EN / CN / DE / FR / IT / ES / RU / JP
Machine Weight
5kg
Package Weight
6.1kg
Product dimensions
231*236*430mm
Packaging dimensions
512*300*305mm

Build Platform
Laser-engraved build plate
Z-axis
Single linear rail with 20 μm accuracy
Release Film
ACFfilm
Resin Vat
≤0.39L
Machine Leveling
4-point manual leveling
Power Loss Resume
Supported
Power Supply
66W
Protection Film
Replaceable scratch-resistant film
Resin Auto-fill Unit
Not supported
Dynamic Temperature Control Resin Vat
Not Supported
Slicing Software
Photon Workshop
File Transfer
USB

User Manuals

Unboxing Video

What's in box

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 5

Photon Mono 4 Ultra

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 11

Print Platform * 1

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 4

Resin Vat * 1

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 3

Manual * 1

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 10

Sreen Protector Kit

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 9

Leveling Paper

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 2

Protective Equipment

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 8

Filter *2

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 7

Scrapers * 2

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box 6

Hex Key Set

Anycubic Kobra 3 FDM 3D Printer - what is in the box 11

USB Drive * 1

Anycubic Photon Mono 4 Resin 3D Printer - what is in the box

Power Cord

3D Printer Comparison Table
SpecificationAnycubic Photon Mono 4Anycubic Photon Mono 4 Ultra
Core Printing Performance
Printing Volume153.4×87×165mm (2.2L)153.4×87×165mm (2.2L)
Printing SpeedMax Speed ≤50mm/h; Standard Resin (0.1mm): ≤50mm/h; High-Speed Resin (0.1mm): ≤70mm/hMax Speed ≤80mm/h; Standard Resin (0.1mm): ≤80mm/h; High-Speed Resin (0.1mm): ≤120mm/h
Layer Height Range0.03–0.15mm0.02–0.15mm
X/Y Axis Resolution17 × 17μm17 × 17μm
Light SourceParallel matrix upgrade light sourceCOB light source + Fresnel lens + Light uniformity algorithm
Light Intensity~3000μW/cm²≥3500μW/cm²
Material CompatibilityHigh-speed, water-washable, standard, ABS-like, and plant-based resins, etcHigh-speed, water-washable, standard, ABS-like, and plant-based resins, etc
System & Mechanical Design
Build PlatformLaser-engraved build plateLaser-engraved aluminum build plate
Z-axisSingle linear rail with 30 μm accuracySingle linear rail with 20 μm accuracy
Release FilmFEP filmACF film
Resin Vat≤0.39L≤0.39L
Machine Leveling4-point manual leveling4-point manual leveling
Power & Safety
Power Loss ResumeSupportedSupported
Power Supply54W66W
Protection FilmReplaceable scratch-resistant filmReplaceable scratch-resistant film
Resin Auto-fill UnitNot supportedNot supported
Dynamic Temperature Control Resin VatNot supportedNot supported
Control & Printing Methods
Slicing SoftwarePhoton WorkshopPhoton Workshop
File TransferUSBUSB / WiFi / LAN
User Experience & Features
Hinged Cover--
Operating Screen2.8" Touch-Control4.3" Touch-Control
Air PurifierOptional accessoryOptional accessory
LCD Screen7-inch monochrome LCD, 10K resolution7-inch monochrome LCD, 10K resolution
Anycubic AppNot supportedNot supported
Multilingual SupportEN / CN / DE / FR / IT / ES / RU / JPEN / CN / DE / FR / IT / ES / RU / JP
Machine Weight4kg5kg
Package Weight5.7kg6.1kg
Product Dimensions230×235×391mm231×236×430mm
Packaging Dimensions480×300×300mm512×300×305mm
