3DMakerpro Mole Premium 3D Scanner

SKU: Mole Premium Categories: , ,

Product Features:

  • Multispectral structured light with a near-infrared (NIR) light source, 0.05 mm accuracy and 0.1 mm resolution
  • Markerless visual tracking, up to 10 fps
  • Wide working range: typical objects 15 to 1,500 mm, work distance 150 to 400 mm, single capture 200 x 100 mm
  • Colour texture with the optional Color Kit (included in the Luxury combo)
  • Exports OBJ, STL and PLY with the free JMStudio software, USB 2.0, 141 x 80 x 80 mm, 390 g

₹55,099.00 Including Tax

Out of stock

Notify me when it is back

Out of stock for now. Leave your details and we will tell you the moment it is back.

Fast Shipping

Secure Payment

Tracking Updates

Best Prices

Chat Support

In Stock Alert

Payment Methods:

Visa payment accepted
Debit and credit card payment accepted
Net banking payment accepted
Google Pay accepted
Paytm payment accepted
Amazon Pay accepted
UPI payment accepted

3DMakerpro Mole Premium 3D Scanner: Near-Infrared Handheld and Turntable Scanner with Tripod

The 3DMakerpro Mole Premium is a medium-format structured-light 3D scanner that uses near-infrared (NIR) light and visual tracking for marker-free scanning. 3DMakerpro lists 0.05 mm accuracy and 0.1 mm resolution, with typical object sizes from 15 mm up to 1,500 mm. The Premium kit adds a tripod and a turntable kit to the scanner, so you can scan handheld or on a turntable right away.

If you are comparing the 3DMakerpro Mole Premium price in India or looking for a medium-format 3D scanner with a turntable included, Voxelstudio supplies it with local support. Scans are processed in free JMStudio software and exported as OBJ, STL or PLY for printing, CAD work and design review.

Key Features of the 3DMakerpro Mole Premium

0.05 mm Accuracy and 0.1 mm Resolution

Mole is built for medium-sized objects where fine detail still matters. With 0.05 mm accuracy and 0.1 mm resolution it can reproduce the size of an object closely and capture intricate surface features for printing or remodelling.

Near-Infrared Light for Dark Objects

Mole uses an NIR light source, which gives good optical compatibility with dark and even black objects that are often hard for other scanners. Transparent or highly reflective items may still need scanning spray.

Markerless Visual Tracking

Visual tracking and 3DMakerpro’s AI algorithm follow the object’s surface features, so you do not need to stick markers on the object. This saves preparation time on every scan.

Optical Anti-Shake and Quiet Cooling

Optical anti-shake modules keep handheld scanning smooth at a frame rate of up to 10 fps. An internal cooling fan keeps temperatures down for long sessions while staying quiet.

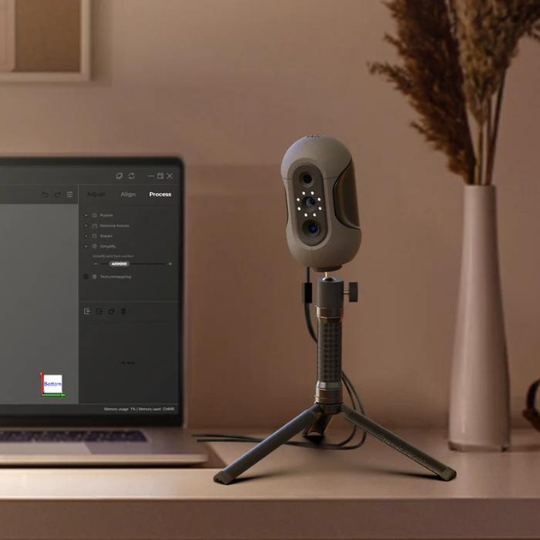

Handheld or Turntable Scanning

The Premium kit includes a tripod and turntable kit. Use the turntable for a controlled, repeatable rotation of smaller objects, or go handheld for larger items and awkward shapes.

Colour Textures with the Color Kit

Mole can map real colours onto models using the separate Color Kit, which is part of the Luxury combo and is not included in the Premium kit. Without it you get geometry-focused scans.

Mobile Scanning with the Optional CONNECT

The optional 3DMakerpro CONNECT links the Mole to a phone, tripod and power bank for scanning away from a desk. It needs a power bank with a 12V PD 22.5W USB-C output and is sold separately.

3DMakerpro Mole Premium Technical Specifications

SpecificationDetails
Model3DMakerpro Mole (Premium kit)
TechnologyStructured light, multispectral technology
Accuracy0.05 mm
Resolution0.1 mm
Frame RateUp to 10 fps
Tracking ModeVisual tracking, markerless
Work Distance150 to 400 mm
Single Capture Range200 × 100 mm
Typical Object Size15 to 1,500 mm
Light SourceNIR (near-infrared)
Colour TextureSupported with the optional Color Kit (included in the Luxury combo)
Output FormatsOBJ, STL, PLY
SoftwareJMStudio (free from 3DMakerpro)
Computer OSWindows 10/11 64-bit, macOS 12/13
Mobile OSAndroid 10.0 or later, iOS 15.0 or later (extended support, with the optional CONNECT)
Minimum ComputerIntel Core i5 8th gen, 16 GB RAM, MX250 GPU with 2 GB VRAM
Recommended ComputerIntel Core i7 8th gen, 16 GB RAM, NVIDIA 1060-class GPU with 4 GB VRAM
InterfaceUSB 2.0
Dimensions141 × 80 × 80 mm
Weight390 g

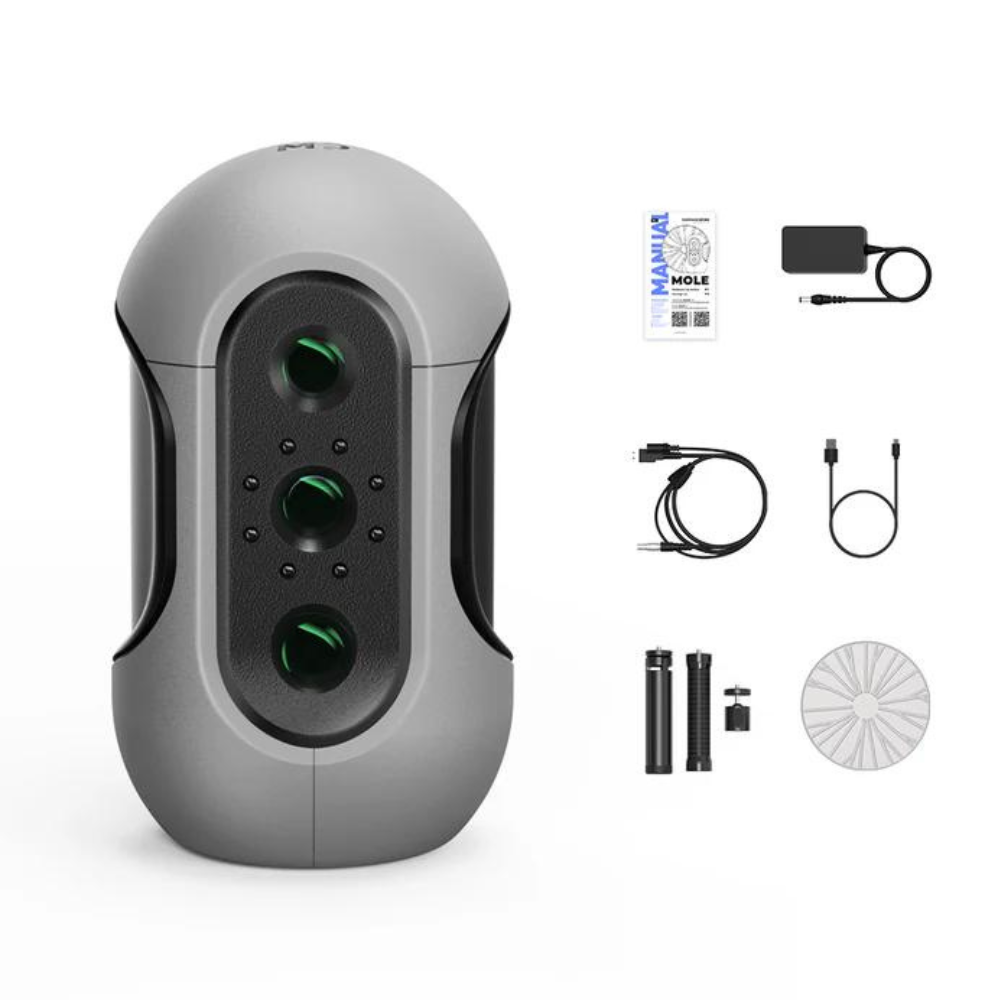

What’s in the Box

  • 3DMakerpro Mole 3D scanner × 1
  • Power cord × 1
  • Data cable × 1
  • Tripod × 1
  • Turntable kit × 1

Contents as listed by 3DMakerpro for the Premium kit; items may vary slightly by batch or region. The Color Kit, CONNECT and scanning spray are not included.

Who Is the 3DMakerpro Mole Premium For?

  • Designers and engineers who need medium-format scans for reverse engineering, fit checks and prototyping.
  • 3D printing users who want to duplicate or modify real objects, including dark-coloured ones.
  • Workshops and custom fabricators scanning vehicle parts, moulds and tooling.
  • Educators and makerspaces that want a kit with a turntable and tripod in the box.
  • Prosthetics, orthotics and craft makers who need dimensionally reliable scans of medium-sized shapes.

Frequently Asked Questions

What is the accuracy of the 3DMakerpro Mole?

3DMakerpro specifies 0.05 mm accuracy and 0.1 mm resolution. Results depend on the object, surface finish and scanning technique.

What is the difference between the Mole Premium and Standard kits?

The scanner is the same. The Premium kit adds a tripod and a turntable kit to the Standard contents of scanner, power cord and data cable. The Luxury kit also adds the Color Kit.

Can the Mole scan black objects?

Yes. The NIR light source makes dark and black objects clearly visible to the scanner. Highly reflective and transparent objects may still need scanning spray.

Does the Mole capture colour?

Colour models need the separate Color Kit, which includes a camera controller, a lightbox and connection cables. It is part of the Luxury combo and is not included with the Premium kit.

Can I use the Mole with a phone or laptop?

It works with Windows 10/11 and macOS 12/13 computers via USB 2.0. Phone scanning needs the optional 3DMakerpro CONNECT plus a suitable power bank, and an Android 10 or iOS 15 phone or later.
