3DMakerpro Whale Premium 3D Scanner

3DMakerpro Whale Premium 3D Scanner: Dual-Core Professional Scanner for Small Parts to Large Objects

The 3DMakerpro Whale Premium is a dual-core structured-light 3D scanner that combines two scan modes in one device: a micro-core for fine detail and a wide-core for large objects. 3DMakerpro lists 0.05 mm accuracy in micro-core mode and 0.1 mm accuracy in wide-core mode, with markerless AI visual tracking and the ability to scan dark objects and work in bright light.

The Premium kit adds a tripod and turntable to the scanner, so it is ready for desktop part scanning as well as handheld work on bigger items. If you are researching the 3DMakerpro Whale Premium price in India or a professional dual-core 3D scanner for reverse engineering and inspection, Voxelstudio supplies it with local support.

Key Features of the 3DMakerpro Whale Premium

Dual Scan Cores in One Scanner

The micro-core works at a distance of 300 ± 100 mm with 0.05 mm accuracy and 0.2 mm resolution for small, detailed parts. The wide-core works at 650 ± 250 mm with 0.1 mm accuracy and 0.5 mm resolution, with a single capture range of roughly 530 × 370 mm, for large structural pieces. 3DMakerpro positions this as the ability to scan something as large as a car hood and still capture small details.

Markerless AI Visual Tracking

The Whale follows the textural features of the object using AI visual tracking, so you do not need to place sticker markers on the surface. This shortens setup and keeps the object clean.

Scanning Dark Objects in Bright Light

A near-infrared light source lets the Whale capture dark and even black objects, and it keeps scanning in bright ambient light, including strong sunlight. That makes it more practical on the shop floor, outdoors or in poorly controlled rooms.

Automatic Alignment and One-Click Optimisation

The JMStudio software aligns scans automatically and offers one-click model optimisation, which reduces the manual steps needed between capture and a usable mesh. It exports OBJ, STL, ASC and PLY.

Tripod and Turntable in the Premium Kit

The Premium kit includes a tripod, a turntable and the turntable cable. The turntable gives repeatable rotation for small and medium objects, while the tripod supports fixed positions.

Colour Capture with the Color Kit

Colour texture mapping uses a separate professional Color Kit that works with mainstream DSLR and mirrorless cameras. The Color Kit is part of the Luxury combo and is not included in the Premium kit.

3DMakerpro Whale Premium Technical Specifications

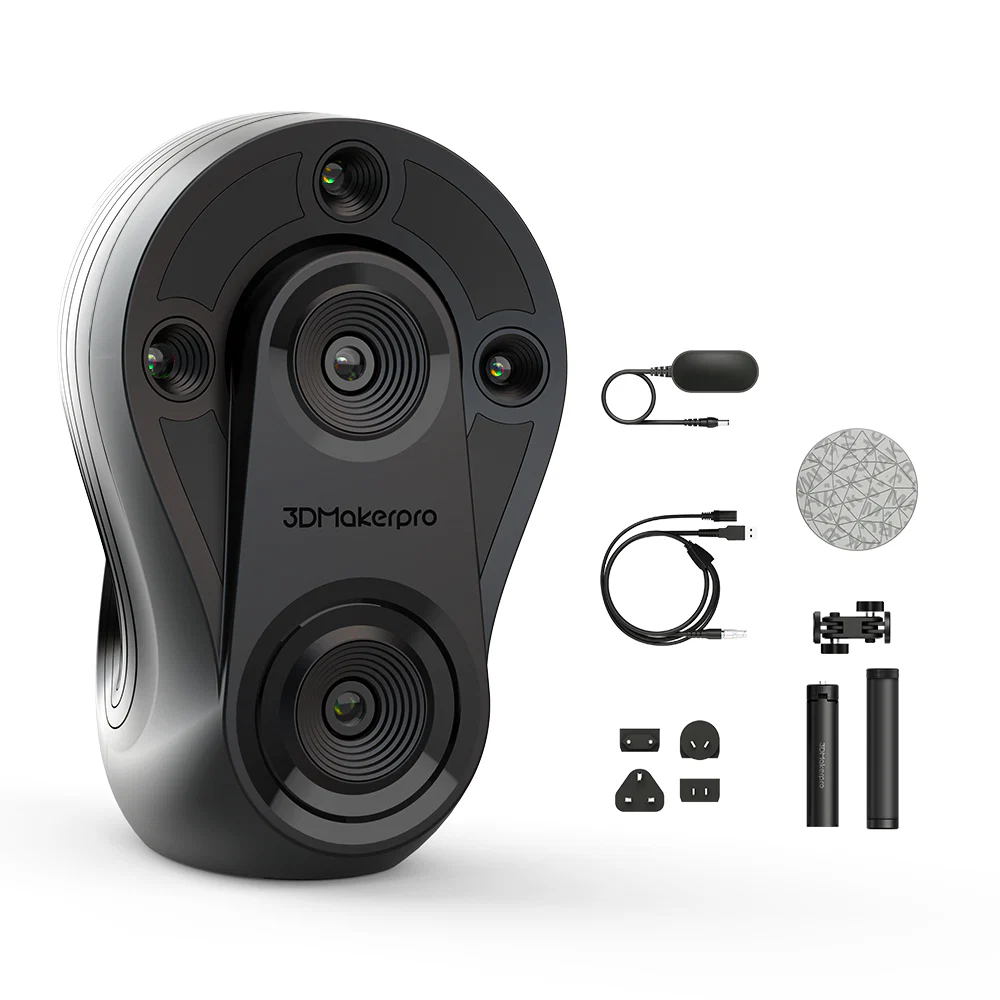

What’s in the Box

• 3DMakerpro Whale 3D scanner × 1
• Power adapter × 1
• Data cable × 1
• Plug × 4
• Tripod × 1
• Turntable × 1
• Turntable cable × 1

Contents as listed by 3DMakerpro for the Premium kit; items may vary slightly by batch or region. The Color Kit and scanning spray are not included.

Who Is the 3DMakerpro Whale Premium For?

• Engineers and product designers doing reverse engineering, redesign and spare-part modelling.
• Manufacturers and workshops who need to digitise parts from small components up to large panels.
• Forensic, heritage and archaeology teams recording scenes, artefacts and historical objects.
• Medical and rehabilitation professionals capturing face or body data for planning and personalised devices.
• Furniture, automotive and prop makers scanning bulky items such as sofas, panels and vehicle parts.

Frequently Asked Questions

What does dual-core mean on the Whale?

The Whale contains two scan cores in one scanner. The micro-core offers higher accuracy and resolution at a closer distance, and the wide-core covers a much larger area at a longer distance, so a single scanner handles both small, detailed parts and large objects.

What is the accuracy of the 3DMakerpro Whale?

3DMakerpro specifies 0.05 mm accuracy in micro-core mode and 0.1 mm in wide-core mode, with resolutions of 0.2 mm and 0.5 mm respectively. Actual results depend on the object and technique.

Can it scan black objects or work in sunlight?

Yes. According to 3DMakerpro, the NIR light source allows dark and black objects to be scanned and works in bright light, including full sunshine. Transparent or highly reflective surfaces may still need scanning spray.

Does the Premium kit include the Color Kit?

No. The Premium kit includes the scanner, power adapter, data cable, four plugs, tripod, turntable and turntable cable. The Color Kit is part of the Luxury combo.

What computer do I need?

3DMakerpro lists Windows 10 (64-bit) and macOS 12, including Apple M1 machines. Detailed CPU and GPU requirements are not published on the Whale product page, so contact Voxelstudio if you want help choosing a suitable workstation.

Warranty and Support from Voxelstudio

All units carry a 1-year manufacturer warranty. For purchase, setup help, accessories or warranty queries on your 3DMakerpro Whale Premium, contact the Voxelstudio team and we will guide you.
