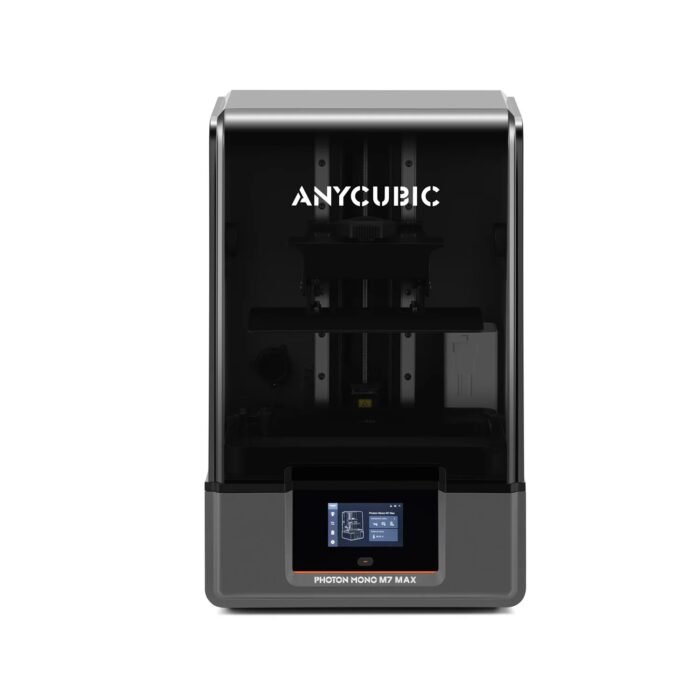

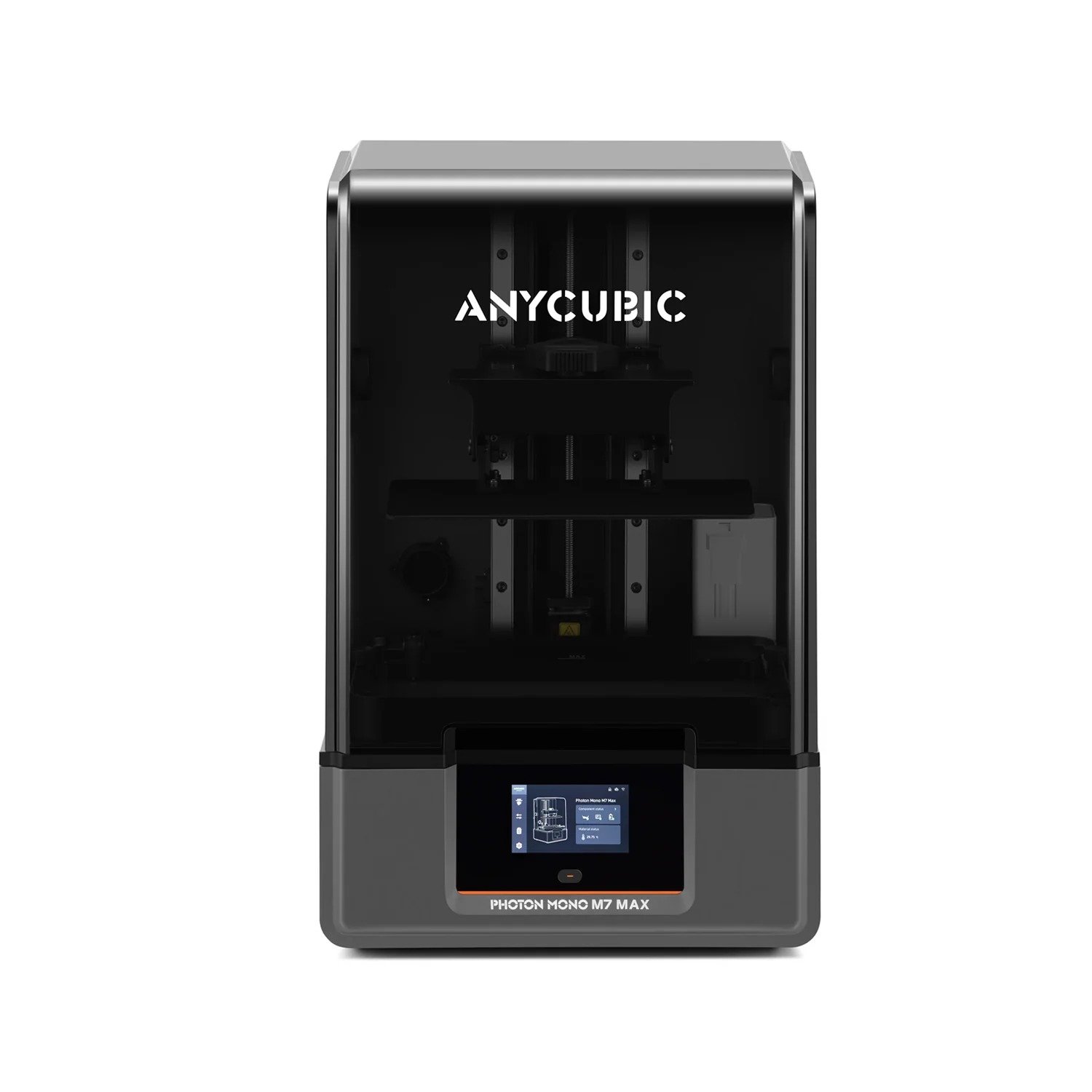

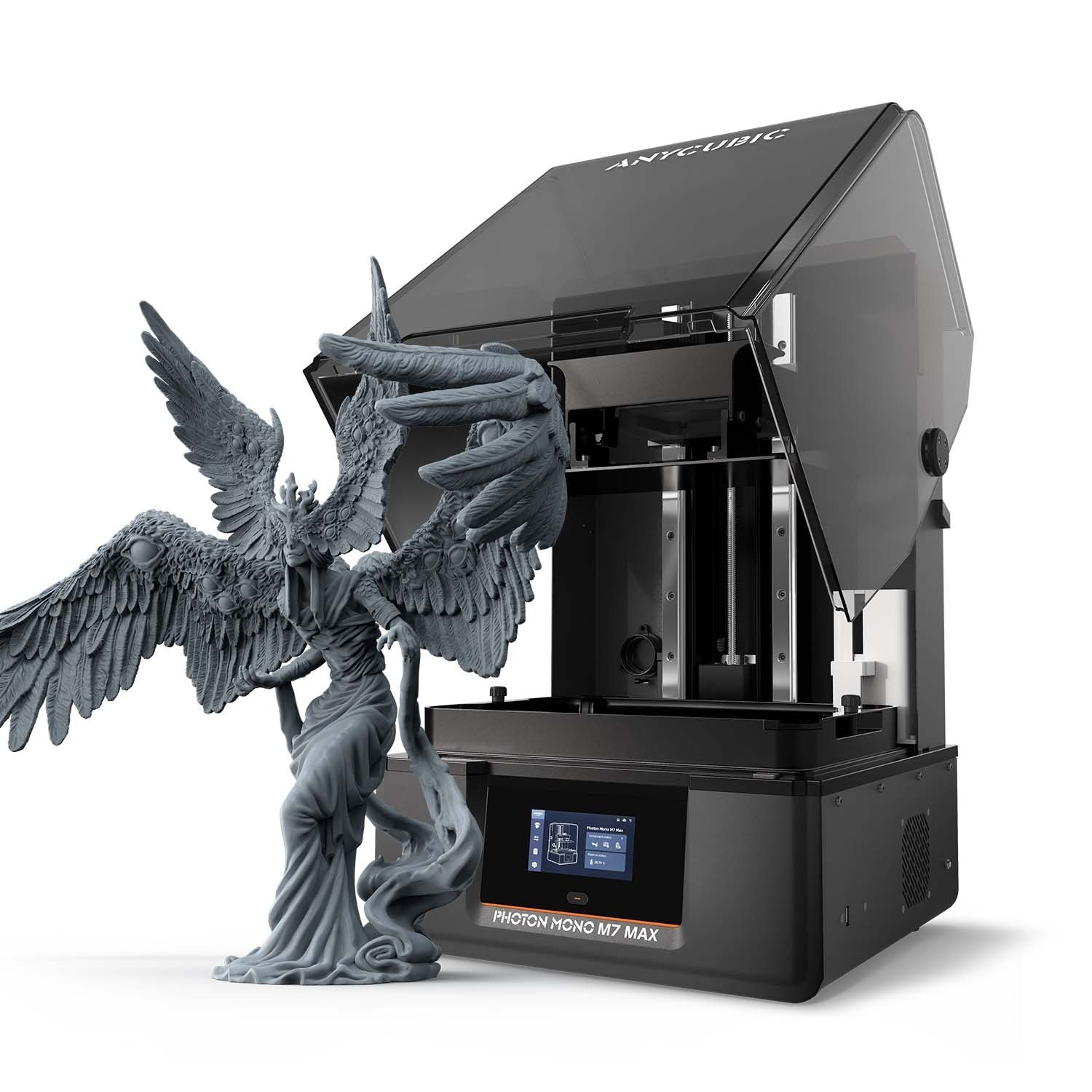

Anycubic Photon Mono M7 Max Resin 3D Printer
Product Features
● Maximum print speed of 4 Sec. per layer (0.05mm layer height)
● LighTurbo 3.0 High-Precision Light Source System
● Intelligent Release 2.0 Precision Control
● 14.7L Ultra-Large Print Volume
● 20-40’C Resin Temperature Control, Resin Auto-Recycling Management
● 8 User-Friendly lmprovements
₹81,999.00 Including Tax
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:
Description
Why Choose Photon Mono M7 Max
14.7L Extra-Large Build Volume
Outstanding Print Speed of 83mm/h

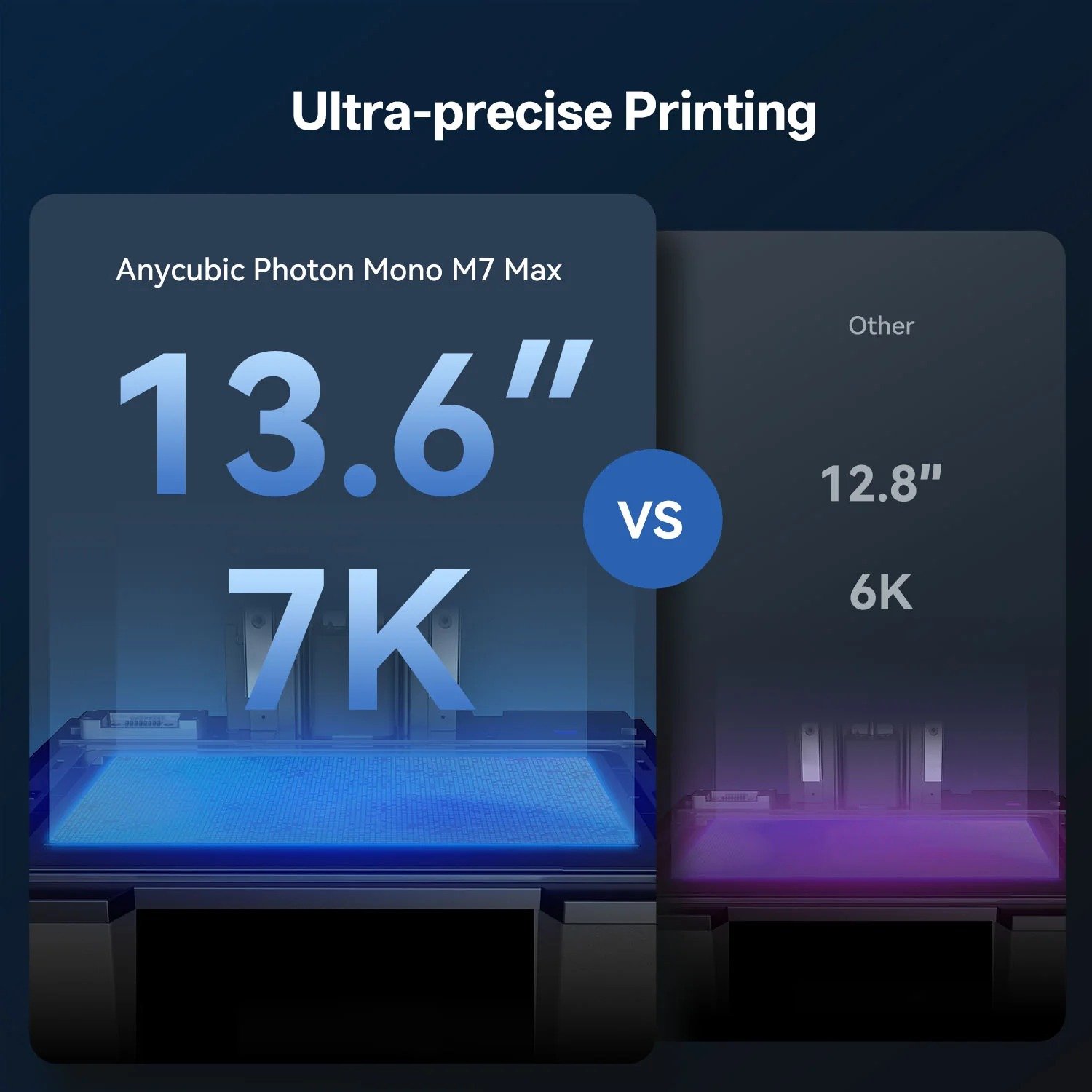

Ultra-precise Printing
Improved Lighturbo3.0 Light Source
Temperature-controlled Resin Vat

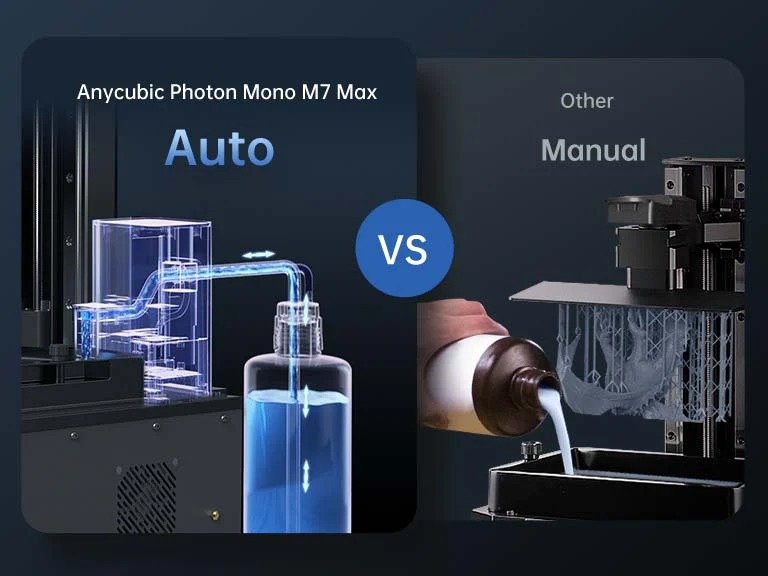

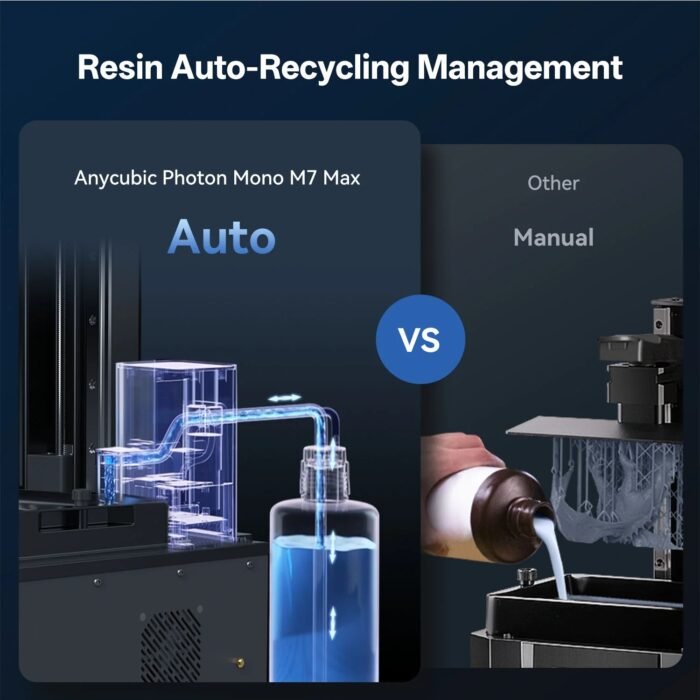

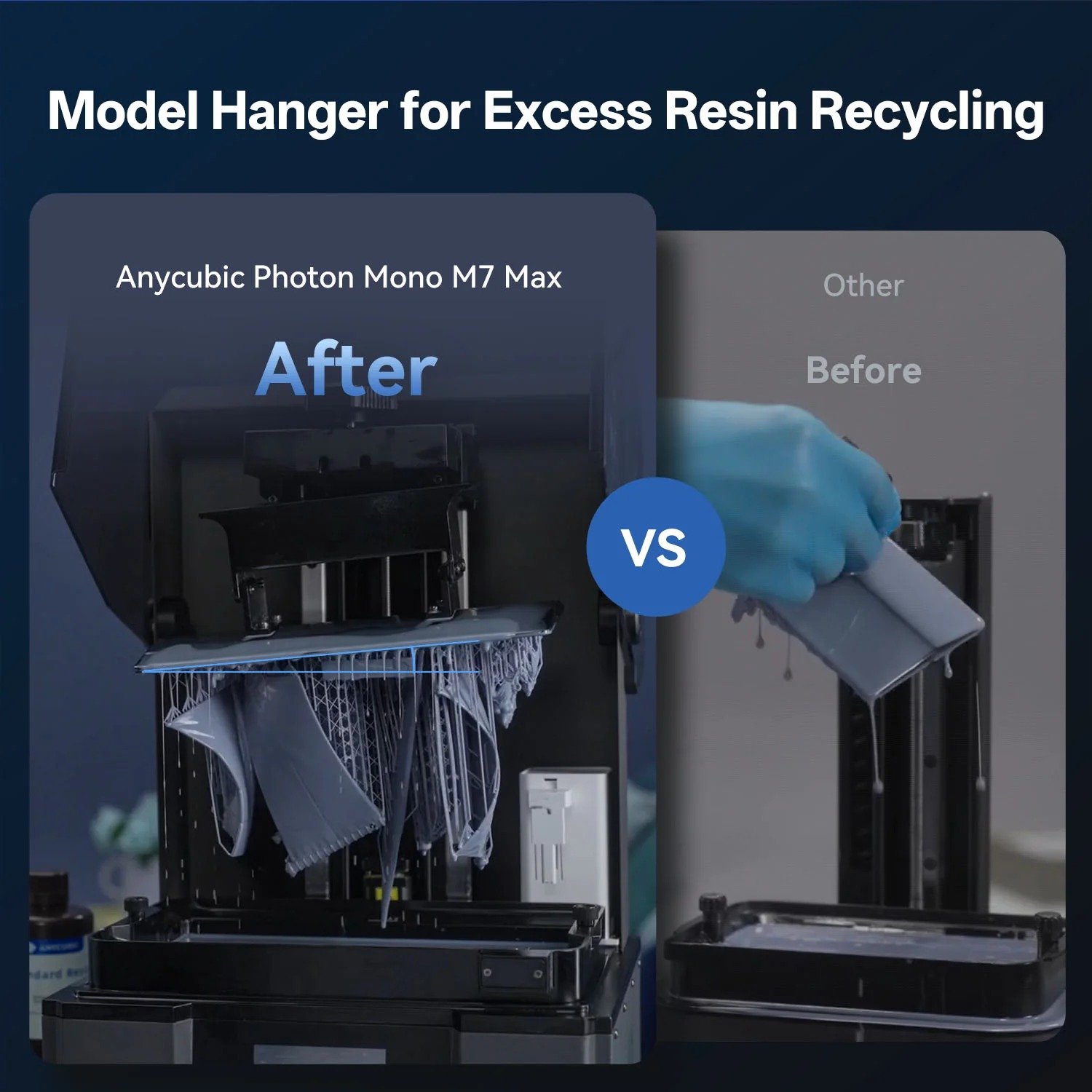

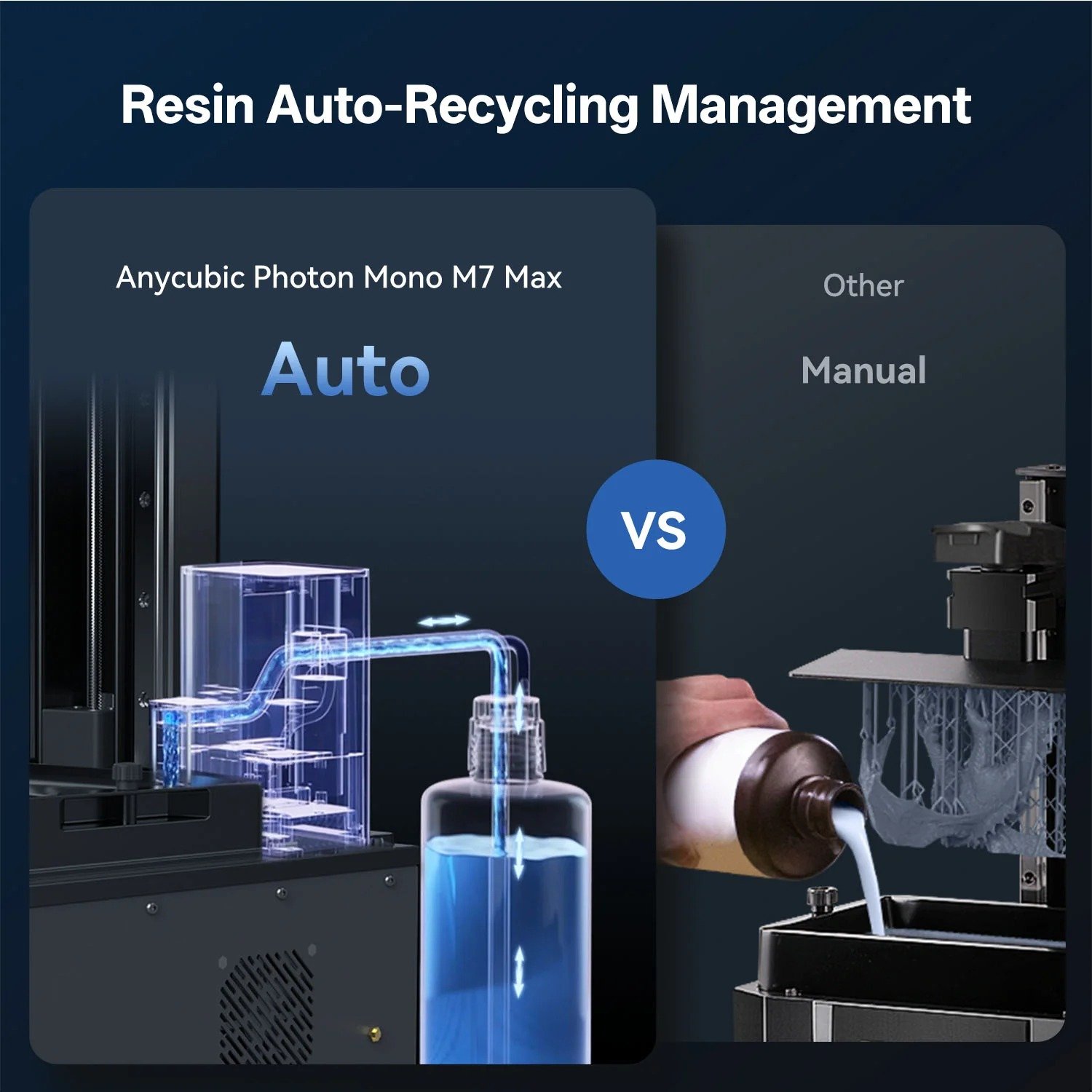

Resin Auto-recycling Management
Bigger. Better. Beyond.

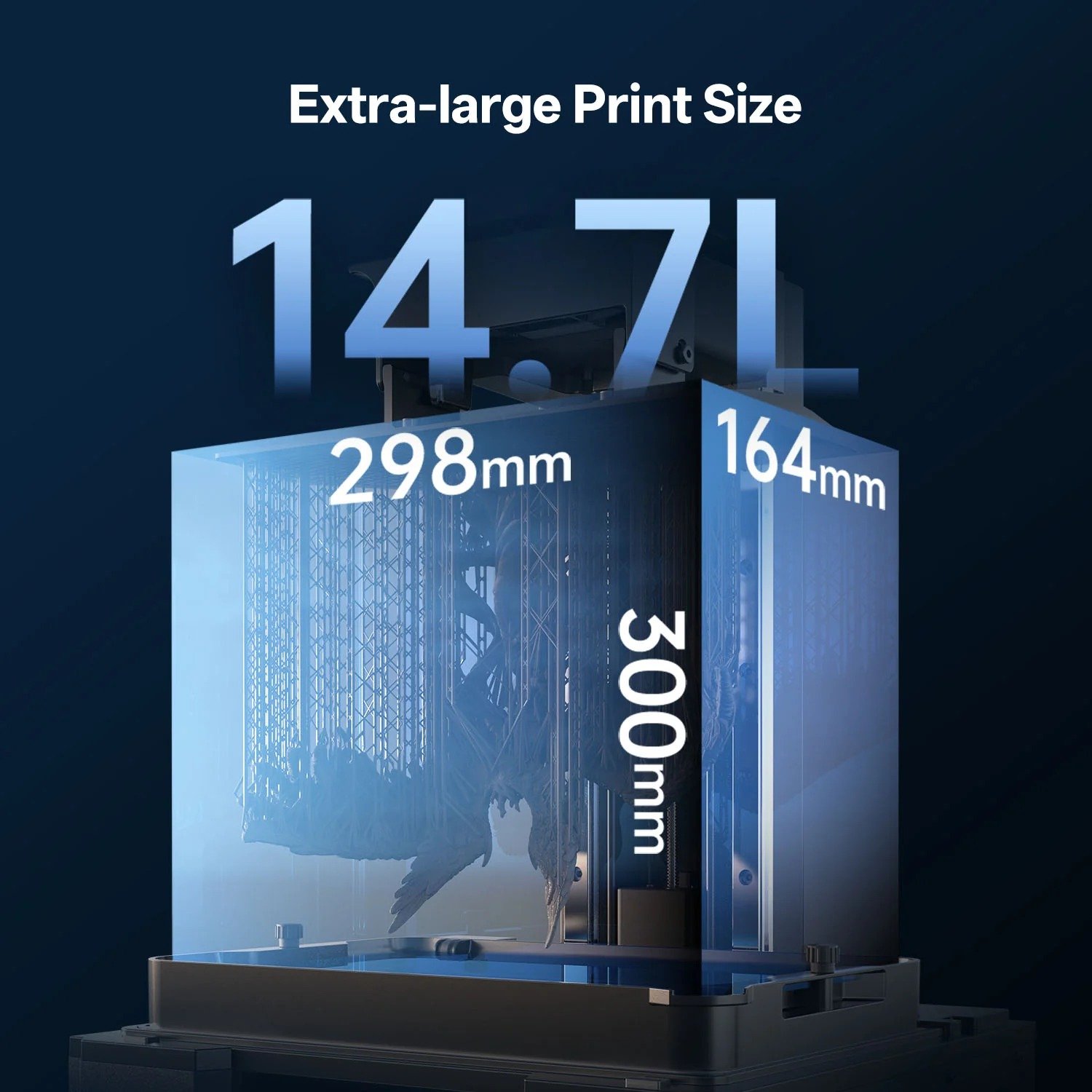

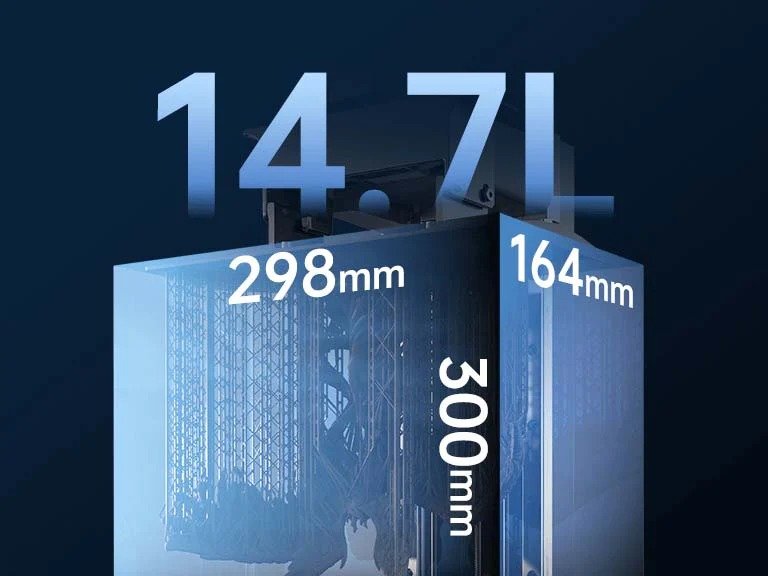

14.7L Extra-Large Build Volume
Outstanding Print Speed of 83mm/h
Large-quantity Printing Efficiency X2

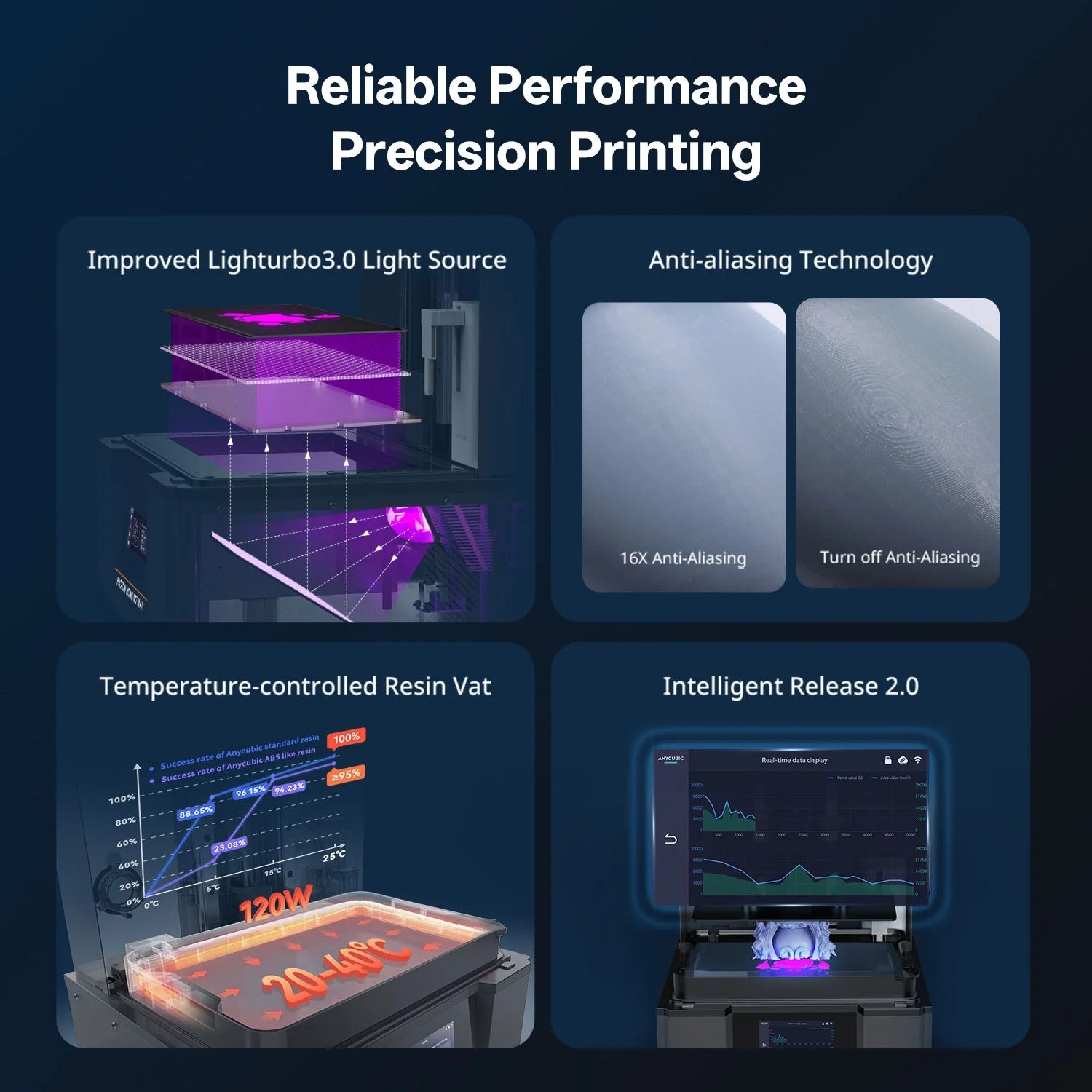

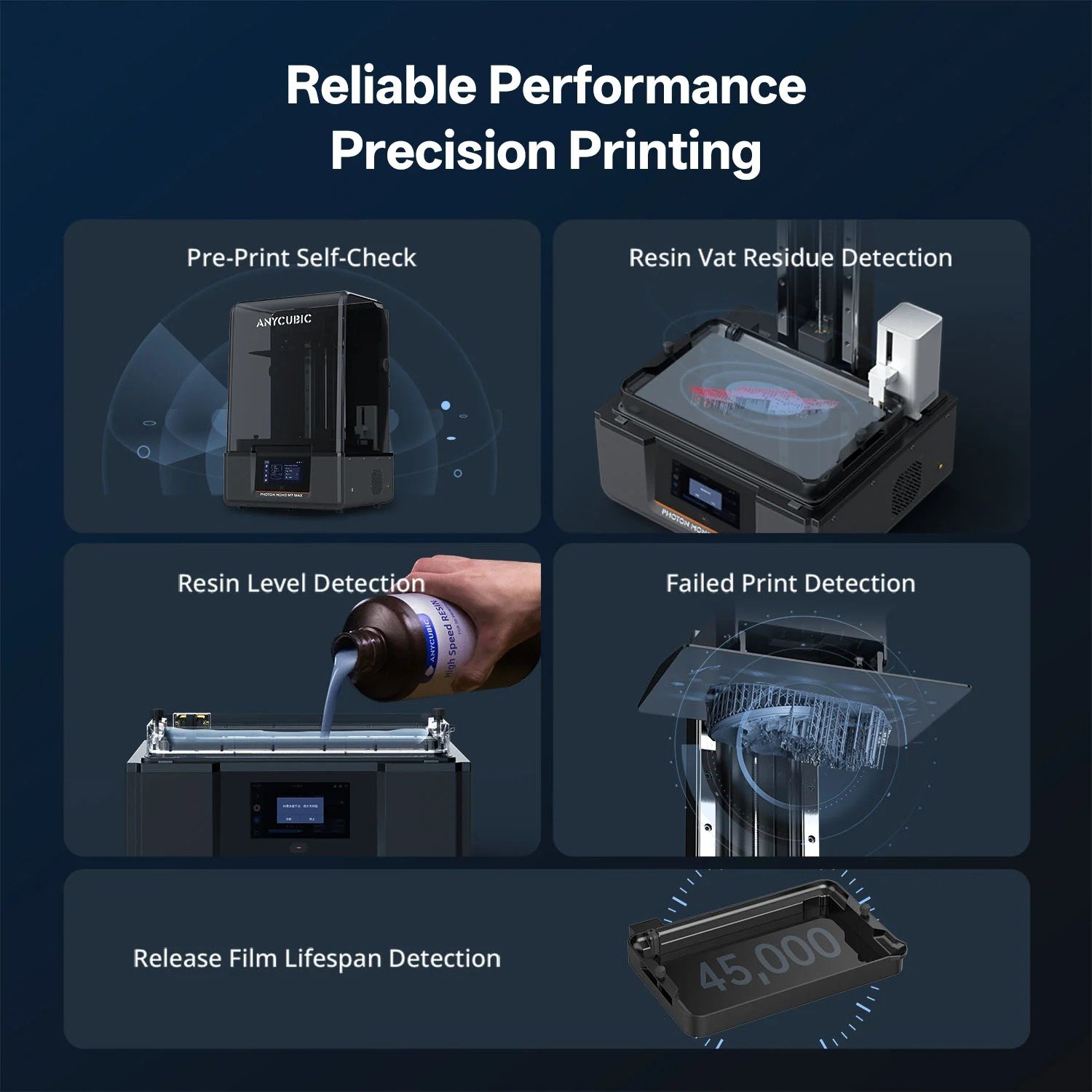

Reliable Performance. Precision Printing.

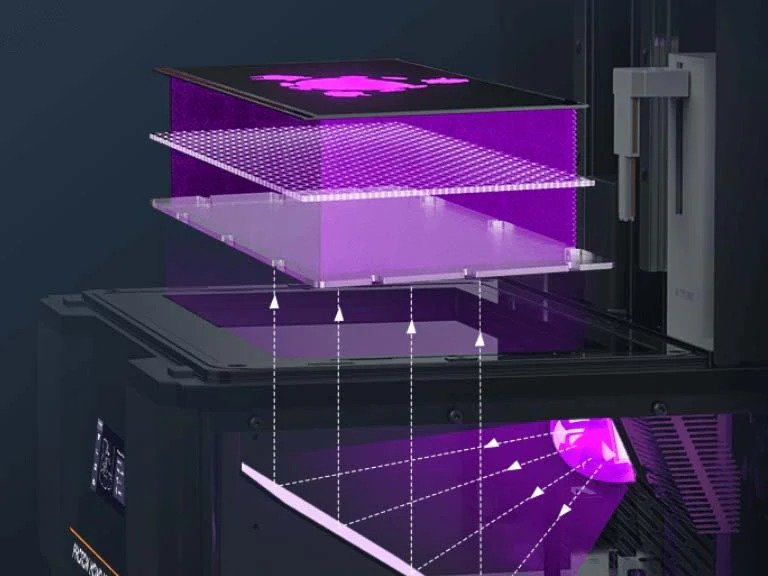

Improved Lighturbo3.0 Light Source
Anti-aliasing Technology

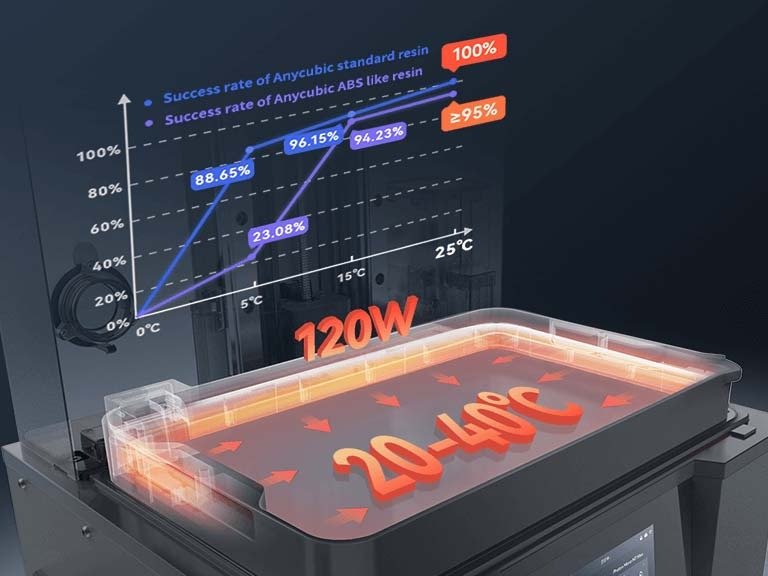

Temperature-controlled Resin Vat
Intelligent Release 2.0
Specification
Core Printing Performance
Printing Speed
Max Speed ≤63mm/h; Standard Resin (0.05mm): ≤31mm/h; Standard Resin (0.1mm): ≤63mm/h; High-Speed Resin (0.1mm): ≤86mm/h
Printing Volume
298*164*300mm (14.7L)
Layer Height Range
0.01-0.15mm
X/Y Axis Resolution
46 × 46μm
Light Source
COB light source+ Fresnel lens+Light uniformity algorithm
Light Intensity
4500 ±10% μW/cm²
4500 ±10% μW/cm²
Material Compatibility
High-speed, water-washable, standard, ABS-like, and plant-based resins, etc
User Experience & Features
Operating Screen
4.3" Touch-Control
Air Purifier
Optional accessory
Hinged Cover
-
LCD Screen
13.6-inch monochrome LCD, 10K resolution
Anycubic App
Supported
Multilingual Support
EN / CN / DE / FR / IT / ES / RU / JP
Machine Weight
24kg
Package Weight
28.5kg
Product dimensions
425*362*652mm
Packaging dimensions
785*520*490mm
System & Structural Design
Build Platform
Laser-engraved build plate
Z-axis
Dual linear rail with 10 μm accuracy
Release Film
Improved ACF film
Resin Vat
≤1.3 L, unibody design with scale markings

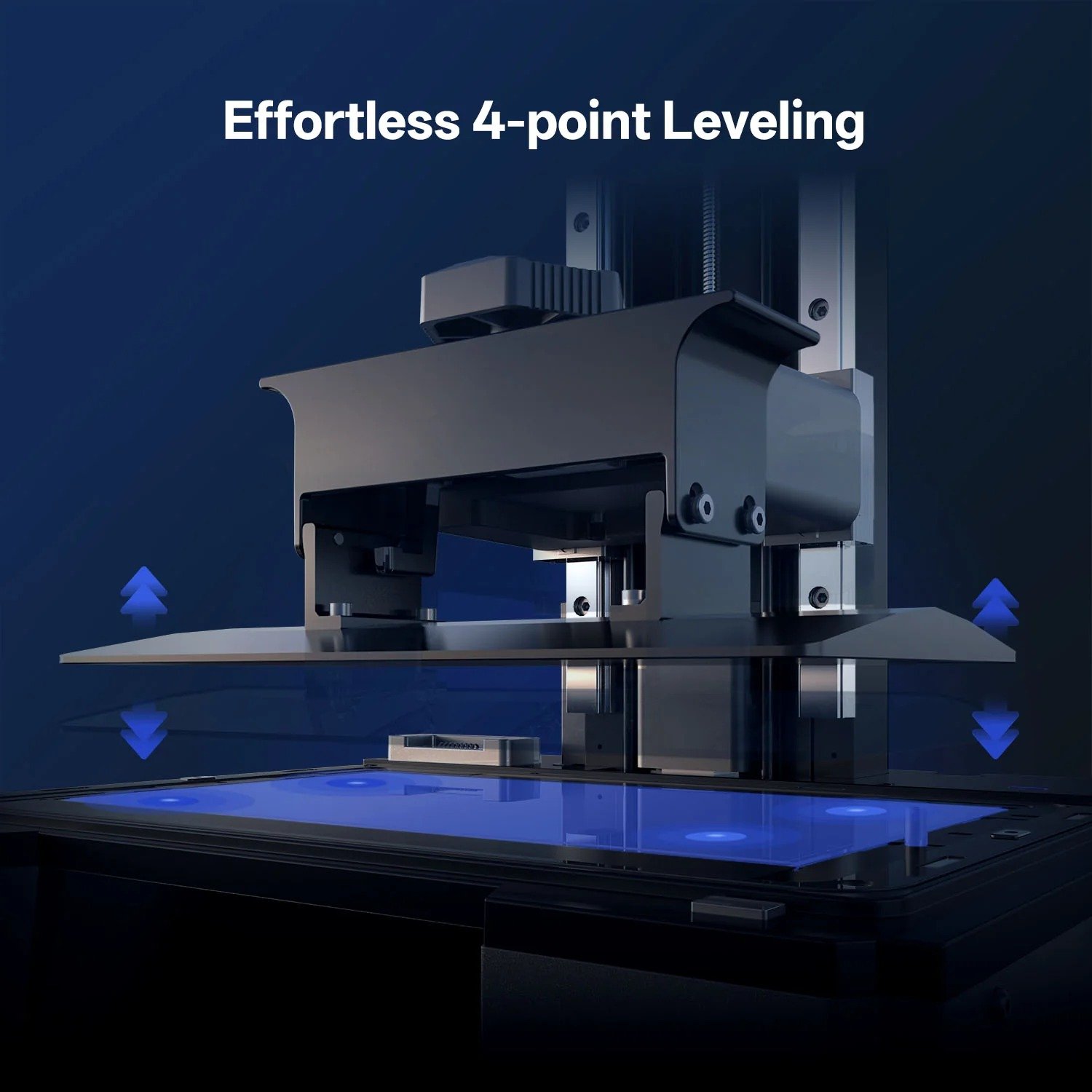

Machine Leveling
4-point manual leveling
Power Loss Resume
Supported
Power Supply
180W
Protection Film
Replaceable scratch-resistant film
Resin Auto-fill Unit
Supported
Dynamic Temperature Control Resin Vat
Supported
Slicing Software
Photon Workshop, Chitubox, LycheeSlicer (Q4)
File Transfer
USB/WiFi/LAN (2025 Q1)
What's in box
Photon Mono M7 Max
Print Platform * 1
Resin Vat * 1
Manual * 1
Sreen Protector Kit
Leveling Paper
Protective Equipment
Cap part of auto-fill unit
Scrapers * 2
Hex Key Set
USB Drive * 1
Power Cord
Antenna
| Specification | Anycubic Photon Mono M7 Pro | Anycubic Photon Mono M7 Max | Anycubic Photon Mono M7 |
|---|---|---|---|
| Core Printing Performance | |||
| Printing Volume | 223×126×230mm (6.5L) | 298×164×300mm (14.7L) | 223×126×230mm (6.5L) |
| Printing Speed | Max ≤130mm/h; Standard Resin (0.1mm): ≤130mm/h; High-Speed Resin (0.1mm): ≤170mm/h | Max ≤63mm/h; Standard (0.05mm): ≤31mm/h; Standard (0.1mm): ≤63mm/h; High-Speed (0.1mm): ≤86mm/h | Max ≤90mm/h; Standard (0.1mm): ≤90mm/h; High-Speed (0.1mm): ≤150mm/h |
| Layer Height Range | 0.01–0.15mm | 0.01–0.15mm | 0.01–0.15mm |
| X/Y Axis Resolution | 16.8 × 24.8μm | 46 × 46μm | 16.8 × 24.8μm |
| Light Source | COB + Fresnel + Light uniformity algorithm | COB + Fresnel + Light uniformity algorithm | COB + Fresnel + Light uniformity algorithm |
| Light Intensity | 5500 ±10% μW/cm² | 4500 ±10% μW/cm² | 4500 ±10% μW/cm² |
| Material Compatibility | High-speed, water-washable, standard, ABS-like, and plant-based resins, etc | ||
| System & Mechanical Design | |||
| Build Platform | Laser-engraved build plate | Laser-engraved aluminum build plate | Laser-engraved build plate |
| Release Film | Improved ACF film | Improved ACF film | Improved ACF film |
| Z-axis | Dual linear rails with 10μm precision | Dual linear rails with 10μm precision | Dual linear rails with 10μm precision |
| Resin Vat | ≤1L | ≤1.3L, unibody with scale | ≤1L |
| Machine Leveling | Leveling-free | 4-point manual leveling | Leveling-free |
| Power & Safety | |||
| Power Loss Resume | Not supported | Supported | Not supported |
| Power Supply | 240W | 180W | 135W |
| Protection Film | Replaceable scratch-resistant film | Replaceable scratch-resistant film | Replaceable scratch-resistant film |
| Resin Auto-fill Unit | Supported | Supported | Not supported |
| Dynamic Temperature Control Resin Vat | Supported | Supported | Not supported |
| Control & Printing Methods | |||
| Slicing Software | Photon Workshop, Chitubox, LycheeSlicer (Q4) | ||
| File Transfer | USB/WiFi/LAN | USB/WiFi/LAN (2025 Q1) | USB/WiFi/LAN (2025 Q1) |
| User Experience & Features | |||
| Hinged Cover | - | UV-blocking; one-hand hover >45° | - |
| Operating Screen | 4.3" Touch-Control | 4.3" Touch-Control | 4.3" Touch-Control |
| Air Purifier | Optional accessory | Optional accessory | Optional accessory |
| LCD Screen | 10.1" monochrome LCD, 14K | 13.6" monochrome LCD, 7K | 10.1" monochrome LCD, 14K |
| Anycubic App | Supported | Supported | Supported |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP | ||
| Machine Weight | 12.8kg | 24kg | 12kg |
| Package Weight | 15.2kg | 28.5kg | 13kg |
| Product Dimensions | 312×315×520mm | 425×362×652mm | 312×315×520mm |
| Packaging Dimensions | 620×395×395mm | 785×520×490mm | 620×395×395mm |
