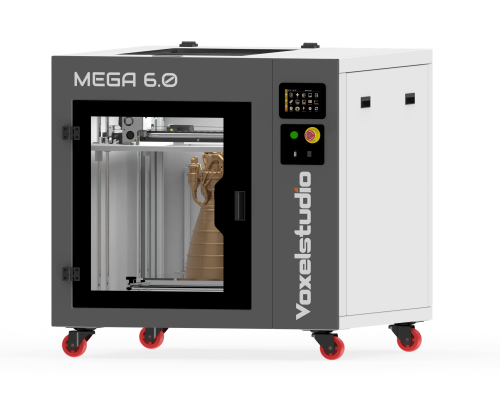

Meet the

MEGA 6.0

Mega Size Ultimate Precision Heavy Duty 3D Printer

Larger Size Industrial Grade FDM 3D Printer for SMEs, Architectural, Institutes, Manufacturers, and Industrial use.

Heavy Duty Industrial Grade 3D Printer.

Build Volume: 600 x 600 x 600 mm

Proudly Made in India!

Products Sample Gallery

Features

Build Volume

600 x 600 x 600 mm is the Build Volume of MEGA 6.0. Make anything within this size with Best in Class Surface Finish. Suitable for Large Size 3D Print Parts.

Heated Build Platform

A Silicon heated platform that can reach up to 150°C ensures maximum reliability and performance while printing engineering grade materials like ABS, ASA, PLA, PET-G, TPU, etc.

Ultra Silent Stepper Drivers

Use TMC Stepper Motor Drivers, Super Quiet and Noise Reduction, running more stable, ≤60dB silent printing

32 Bit CPU Processor

High-speed computing; high-performance, 32-bit frequency: 168M; Cortex-M4 CPU with FPU and DSP instruction, memory protection unit

All Metal Body

A complete sheet metal chassis with precision machined CNC parts ensures ultimate life and durability, making MEGA 6.0 a worthwhile long-term investment.

Plug & Play

Mega 6.0 comes with a fully calibrated XYZ axis along with Factory tuning of Extruder with 100+ hours of Testing. Load the filament and start making some stuff from day One!

Applications of VoxelStudio FDM 3D Printers
in Various Industries

Aerospace

Medical

Automotive

Automation Equipment

Architecture

Electronic Product

Education

Robotics

Direct Drive Extruder

A Direct Drive extruder applies a maximum pushing force to the
printing filament with accurate extrusion and retraction
response for best print quality.

This extruder is essential for printing Flexible Materials which
wouldn’t be possible without it.

Precision Filament Sensor

MEGA 6.0 FDM 3D Printer is equipped with a filament sensor that automatically stops the machine in case of filament run-out thanks to precoded software, avoiding the machine from running without filament.

User Friendly Interface

The MEGA 6.0 FDM 3D Printer has a sleek 7-Inch TFT Touch panel with easy access to print files, setup & essential maintenance.

Print, Pause, Resume, Change Filament, Tune Temperature & Adjust Print speed on the fly.

Hi-Win Linear Guide for Robust X-Axis & Y-Axis

Long life with high speed, high accuracy and smooth linear motion.

Wi-Fi & Camera Addon Available

Now operate MEGA 6.0 3D Printer  Wirelessly.

Give Print command from your phone/laptop wirelessly. Operate Mega 6.0 3D Printer from remote location. Monitor MEGA 6.0  from remote location. Give urgent print command from home to the remotely located 3D Printer in office. (get the live print view straight in your phone/laptop)

Software Compatibility

Import from your favorite Design Platform

Tinkercad, Sketchup, Solidworks, Fusion360, Maya, Zbrush, Openscad, or any of the various CAD software, Export in one of the compatible formats like STL, OBJ, AMF, etc & you’re ready to 3D Print.

Slicing Software

The Voxel VW-300 3D Printer runs Marlin, meaning it’s compatible with a variety of Slicing Software. Cura, Simplify3D, Mattercontrol, Slic3r, the list goes on.

Recommended

Beginners: Cura (Free)
Advanced: Simplify3D

Learn how MEGA 6.0 FDM 3D Printer can add value to your work ?

Our team of Expert will guide you through the process.

Capable of Printing a Variety of Filaments Up to 300℃

PLA/ ABS/ TPU/ TPE/ PETG/ PLA-Carbon Fiber Infused/ PLA Metal Fill/ PLA Wood Fill

Voxel 3d filaments

MEGA 5.1 Industrial 3D Printer Technical Specifications

General

Build Volume(W x D x H)

24 x 24 x 24 inch/600 x 600 x 600 mm

Machine Size(H x W x D)

43.5 x 44.5 x 50.5 inch / 1100 x 1130 x 1280 mm

Printing Technology

FDM / FFF

Feeder Mechanism

Direct  Drive  Intruder

Filament Diameter

1.75 mm

Positioning Precision

XY: 11 microns [0.0004 in]                                        Z: 2.5 microns [0.0001 in]

Print Head Travel Speed

30 - 50 mm/s

Build Plate

Heated Aluminum Build Plate with Removable Glass

Max Build Plate Temperature

150ºC

Heated Bed Material

Silicone

Build plate levelling

Automatic Bed Levelling

Filament Run-out Sensor

Available

Supported Materials

PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA PP/ PVA/ Nylon/ Carbon Fiber Infused/ Metal Fill/ Wood Fill

Layer Height

0.05 - 0.3 mm

Nozzel Diameter

0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Swappable)

Max Nozzel Temperature

300ºC

Connectivity

WI-FI, Ethernet, U-Disk, USB

Print Monitoring System

In build Camera with Wifi connectivity

Noise Emission (Acoustic)

<60 dB(A) when building

Operating Ambient Temperature

15-30ºC, 10-90% RH non-condensing

Net Weight

280 kg

Gross Weight

300 kg

Software & Electrical

User Interface

7 Inch Touch Screen

Power Loss Recovery

Available

Slicing Software

Cura, Simplify 3D, Ideamaker, Slicer

Supported File Types

STL/ OBJ/ 3MF

Supported OS

WINDOWS/ MacOS/ Linux

Machine Code Types

GCODE

Power Supply Input

~220V, 50/60 Hz AC

Frequently Asked Questions (FAQs)

Shipping out hundreds of 3D Printers, we’ve noticed that MEGA 6.0 3D Printer is best suited for Educational Institutes, Personal Use, 3D Printing Businesses, Tool & Dies Manufacturers, FMCG Products Manufacturer, Heavy Manufacturers, Model Making Service Providers, Product Designers, Plastic Product Manufacturer.

Especially with the specifications and the price tag, the MEGA 6.0 3D Printer packs a range of advanced features like Removable Glass Bed, CNC Machined Aluminum Extruder and Active Triple Cooling Fans making it the most ideal 3D Printer for Rapid prototyping and Low batch production.

MEGA 6.0 3D Printer is probably the only 3D Printer with its specifications in its price category. For e.g. direct drive mechanism, Active Triple Cooling, all enclosed design helps 3D printing with industrial materials like ABS, ASA, PLA, TPU, TPE, PLA Carbon Fiber Infused with high reliability.

If you can operate a computer, you can operate a MEGA 6.0 FDM 3D Printer, however, understanding the concepts in-depth helps better. You might want to attend one of our 3D Printing Workshops. A complimentary pass could be given on the purchase of a MEGA 6.0 3D Printer.

Alternatively, we have a quick start video.

To get your first prints, it shouldn’t take you more than a 10-15 min learning. For an advanced level, it’ll take some experience with the 3D Printer and probably a few weeks learning.

Related Products

MEGA S3.5 3D Printer

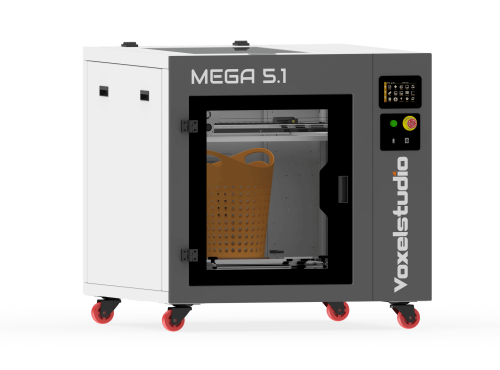

MEGA 5.1 3D Printer
