Meet the

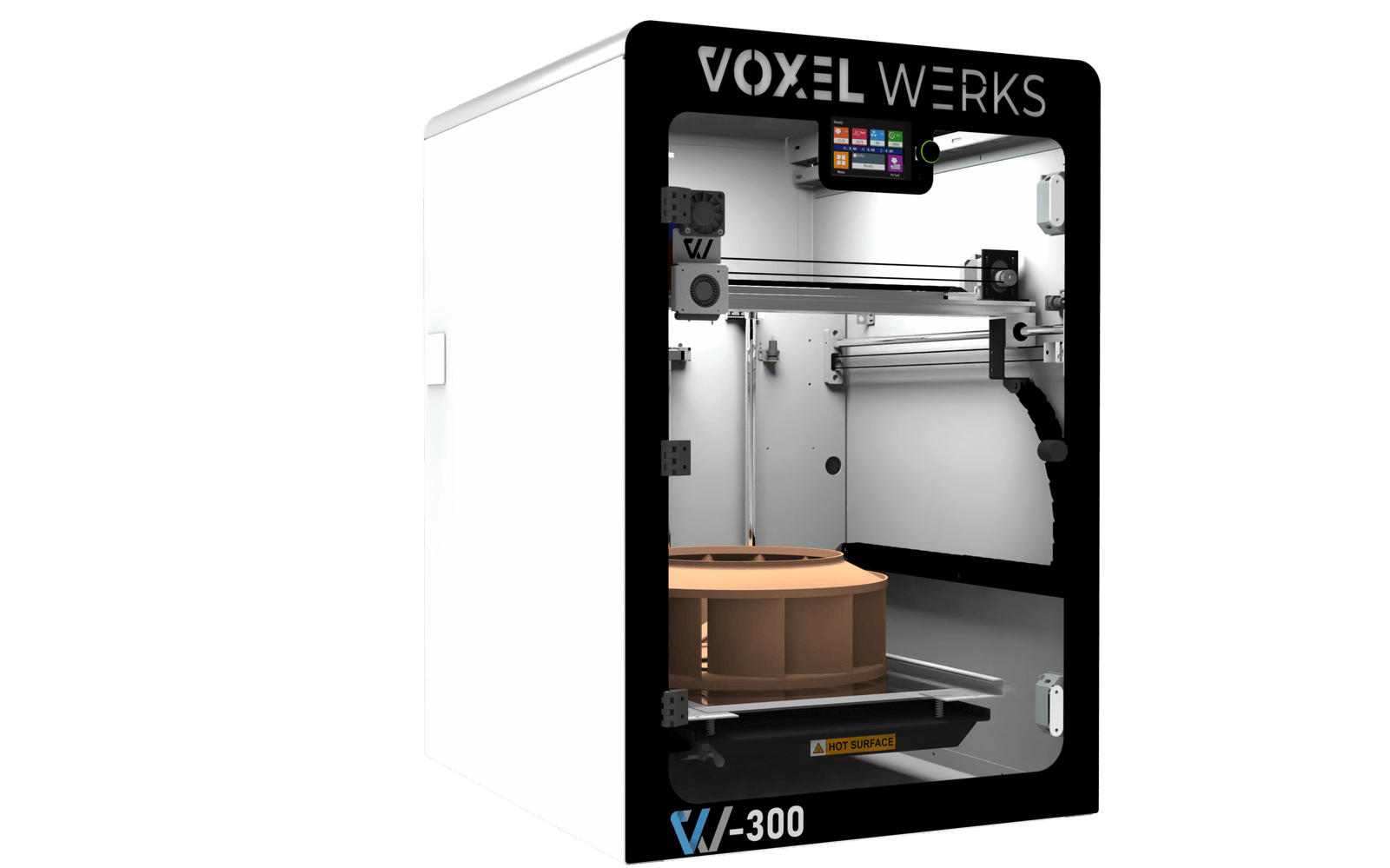

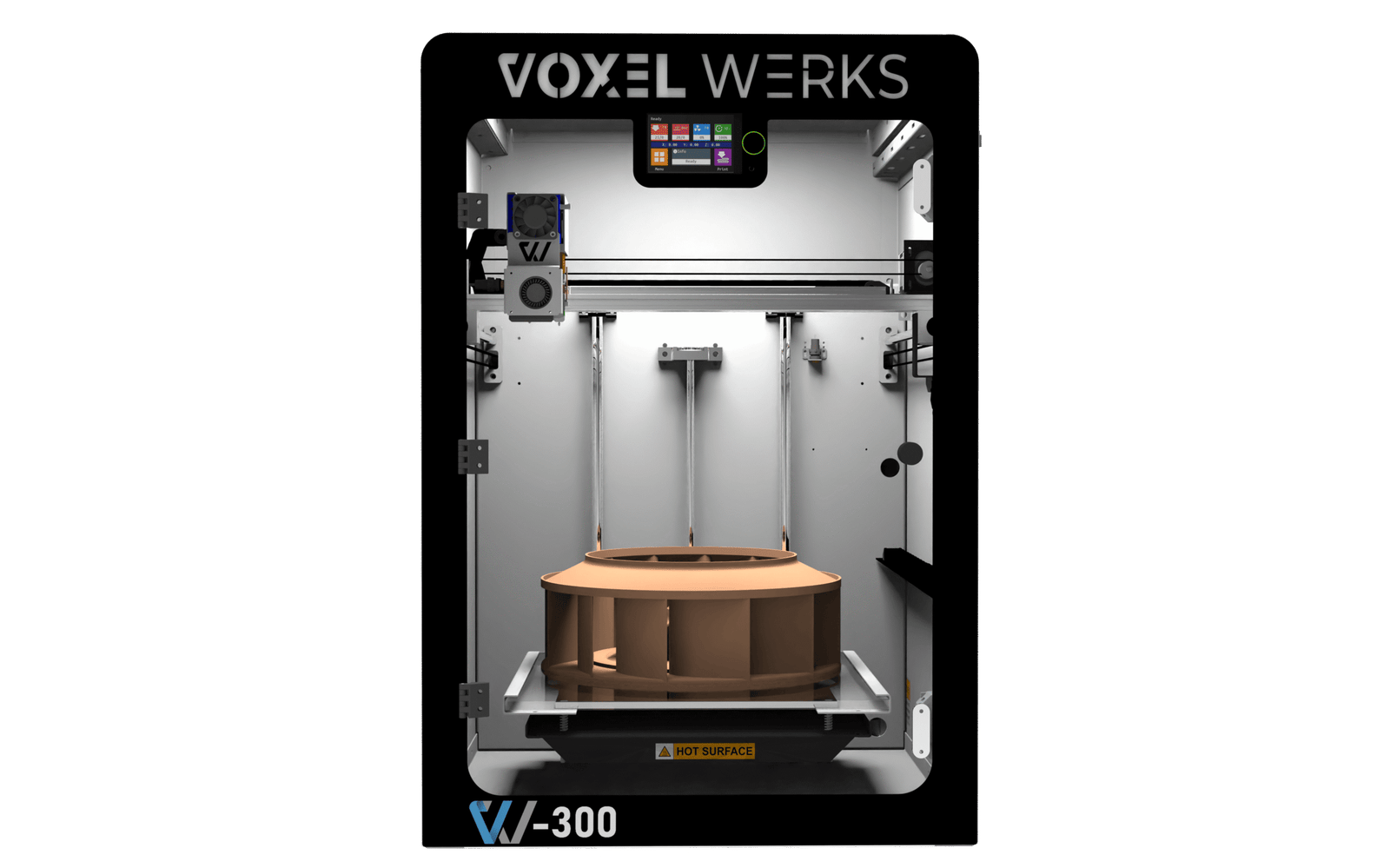

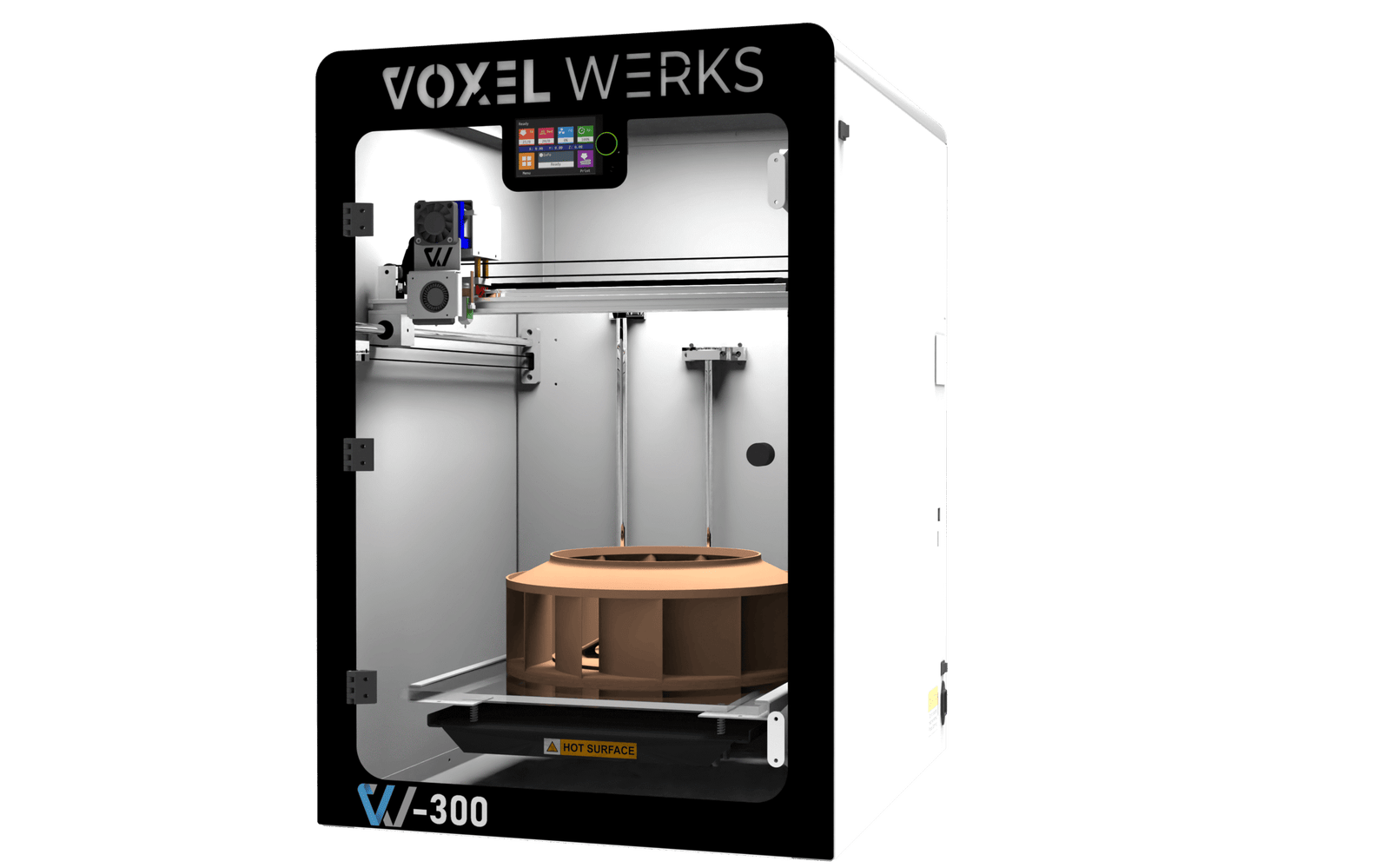

Voxel 300 3D Printer

Large Size Desktop FDM 3D Printer from Voxelstudio

Industrial Grade FDM 3D Printer for SMEs, Architectural, Institutes, and Industrial use.

Build Volume: 300 x 300 x 300 mm

Proudly Made in India!

Build Volume

300 * 300 * 300 mm is the Build Volume of Voxel 300 Printer. Make anything within this size with Best in Class Surface Finish. Suitable for Large Size 3D Print parts.

Heated Build Platform

A Silicon heated platform that can reach up to 110°C ensures maximum reliability and performance while printing engineering grade materials like ABS, ASA, PLA, PET-G, TPU, TPE, etc.

Ultra Silent Stepper Drivers

Use TMC Stepper Motor Drivers, Super Quiet and Noise Reduction, running more stable, ≤60dB silent printing

32 Bit CPU Processor

High-speed computing; high-performance, 32-bit frequency: 168M; Cortex-M4 CPU with FPU and DSP instruction, memory protection unit

ALL METAL BODY

A complete sheet metal chassis with precision machined CNC parts ensures ultimate life and durability, making Voxel VW-300 3D Printer a worthwhile long-term investment.

PLUG & PLAY

Voxel VW-300 comes with a Fully calibrated XYZ axis along with Factory tuning of Extruder with 100+ Hours of TESTING. Load the Filament and Start Making Some Stuff from Day ONE!

PREMIUM QUALITY

Quality is USP for Voxel Series of 3D Printers, Continuing the same Legacy of our Industrial Grade 3D Printer in VW-300 with Robust Mechanical Hardware and Electronics for optimum long-term performance.

Direct Drive Extruder

A Direct Drive extruder applies a maximum pushing force to the
printing filament with accurate extrusion and retraction
response for best print quality.

This extruder is essential for printing Flexible Materials which
wouldn’t be possible without it.

Precision Filament Sensor

Voxel VW-300 FDM 3D Printer is equipped with a filament sensor that automatically stops the machine in case of filament run-out thanks to precoded software, avoiding the machine from running without filament.

User Friendly Interface

The Voxel VW-300 3D Printer has a sleek 3.5 inch TFT Touch panel with easy access to print files, setup & basic maintenance.

Print, Pause, Resume, Change Filament, Tune Temperature & Adjust Print speed on the fly.

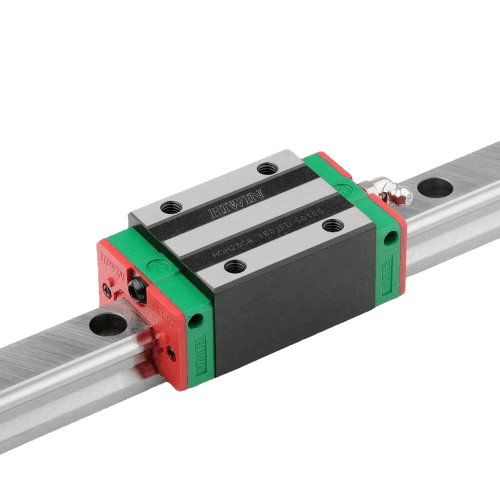

Hi-Win Linear Guide for Robust X-Axis

Long life with high speed, high accuracy and smooth linear motion.

Software Compatibility

Import from your favorite Design Platform

Tinkercad, Sketchup, Solidworks, Fusion360, Maya, Zbrush, Openscad, or any of the various CAD software, Export in one of the compatible formats like STL, OBJ, AMF, etc & you’re ready to 3D Print.

Slicing Software

The Voxel 300 3D Printer runs Marlin, meaning it’s compatible with a variety of Slicing Software. Cura, Simplify3D, Mattercontrol, Slic3r, the list goes on.

Recommended

Beginners: Cura (Free)
Advanced: Simplify3D

Learn how VOXEL VW-300 3D Printer can add value to your work ?

Our team of Expert will guide you through the process.

Capable of Printing a Variety of Filaments Up to 300℃

PLA/ ABS/ TPU/ TPE/ PETG/ PLA-Carbon Fiber Infused/ PLA Metal Fill/ PLA Wood Fill

Voxel 3d filaments

Voxel VW-300 3D Printer - Technical Specifications

General
Build Volume (W × D × H)
12 × 12 × 12 inch/ 300 × 300 × 300 mm
Machine Size (H × W × D)
28.5 × 19.3 × 22.6 inch/ 723 × 490 × 574 mm
Printing Technology
FDM/FFF
Feeder Mechanism
Direct Drive Extruder
Filament Diameter
1.75 mm
Positioning Precision
XY: 11 microns [0.0004 in]
Z: 2.5 microns [0.0001 in]
Print Head Travel Speed
30–150 mm/s
Build Plate
Heated aluminum build plate with removable Glass
Max Build Plate Temperature
110ºC
Heated Bed Material
Silicone
Build Plate Leveling
Automatic Bed Levelling
Filament Run-out Sensor
Available
Supported Materials
PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA
PP/ PVA/ Nylon/ Carbon Fiber Infused/ Metal Fill/ Wood Fill
Layer Height
0.05-0.3mm
Nozzle Diameter
0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Swappable)
Max Nozzle Temperature
300ºC
Connectivity
USB, SD Card, (WIFI * Optional)
Noise Emission (Acoustic)
<60 dB(A) when building
Operating Ambient Temperature
15-30ºC, 10-90% RH non-condensing
Net Weight
45 kg
Gross Weight
50 kg
Software & Electrical
User Interface
3.5 inch Touch Screen
Power Loss Recovery
Available
Slicing Software
Cura, Simplify 3D, Ideamaker, Prusa Slicer
Supported File Types
STL/ OBJ/ 3MF
Supported OS
WINDOWS/ macOS/ Linux
Machine Code Type
GCODE
Power Supply Input
~220V, 50/60 Hz AC

Industries Use Case

Frequently Asked Questions (FAQs)

Who generally buys the Voxel 300 Industrial 3D Printer?

Shipping out hundreds of 3D Printers, we’ve noticed that Voxel VW-300 3D Printer is best suited for Educational Institutes, Personal Use, 3D Printing Businesses, Tool & Dies Manufacturers, FMCG Products Manufacturer, Heavy Manufacturers, Model Making Service Providers, Product Designers, Plastic Product Manufacturer.

Especially with the specifications and the price tag, the Voxel VW-300 3D Printer packs a range of advanced features like Removable Glass Bed, CNC Machined Aluminum Extruder and Active Triple Cooling Fans making it the most ideal 3D Printer for Rapid prototyping and Low batch production.

How it is different from other 3D Printers?

Voxel VW-300 3D Printer is probably the only 3D Printer with its specifications in its price category. For e.g. direct drive mechanism, Active Triple Cooling, all enclosed design helps 3D printing with industrial materials like ABS, ASA, PLA, TPU, TPE, PLA Carbon Fiber Infused with high reliability.

What knowledge is required to operate the Voxel 300 3D Printer?

If you can operate a computer, you can operate a Voxel VW-300 FDM 3D Printer, however, understanding the concepts in-depth helps better. You might want to attend one of our 3D Printing Workshops. A complimentary pass could be given on the purchase of a Voxel VW-300 3D Printer.

Alternatively, we have a quick start video.

Is there a learning curve involved?

To get your first prints, it shouldn’t take you more than a 10-15 min learning. For an advanced level, it’ll take some experience with the 3D Printer and probably a few weeks learning.

Related Products

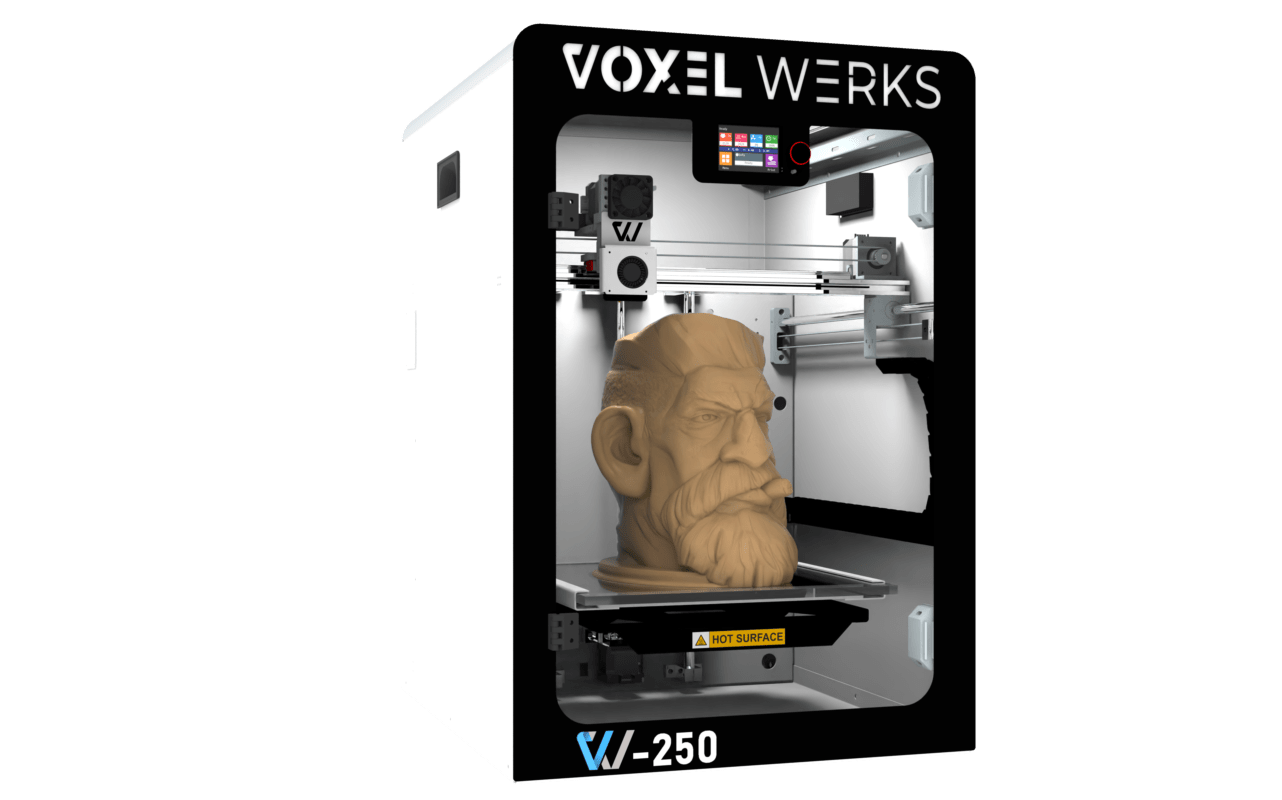

Voxel 250 3D Printer

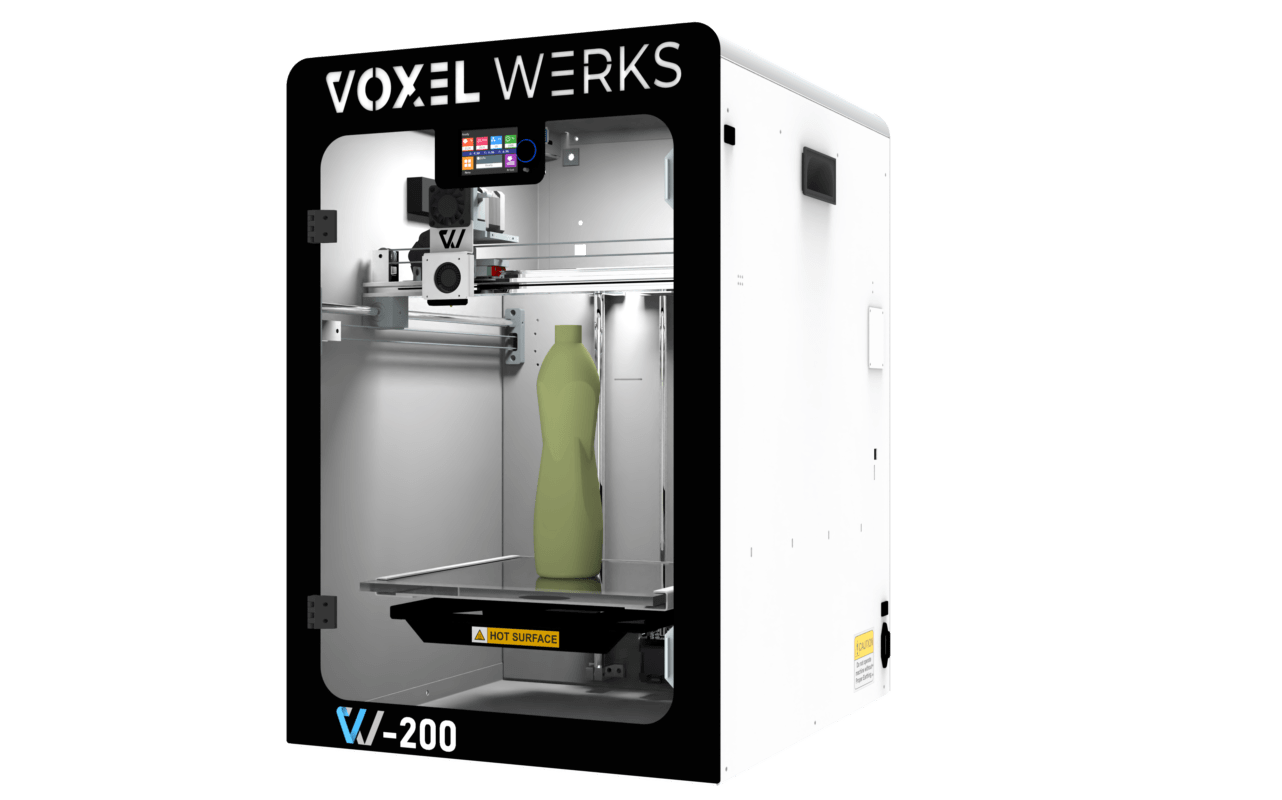

Voxel 200 3D Printer
