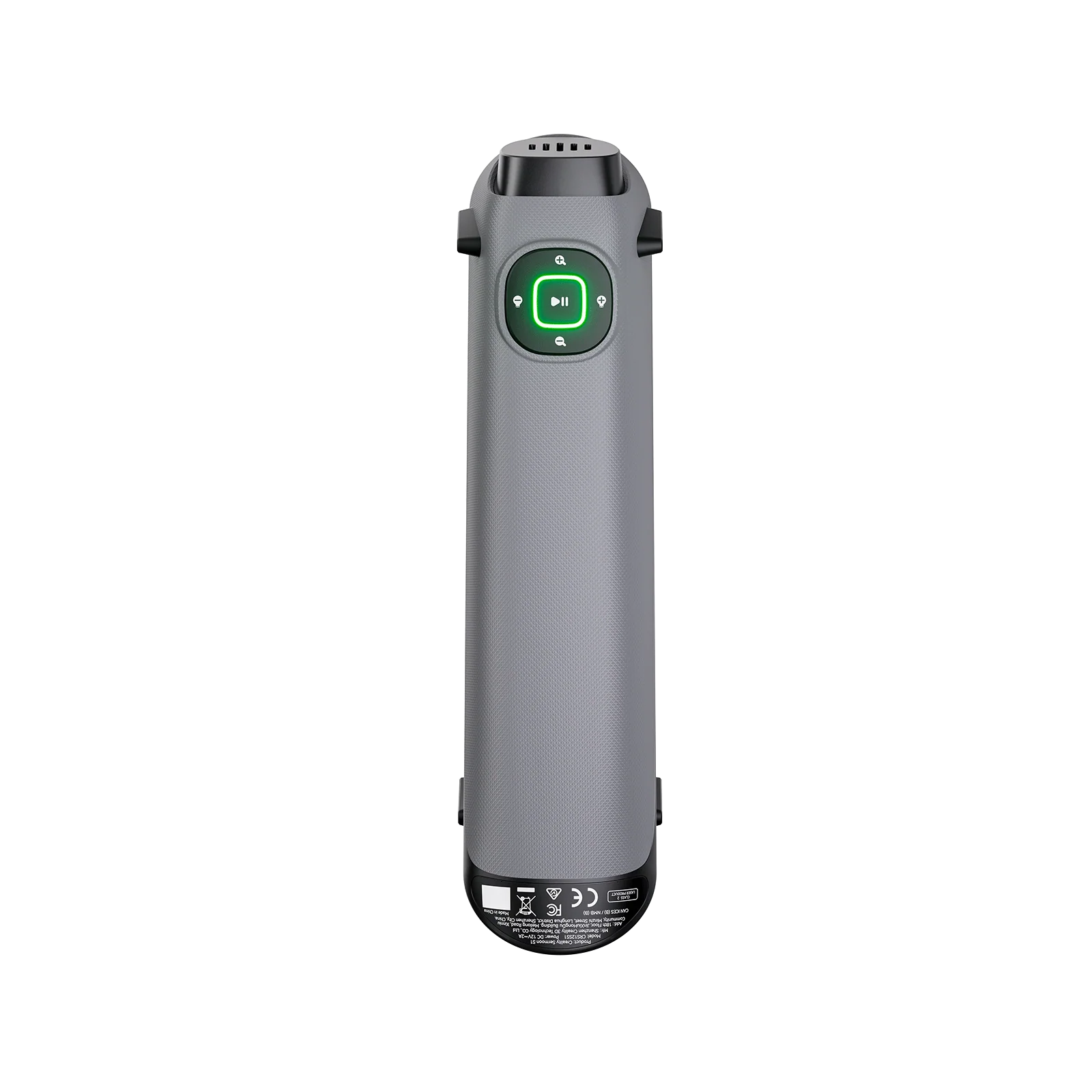

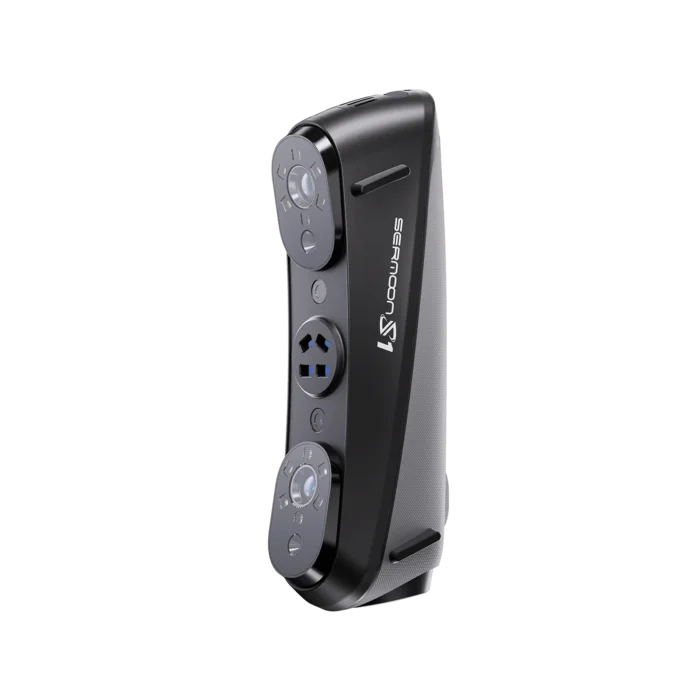

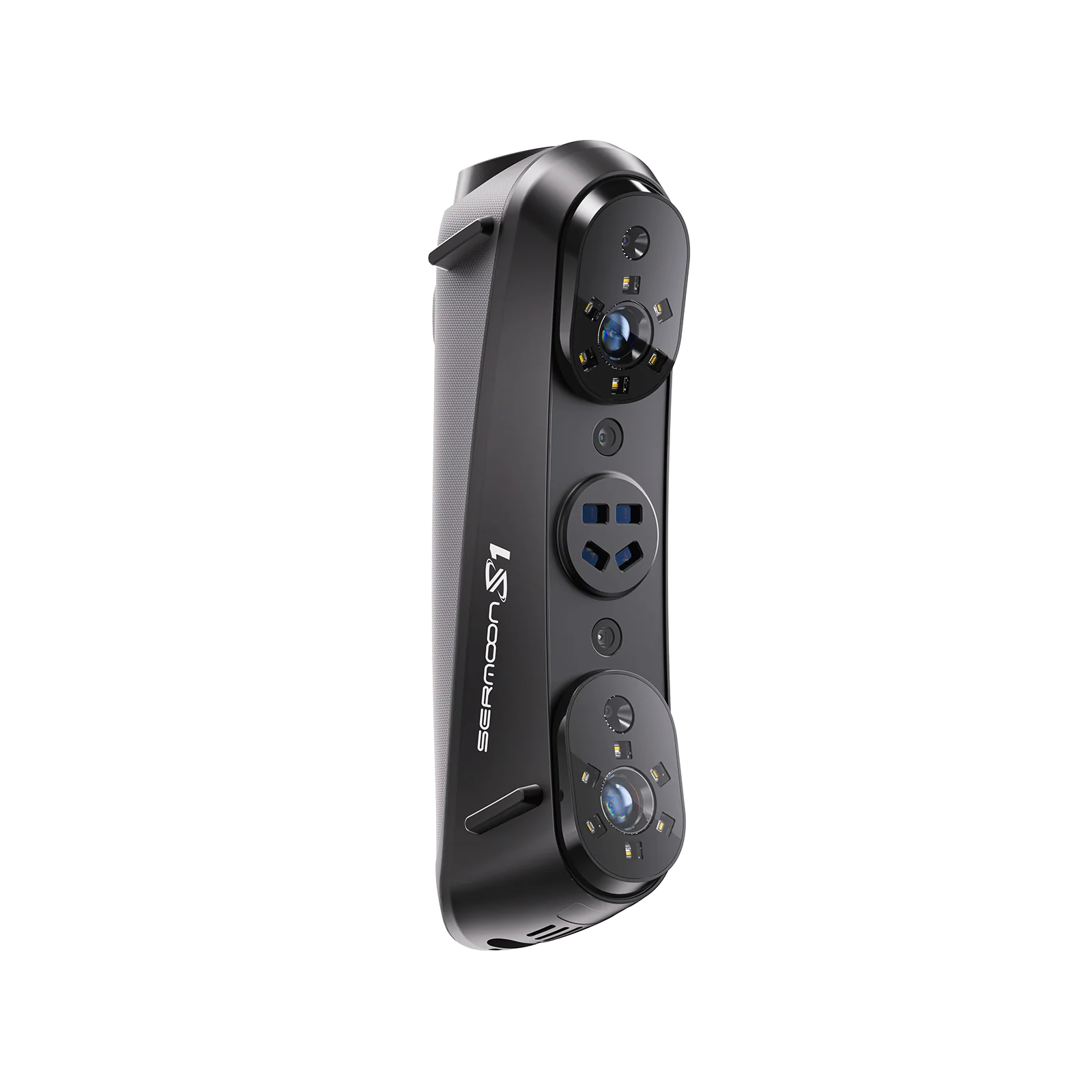

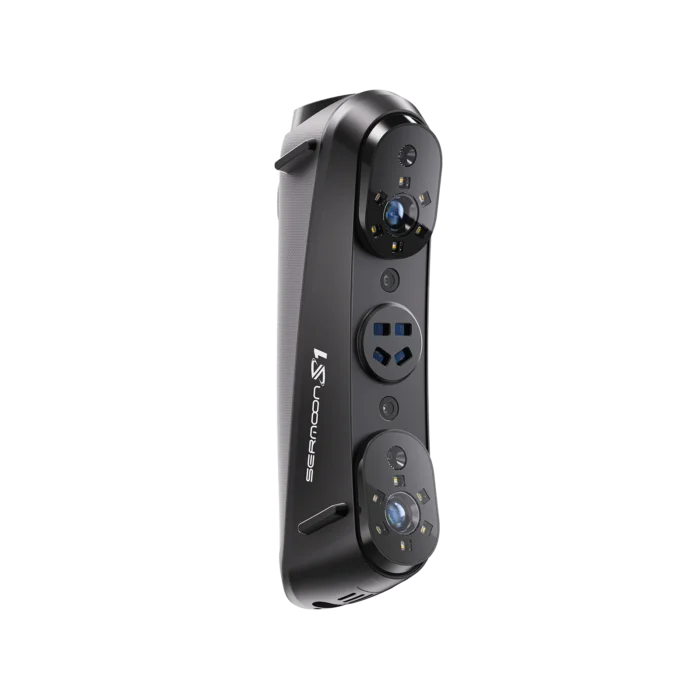

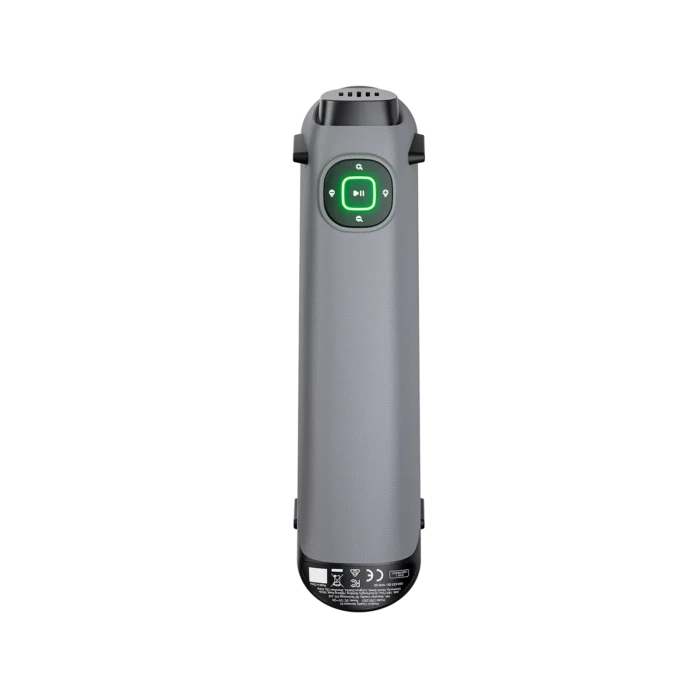

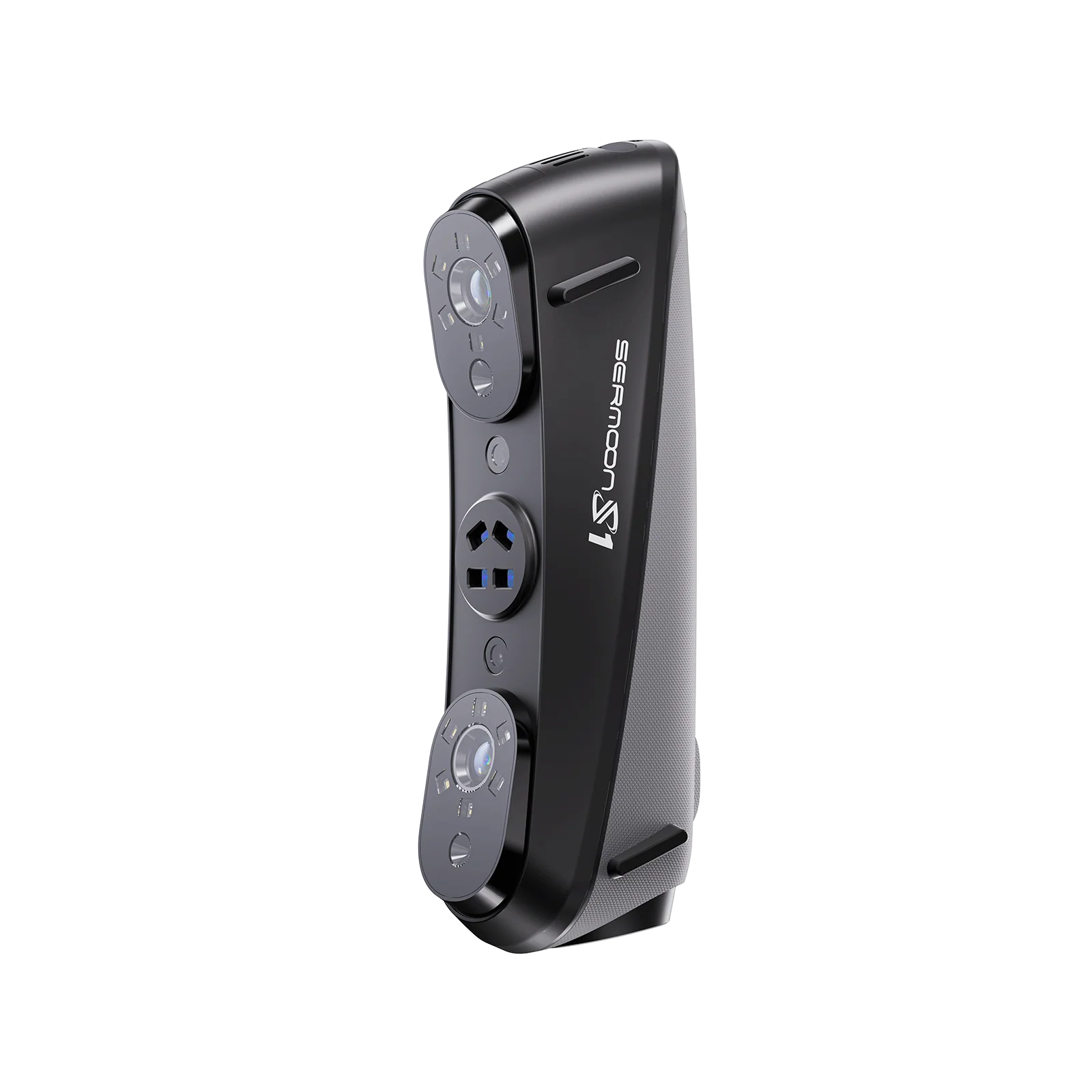

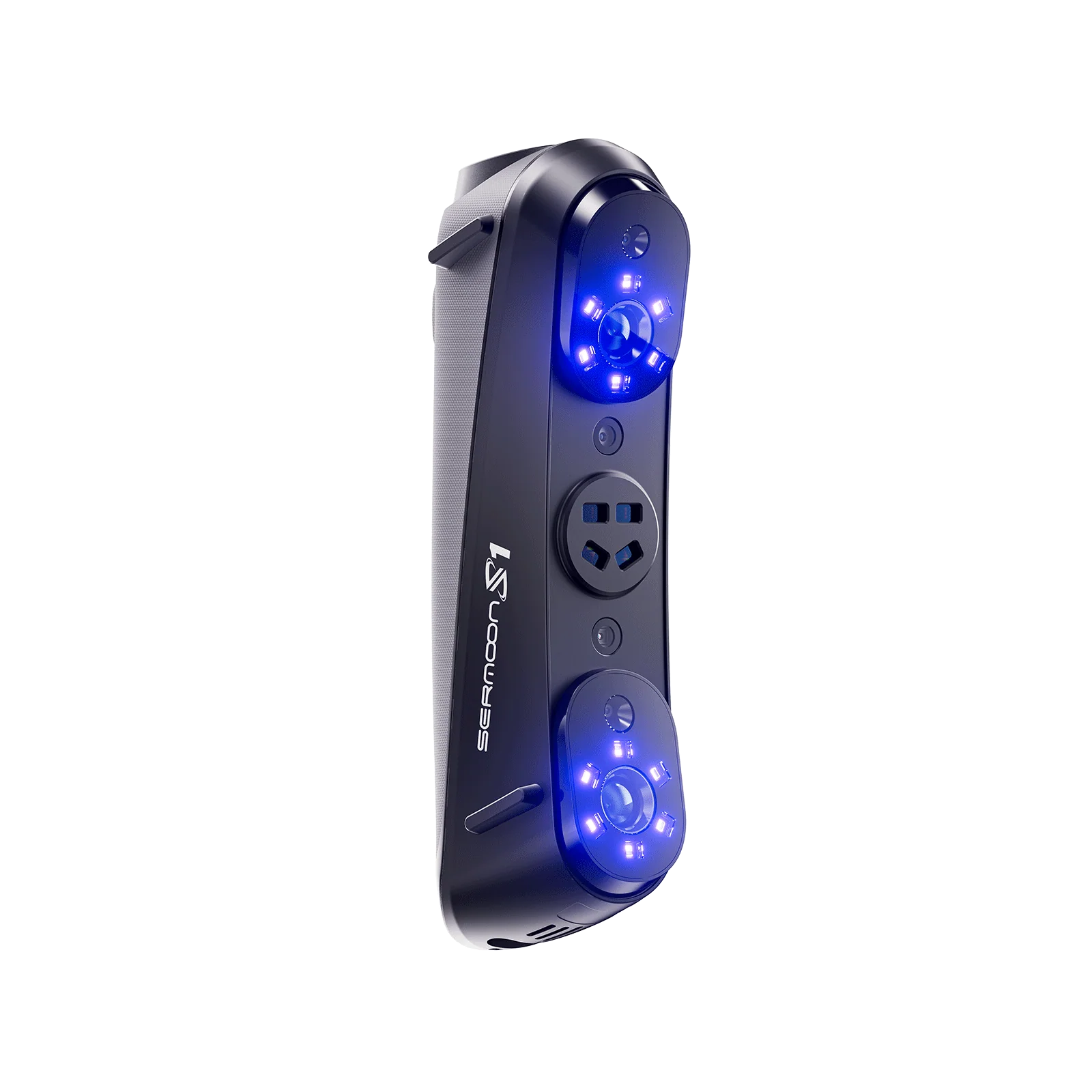

Creality Sermoon S1 3D Scanner

SKU: Sermoon S1 Categories: 3D SCANNERS, CREALITY 3D SCANNERS Tag: Sermoon S1

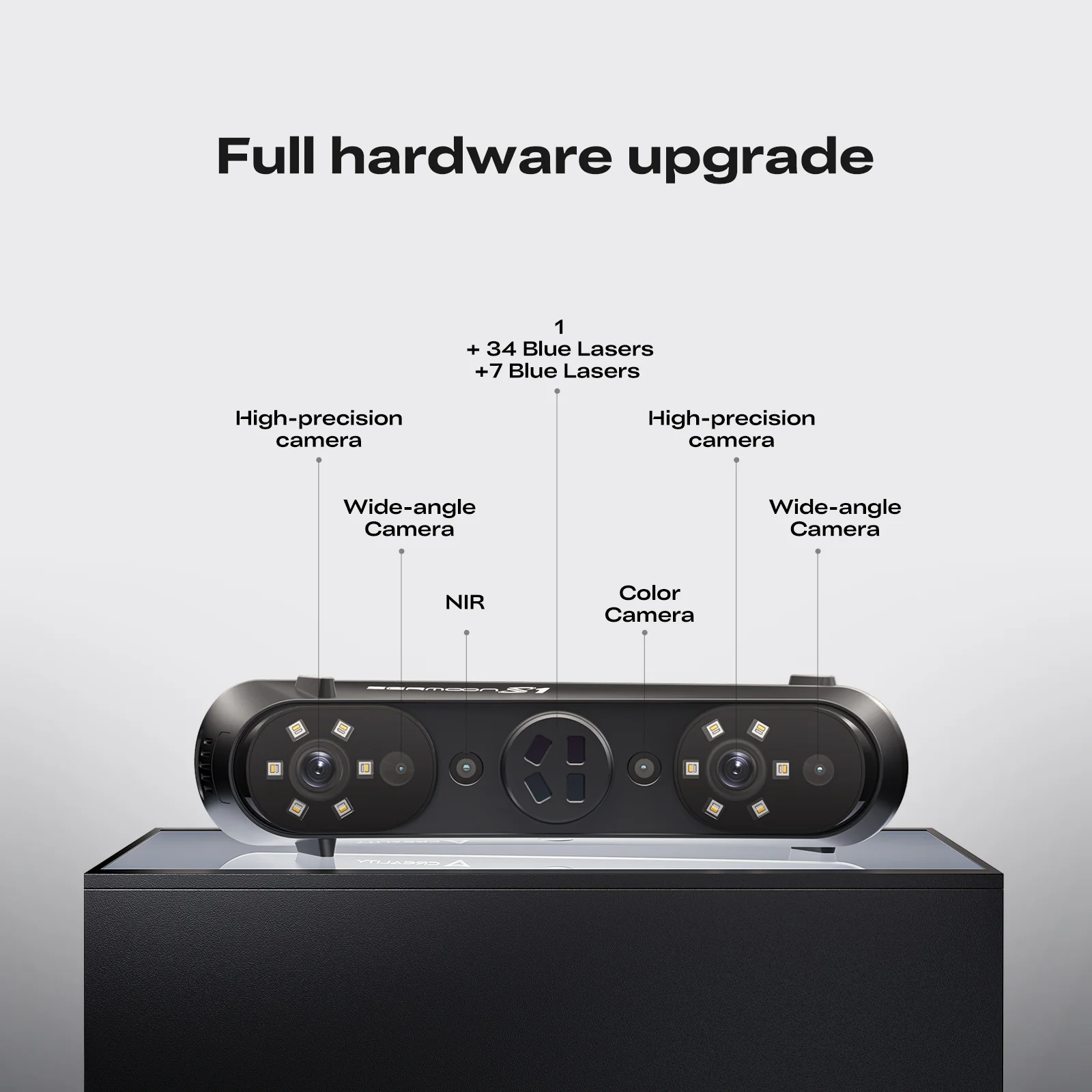

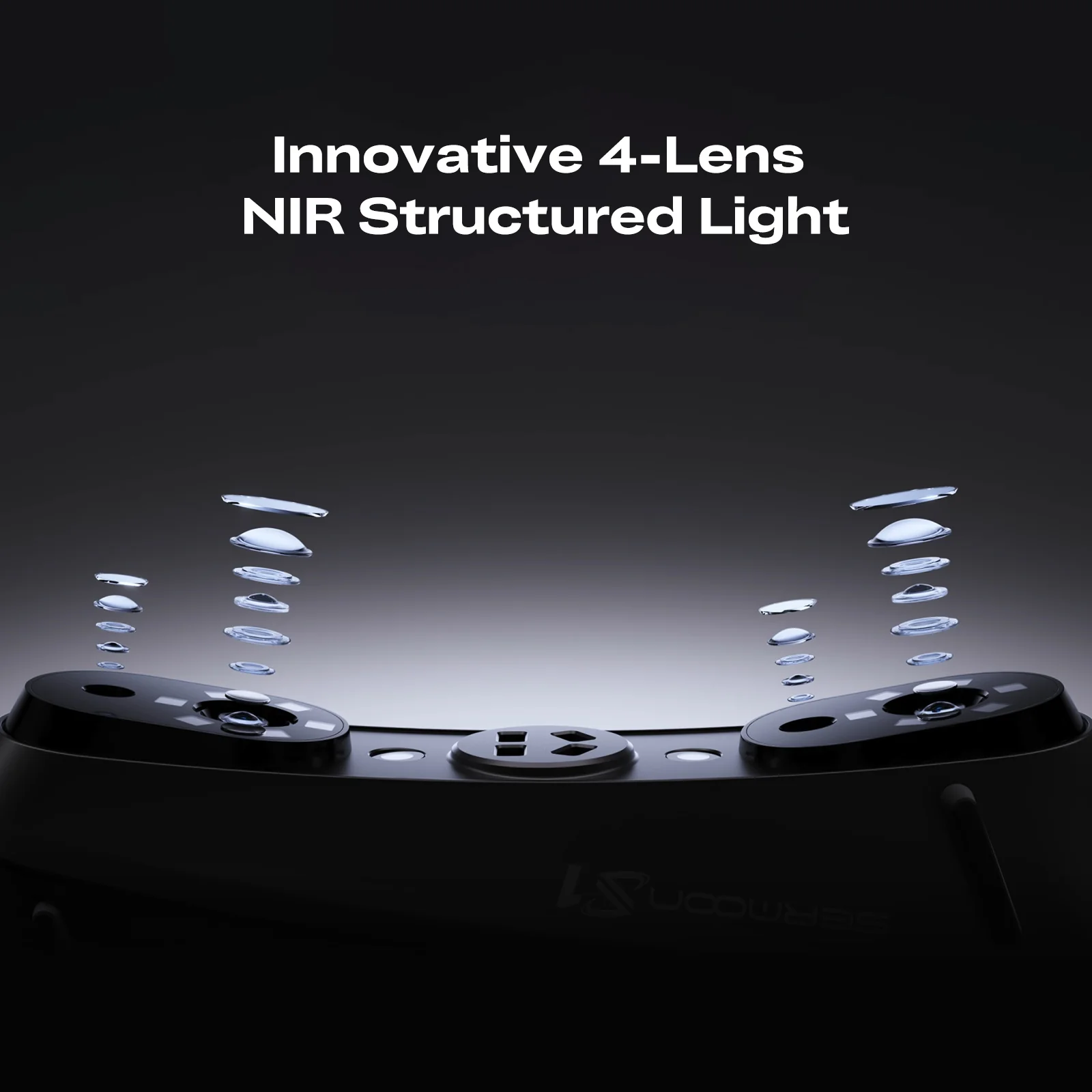

4-in-1 Scanning: Single Line, 7 Parallel Lines & 34 Cross Blue Laser Lines + Infrared Structured Light

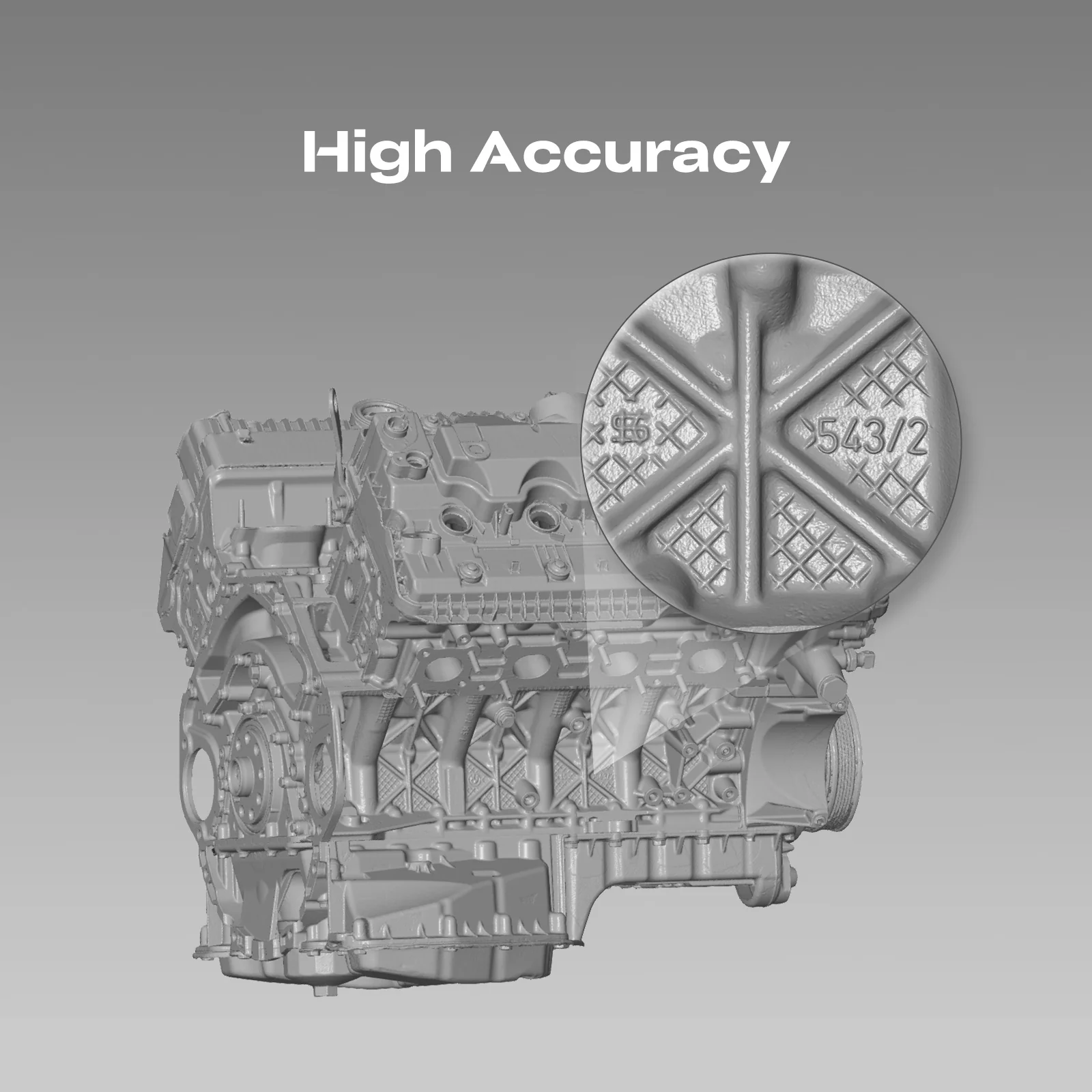

Metrology-Grade Accuracy up to 0.02mm
Scanning Speed up to 90fps
Objects between 5-4000mm
Wired, Wireless (with Accessories) or Standalone Operation
Lightweight Handheld Design, only 508g
For detailed information about the scanner, visit the official free knowledge-sharing platform: Creality Wiki.

₹294,499.00 Including Tax

Fast Shipping

Secure Payment

Tracking Updates

Best Prices

Chat Support

In Stock Alert

Payment Methods:

Description

Technical Specifications

Scanning Mode	Single Blue Laser Line	7 Parallel Blue Laser Lines	34 Cross Blue Laser Lines	Close-Range Infrared Structured Light	Long-Range Infrared Structured Light
Accuracy	Up to 0.02mm[1]			Up to 0.075mm
Volumetric Accuracy	0.02mm+0.08mm/m			0.075mm+0.1mm/m
Scanning rate	108,000 measurements/s	756,000 measurements/s	1,428,000 measurements/s	4,600,000 measurements/s
3D Resolution	0.05-2mm			0.1-2mm
Scanning Speed	Up to 90fps			Up to 30fps
Min. scan volume	5mm x 5mm x 5mm			150mm x 150mm x 150mm
Single Capture Range	205mm x 147mm@200mm 293mm x 217mm@300mm 355mm x 289mm@400mm 417mm x 361mm@500mm 506mm x 433mm@600mm			293mm x 217mm @300mm 417mm x 361mm @500mm	689mm x 375mm @500mm 1245mm x 754mm @1000mm
Working distance	200mm-600mm	150mm-400mm	200-600mm	170mm-500mm	200mm-1200mm
Color Mapping	Yes
Alignment mode	Marker / Global Marker			Marker / Global / Geometry / Texture
Color Supplemental Light	12 White LEDs
Outdoor Scanning	Below 100,000 lux	Below 50,000 lux	Below 100,000 lux	Below 30,000 lux
Marker Recognition Enhancement	12 Blue LEDs / 12 White LEDs
Laser Safety	Class II (eye safe)	Class I (eye safe)	Class II (eye safe)	Class I (eye safe)
Device Weight	508g
Size	225mm×53mm×76mm
Calibration board	High-precision glass calibration board
Wireless Scanning	Supported in Conjunction with Wireless Scanning Accessories
System Support	Windows/macOS Android/iOS (Requires Wireless Scanning Accessories)
Computer Configuration Requirements	Windows: The following or higher configurations are recommended: i7-Gen10 CPU, Nvidia GPU (8GB VRAM), 32GB RAM, Windows 10/11 (64-bit) Minimum configuraiton: i7-Gen7 CPU, Nvidia GPU (6GB VRAM), 16GB RAM, Windows 10/11 (64-bit) macOS: M1/M2/M3/M4 series, 16GB RAM
Operating temperature	-10°C to 40°C
Operating humidity	10-90%RH
