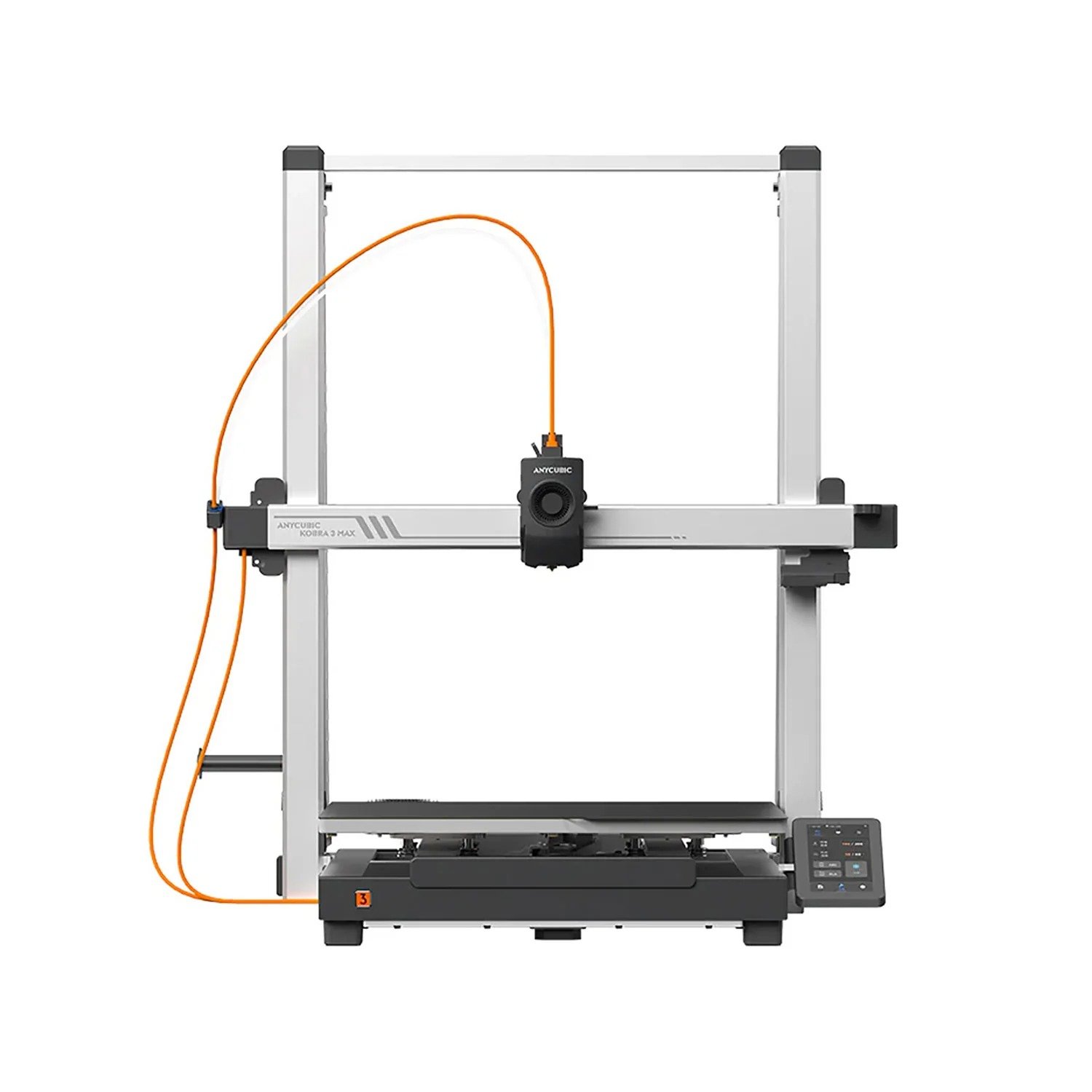

Anycubic Kobra 3 Max FDM 3D Printer | 420 × 420 × 500 mm
Product Features
● 420*420*500mm Print Volume
● Precise Auto-Leveling & Anti-Step Lost
● Printing Speed Up to 600mm/s
● Anycubic Slicer Next & App Upgrade
₹54,999.00 Including Tax
Out of stock
Out of stock for now. Leave your details and we will tell you the moment it is back.
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:







Why Choose Kobra 3 Max

420*420*500mm Print Volume

Printing Speed Up to 600mm/s

Precise Auto-Leveling & Motor Anti-skip

Extremely Easy to Use



420*420*500mm³ Print Space > 2 Carry-on Suitcases
Ultra-Large Model in a Single Print
Reduce Filament Wastage during Mass Productions
Skip Objects Function Boosts Efficiency & Cuts Costs[1]

Specification
Core Printing Performance
Sold separately
420*420*500mm (88L)
PLA/PETG/TPU
Recommended 300 mm/s, Maximum 600 mm/s
Recommended 10,000 mm/s²
Max Temperature 300°C, Diameter Standard 0.4 mm, expandable to 0.2/ 0.6 / 0.8 mm
Max Temperature 90°C, Material PEI spring steel build plate
User Experience & Features
4.3-inch capacitive touch screen
≤60dB (Standard mode)
-
706*640*753mm
19kg
22.1kg
830*700*205mm
System & Structural Design
Kobra OS
Gantry System
Short distance extrusion
LeviQ3.0 Auto-leveling, Z-Offset
Supported
Supported
Supported
Supported
Supported
Supported
Via printer, slicing software, Anycubic APP, USB (print only)
What's in box
Kobra 3
Touch Screen
Spool Holder
Cable Holder
Purge wiper
Pouch 5 - For screeninstallation
Pouch 4 - For printhead installation
Pouch 1- For crane installation
Pouch 2 - For support rod installation
Signal cable (1pcs)
Cable organizer (4pcs)
Filament tube (5pcs)
Nozzle Cleaner
Test Filament
U-DISK(1pcs)
4.0/3.0/2.5/2.0/1.5
Power cord (2pcs)
Grease
Pouch 3 - For printhead cable
Printhead
Printer lower
Support Rod
Wrench (1 set)
| Specification | Kobra 3 Max | Kobra 3 Max Combo |
|---|---|---|
| Core Printing Performance | ||
| Multicolor Printing | Sold separately | Supports 4- or 8-color printing |
| Printing Volume | 420*420*500mm (88L) | 420*420*500mm (88L) |
| Supporting Filaments | PLA/PETG/TPU | PLA/PETG/TPU (TPU not compatible with ACE Pro) |
| Printing Speed | Recommended 300 mm/s, Max 600 mm/s | Recommended 300 mm/s, Max 600 mm/s |
| Acceleration | Recommended 10,000 mm/s² | Recommended 10,000 mm/s² |
| Nozzle Specs | Max Temperature 300°C, Diameter Standard 0.4 mm, expandable to 0.2 / 0.6 / 0.8 mm | Max Temperature 300°C, Diameter Standard 0.4 mm, expandable to 0.2 / 0.6 / 0.8 mm |
| Hotbed Specs | Max Temperature 90°C, Material PEI spring steel build plate | Max Temperature 90°C, Material PEI spring steel build plate |
| System & Structural Design | ||
| Firmware Solution | Kobra OS | Kobra OS |
| Construction | Gantry System | Gantry System |
| Extrusion Type | Short distance extrusion | Short distance extrusion |
| Motion System X-axis | Dual shaft core + SG15 bearings | Dual shaft core + SG15 bearings |
| Motion System Y-axis | Dual shaft core + SG15 bearings+ dual motors | Dual shaft core + SG15 bearings+ dual motors |
| Motion System Z-axis | Dual motor dual screw | Dual motor dual screw |
| Machine Leveling | LeviQ3.0 Auto-leveling, Z-Offset | LeviQ3.0 Auto-leveling, Z-Offset |
| Pressure Advance / Flow Calibration | Supported | Supported |
| Power & Safety | ||
| Power Loss Resume | Supported | Supported |
| Filament Detection & Auto Resume | Supported | Supported |
| Filament Entanglement Detection | Supported | Supported |
| AI Spaghetti Detection | Supported | Supported |
| Object-Skip & Area Leveling | Supported | Supported |
| Control & Printing Methods | ||
| Control | Via printer, slicing software, Anycubic APP, USB (print only) | Via printer, slicing software, Anycubic APP, USB (print only) |
| User Experience & Features | ||
| Touchscreen | 4.3-inch capacitive | 4.3-inch capacitive |
| Noise | ≤60dB (Standard mode) | ≤60dB (Standard mode) |
| Video Monitoring | - | - |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP / KO | EN / CN / DE / FR / IT / ES / RU / JP / KO |
| Machine Weight | 19kg | Kobra 3 Max - 19kg, ACE Pro - 4.6kg |
| Package Weight | 22.1kg | Kobra 3 Max - 22.1kg, ACE Pro - 5.7kg |
| Machine Dimensions | 706*640*753mm | Kobra 3 Max 706*640*753mm, ACE Pro 365.94*282.84*234.5mm |
| Packaging Dimensions | 830*700*205mm | Kobra 3 Max 830*700*205mm, ACE Pro 430*335*305mm |
