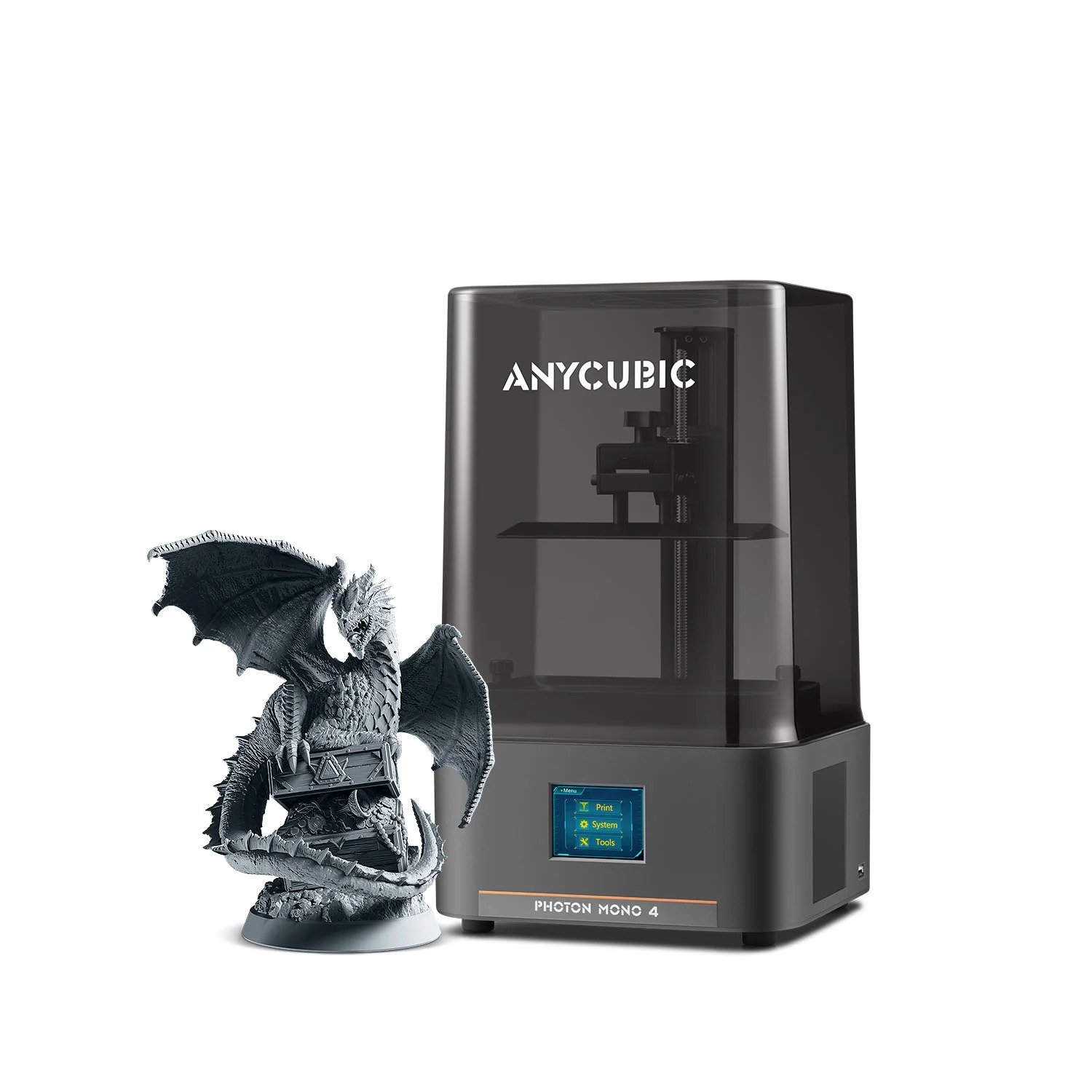

Anycubic Photon Mono 4 Resin 3D Printer | 10K | 153.4 × 87 × 165mm
Product Features
● 10K Resolution at Entry-Level
● 7″ High-Definition Screen
● Printing Speed up to 70mm/h
● LightTurbo Light Sourcing System
₹21,000.00 Including Tax
Everything you need to start printing, picked for this printer.
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:







Why Choose Photon Mono 4

Details Define Difference

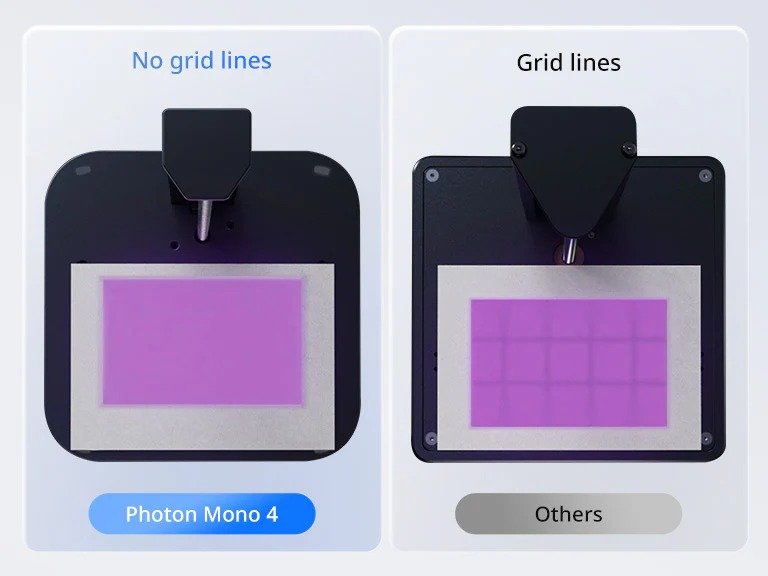

Exquisite, on Each Level & Every Pixel

Dream Big, Think Big, Print Bigger

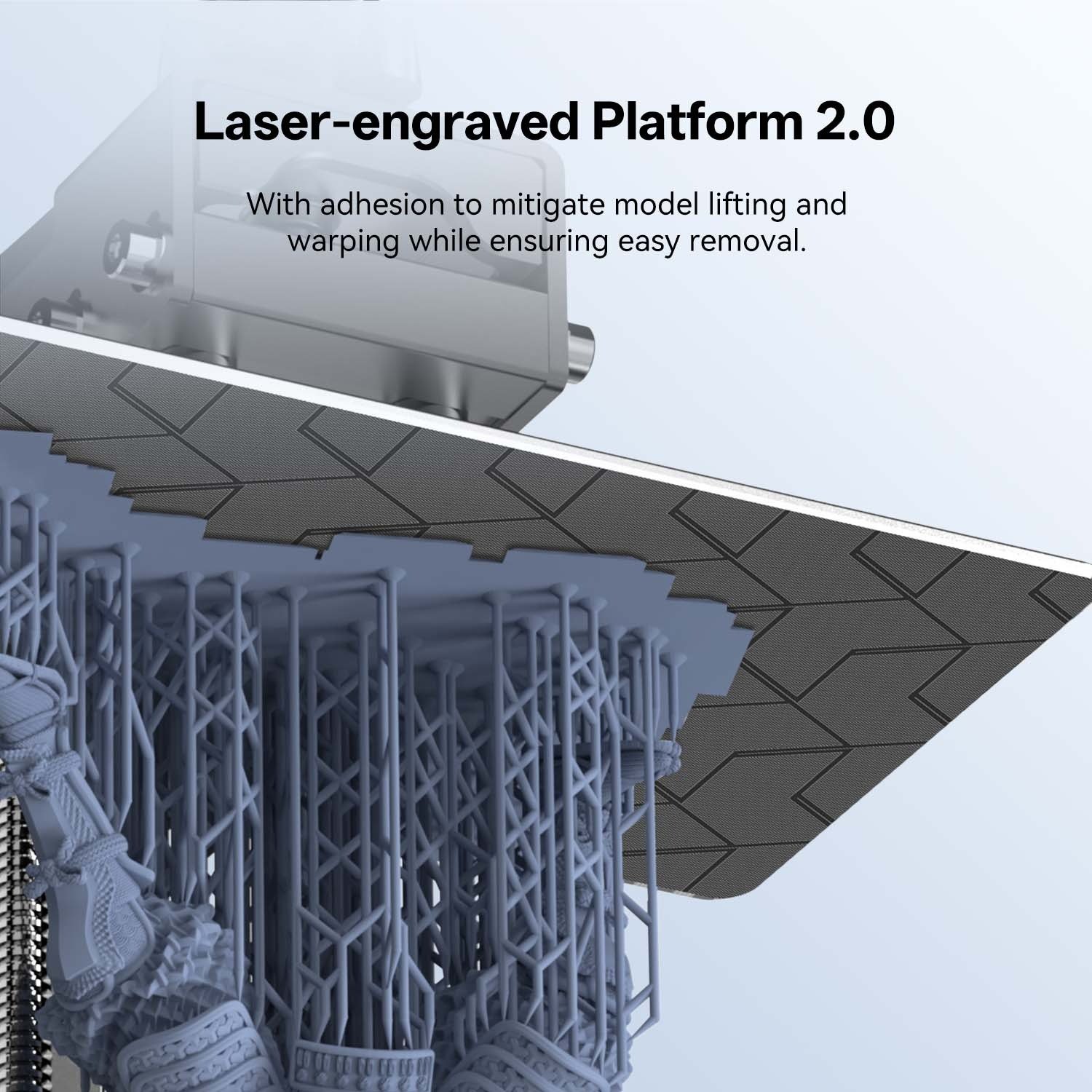

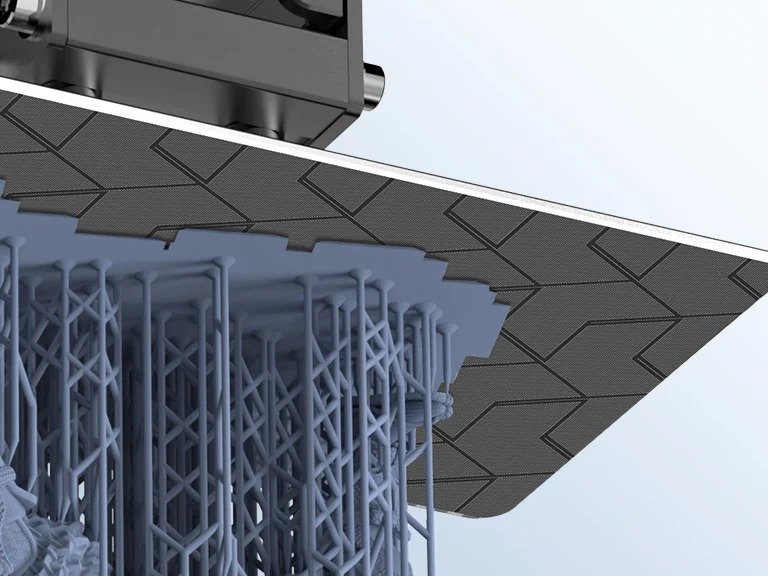

More Cohesive Platform 2.0

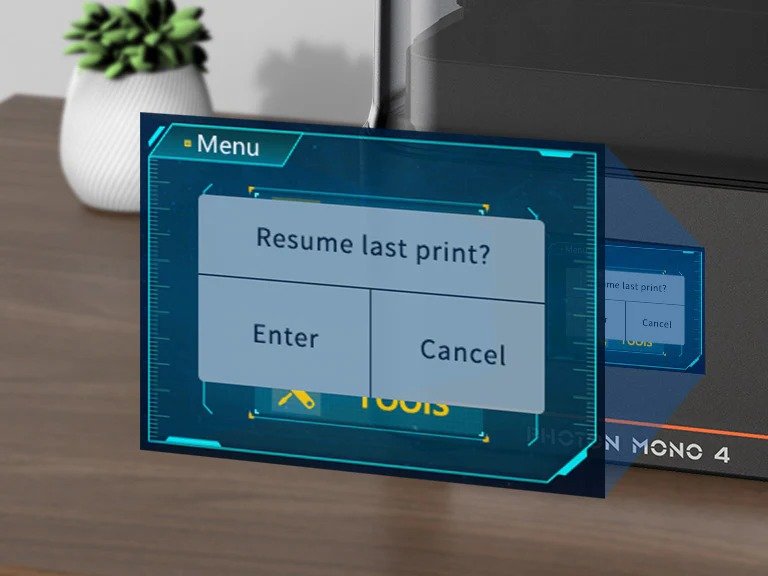

Pick Up Where You Left Off

Activated Carbon Air Purifier



10K Precision, Almost Detail-Perfect
Printing with 0.02mm Layer Height
105% precision increase compared to Mono 2
X/Y-axis pixel precision reaches 17*17 μm

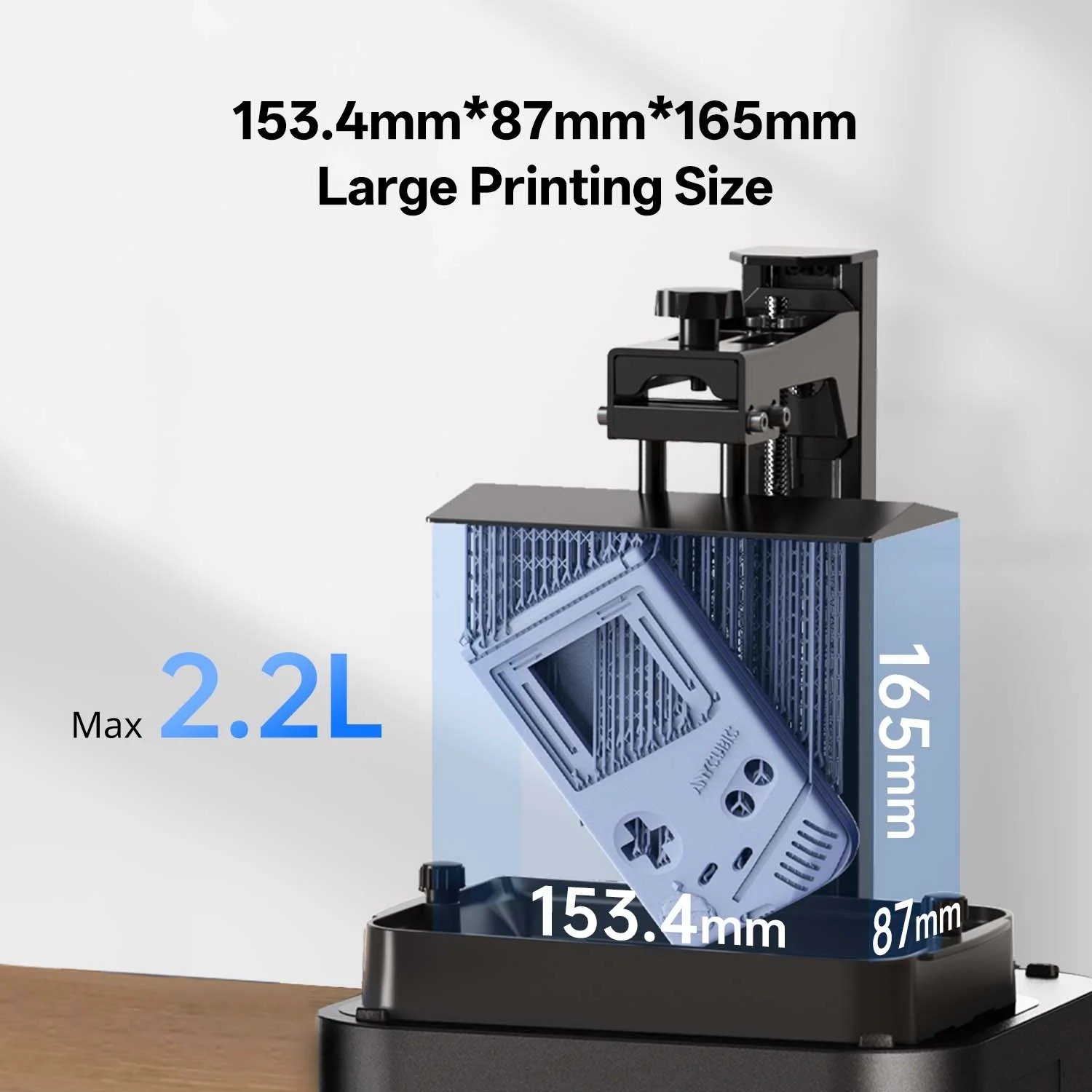

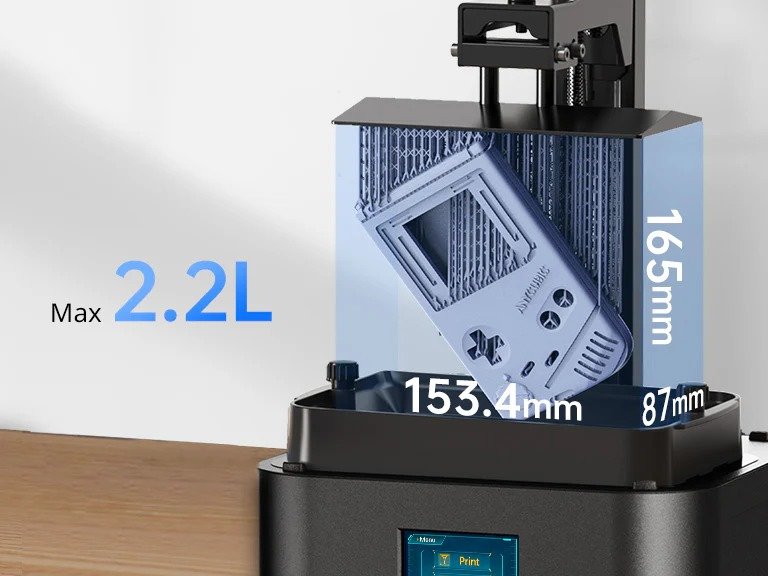

Dream Big, Think Big, Print Bigger
2.2L (153.4mm*87mm*165mm)
Suitable for printing medium-sized household items, accessories, and intricate models.

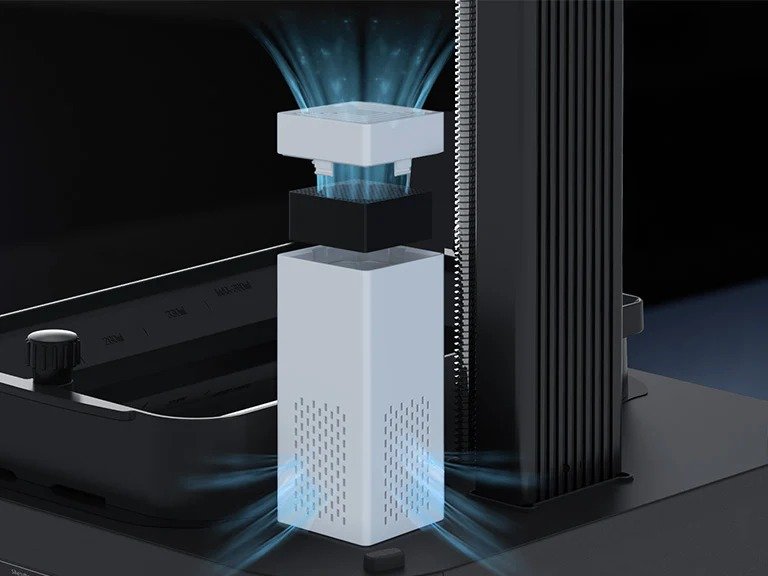

Activated Carbon Air Purifier Compatible.
The 18 mm high-density activated carbon filter, weighing 17 grams, is designed to efficiently capture and neutralize odor molecules produced during printing.
*Activated Carbon Air Purifier sold separately

Specification
Core Printing Performance
Max Speed ≤50mm/hr; Standard Resin (0.1mm): ≤50mm/h; High-Speed Resin (0.1mm): ≤70mm/h
153.4*87*165mm (2.2L)
0.03-0.15mm
17 × 17μm
Parallel matrix upgrade light source
~3000μW /cm²
High-speed, water-washable, standard, ABS-like, and plant-based resins, etc
User Experience & Features
2.8" Touch-Control
Optional accessory
-
7-inch monochrome LCD, 10K resolution
Not supported
EN / CN / DE / FR / IT / ES / RU / JP
4kg
5.7kg
230*235*391mm
480*300*300mm
System & Structural Design
Laser-engraved build plate
Single linear rail with 30 μm accuracy
FEP film
≤0.39L
4-point manual leveling
Supported
54W
Replaceable scratch-resistant film
Not supported
Not Supported
Photon Workshop
USB
What's in box
Photon Mono 4
Print Platform * 1
Resin Vat * 1
Manual * 1
Sreen Protector Kit
Leveling Paper
Protective Equipment
Filter *2
Scrapers * 2
Hex Key Set
USB Drive * 1
Power Cord
| Specification | Anycubic Photon Mono 4 | Anycubic Photon Mono 4 Ultra |
|---|---|---|
| Core Printing Performance | ||
| Printing Volume | 153.4×87×165mm (2.2L) | 153.4×87×165mm (2.2L) |
| Printing Speed | Max Speed ≤50mm/h; Standard Resin (0.1mm): ≤50mm/h; High-Speed Resin (0.1mm): ≤70mm/h | Max Speed ≤80mm/h; Standard Resin (0.1mm): ≤80mm/h; High-Speed Resin (0.1mm): ≤120mm/h |
| Layer Height Range | 0.03–0.15mm | 0.02–0.15mm |
| X/Y Axis Resolution | 17 × 17μm | 17 × 17μm |
| Light Source | Parallel matrix upgrade light source | COB light source + Fresnel lens + Light uniformity algorithm |
| Light Intensity | ~3000μW/cm² | ≥3500μW/cm² |
| Material Compatibility | High-speed, water-washable, standard, ABS-like, and plant-based resins, etc | High-speed, water-washable, standard, ABS-like, and plant-based resins, etc |
| System & Mechanical Design | ||
| Build Platform | Laser-engraved build plate | Laser-engraved aluminum build plate |
| Z-axis | Single linear rail with 30 μm accuracy | Single linear rail with 20 μm accuracy |
| Release Film | FEP film | ACF film |
| Resin Vat | ≤0.39L | ≤0.39L |
| Machine Leveling | 4-point manual leveling | 4-point manual leveling |
| Power & Safety | ||
| Power Loss Resume | Supported | Supported |
| Power Supply | 54W | 66W |
| Protection Film | Replaceable scratch-resistant film | Replaceable scratch-resistant film |
| Resin Auto-fill Unit | Not supported | Not supported |
| Dynamic Temperature Control Resin Vat | Not supported | Not supported |
| Control & Printing Methods | ||
| Slicing Software | Photon Workshop | Photon Workshop |
| File Transfer | USB | USB / WiFi / LAN |
| User Experience & Features | ||
| Hinged Cover | - | - |
| Operating Screen | 2.8" Touch-Control | 4.3" Touch-Control |
| Air Purifier | Optional accessory | Optional accessory |
| LCD Screen | 7-inch monochrome LCD, 10K resolution | 7-inch monochrome LCD, 10K resolution |
| Anycubic App | Not supported | Not supported |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP | EN / CN / DE / FR / IT / ES / RU / JP |
| Machine Weight | 4kg | 5kg |
| Package Weight | 5.7kg | 6.1kg |
| Product Dimensions | 230×235×391mm | 231×236×430mm |
| Packaging Dimensions | 480×300×300mm | 512×300×305mm |
