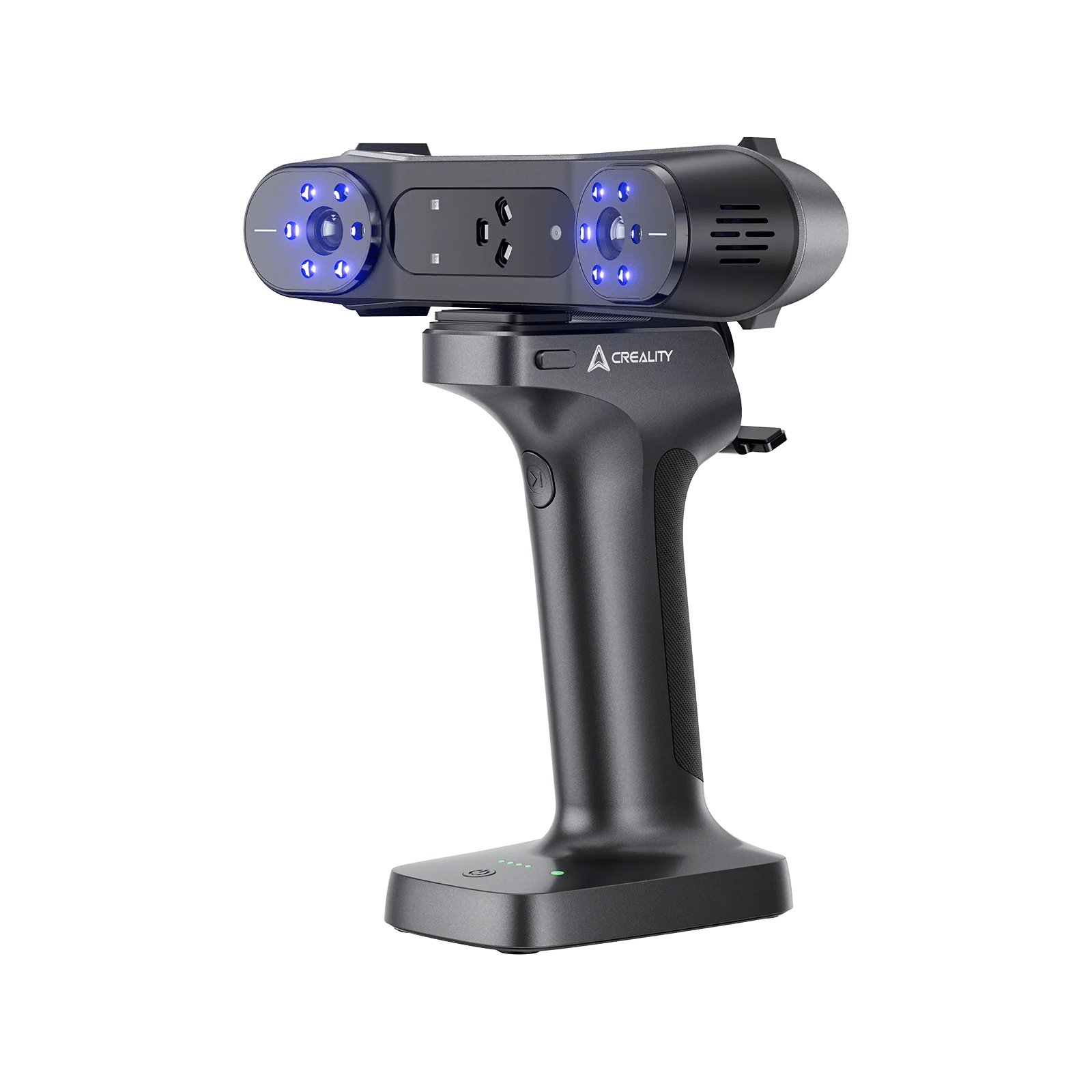

Creality RaptorX 3D Scanner
- World’s 1st Wireless Hybrid Blue Laser & NIR Scanner
- 34+7 Blue Laser Lines
- Portable Wireless Scanner
- Metrology-grade Accuracy up to 0.02mm
- Objects between 5-4000mm
- Fast Wi-Fi 6 Data Transmission
- For detailed information about the scanner, visit the official free knowledge-sharing platform: Creality Wiki.
Original price was: ₹485,999.00.₹481,999.00Current price is: ₹481,999.00. Including Tax
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:
Creality RaptorX
World's 1st Wireless Hybrid
Blue Laser & NIR Scanner
World's 1st Wireless Hybrid Blue Laser Line & NIR Scanner

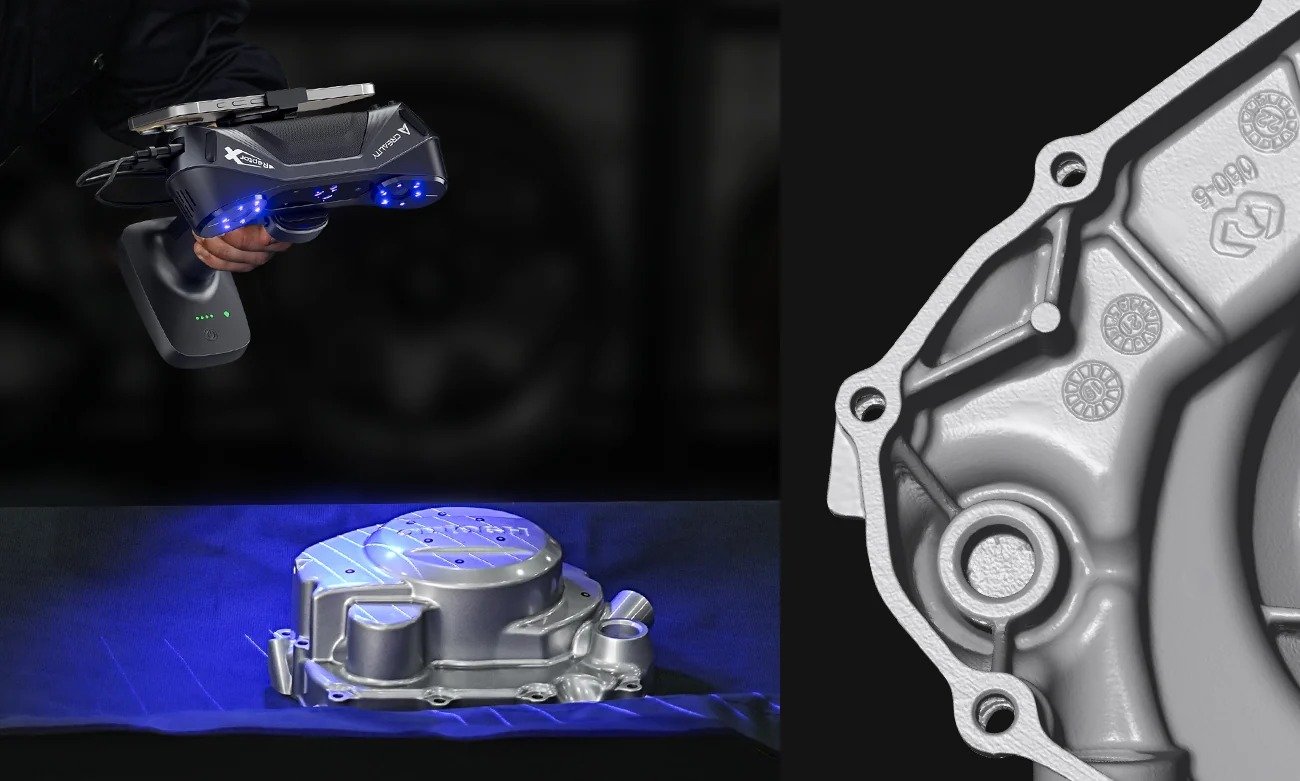

34+7 Blue Laser Lines
Efficiency and Details
34 Cross Laser Lines
High Efficiency, Reliable, Accurate
The laser array arrangement enables rapid and effortless capture of complete and accurate 3D data from medium to large objects.

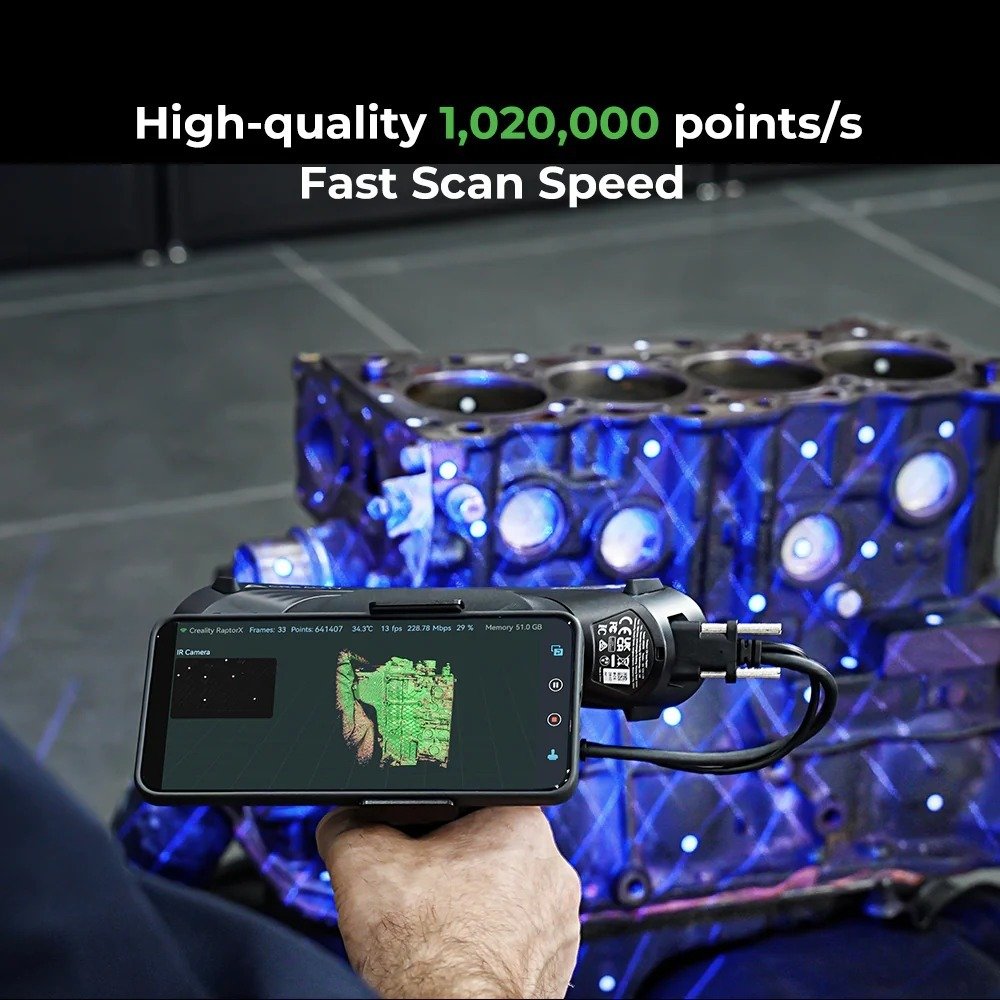

High-quality 1,020,000 points/s Fast Scan Speed
The 34 cross laser lines can process up to 1,020,000 points per second, making it ideal for quickly scanning medium to large objects.
Volumetric Accuracy
0.02mm+0.06mm/m

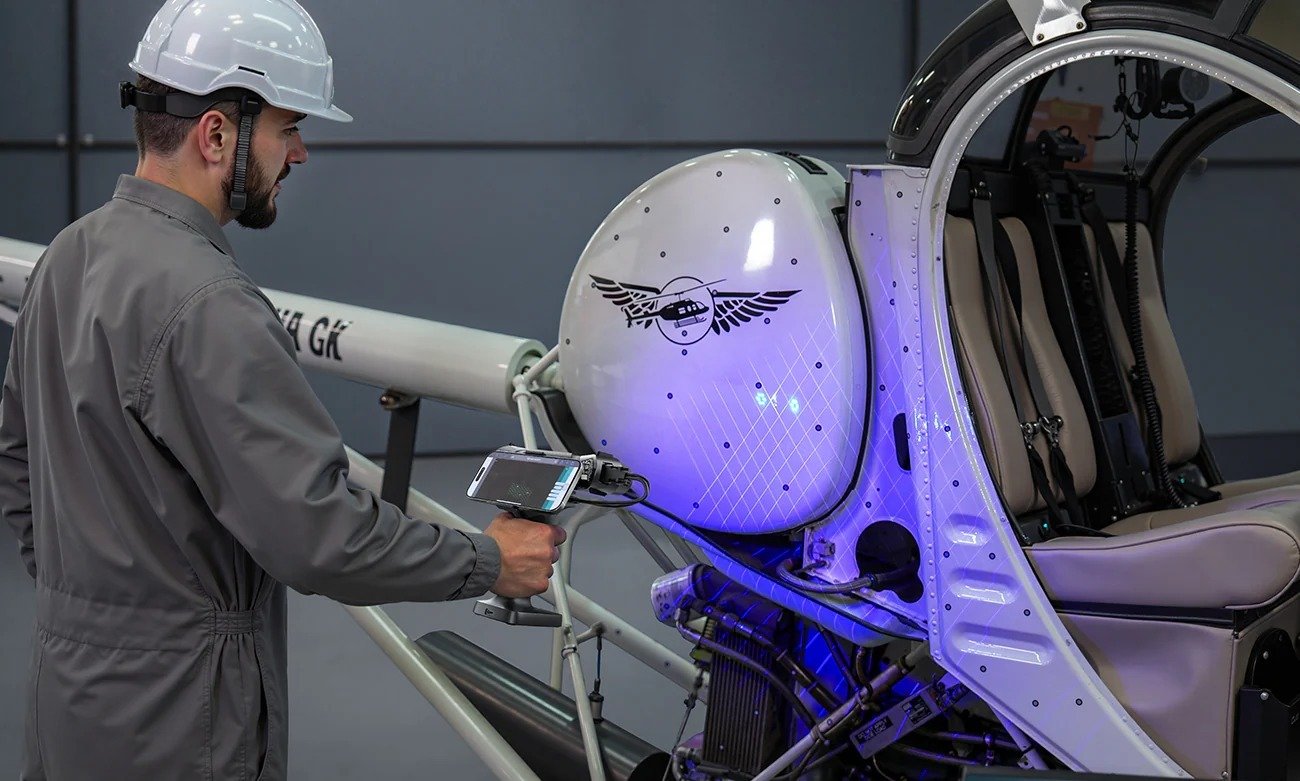

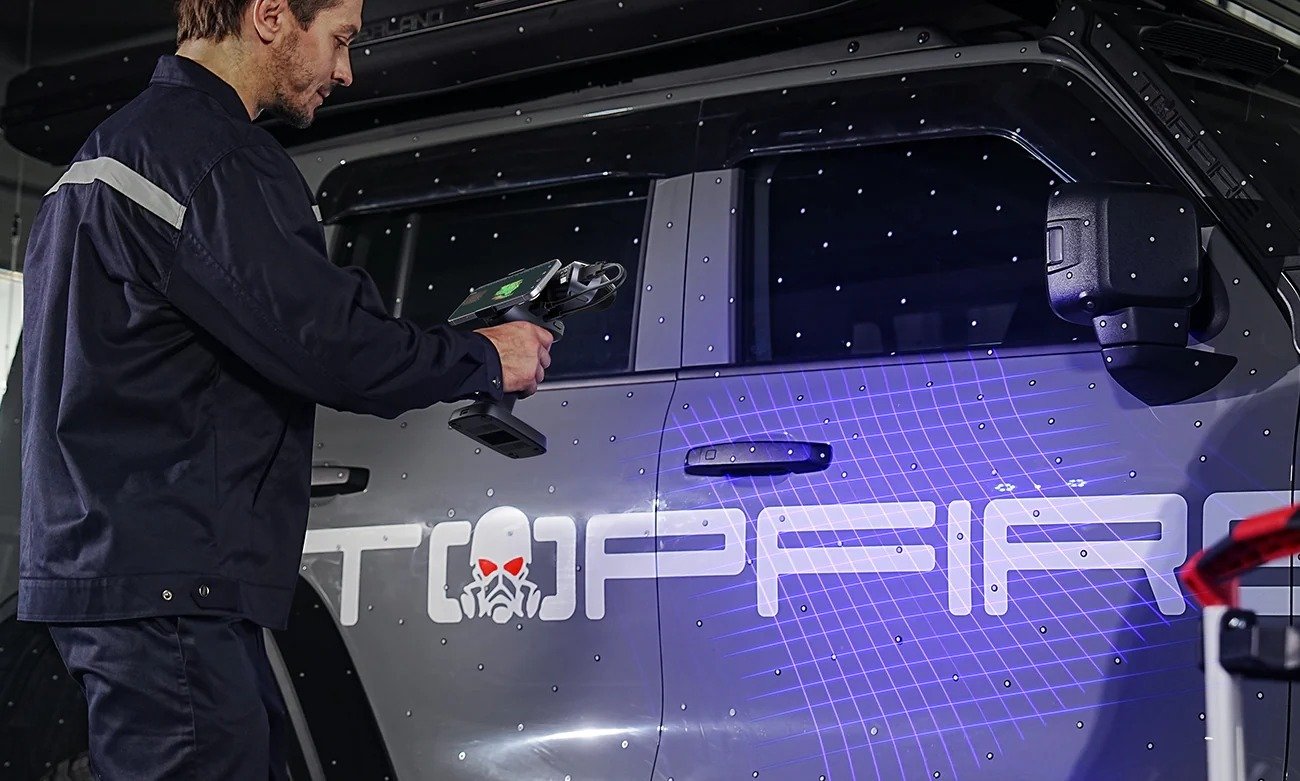

Portable Wireless Scanner
RaptorX features a wireless handle seamless data transmission,
redefining portability in blue laser 3D scanning.

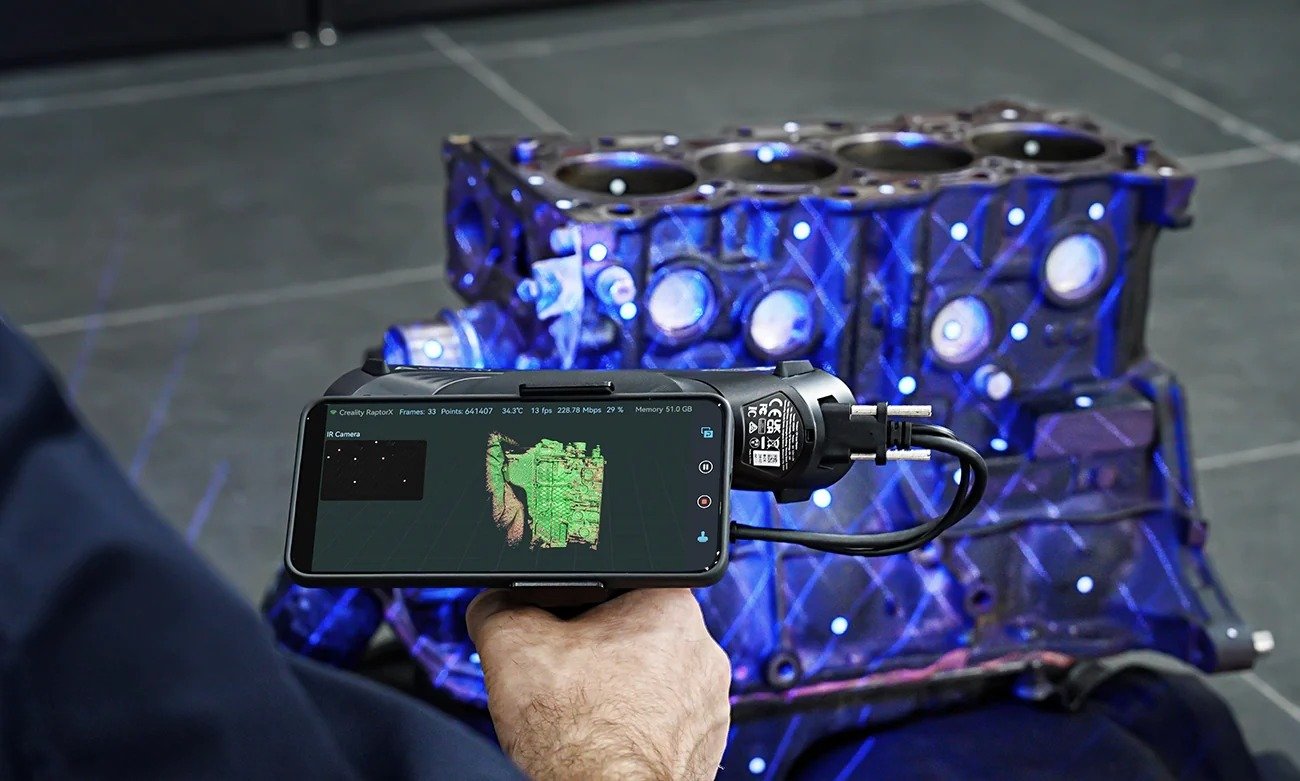

*Note: With the mirroring function, the real-time scanning can be seen easily and wirelessly from the phone.
Wi-Fi 6 AX6000
Fast Data Transmission
Equipped With advanced lossless data compression algorithm, RaptorX allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to the your computer.
NIR Structured Light Scanning
Objects between
0.2-157''/ 5-4000mm

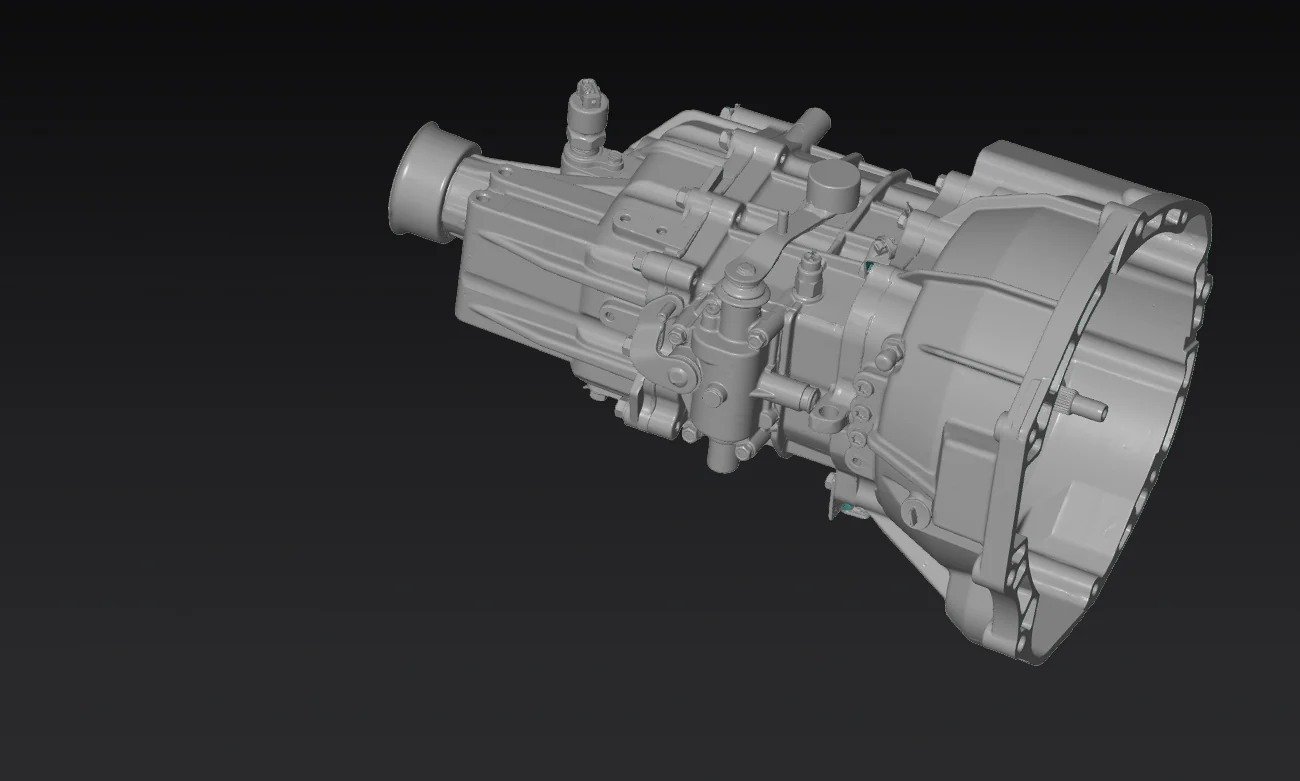

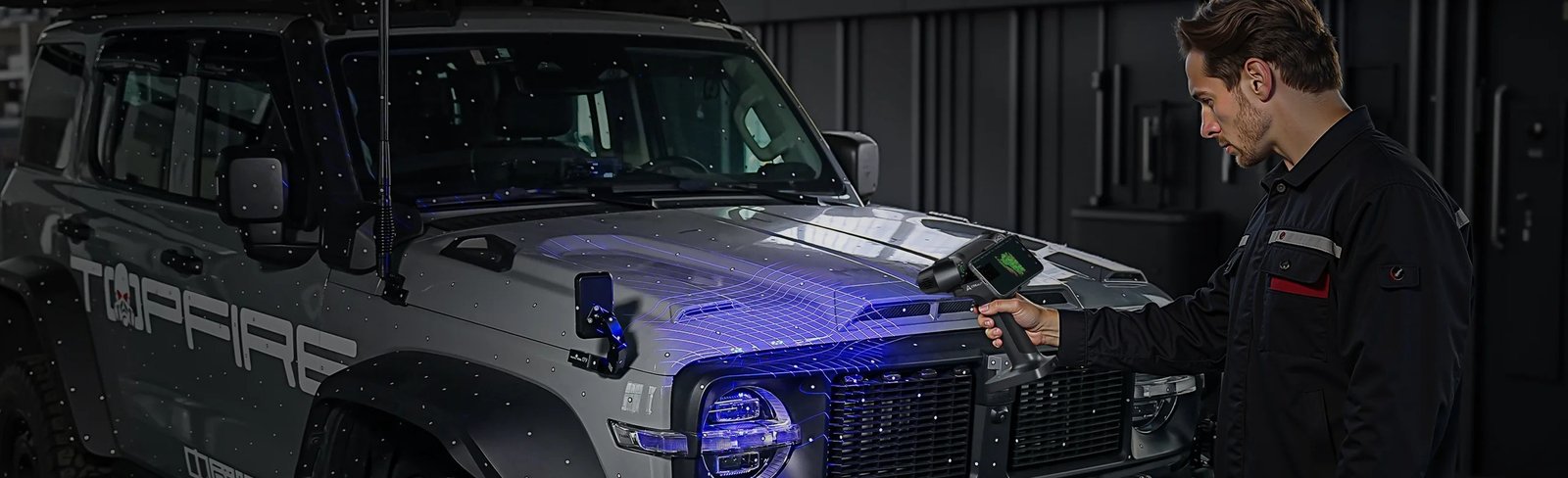

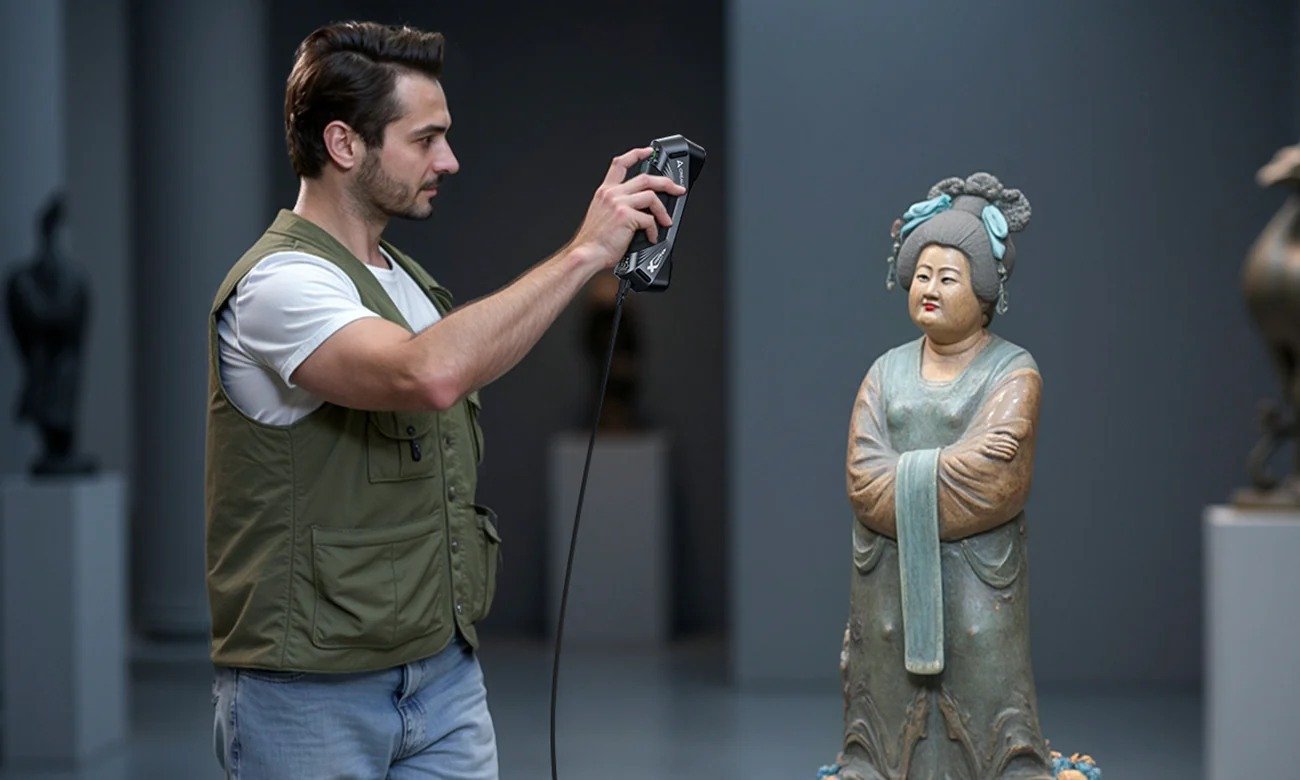

Combining blue laser lines with infrared structured light, RaptorX can scan objects ranging in size from 5*5*5
mm³-4000*4000*4000 mm³. Effortlessly scanning engineering parts, molds, human bodies, automobile components, and more
Laser Line Scanning
NIR Structured Light Scanning
Maximum scan size: 4000*4000*4000 mm³.
Scanning objects ranging from
150*150*150mm³-2000*2000*2000mm³.

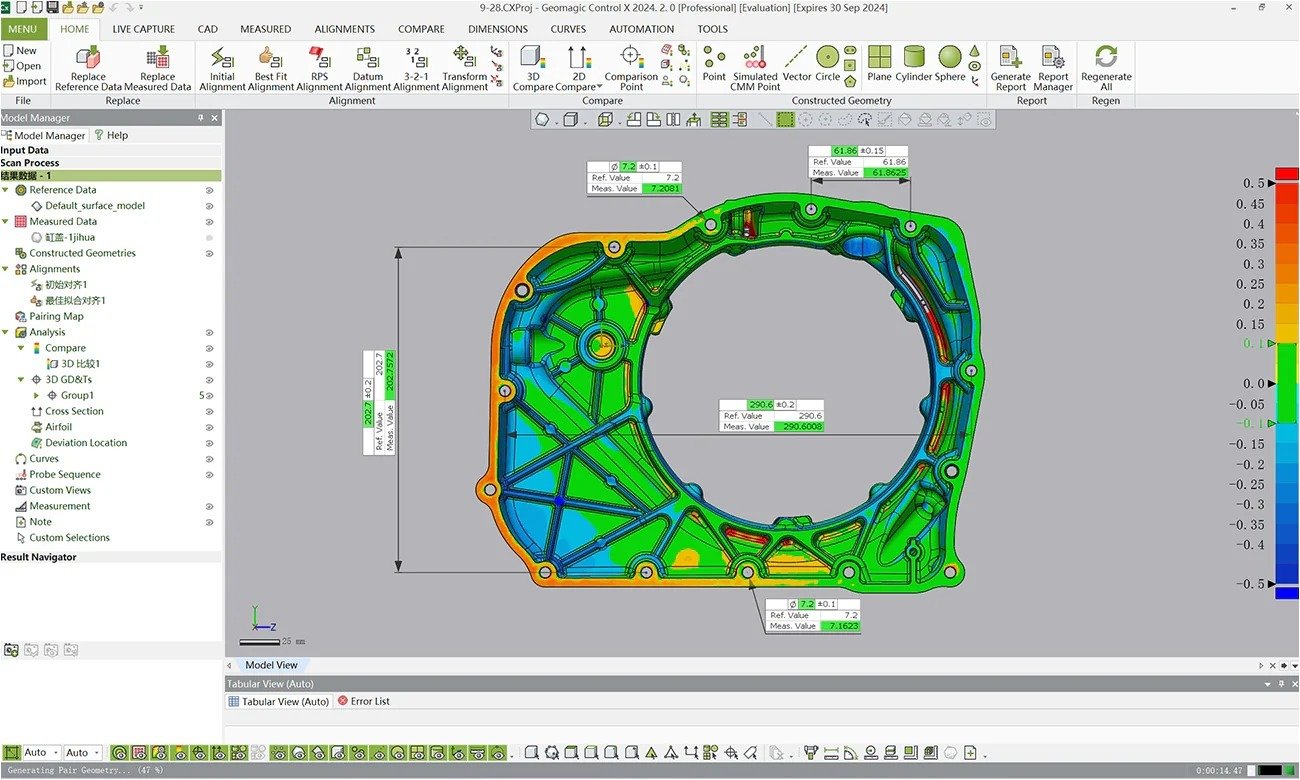

Seamless Integration to Inspection, Design,
3D Printing Softwares
The scan data can be imported into mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving the workflow efficiency.
Specifications
| Product | RaptorX | Raptor |
|---|---|---|
| Scanning Mode | 7 blue parallel laser lines 34 blue parallel laser lines (cross) NIR (infrared binocular structured light) |
7 blue parallel laser lines (0.02mm) NIR (infrared binocular structured light) |
| Accuracy (up to) | 0.02mm 0.05mm |
0.02mm @ 100mm [1] 0.1mm |
| Volumetric Accuracy | 0.02mm + 0.06mm/m 0.05mm + 0.1mm/m |
/ |
| Scanning Rate | 420,000 measurements/s 1,020,000 measurements/s 3,580,000 measurements/s |
420,000 measurements/s 3,580,000 measurements/s |
| Single Capture Range | 270 × 170 mm @ 300 mm 341 × 232 mm @ 400 mm 397 × 290 mm @ 500 mm 452 × 348 mm @ 600 mm 665 × 574 mm @ 1000 mm |
270 × 170 mm @ 300 mm 665 × 574 mm @ 1000 mm |
| Working Distance | 150–400 mm 200–600 mm 170–1000 mm |
150–400 mm 170–1000 mm |
| Outdoor Scanning | ≤ 50,000 lux ≤ 100,000 lux ≤ 30,000 lux |
≤ 50,000 lux ≤ 30,000 lux |
| System Support |
Windows 10/11 (64-bit): i7 Gen10+, Nvidia GPU (≥8GB VRAM), RAM ≥ 32GB Minimum: i7 Gen7, Nvidia GPU (≥6GB VRAM), RAM ≥ 16GB macOS 11.7.7+, Apple M1/M2/M3, RAM ≥ 16GB |
Windows 10/11 (64-bit): i7 Gen7, Nvidia GPU (≥6GB VRAM), RAM ≥ 16GB macOS 11.7.7+, Apple M1/M2/M3, RAM ≥ 16GB |
| Wireless Scanning | Support | Supported with accessories |
[1] Accuracy tested in laboratory conditions with 100 mm sphere pair. Actual results may vary depending on temperature, vibration, and environment.
