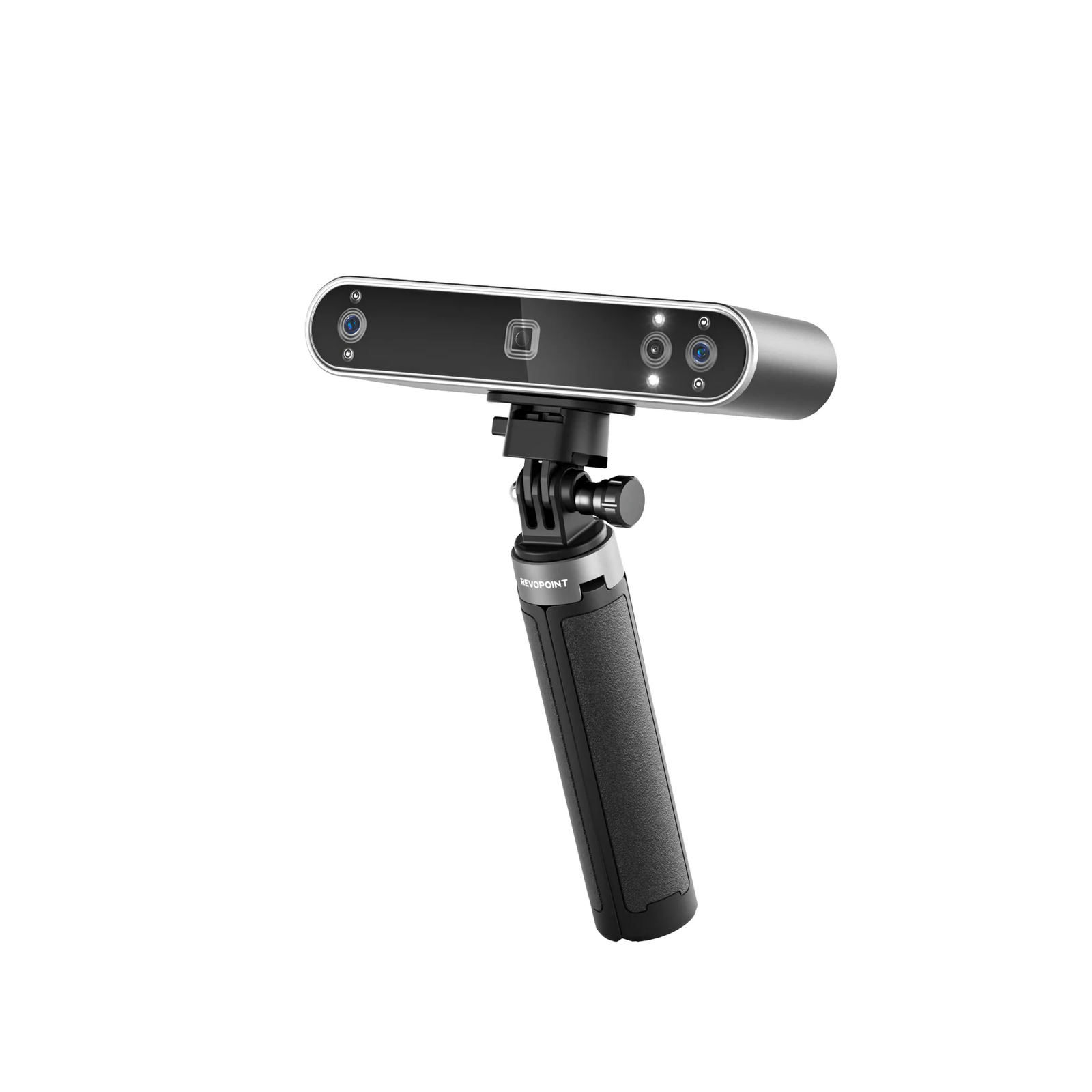

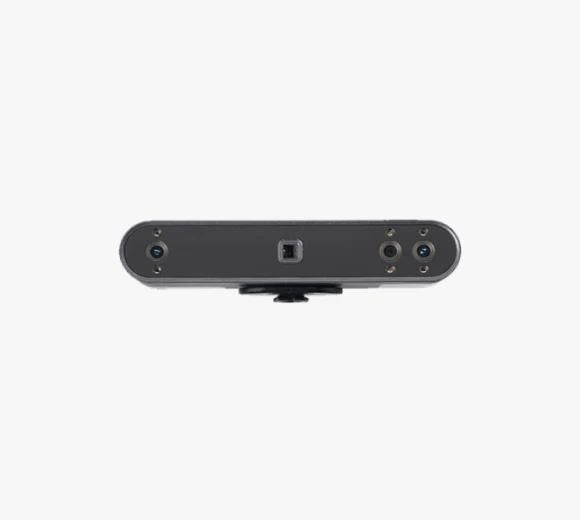

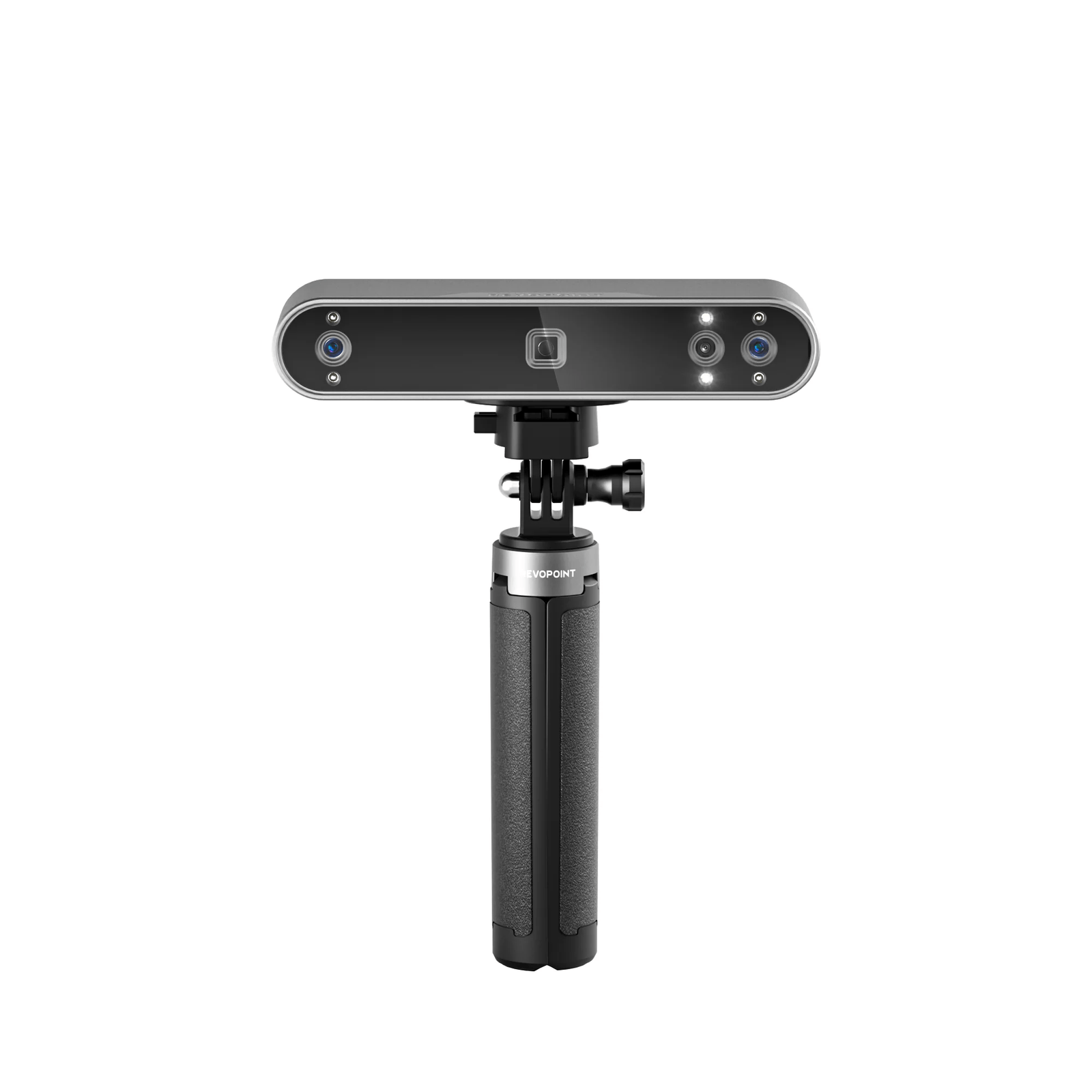

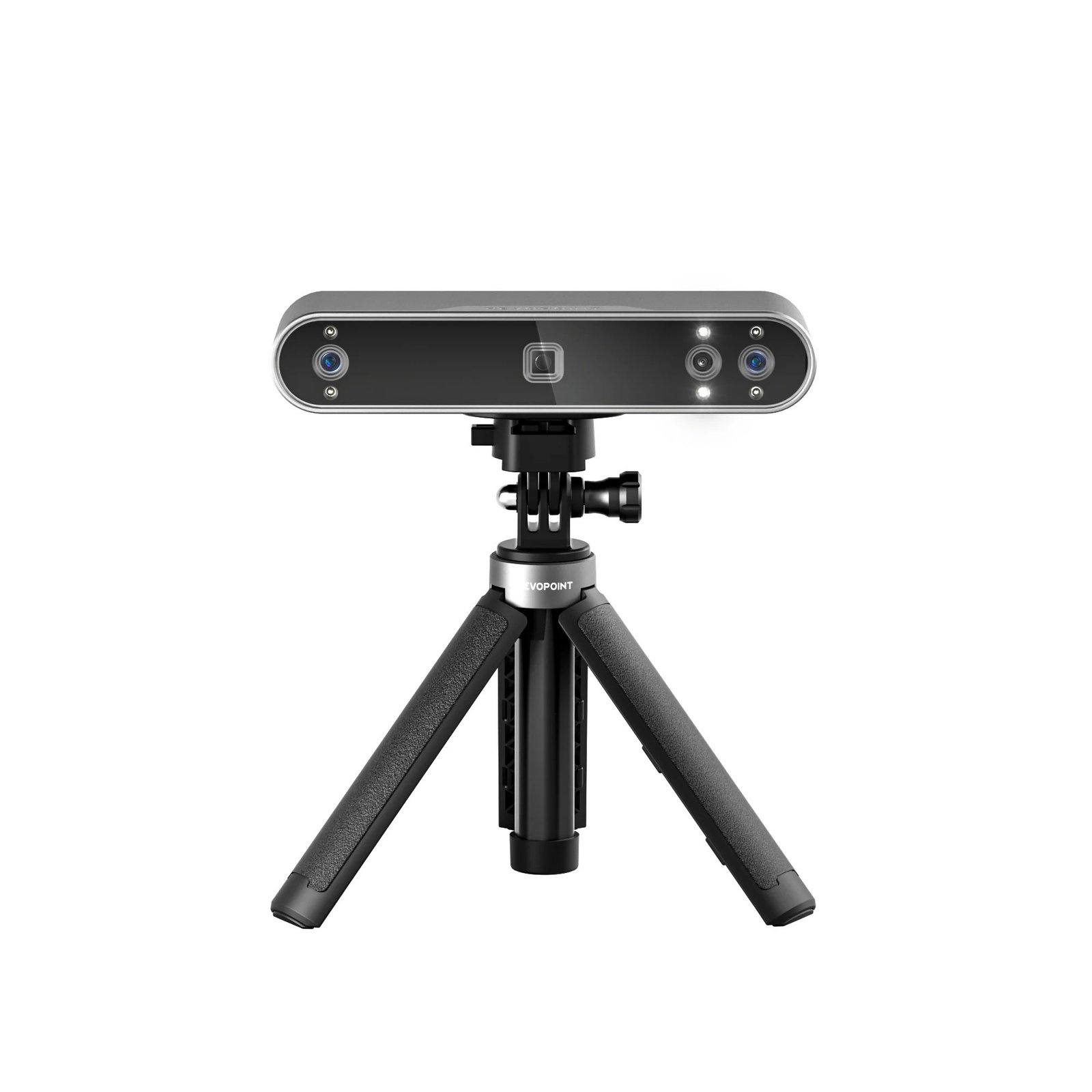

Revopoint POP 3 Plus The Handheld 3D Scanner with Color Scans

Revopoint POP 3 Plus The Handheld 3D Scanner with Color Scans - Image 2

Click to enlarge

Revopoint POP 3 Plus The Handheld 3D Scanner with Color Scans - Image 3

Revopoint POP 3 Plus The Handheld 3D Scanner with Color Scans - Image 4

Revopoint POP 3 Plus The Handheld 3D Scanner with Color Scans - Image 5

Revopoint POP 3 Plus The Handheld 3D Scanner with Color Scans

Name: Revopoint POP 3 Plus The Handheld 3D Scanner with Color Scans
Brand: REVOPOINT
SKU: Revopoint POP 3 Plus The Handheld 3D Scanner with Color Scans
Price: 64999 INR
Availability: OutOfStock

Revopoint

SKU: Revopoint POP 3 Plus The Handheld 3D Scanner with Color Scans Categories: 3D SCANNERS, REVOPOINT 3D SCANNERS

· Single-frame Accuracy Up to 0.08 mm

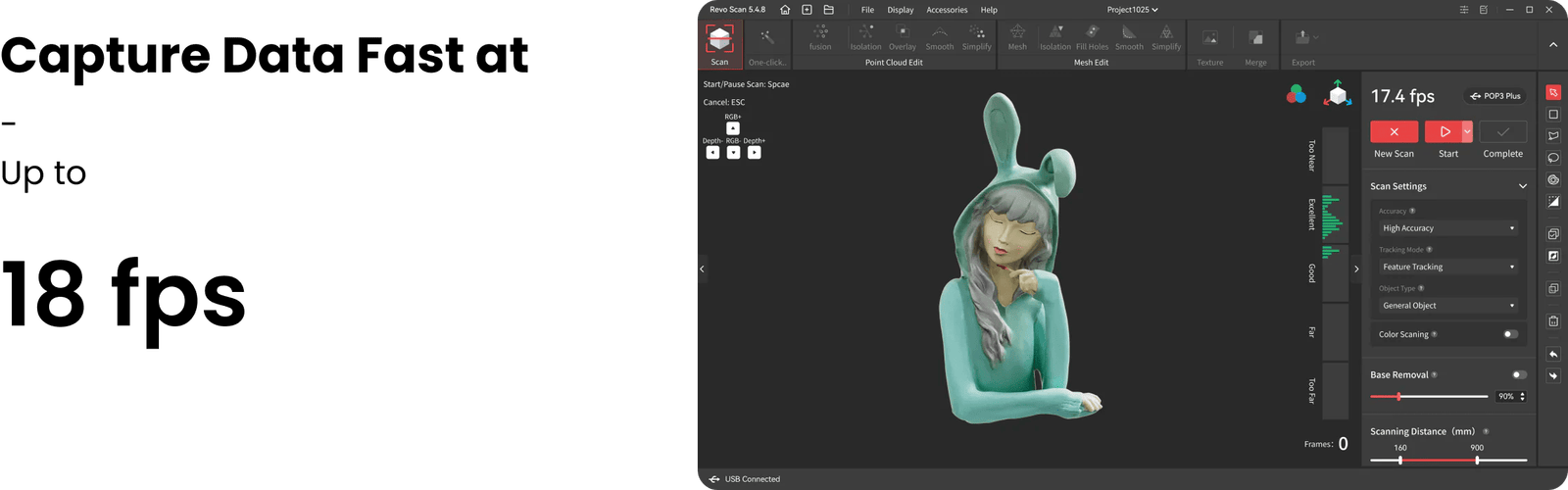

· Up to 18 fps Scanning Speeds
· Up to 2× Optical Zoom
· New Global Marker Tracking Mode
· HD RGB Camera Better Color Capture
· 9-axis IMU

Price range: ₹64,999.00 through ₹84,999.00 Including Tax

Fast Shipping

Secure Payment

Tracking Updates

Best Prices

Chat Support

In Stock Alert

Payment Methods:

Description

Every Detail Optimized

The POP 3 Plus updates the POP series with 20% better accuracy and precision and added optical zoom. Whether you need an accurate 3D model for 3D printing, animating, reverse engineering, modifying vehicles, or use it as a 3D face scanner, it’s ready to help.

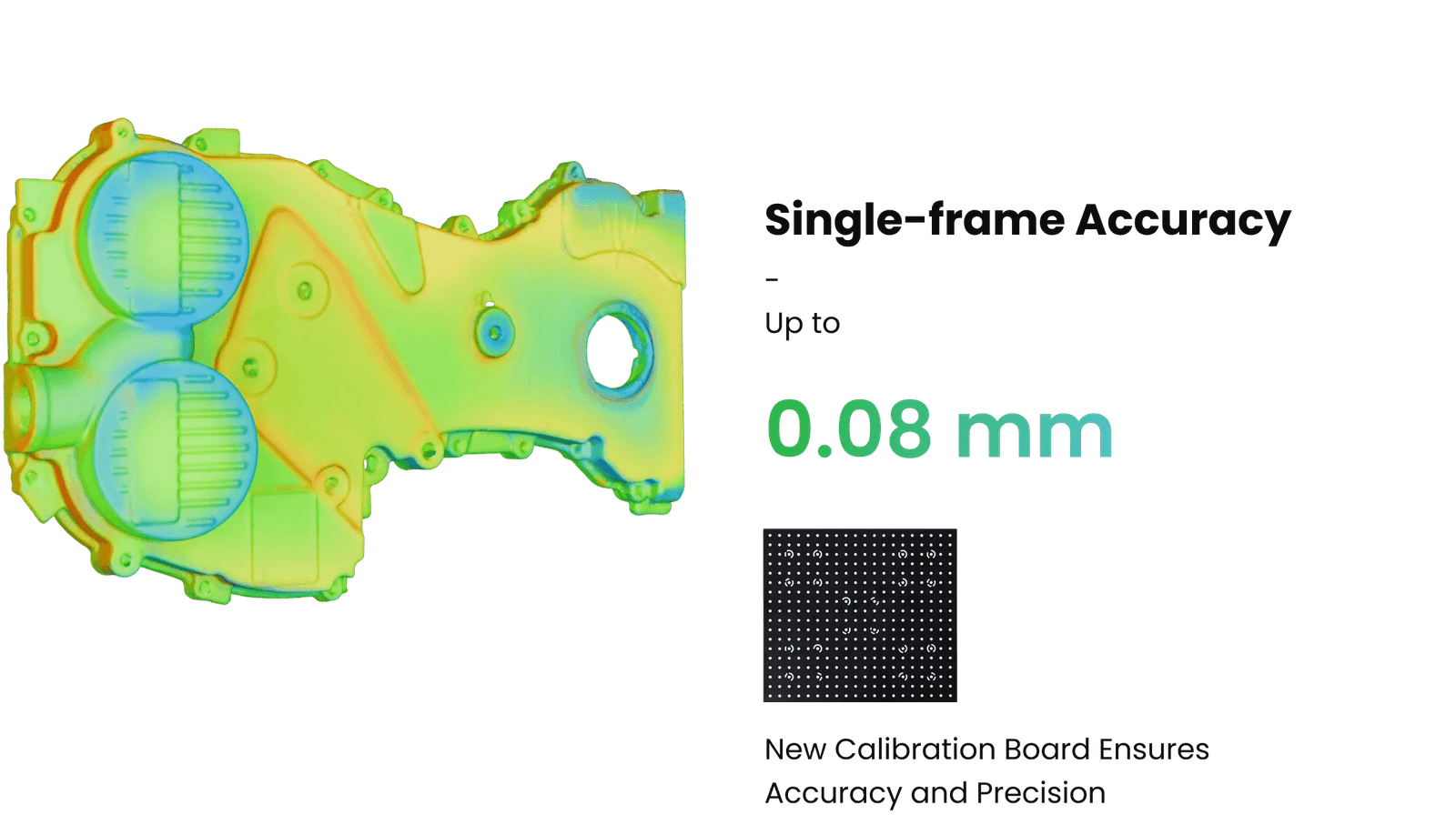

Accurate Every Time

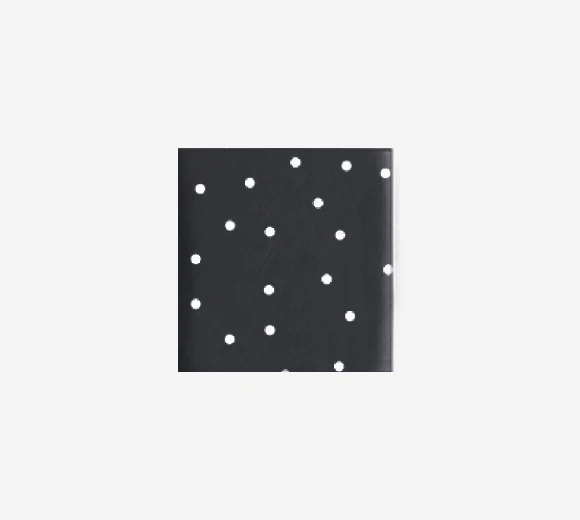

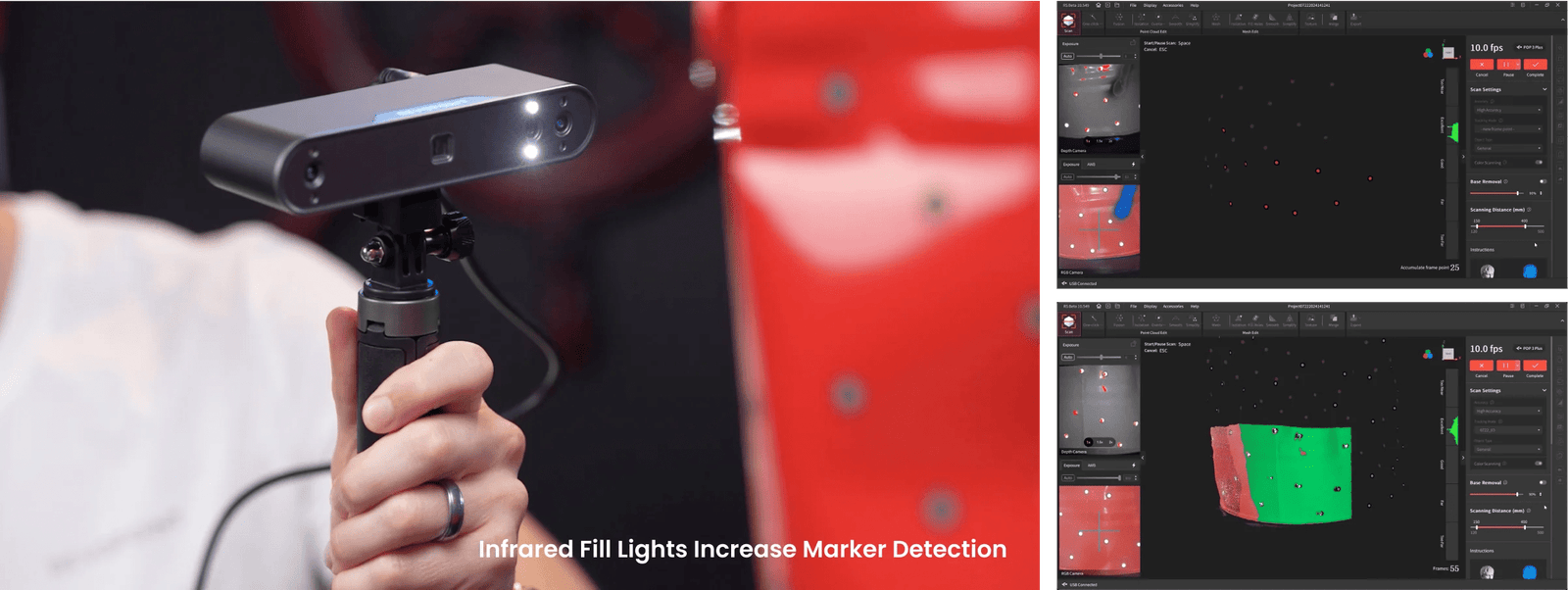

Better Marker Tracking

Global Marker Tracking Mode

Full-color 3D Models

HD RGB Camera

Flash LEDs Ensure Accurate Color Capture

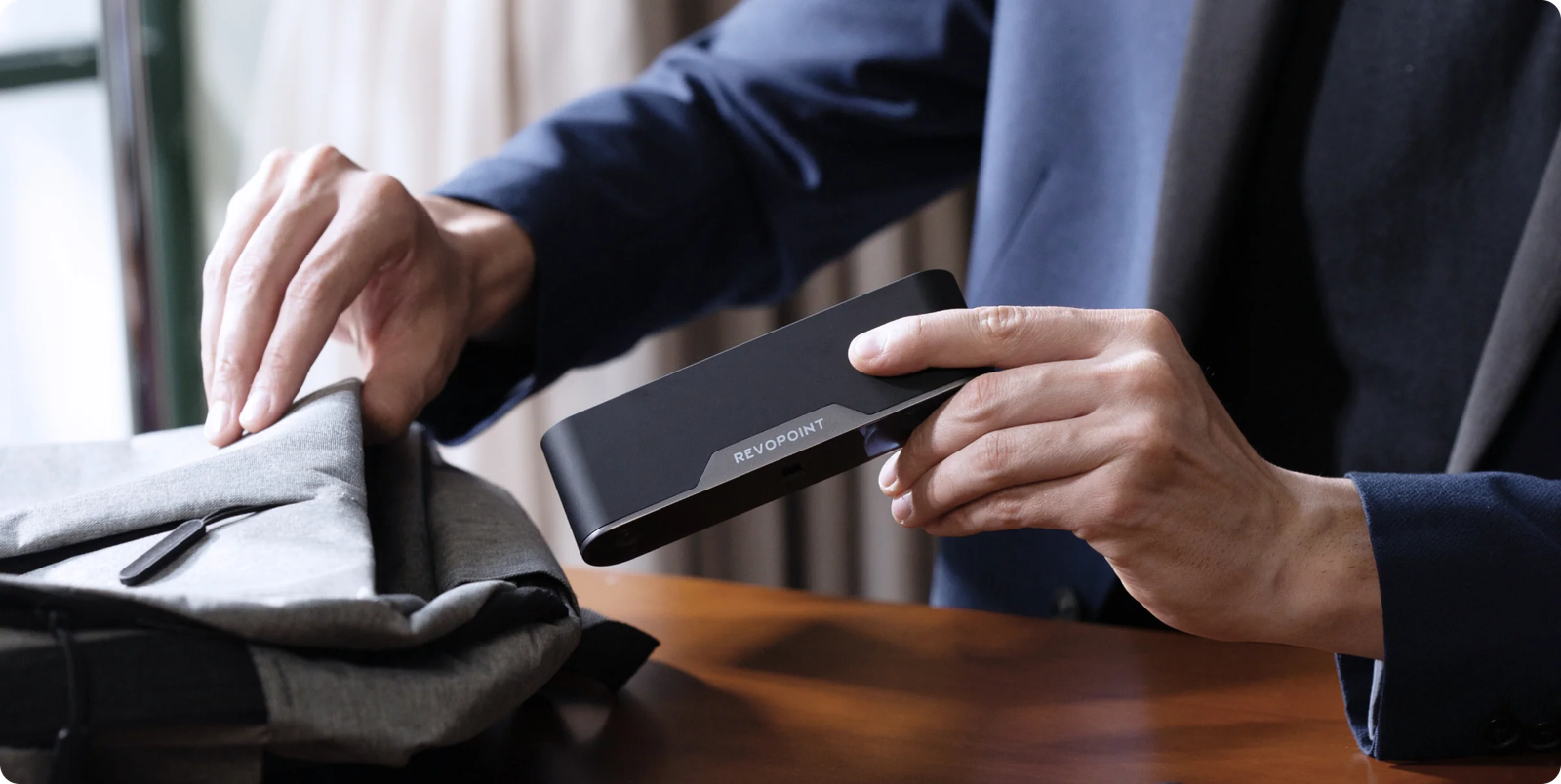

Portable and Compact

Scanner Weighs Only 190 g

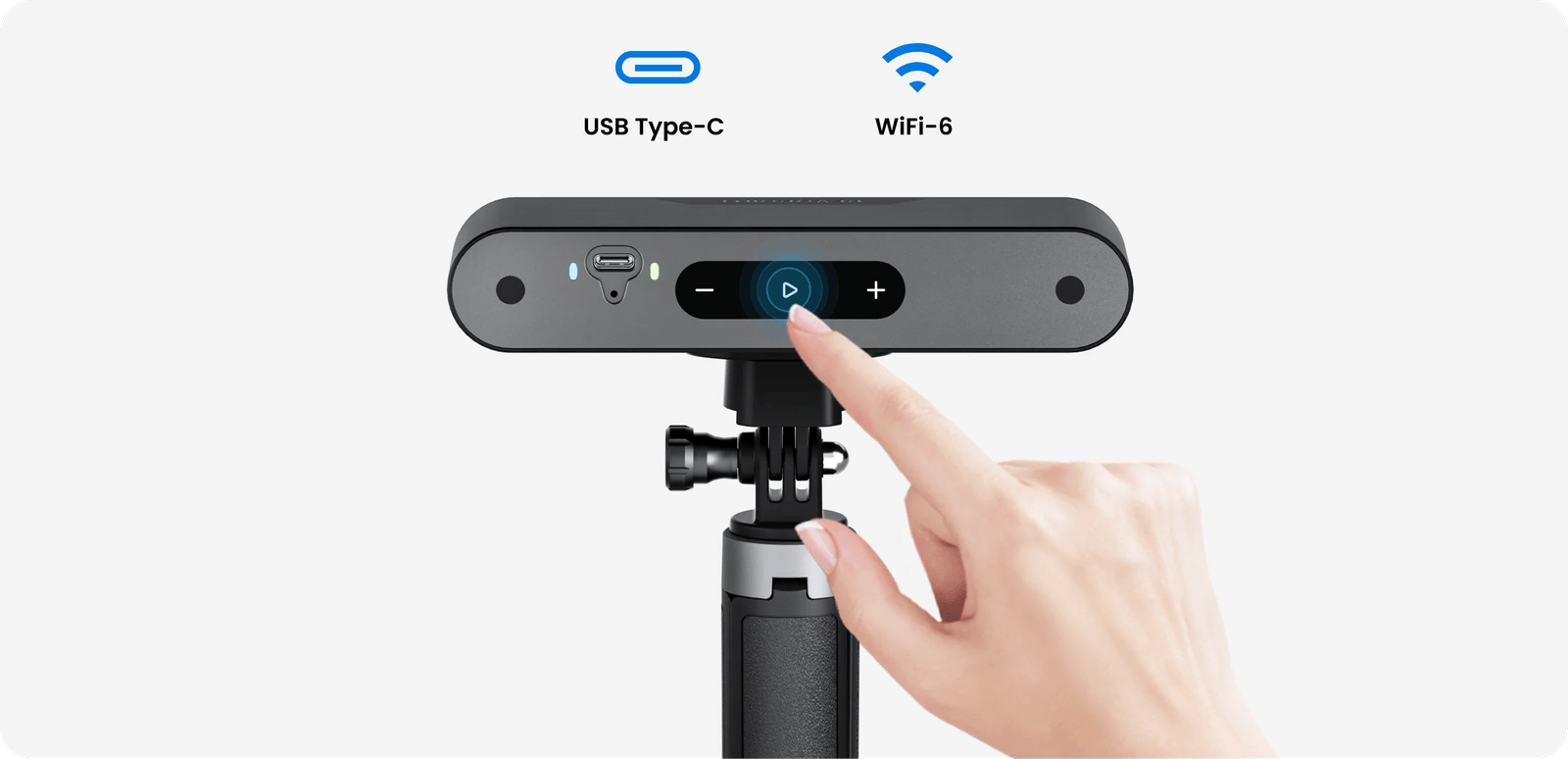

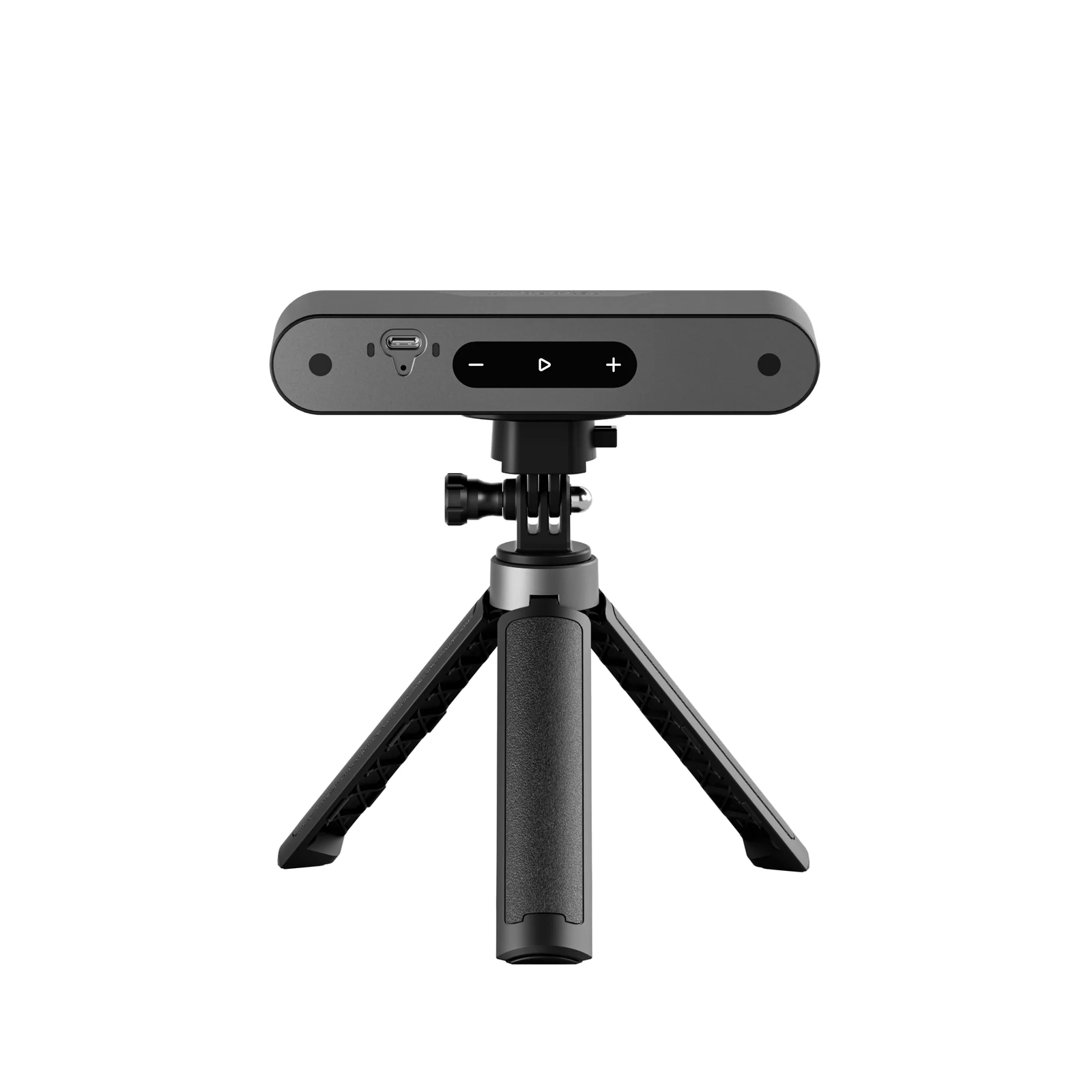

Responsive Controls

Decrease Exposure ｜ Start/Pause Scans ｜ Increase Exposure

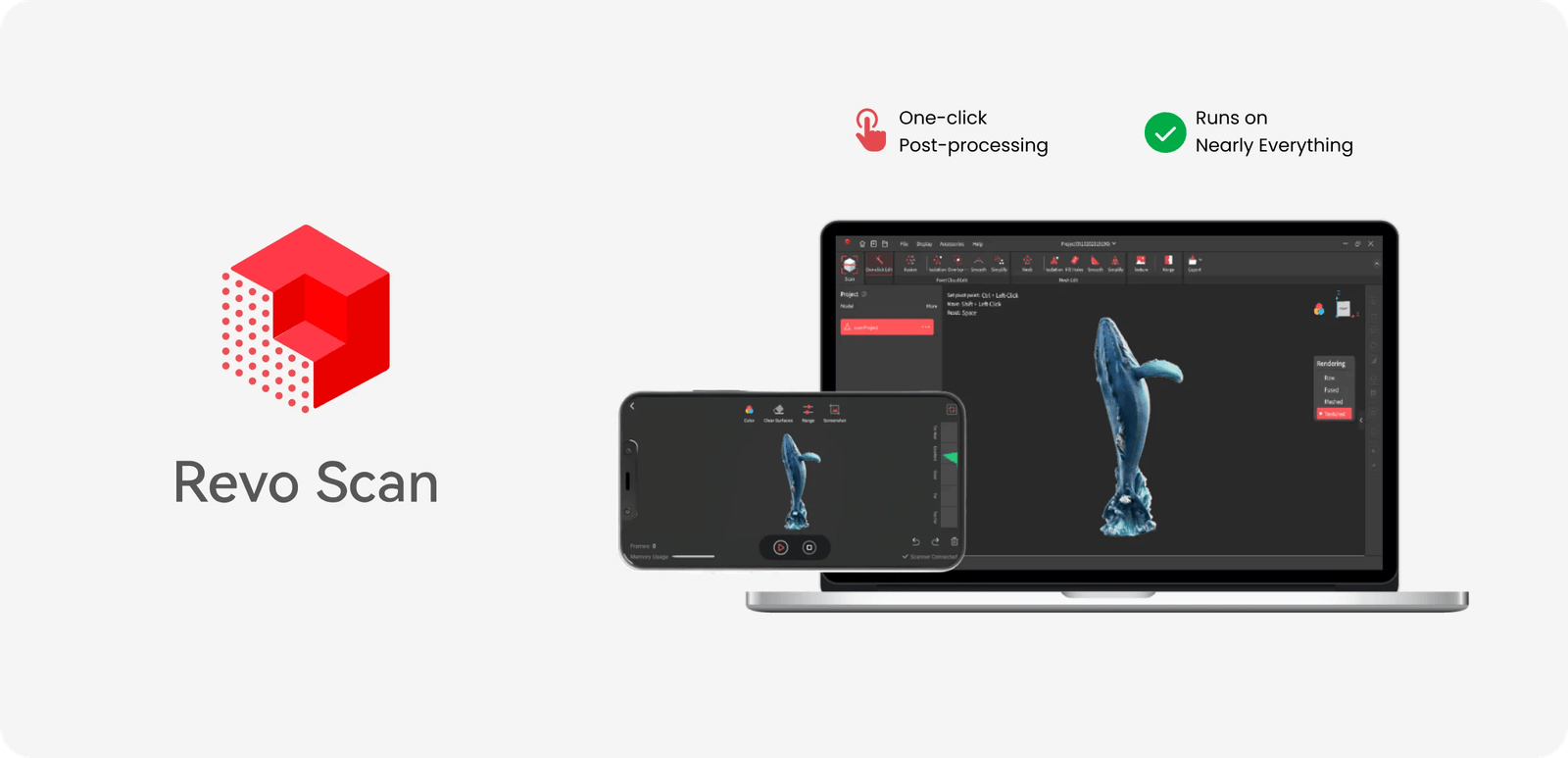

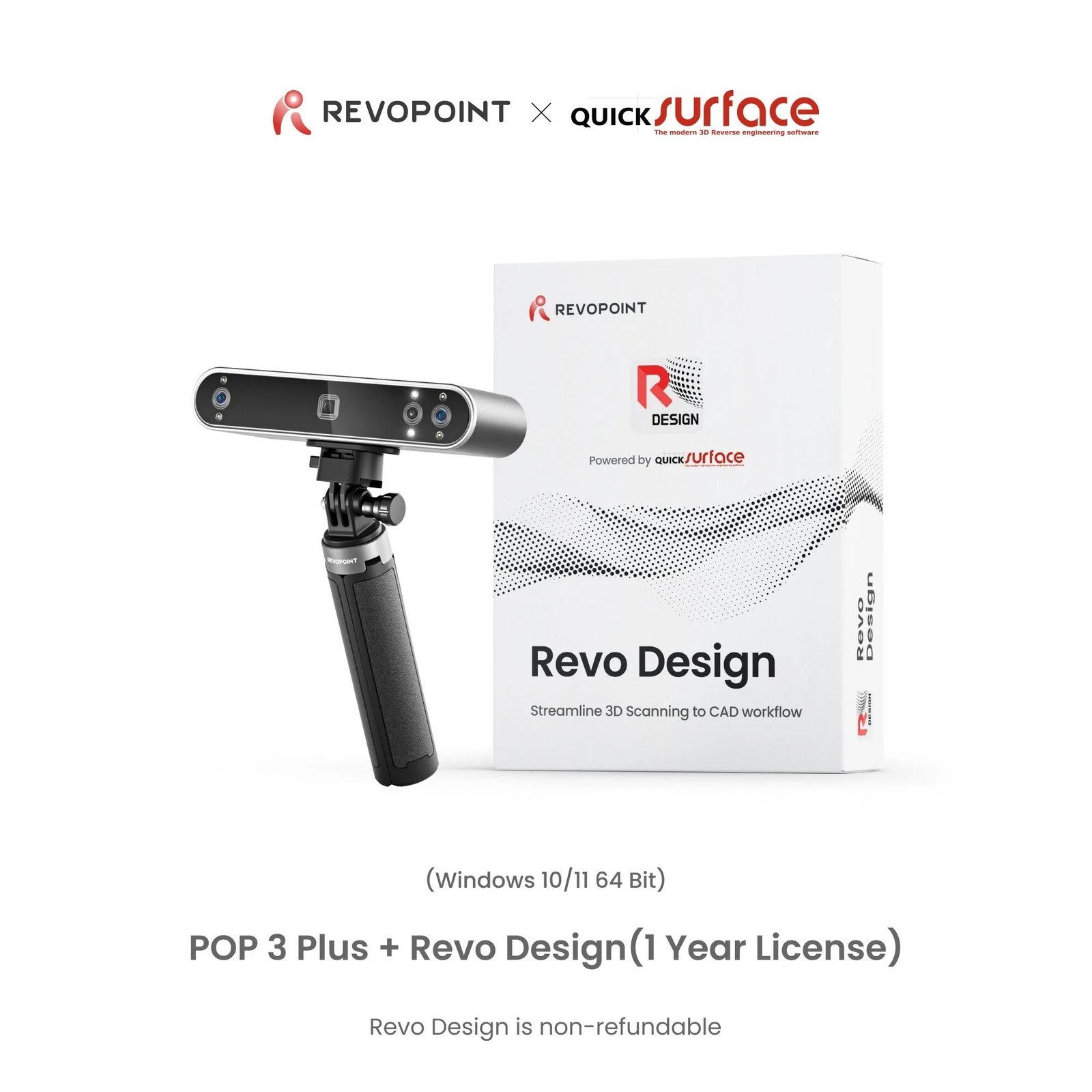

Powerful Software

Compatible with iOS, Android, Windows, and macOS devices. Supports STL, PLY, OBJ, ASC, 3MF, GLTF, and FBX file formats for compatibilitywith most CAD, 3D modeling, and slicer software.

Specifications

POP 3 Plus 3D Scanner Specifications

Product Name	POP 3 Plus 3D Scanner
Technology	Dual-camera Infrared Structured Light
Single-frame Accuracy, up to	0.08 mm
Single-frame Precision, up to	0.04 mm
Scanning Speed, up to	18 fps
Fused Point Distance, up to	0.05 mm
Single Capture Area at Nearest Distance	61 × 68 mm at 150 mm
Single Capture Area at Furthest Distance	244 × 180 mm at 400 mm
Scanning Type	Handheld and Desktop
Working Distance	150 ~ 400 mm
Minimum Scan Volume	20 × 20 × 20 mm
Maximum Scan Volume	2 × 2 × 2 m
Auxiliary Lighting	Infrared Fill Lights, White Flash LEDs
Angular Field of View (H × V)	40 × 25°
CPU	2 core, 1.6GHz
Position Sensors	9-axis IMU
Scanner Weight	190 g
Dimensions (L × W × H)	153 × 45 × 29 mm
Tracking Methods	Feature, Marker, Global Marker
Buttons	3

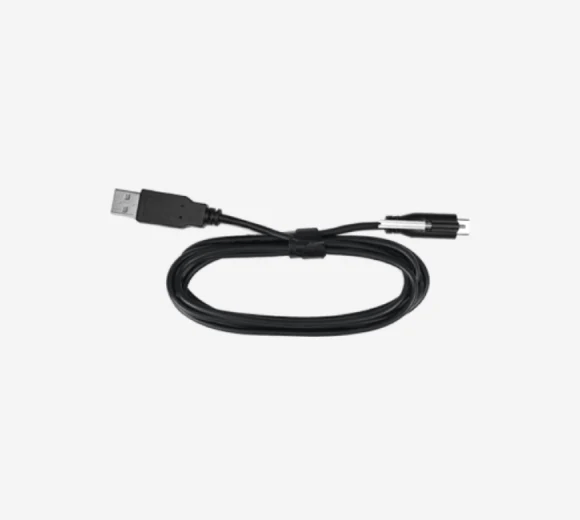

Connector Type	USB Type-C
Power Requirements	DC 5V, 1A
Wi-Fi	6
Bluetooth	4.1
Special Object Scanning	Use scanning spray for transparent, dark, or highly reflective objects
Scanning Environment	Indoors and Outdoors
Ready to Print 3D Models	Yes
Output File Formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
User Recalibration	Yes

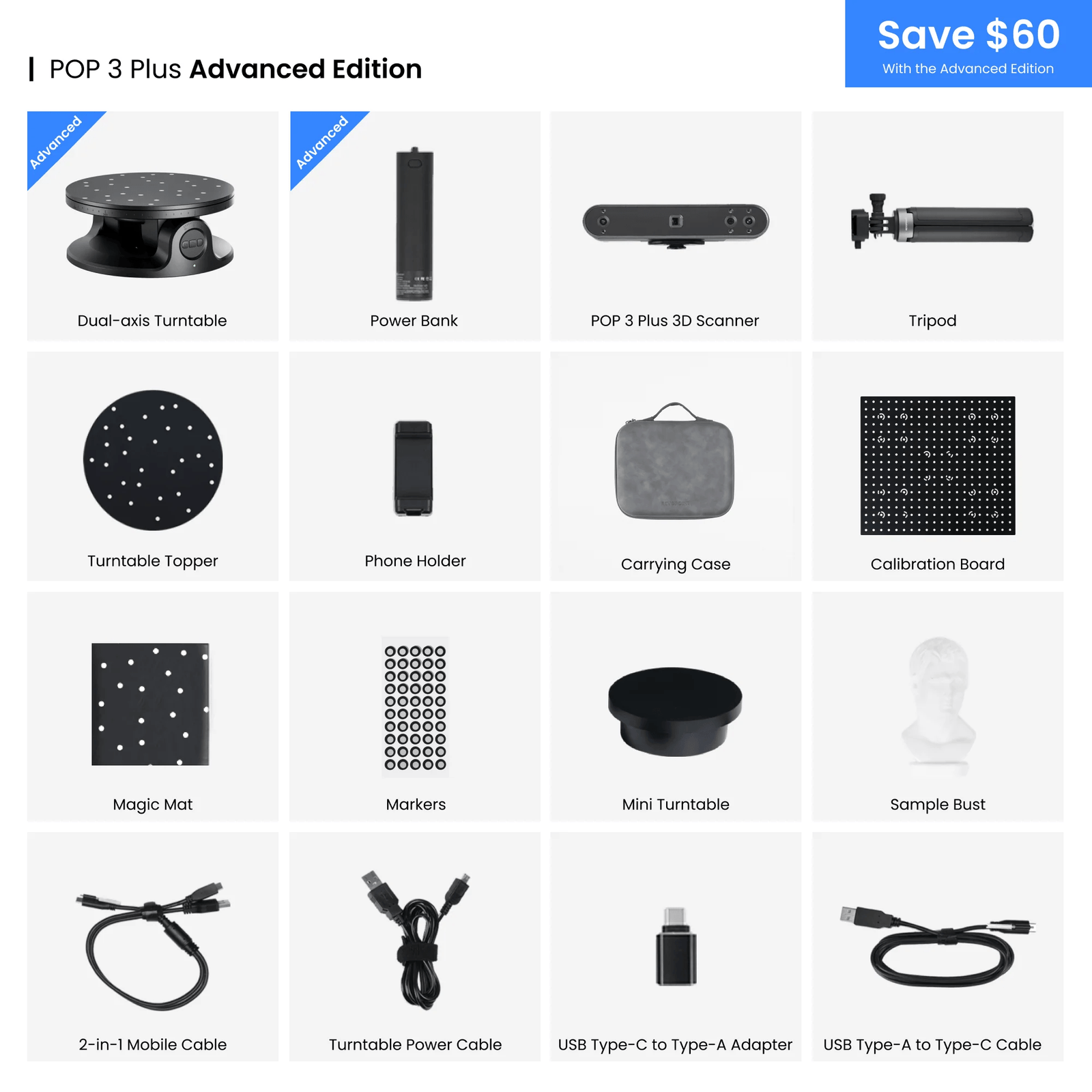

Supported Accessories	Large Turntable, Dual-axis Turntable, Handheld Stabilizer, Power Bank, Mobile Kit
Compatible Operating Systems	Windows 10/11 (64-bit), Android, iOS, macOS 11.0+
Light Type	Class 1 Infrared Light (Eye Safe)
Minimum PC Requirements	macOS: CPU: M1 Pro or better, RAM ≥ 8GB Windows: CPU: Intel i7 12th Gen or better, RAM ≥ 16GB
Recommended PC Requirements	macOS: CPU: M3 or better, RAM ≥ 8GB Windows: CPU: Intel i9 11th Gen or better, RAM ≥ 32GB

Notes:
1. Precision = closeness of repeated measurements. Accuracy = closeness to true value. Results may vary by environment.
2. Outdoor scans should avoid direct sunlight.
3. Class 1 Laser: Avoid prolonged direct eye exposure.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
5. The MIRACO series 3D scanners require no PC when scanning. If connected to Revo Scan (PC), follow the PC requirements above.
