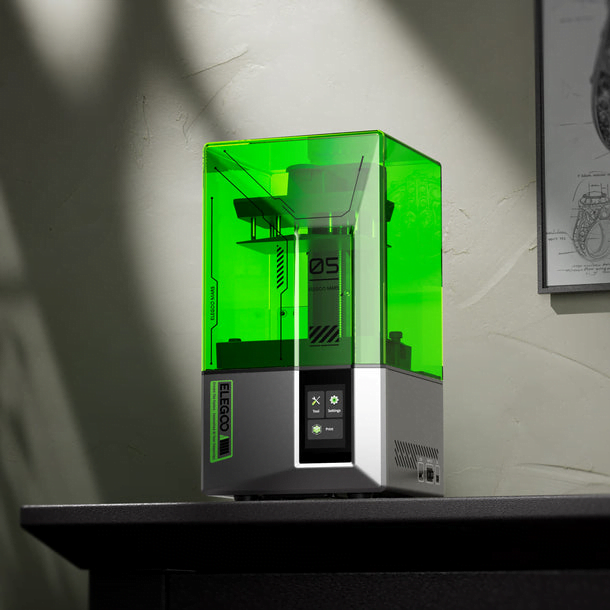

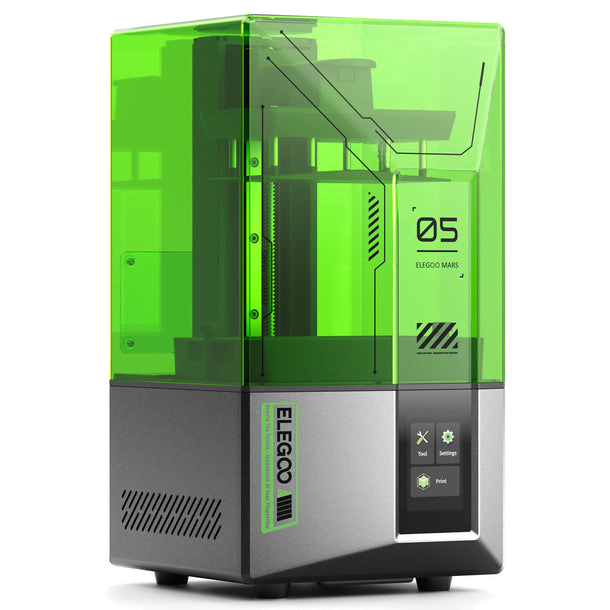

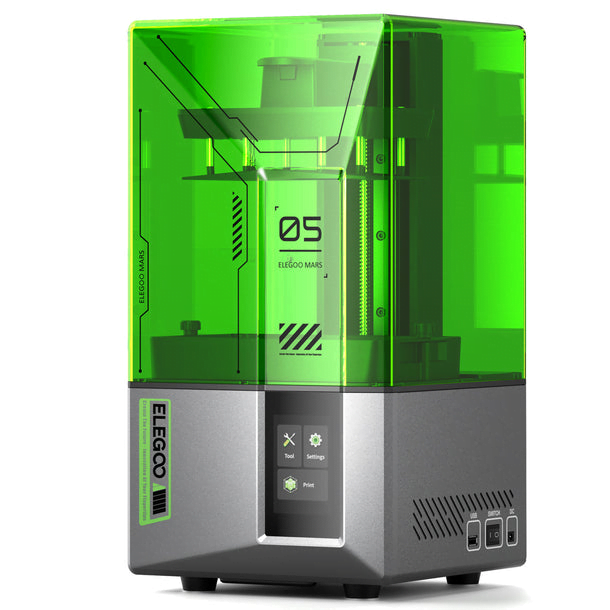

ELEGOO MARS 5 4K RESIN 3D PRINTER
- Automatic Leveling
- Smart Mechanical Sensor
- One-Click Self-Check
- Advanced Overheat Protection
- 6.6-Inch 4K Mono LCD
- COB Light Source
₹26,000.00 Including Tax
Out of stock
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:
Features
Automatic Leveling
Smart Mechanical Sensor
One-Click Self-Check
6.6-Inch 4K Mono LCD
COB Light Source
Advanced Overheat Protection

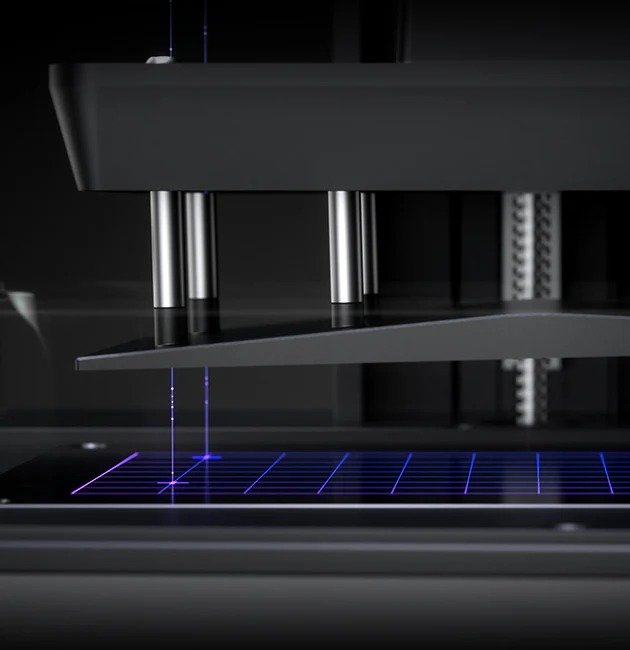

Effortless Magic with One-Click Automatic Leveling
Effortless precision is just a click away. The Mars 5 offers advanced automatic leveling function with a simple click, allowing all skill levels to dive straight into the creative process. Say goodbye to tedious calibrations - simply unbox, power on, and print.

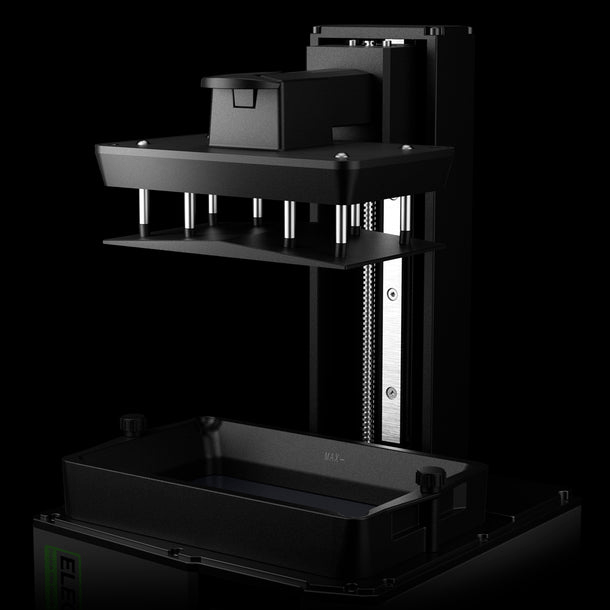

Print Smarter, Print Worry-Free
With a smart mechanical sensor, the Mars 5 supports residue detection to prevent damage to the LCD screen. Plus, timely alarms for resin shortages and leveling failures minimize waste and ensure uninterrupted efficiency. Stay worry-free and enjoy high-quality prints every time.

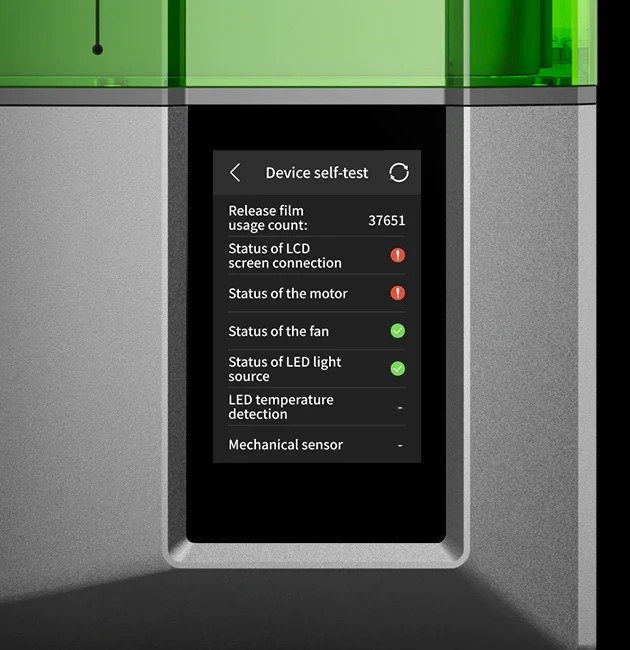

One-Click Self-Check, Ensuring Reliable Prints
Tired of setup hassles and unexpected errors ruining your printing projects? With just a simple click, the Mars 5 performs a quick self-check and verifies the optimal functionality of its components before each print. Say goodbye to wasted time and materials due to faulty components.

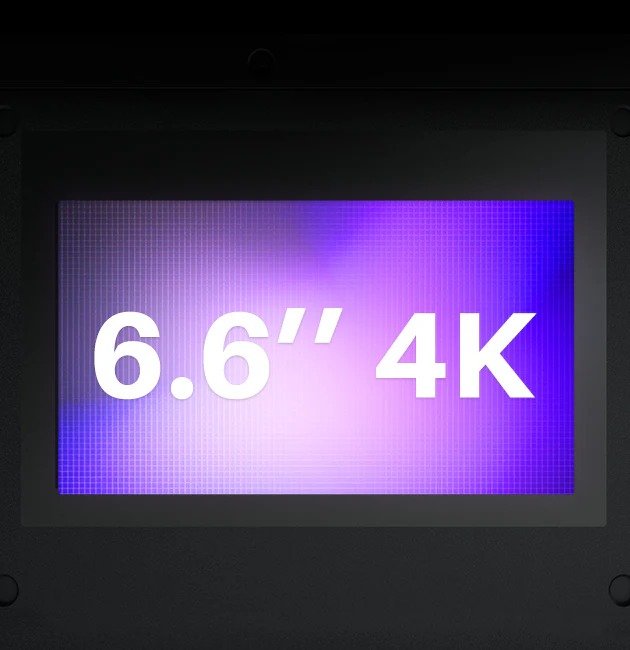

4K Mono LCD for Stunning Details

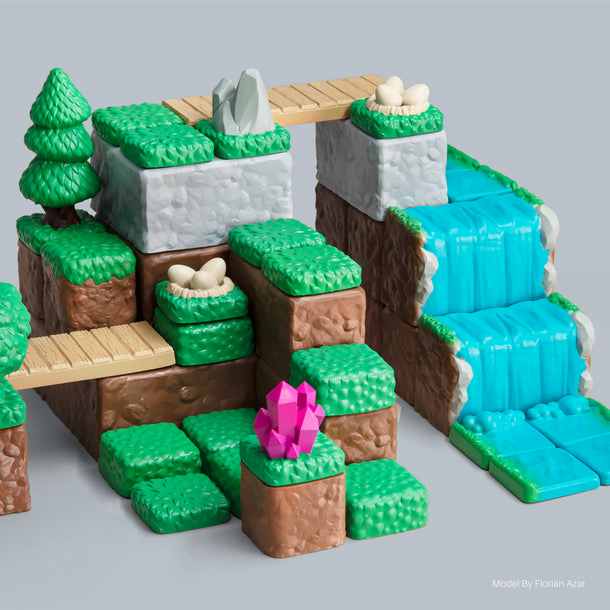

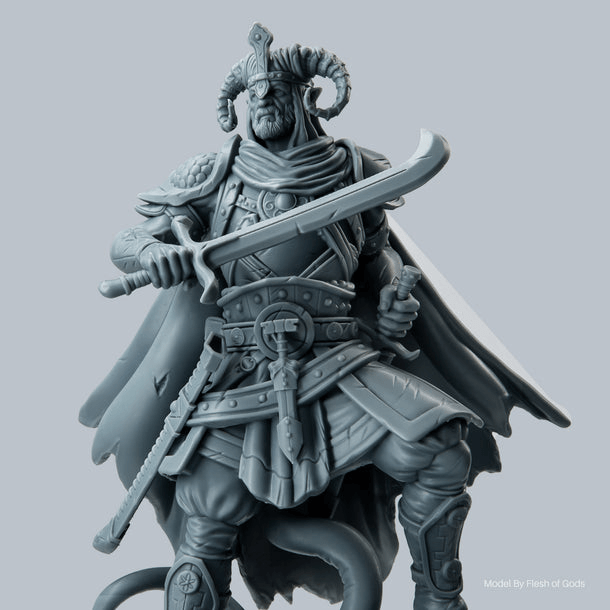

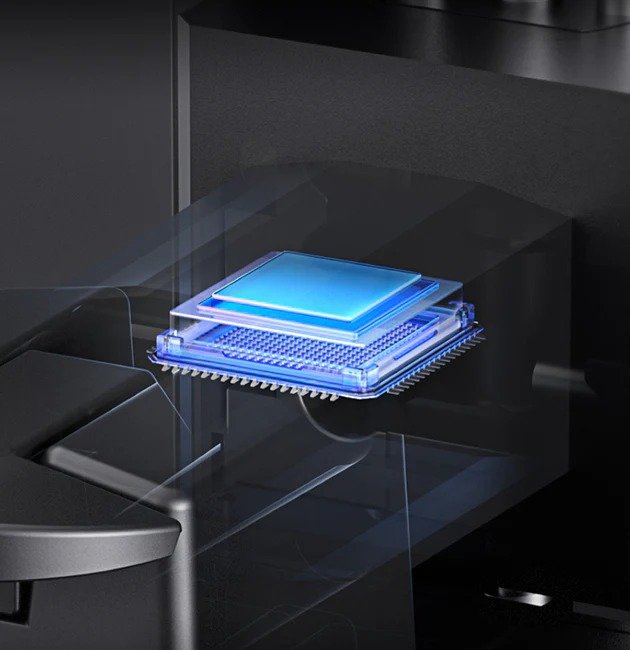

Featuring a 4K mono LCD with advanced COB light source, the Mars 5 faithfully reproduces intricate details with stunning fidelity and textures, bringing your ideas to life with flawless precision.

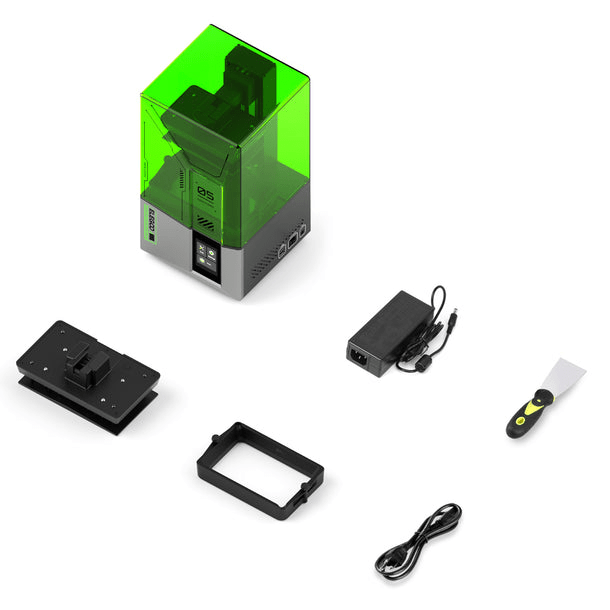

What's In Box
Mars 5 3D Printer
Power Adapter
Backup Screws
Resin Tank
Build Plate
Mask
Power Adapter
Gloves
Tools Kit
Scraper
User Manual
Funnel
Specification
Build Volume
143.43 × 89.6 × 150 mm
Printing Speed
MAX 70 mm/h
Layer Thickness
0.01–0.2 mm
XY Resolution
35 μm (4098 × 2560)
Slicer Software
Chitubox & Voxeldance Tango
Other Functions
One-Click Automatic Leveling,
Self-Check & Overheat Protection,
Smart Mechanical Sensor (Resin Shortage Alarm, Residue Detection Alarm, Leveling Failure Alarm).
Z Axis Accuracy
0.02 mm
Printing Technology
MSLA
Light Source
COB Light Source (wavelength 405nm)
LCD Screen Size
6.6-inch 4K Mono LCD
LCD Screen Protector
PET scratch-resistant film
Connection Method
USB
System
EL3D-3.0.1
Heat Dissipation Method
3 copper heat pipes + single fan
Operation Screen
3.5-inch Resistive Touch Screen
Languages
Chinese, English
Power Requirements
100-240V 50/60Hz 24V 3A
Printer Dimensions
230 × 230 × 433.5 mm
Net Weight
6.6 kg
Gross Weight
8.6 kg
Warranty Periods
| Category | Models | Parts List | Note | Warranty Period |
|---|---|---|---|---|
| All | / | / | Consumable parts with no warranty or limited warranty. | 12 Months |
| 3D Printing Machine & Parts |
Neptune 3/3 Pro/3 Plus/3 Max | PEI Platform Plate/PEI Platform Kit/PEI Magnetic Platform Kit/Build Plate/Nozzle (Kit)/PTFE Tube/Tools | Consumable parts with no warranty. | No Warranty |
| Neptune 4/4 Pro/4 Plus/4 Max | PEI Platform Plate/PEI Platform Kit/PEI Magnetic Platform Kit/Build Plate/Nozzle (Kit)/PTFE Tube/Tools | Consumable parts with no warranty. | No Warranty | |
| OrangeStorm Giga | Extruder/Extruder Kit/Printhead Kit | Consumable parts with limited warranty. | 6 Months | |
| Centauri Carbon/Centauri | Extruder/Extruder Kit/Printhead Kit | Consumable parts with limited warranty. | 6 Months | |
| Mars/Mars 2/2 Pro/3/3 Pro/4/4 MAX/4 DLP/4 Ultra/5/5 Ultra | Release Film, Tools | Consumable parts with no warranty. | No Warranty | |
| Saturn S/2/8K/3/3 Ultra/4/4 Ultra/4 Ultra 16K | LCD Screen | Consumable parts with limited warranty. Resin leakage, scratch-resistant film damage, human-caused damage, and collision damage are not covered by the warranty. | 3 Months | |
| Jupiter/Jupiter SE | Resin Tank/Build Plate | Consumable parts with limited warranty. | 6 Months | |
| Mercury Mercury Plus V1.0/V2.0/V3.0 Mercury X/XS Bundle |
Washing Bucket, Curing Turntable, Acrylic Cover | Consumable parts with no warranty. | No Warranty | |
| Phecda Laser Engraver & Cutter - 10 W/20 W |
Consumables and Other Attached | Window Mirror, Power Cord, USB Cable, Engraving Materials, User Manual, Packaging, Tools | Consumable parts with no warranty. | No Warranty |
| Other Parts① | Synchronous Belt, Motor Cable, Laser Cable | Consumable parts with limited warranty. | 3 Months | |
| Other Parts② | Fans | Consumable parts with limited warranty. | 6 Months |
1. Consumable Parts
Consumable parts are either excluded from warranty coverage or covered under a limited warranty period. For the purpose of this policy, "consumables" are defined as disposable items, components, or parts of the Product that are inherently designed to deteriorate or wear out during normal use of the Product.
While these items may not be covered by the standard warranty or may have a limited warranty period as specified in the table above, we will gladly replace any consumable that fails due to a manufacturing defect, provided the printer itself is still under warranty. ELEGOO reserves the exclusive right to determine eligibility for replacement, and such decisions shall be final.
2. Accessories or Parts Purchased Separately
Accessories or parts purchased separately enjoy the same quality assurance policy as the complete machine.
3. Warranty Periods
All periods stated on this page are calculated from the date the original order was received.
4. Warranty Forfeiture
This warranty does not cover the following cases:
A. Products not purchased from ELEGOO or authorized ELEGOO distributors with a valid receipt or invoice.
B. Products that are lost or stolen.
C. Products whose warranty period has expired.
D. Free products or products that have been refunded.
E. Products repaired by a third party or modified by an individual.
F. Damage caused by external factors or misuse of products (including but not limited to resin leakage, falls, improper operation), normal discoloration, wear and tear, or other non-quality-related issues.
G. LCD screens that can not provide an identifiable SN code.
5. Warranty in Other Regions
For consumers protected by local consumer laws in their country of purchase, ELEGOO's Limited Warranty benefits are provided in addition to all rights and remedies under such laws, including but not limited to those described above. If local regulations specify a warranty period longer than our stated policy, the longer period will apply, and we will fully comply with local requirements to support our customers.
