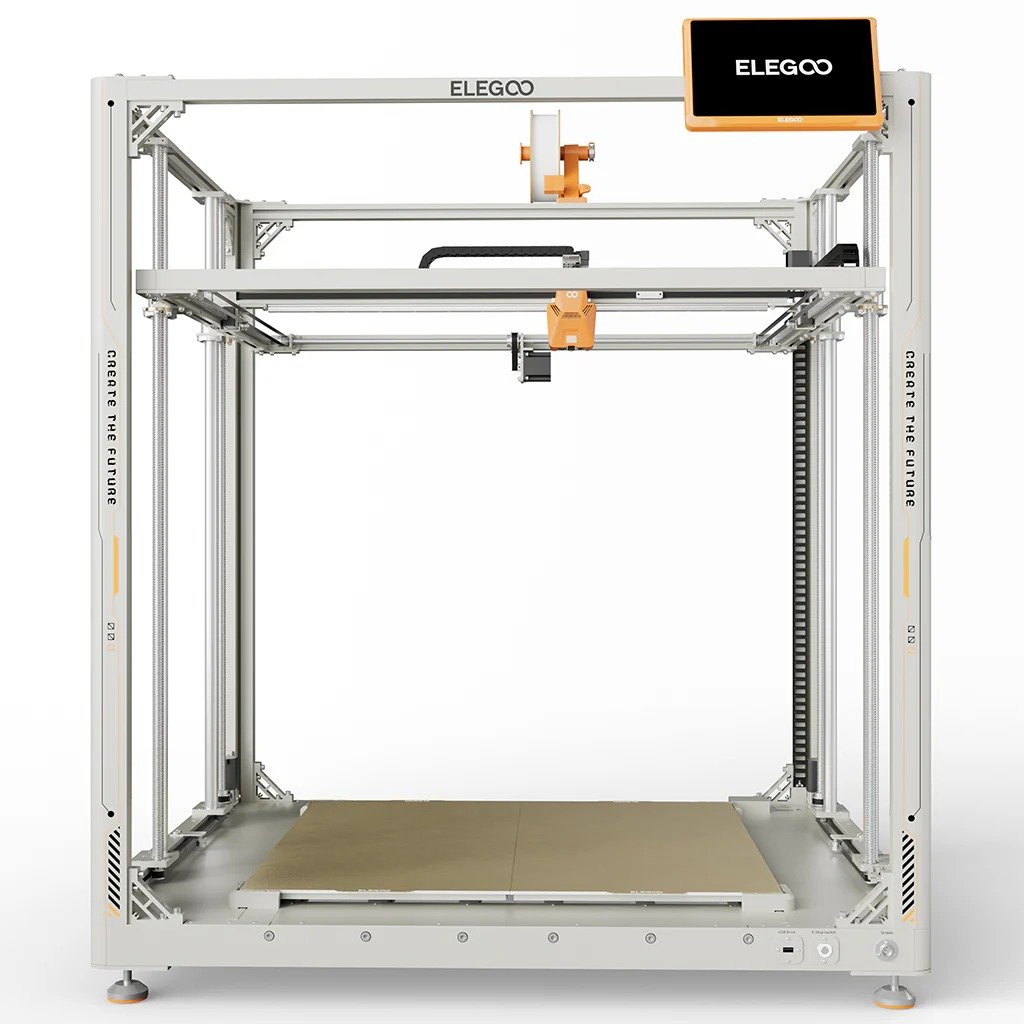

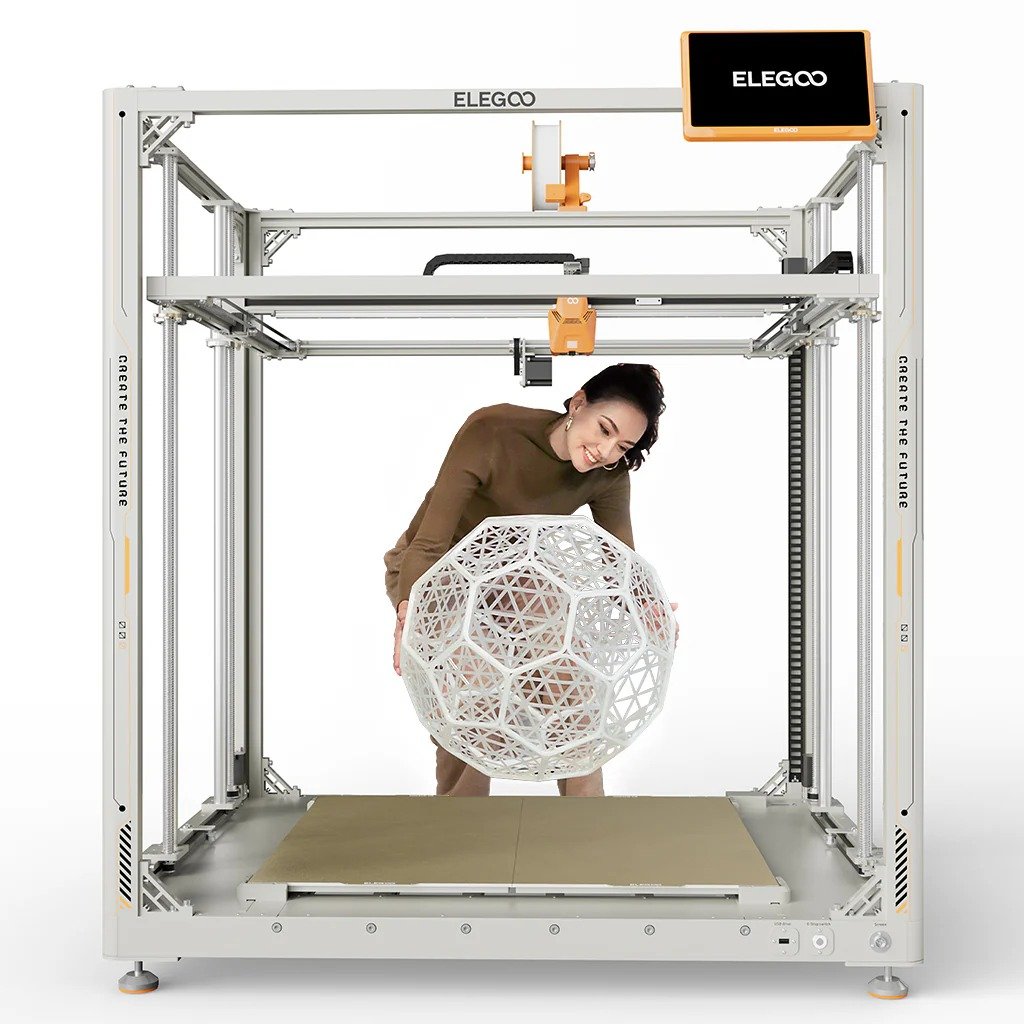

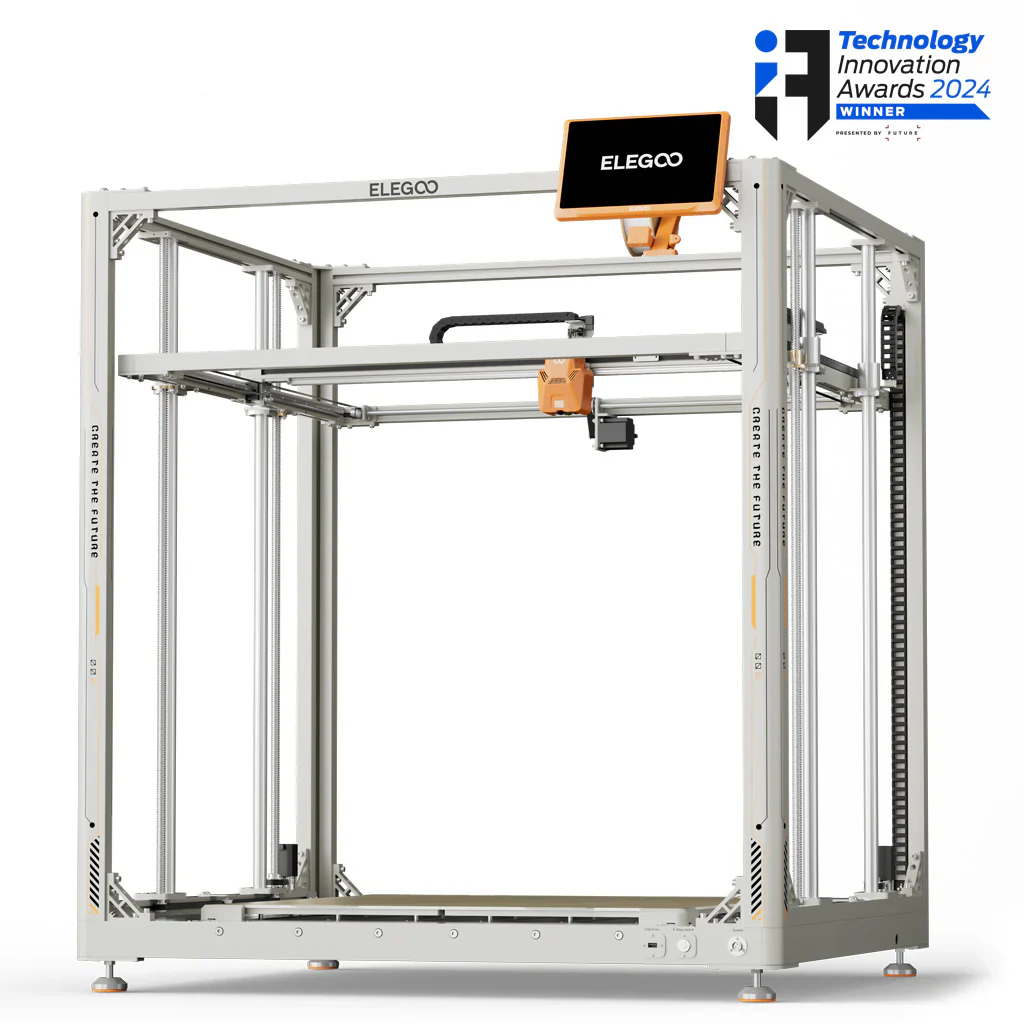

ELEGOO OrangeStorm Giga FDM 3D Printer
- Gigantic Build Volume: 800mm x 800mm x 1000mm
- Efficient Heated Bed
- Fast Printing
- Support Multi-Nozzle Printing
- Powerful Cooling Fan
₹249,999.00 Including Tax
Out of stock
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:
Description
Gigantic in Size
Efficient Heated Bed
Fast Printing
Auto-Leveling
Upgraded Nozzle
Multi-Nozzle Printing

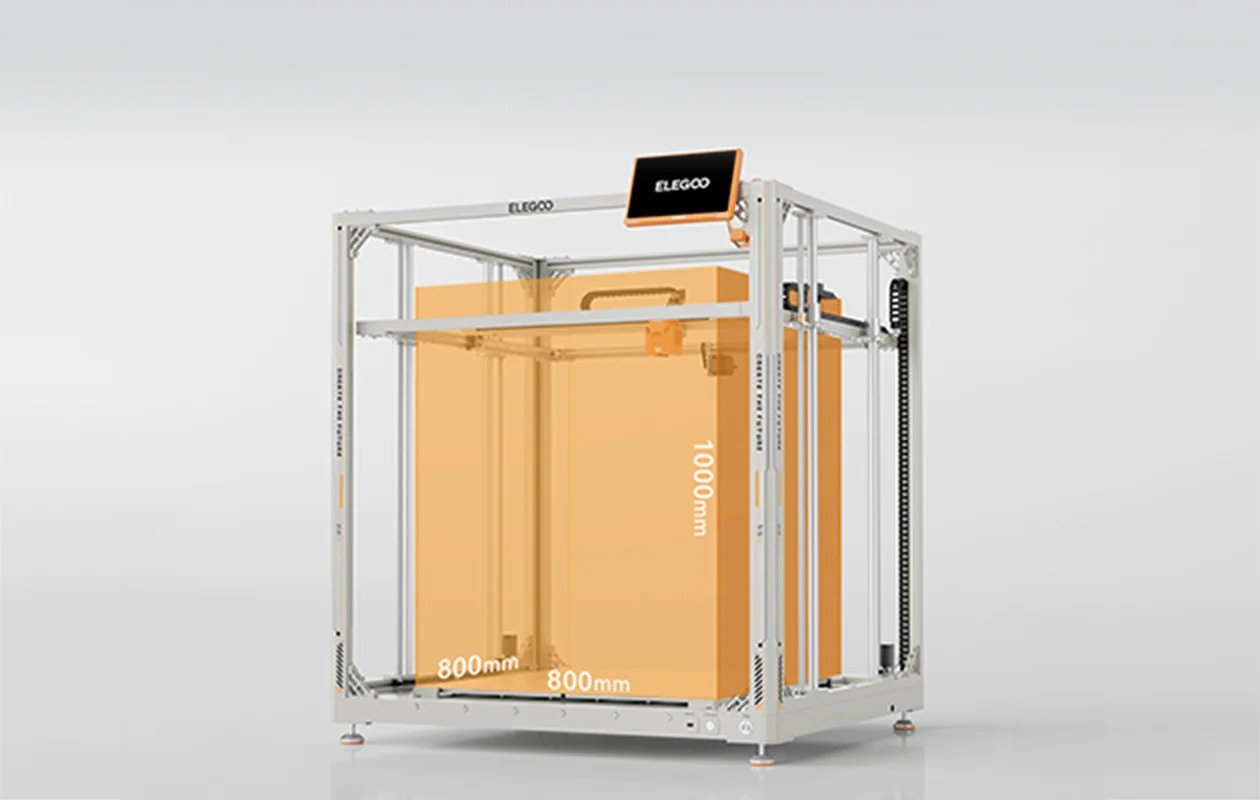

Gigantic in Size

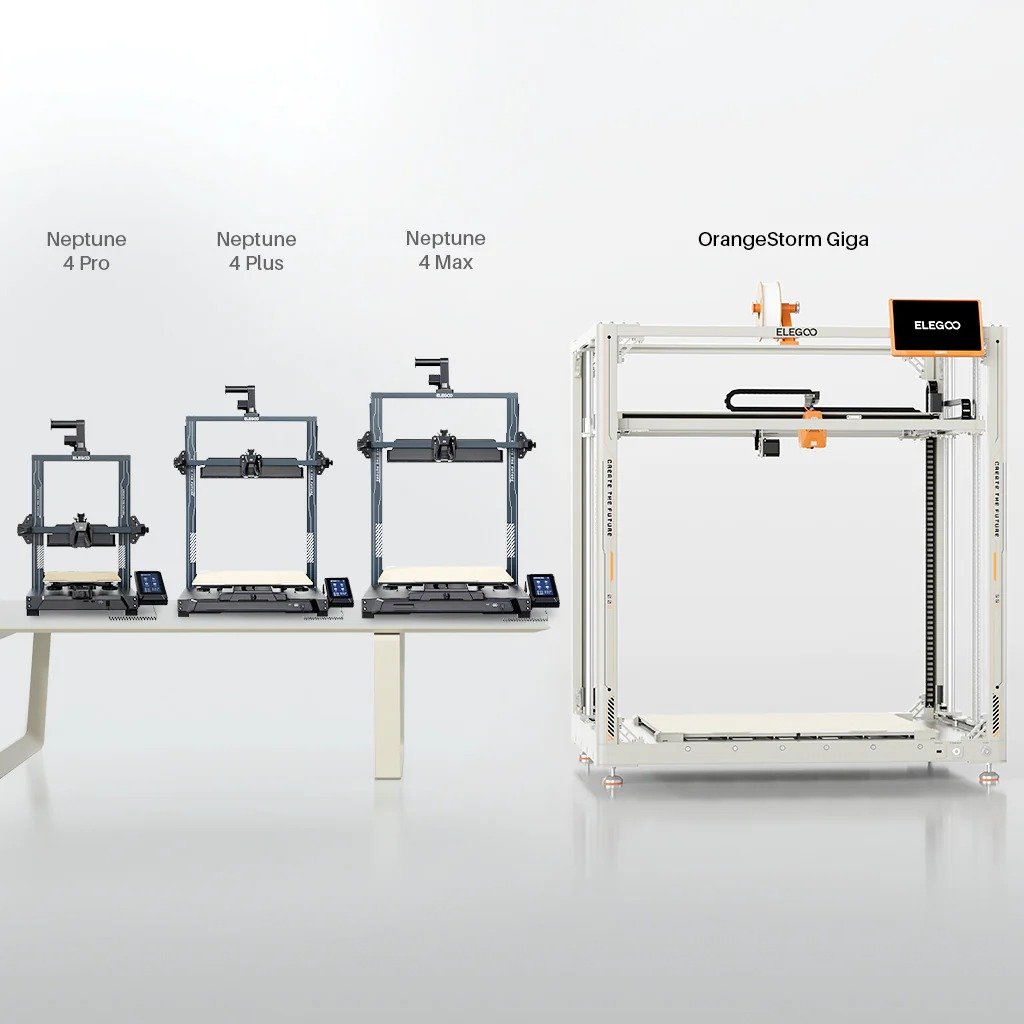

With a build volume of 800 × 800 × 1000 mm, the industrial-grade FDM printer not only meets the user's printing needs for oversized models, but also reduces the need to cut models into smaller sections for efficient printing.

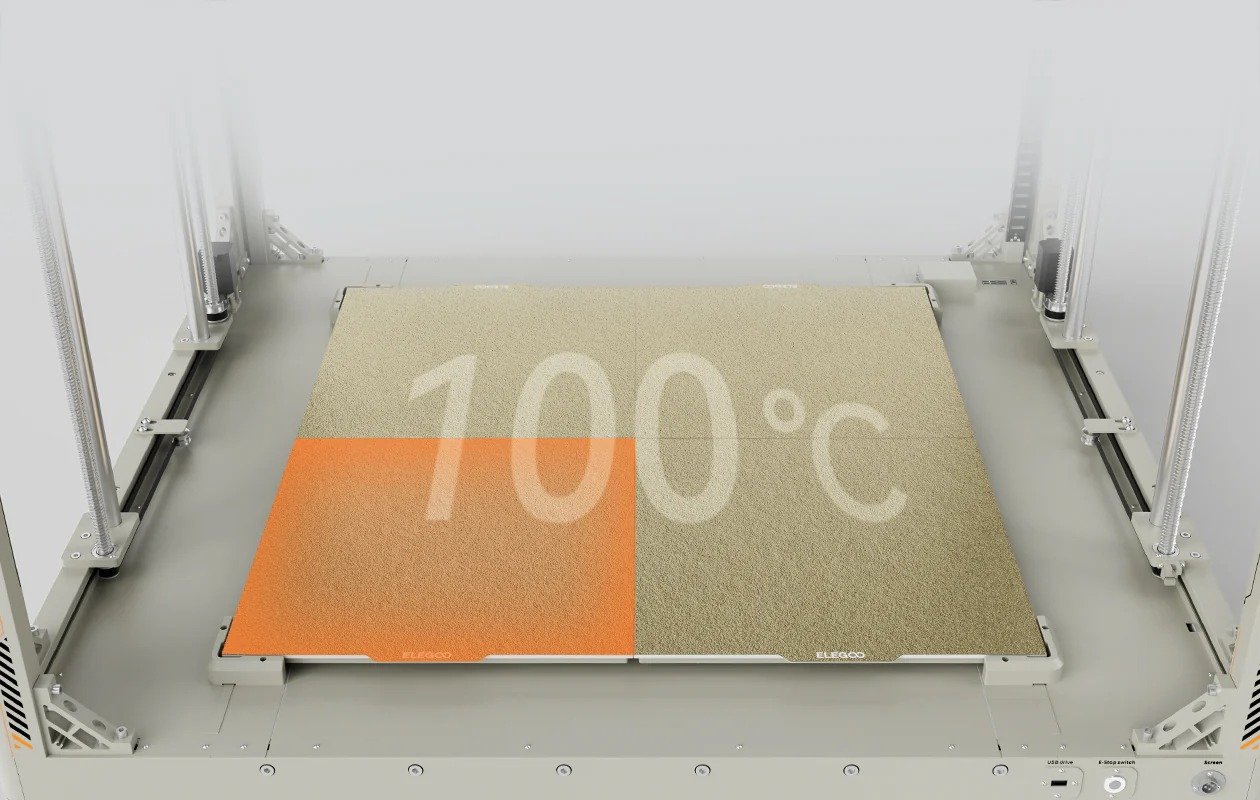

Efficient Heated Bed
The heated bed consists of four independent (410 × 410 mm) PEI magnetic high-temperature platforms with a maximum temperature of 100 °C.
The four platforms can be heated simultaneously to reach 100 °C over the entire area in 17 minutes (ambient temperature: 25 ℃).
The platform where the model is located can also be automatically recognized and heated independently, or manually and independently controlled for increased energy efficiency.

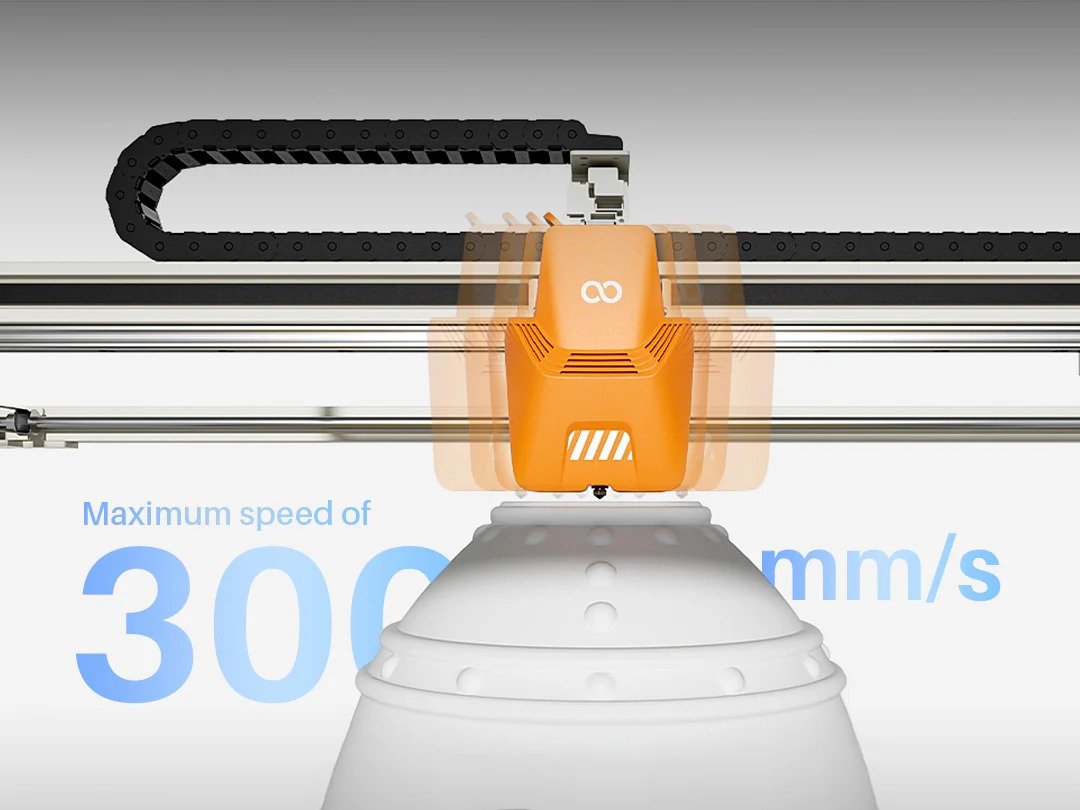

Fast Printing
Utilizing a 64-bit 1.5G clock speed quad-core high-performance processor (SOC RK3328), it provides sufficient computing capacity while delivering 6 times the printing speed, with a maximum speed of 300mm/s (150mm/s recommended), which is the top end print speed for printers of its size.

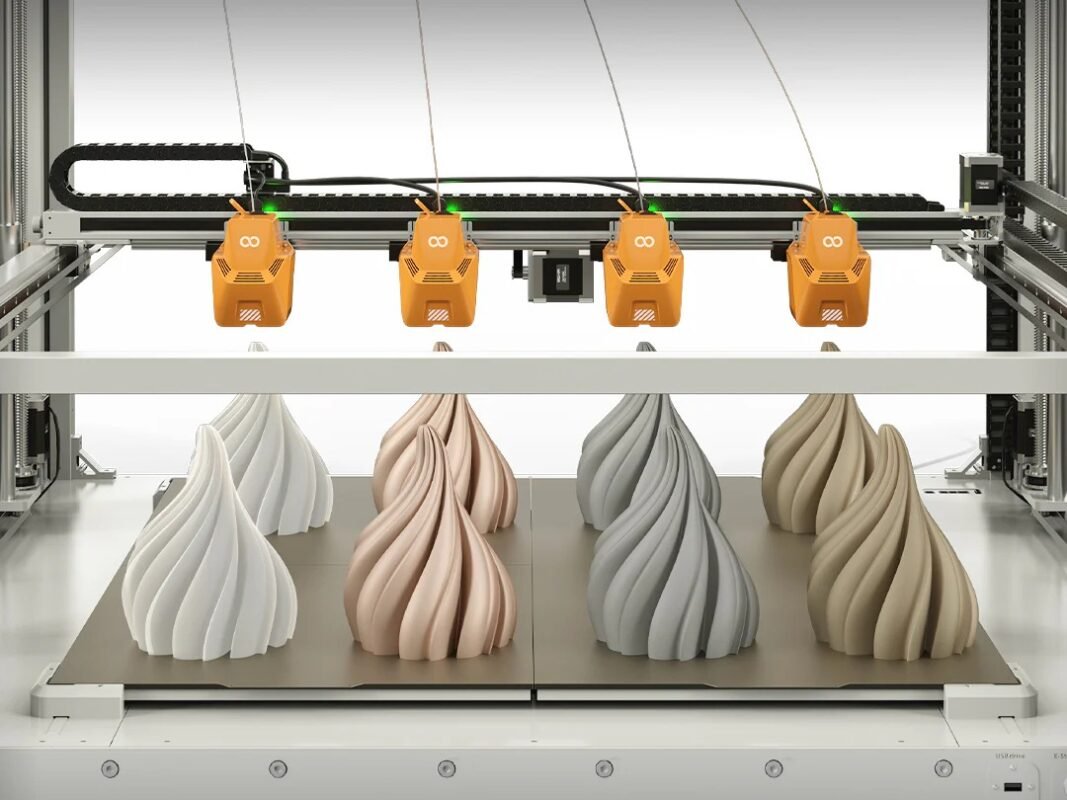

Multi-Nozzle Printing
Three additional printheads can be added to the X-axis to realize simultaneous printing with four nozzles, supporting printing four of the same model, while each nozzle can be equipped with the same material and different color filament to achieve four different colored models of the same kind.
The maximum power requirement is 1,530 W. For each additional printhead, an extra 100 W is needed. Please ensure that your setup can accommodate this total power load.

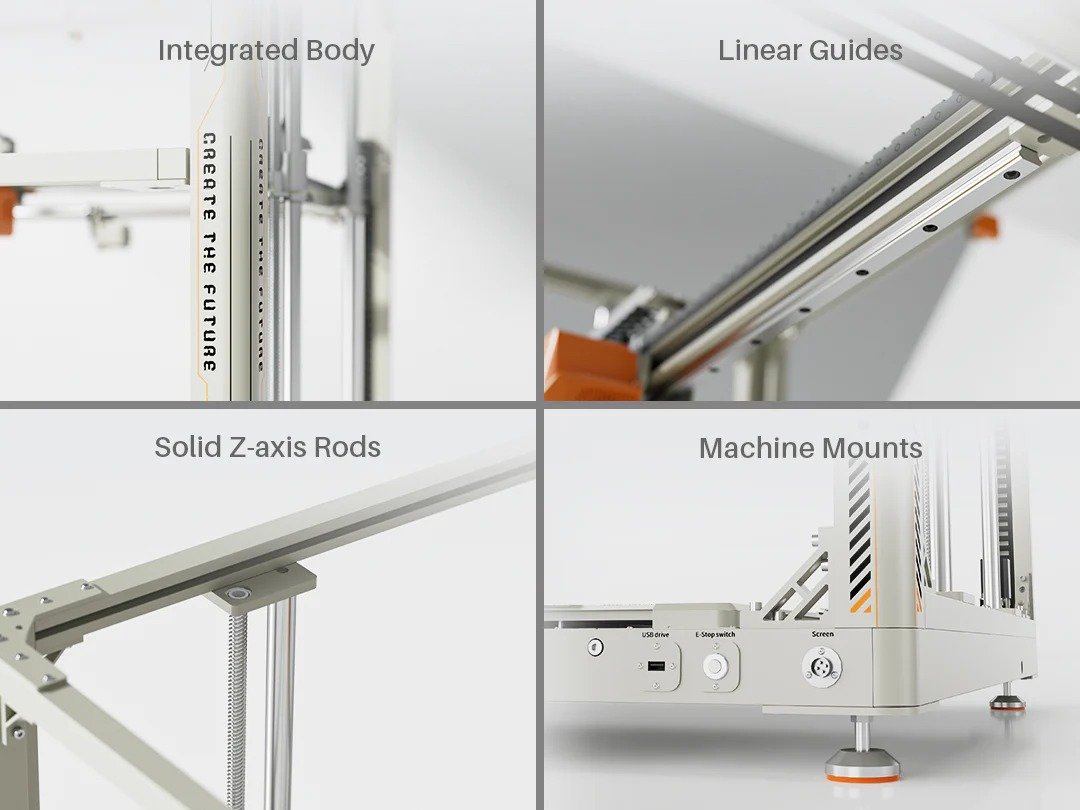

High-Quality Craftsmanship
Integrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-Axis rod to make the machine run smoothly and ensure leveling precision. Machine mounts are designed with a carbon steel round base and rubber round anti-slip pad bottom.

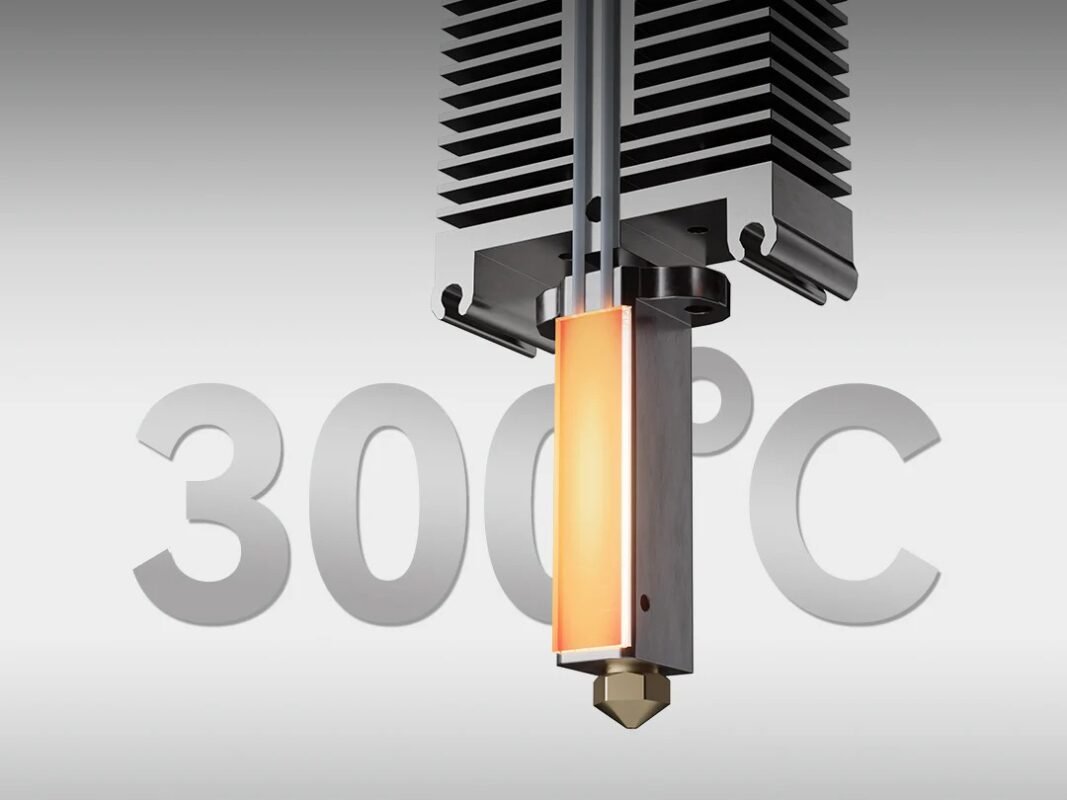

Powerful Extrusion System
OrangeStorm Giga features a high-quality brass nozzle capable of reaching 300 °C, ideal for high-temperature materials. The dual-gear direct extruder and titanium heat break ensure consistent filament flow, while the 60 W ceramic heater provides rapid and stable heating.
Equipped with advanced PID auto-calibration and a built-in acceleration sensor, OrangeStorm Giga ensures exceptional print quality by maintaining precise temperature control and reducing vibrations. Create stunning results for all your projects with ease.
Nozzle Diameter (included): 0.6 mm
Nozzle Diameter (optional): 0.4 mm/0.8 mm/1.0 mm

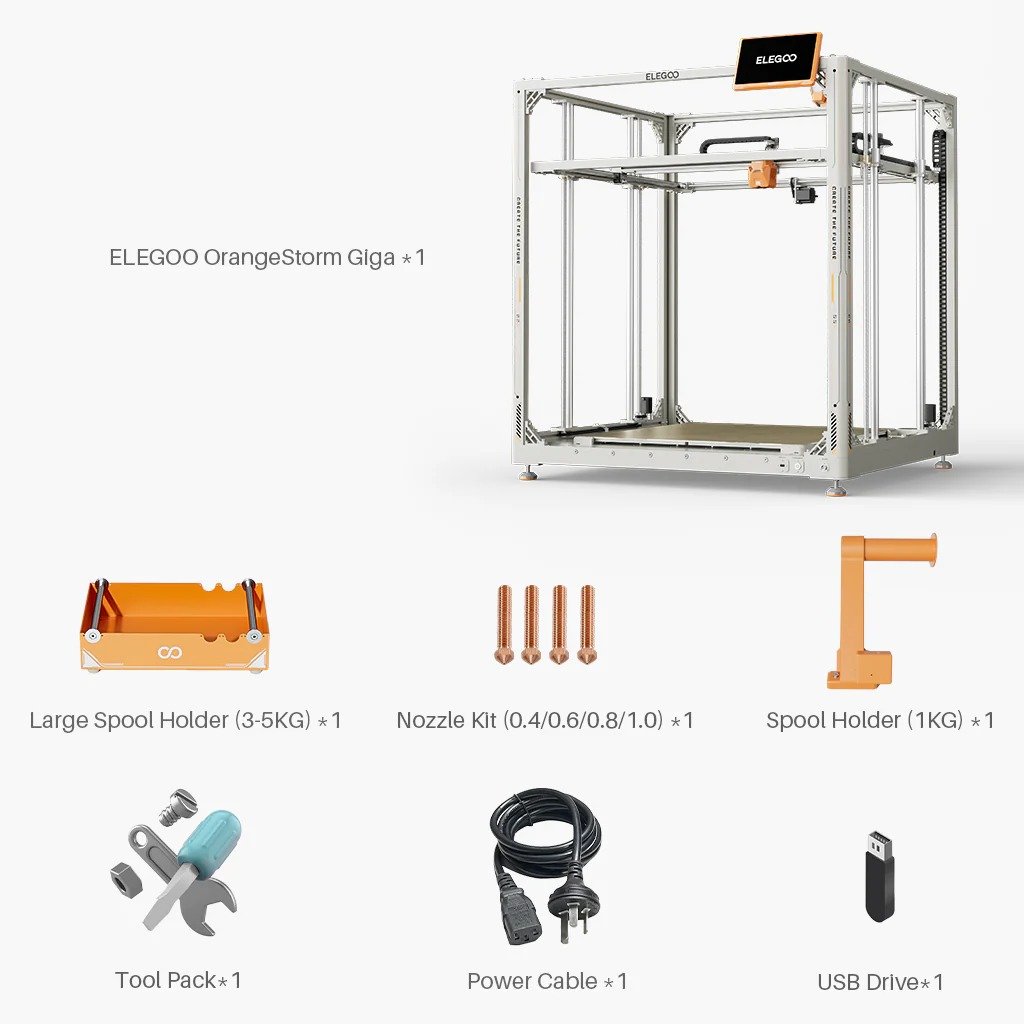

What's In Box
OrangeStorm Giga 3D Printer
Printhead
Screen
Leveling Plate×2pcs
Spool Holder Arm
Spool Holder
Filament Breakage Detector×2pcs
Z-axis Caterpilar Cable Tracjs Clip
Z-axis End Stop×2pcs
Filament Guide Aseemby
Detached Spool Holder Assembly(5KG)
Power Cable
Leveling Card
Grease
Proofile Corner Bracket×8pcs
Specification
Product Model
OrangeStorm Giga
Printing Technology
FDM (Fused Deposition Modeling)
Frame Material
CNC machined aluminium extrusion
Voltage
100-120 VAC/220-240 VAC, 50/60 Hz
1,530 W (single head; +100 W per additional head)
File Transfer Method
WI-FI, USB, LAN
File Format
STL, OBJ
UI Language
English, French, German, Russian, Italian, Spanish, Japanese, Chinese
Build Volume
800 × 800 × 1000 mm
Printing Platform Size (PEI Area)
820 × 820 mm
(4 independent 410 × 410 mm PEI plates)
Machine Size
1,224 × 1,164 × 1,425 mm
Package Size
Bottom + XY Axis Components: 1,350 × 1,215 × 420 mm
Two Z-Axis Components: 1,350 × 1,215 × 350 mm
MAXIMUM SIZE FOR MACHINE ACTIVITY/MM
1,224 × 1,520 × 1,570 mm
Max. Nozzle Temperature
300 °C
Max. Hot bed Temperature
100 °C (ambient temperature: 25 °C)
Filament Compatibility
PLA/PETG/TPU
Net Weight
104 kg
Gross Weight
145 kg
Resume Printing
Yes
Filament Detection
Yes
Max Speed of Tool Head
300 mm/s
Max Acceleration of Tool Head
5,000 mm/s²
