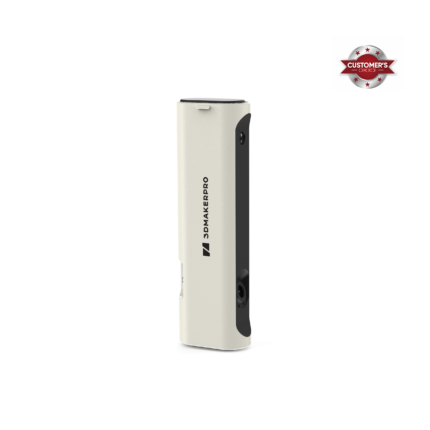

3DMakerpro Lynx 3D Scanner
• Large-Format Capture: 250 x 400mm single capture range for medium-to-large objects.
• High Accuracy: Up to 0.10mm accuracy with 0.30mm resolution.
• Massive Scan Volume: Captures objects up to 5000 x 5000 x 5000mm.
• Fast Scanning: Up to 2,000,000 points per second scan speed.
• Stabilized Optics: Optical stabilizer and visual tracking for marker-free scanning.
• Versatile Scanning Modes: Turntable, handheld, and optional mobile scanning (with Connect).
• Ideal for 100-2000mm Objects: Furniture, automotive parts, sculptures, and human bodies.
• User-Friendly Software: Free JMStudio with one-click optimization.
• Multi-Format Export: OBJ, STL, ASC output for downstream design software.
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:
Lynx: Everything in One Scan

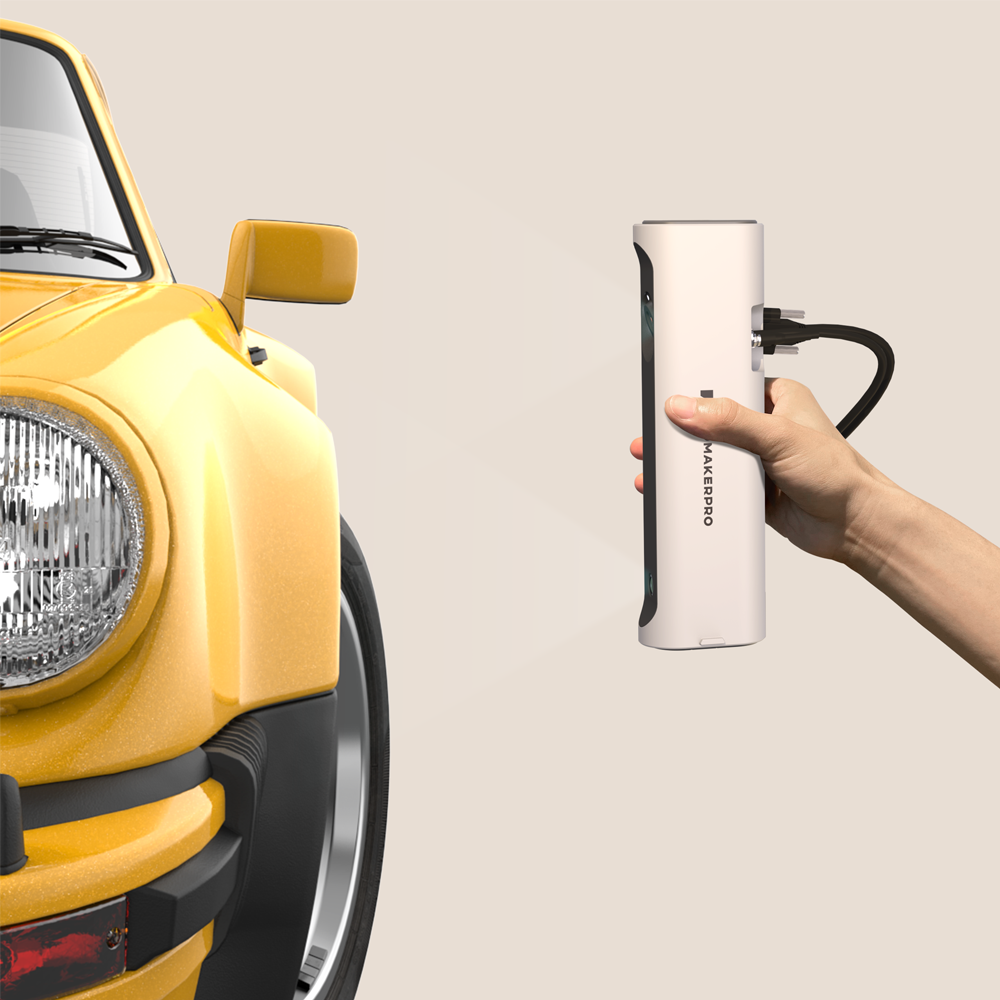

The 3DMakerpro Lynx is a large-format handheld 3D scanner built for medium-to-large objects — furniture, automotive parts, human bodies, and sculptures — combining a wide 250 x 400mm single capture range with up to 0.10mm accuracy.
Capture Larger Objects
Lynx’s single capture range of 250 x 400mm is up to 200% larger than traditional mid-format scanners. Objects up to 5000 x 5000 x 5000mm can be scanned, a huge jump over comparable devices.
Smooth Scanning Experience
An optical stabilizer combined with advanced visual tracking minimizes misalignment during handheld scans, without needing physical markers.
Faithful Object Reproduction
0.10mm accuracy and 0.30mm resolution produce precise, detailed point clouds suitable for art, design, and industrial reverse-engineering work.
Fast Scan Results
Lynx captures up to 2,000,000 points per second, dramatically cutting the time needed to complete large-object scans.

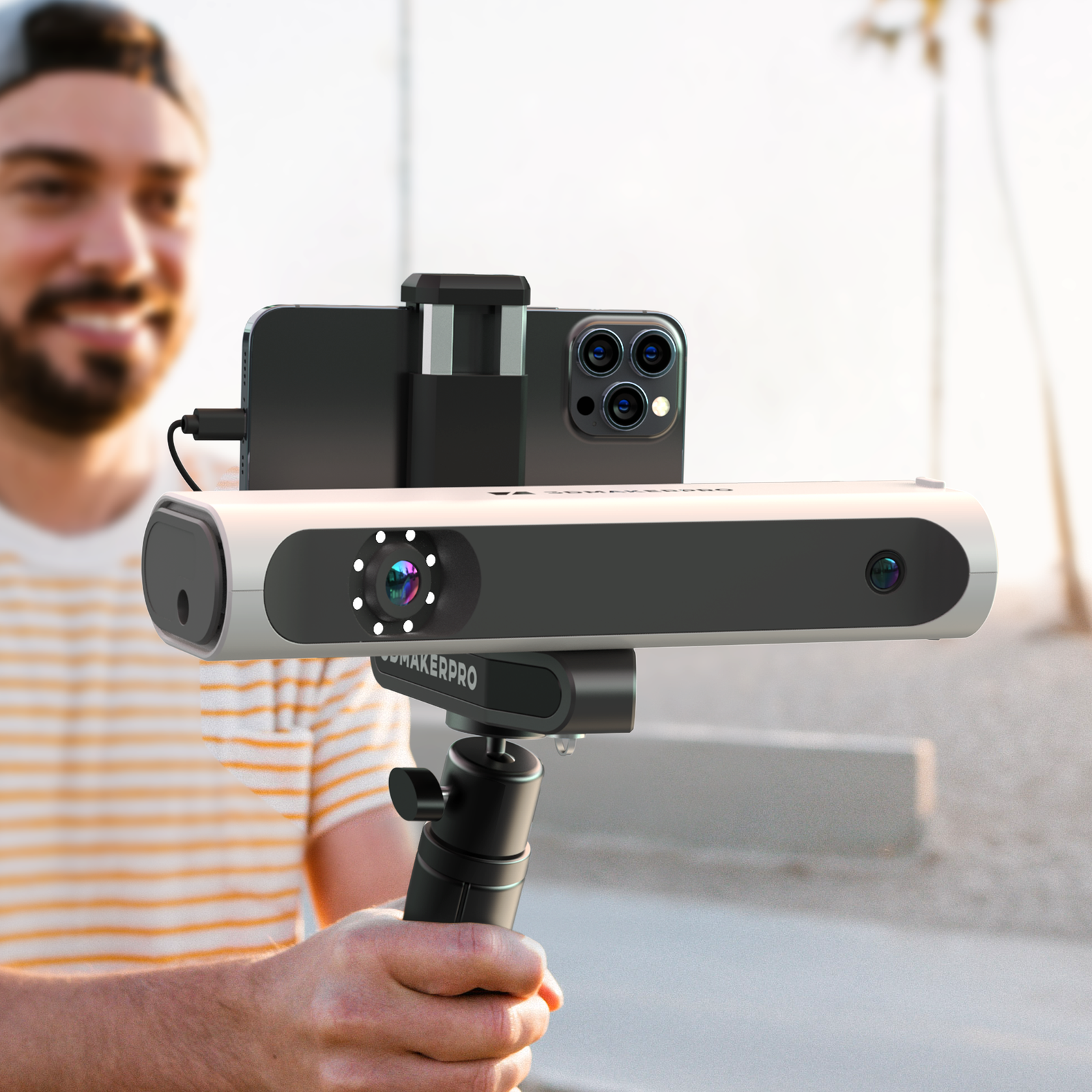

Optional Mobile Scanning
Paired with the optional Connect accessory, Lynx can be tethered to a smartphone for on-the-go, cable-free scanning flexibility.
JMStudio Scanning Software

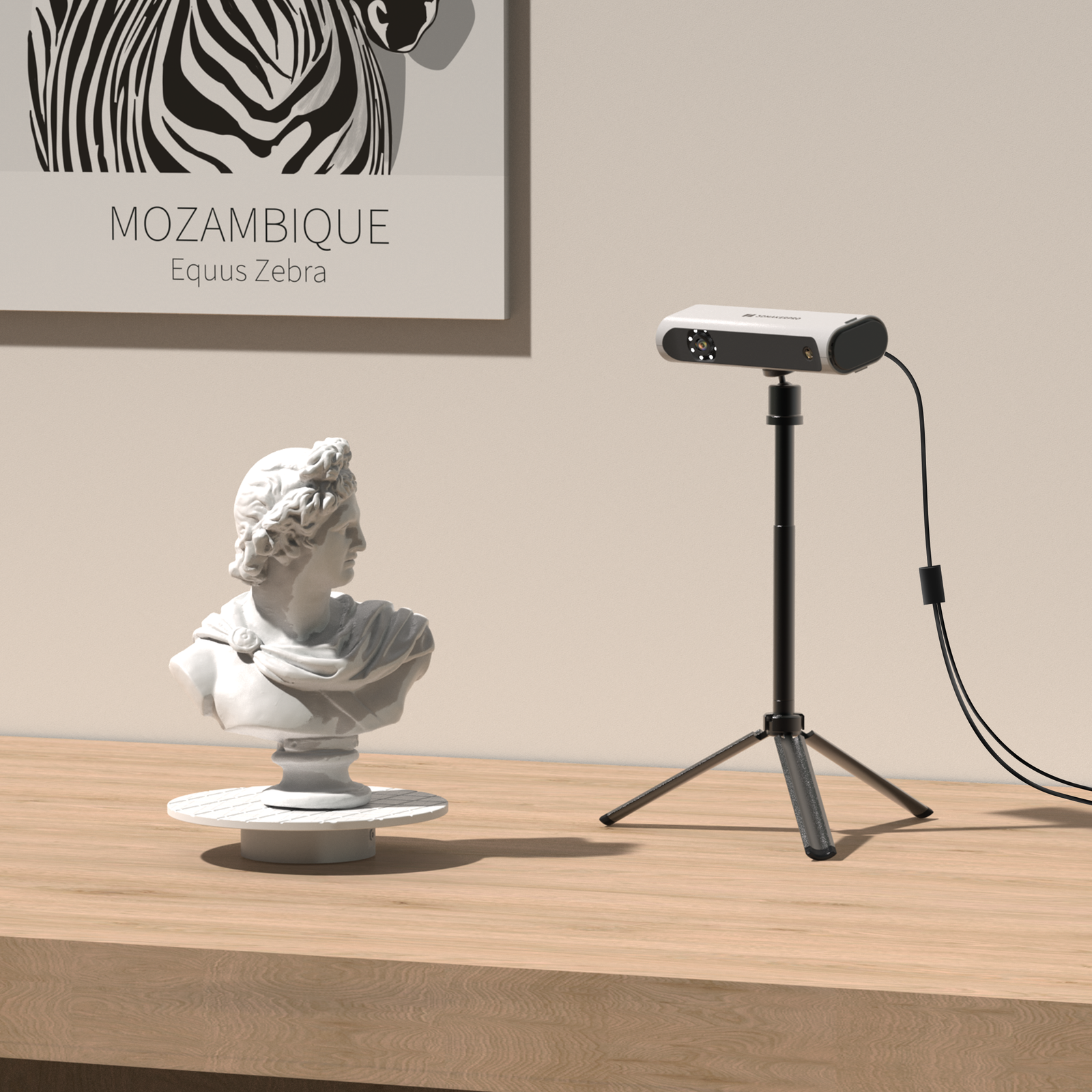

Lynx ships with 3DMakerpro’s free JMStudio software, supporting Windows, macOS, iOS, and Android (with Connect), turntable mode, handheld mode, and — with the Luxury combo — full color texture mapping. Export directly to OBJ, STL, PLY, and ASC.
Specifications
| Parameter | Value |
|---|---|
| Accuracy | 0.10 mm |
| Resolution | 0.30 mm |
| Frame rate | 10 fps |
| Scan speed | Up to 2,000,000 points/second |
| Tracking mode | Visual tracking |
| Work distance | 400-900 mm |
| Single capture range | 250 x 400 mm |
| Max scan volume | Up to 5000 x 5000 x 5000 mm |
| Typical object sizes | 100-2000 mm |
| Light source | NIR (near-infrared) |
| Color texture | Extended support (with compatible combo) |
| USB interface | USB 2.0 |
| Dimensions | 244 x 75 x 48 mm |
| Weight | 800 g |
| Output format | OBJ / STL / ASC |
| Compatible system | Windows 10/11 (64-bit), macOS 12/13 |
| Compatible mobile | Android 10.0+, iOS 15.0+ (with optional Connect accessory) |
| Minimum PC requirements | Intel Core i5 8th Gen, 16GB RAM, MX250 GPU (2GB VRAM) |
| Recommended PC requirements | Intel Core i7 8th Gen, 16GB RAM, NVIDIA GTX 1060 GPU (4GB VRAM) |

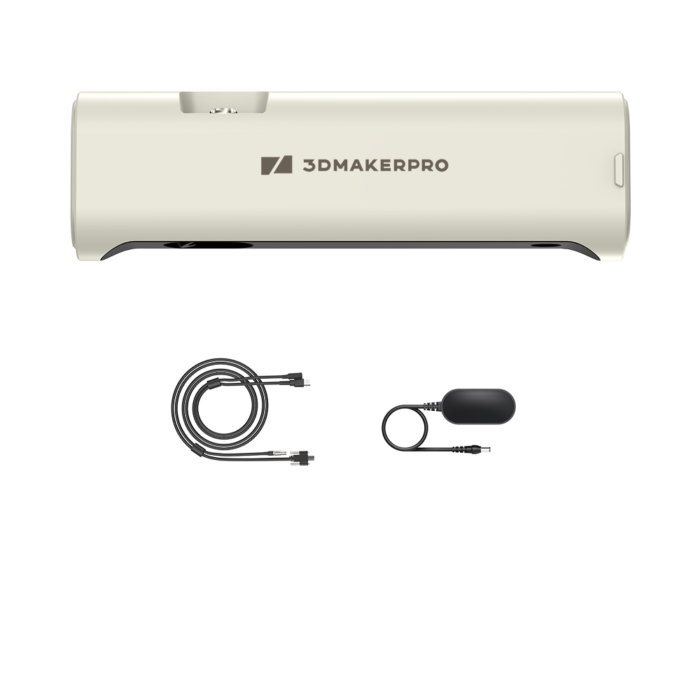

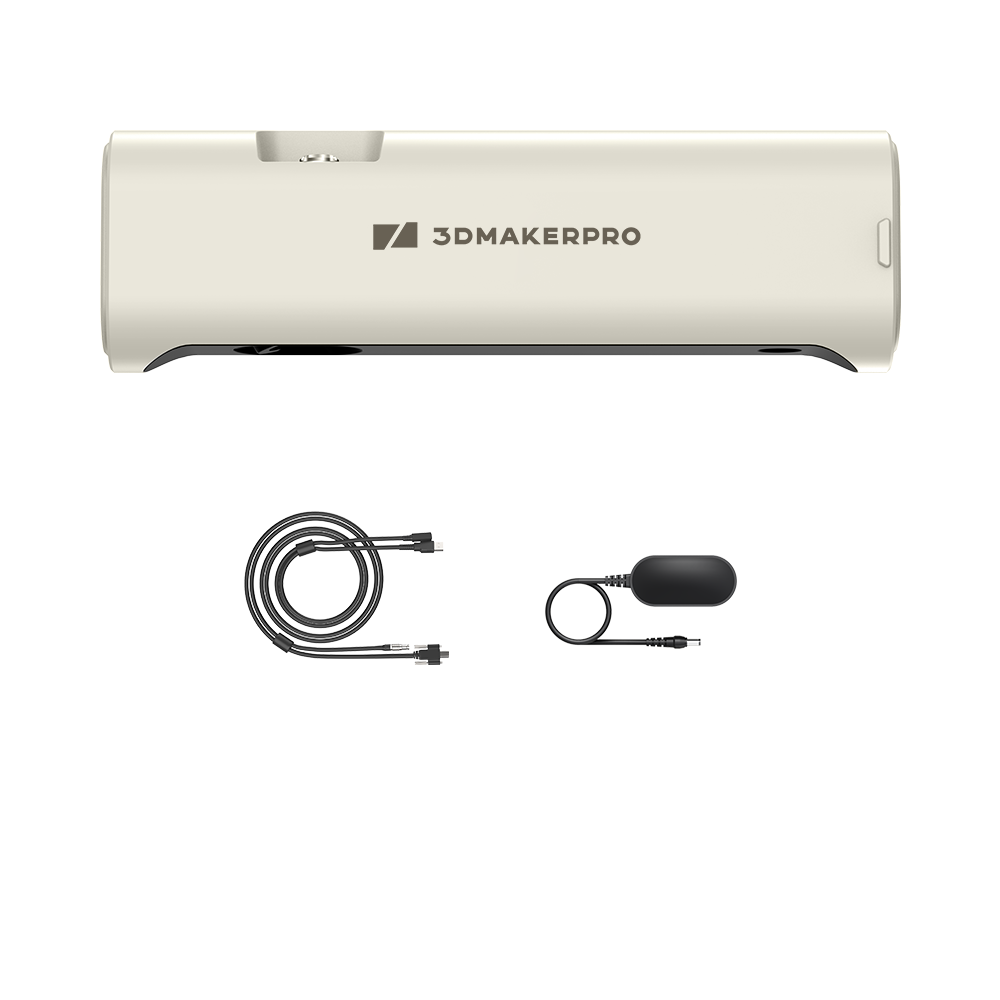

What’s in the Box

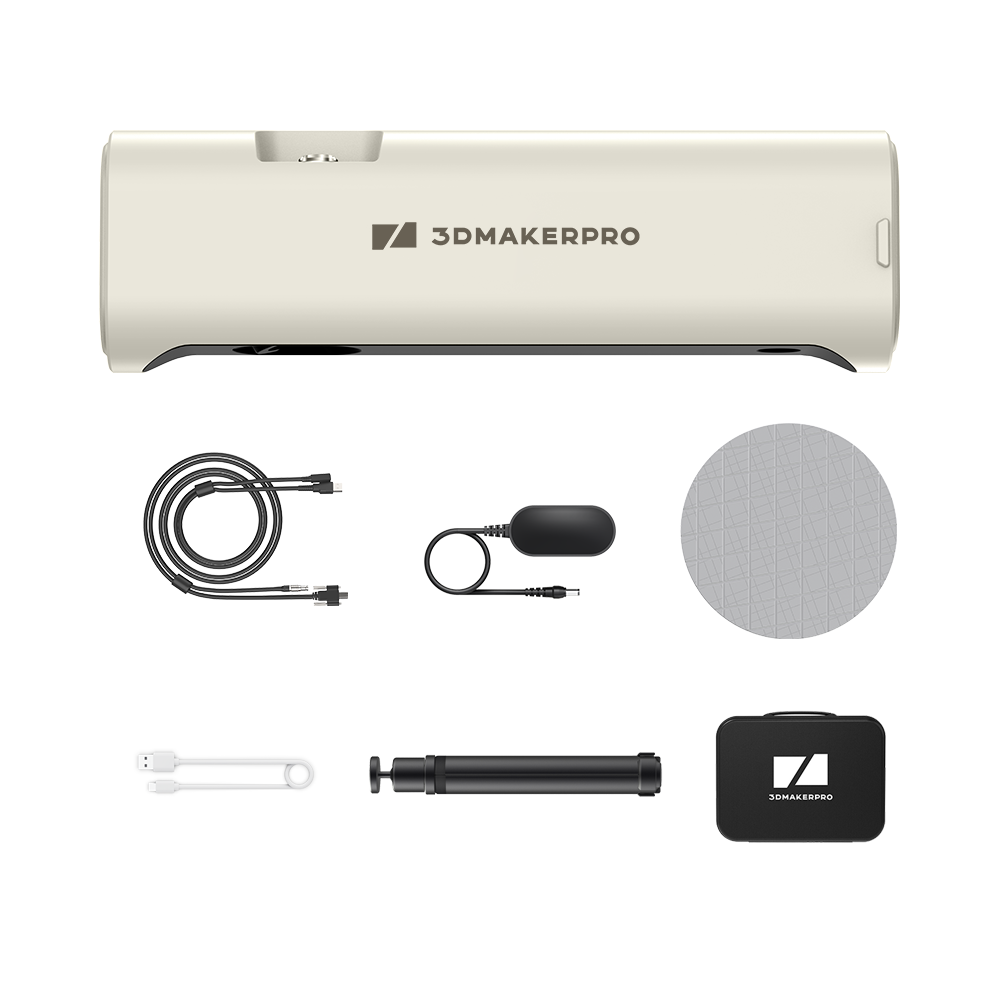

The Standard package includes the Lynx 3D scanner, power cord, and data cable. Premium and Luxury bundles (sold as combo options on the manufacturer’s store) add a tripod, turntable kit, carrying case, and — for Luxury — full color texture support.
Note: this model currently shows as sold out on 3DMakerpro’s own storefront, but remains an active, current product in their lineup — confirm restock timing with the manufacturer before publishing.
RELATED PRODUCTS
Revopoint MIRACO: Standalone 3D Scanner for Small to Large Objects Scanner
₹164,999.00 Including Tax

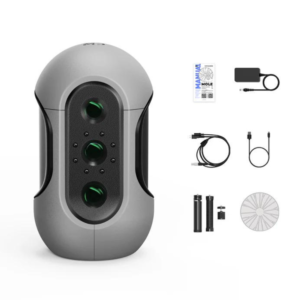

3DMakerpro Mole Premium 3D Scanner
