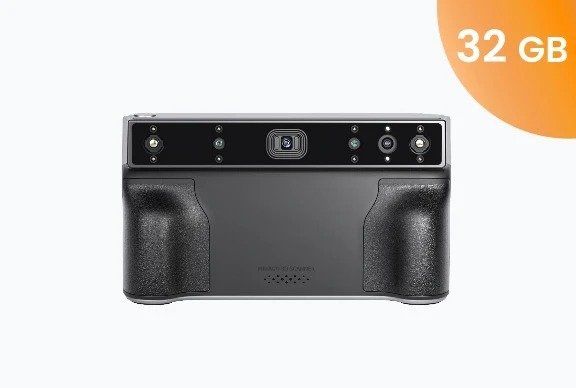

Revopoint MIRACO PRO: Standalone 3D Scanner for Small to Large Objects Scanner (32 GB)
₹209,999.00 Including Tax
Revopoint MIRACO: Standalone 3D Scanner for Small to Large Objects Scanner
· Big and Small Object Scanning
· Single-shot & Continuous Modes
· Up to 0.02 mm precision, 0.05 mm accuracy
· 48 Megapixel RGB Camera
· Up to 2 hours of Scanning
₹164,999.00 Including Tax
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:
All-in-one Scanning

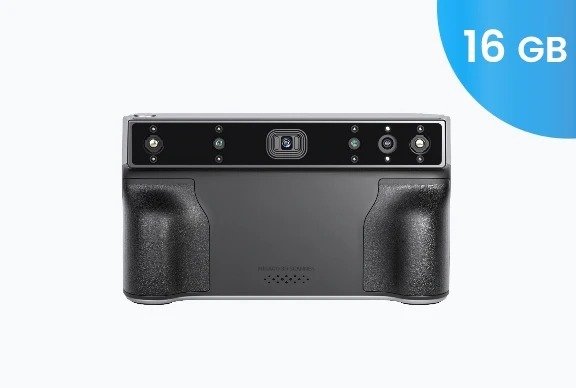

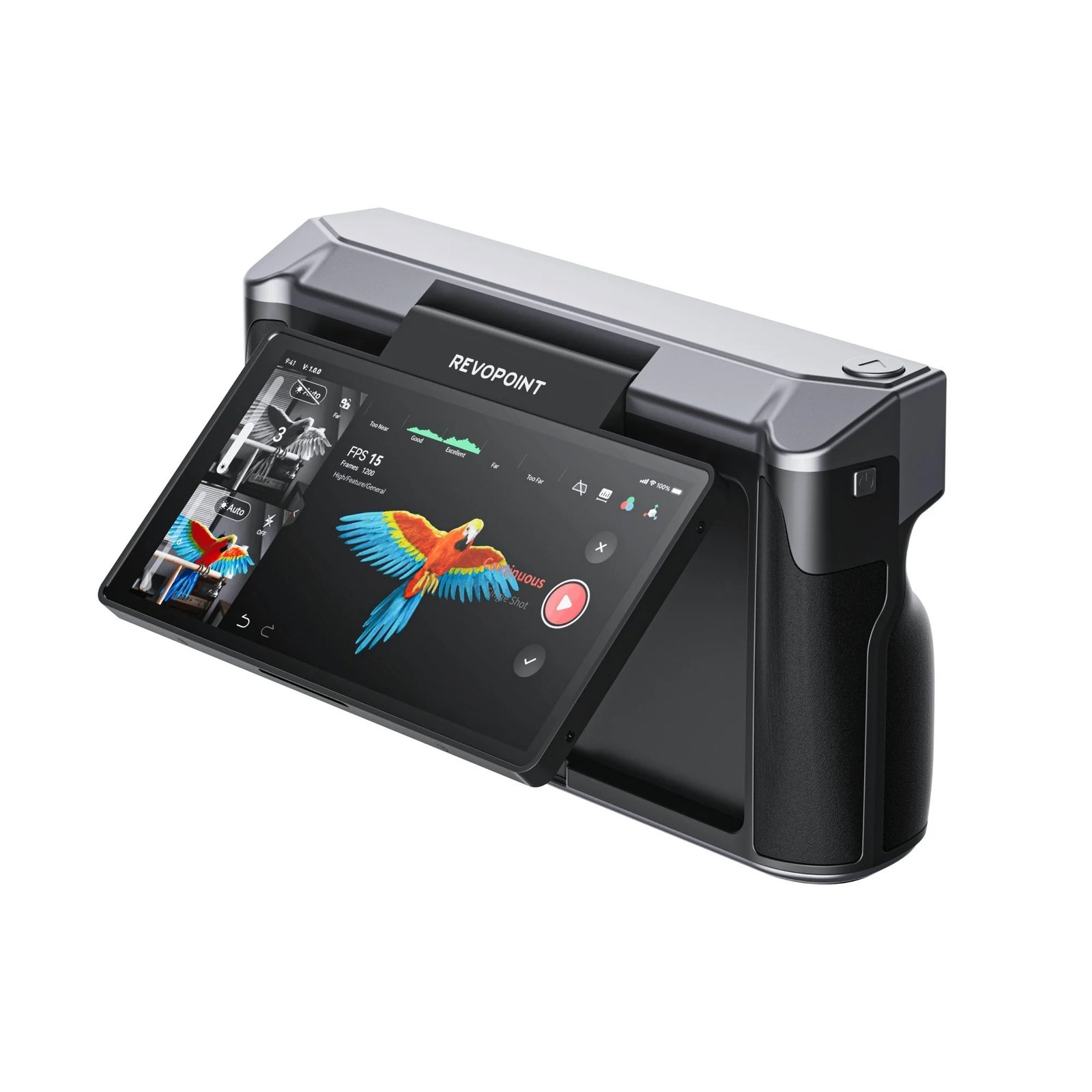

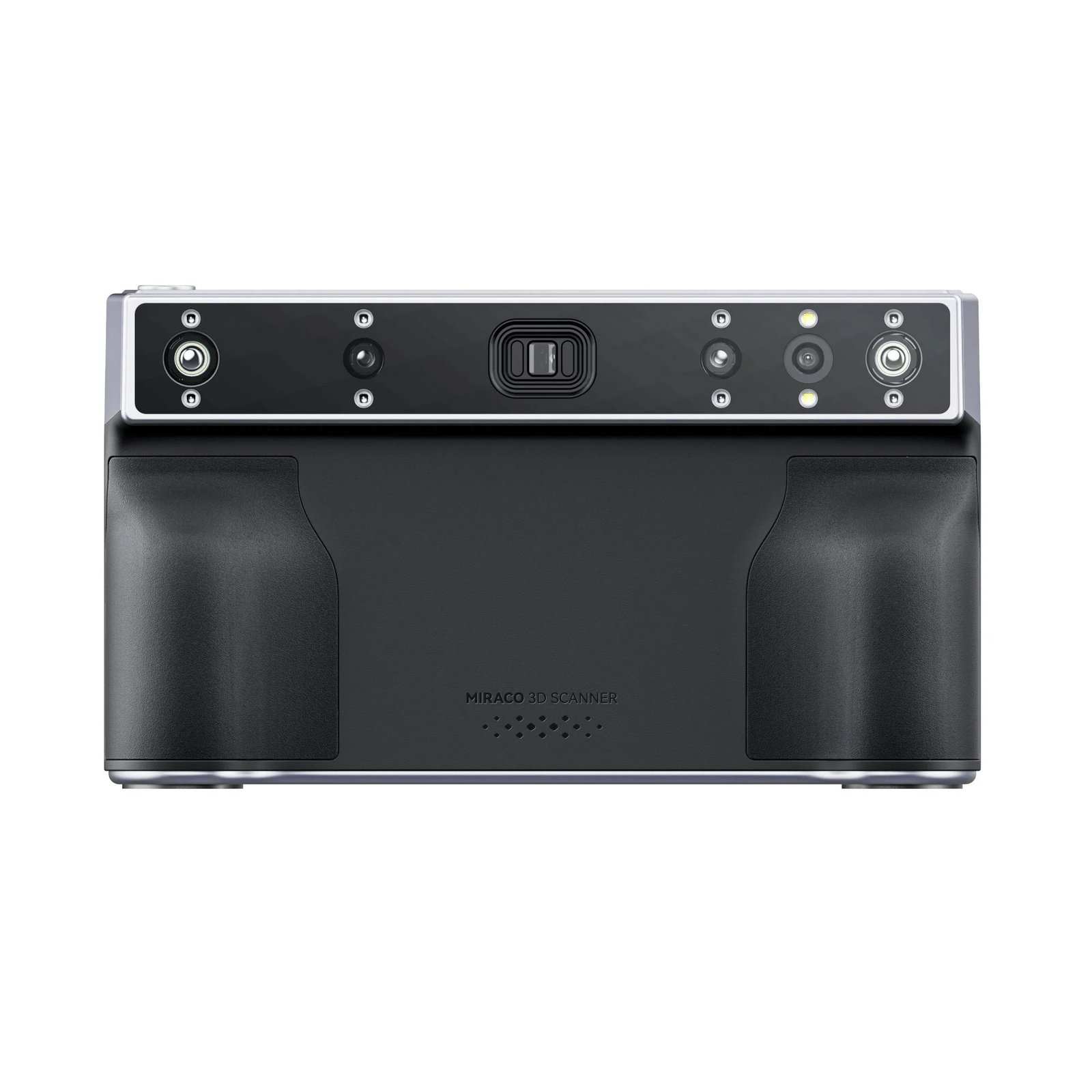

Introducing our first standalone 3D scanner, the Revopoint MIRACO. It’s ready to support all your professional scanning needs. Whether you want to capture small or large items, its quad-Depth Camera system can do it all.

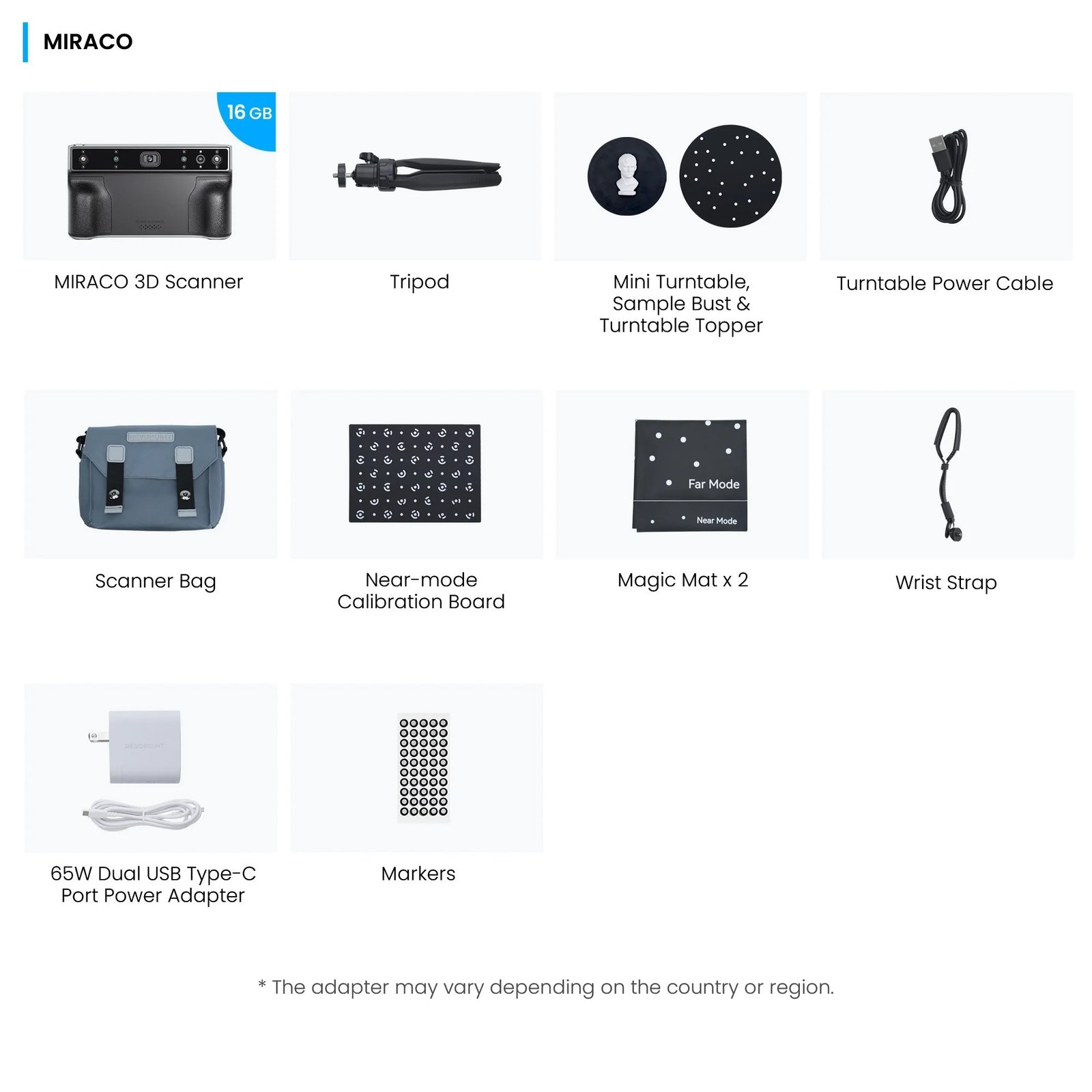

What’s in the Box?
MIRACO
MIRACO 3D Scanner

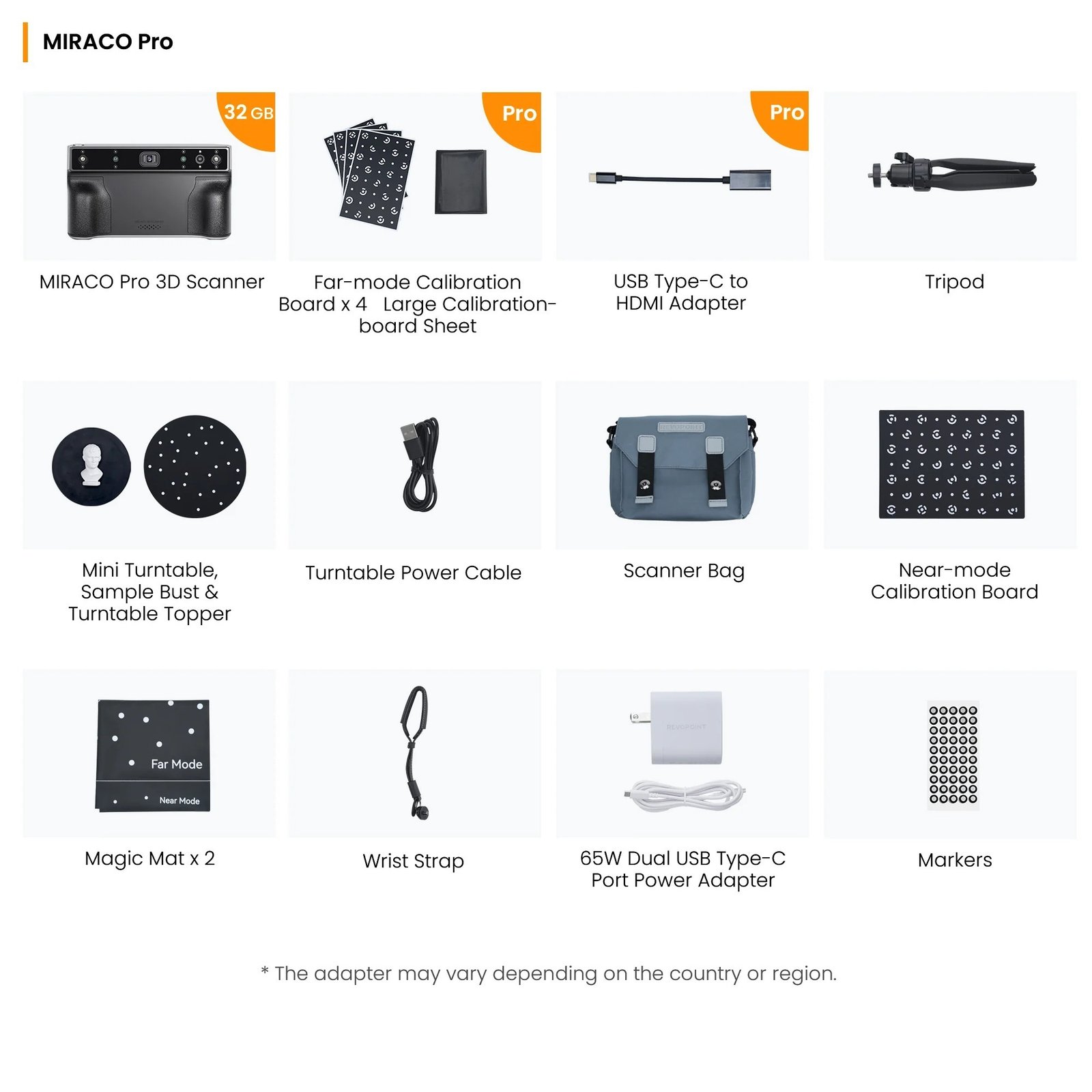

MIRACO Pro
MIRACO 3D Scanner

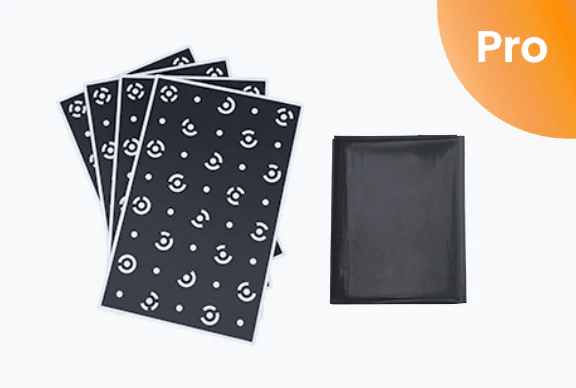

Far-mode Calibration Board x 4

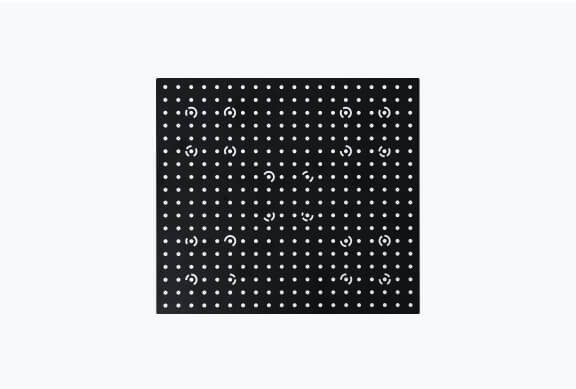

Large Calibration-board Sheet
USB Type-C to HDMI Adapter
Also Included
Tripod
Mini Turntable, Sample Bust
& Turntable Topper
Near-mode
Calibration Board
Magic Mat x 2
Wrist Strap
65W Dual USB Type-C Port Power Adapter, USB Type-C to C Cable (1.8 m)

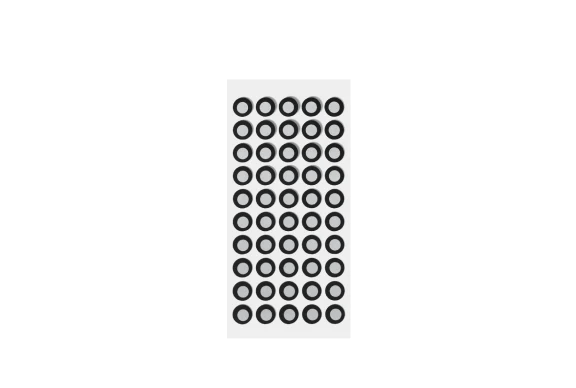

Markers x 200
Scanner Bag
Specifications
| Product Name | Revopoint MIRACO | Technology | Quad-camera Infrared Structured Light |
|---|---|---|---|
| Single-frame Accuracy | 0.05 mm | Fused Point Distance | 0.05 mm |
| Single Capture Area (Nearest Distance) | 28 × 53 mm at 100 mm | Single Capture Area (Furthest Distance) | 975 × 775 mm at 1000 mm |
| Two Capture Modes | Single-shot, Continuous | Scanning Speed | Up to 15 fps |
| Minimum Scan Volume | 10 × 10 × 10 mm | Maximum Scan Volume | 4 × 4 × 4 m |
| Working Distance | 100 ~ 1000 mm | Screen | 6” 2k AMOLED Touch |
| Auxiliary Lighting | Infrared Fill Lights, Flash LEDs | 3D Light Source | Class 1 Infrared Light |
| Internal Storage | 256 GB eMMC | Position Sensors | 9-axis IMU |
| Memory (RAM) | 16 GB / 32 GB DDR4 | RGB Camera Resolution | Up to 48 MP |
| Weight | 750 g | Dimensions | 200 × 50 × 110 mm |
| Battery | 5000 mAh, ~2 hrs scanning | CPU | 8-core, 2.4 GHz |
| Tracking Methods | Feature, Marker, Global Marker | Protection Rating | IP45 |
| Connector Type | USB Type-C | Wi-Fi Type | Wi-Fi 6 |
| Operating Systems | Windows 10/11 (64-bit), macOS 11+ | Native System | Android |
| Special Object Scanning | Use spray for transparent, dark, reflective surfaces | Scanning Environment | Indoors / Outdoors |
| Output Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX | 3D Printing Compatible | Yes |
| Built-in Chip Computing | Depth Map, 3D Scan, Point Cloud Processing | Mobile Requirements | N/A |
| Minimum PC Requirements | macOS: M1 Pro, RAM ≥ 8GB Windows: Intel i7 12th Gen, RAM ≥ 16GB | Recommended PC Requirements | macOS: M3, RAM ≥ 8GB Windows: Intel i9 11th Gen, RAM ≥ 32GB |
|
Notes:
1. Precision = closeness of repeated measurements. Accuracy = closeness to true value. Measured in controlled lab environment, real results may vary. 2. Avoid direct sunlight for outdoor scans. 3. Class 1 Laser: Avoid prolonged direct eye exposure. 4. Flashing lights may affect people with photosensitive epilepsy. 5. MIRACO scanners can run standalone. PC requirements apply if connecting to Revo Scan (PC). | |||
