3DMakerpro Fox 3D Scanner
- 0.07mm accuracy and 0.10mm resolution — outperforms typical entry-level scanners

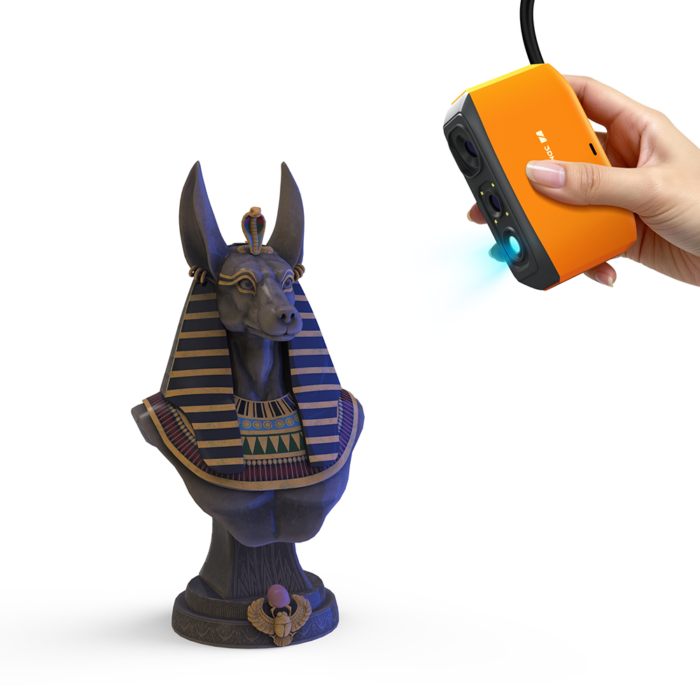

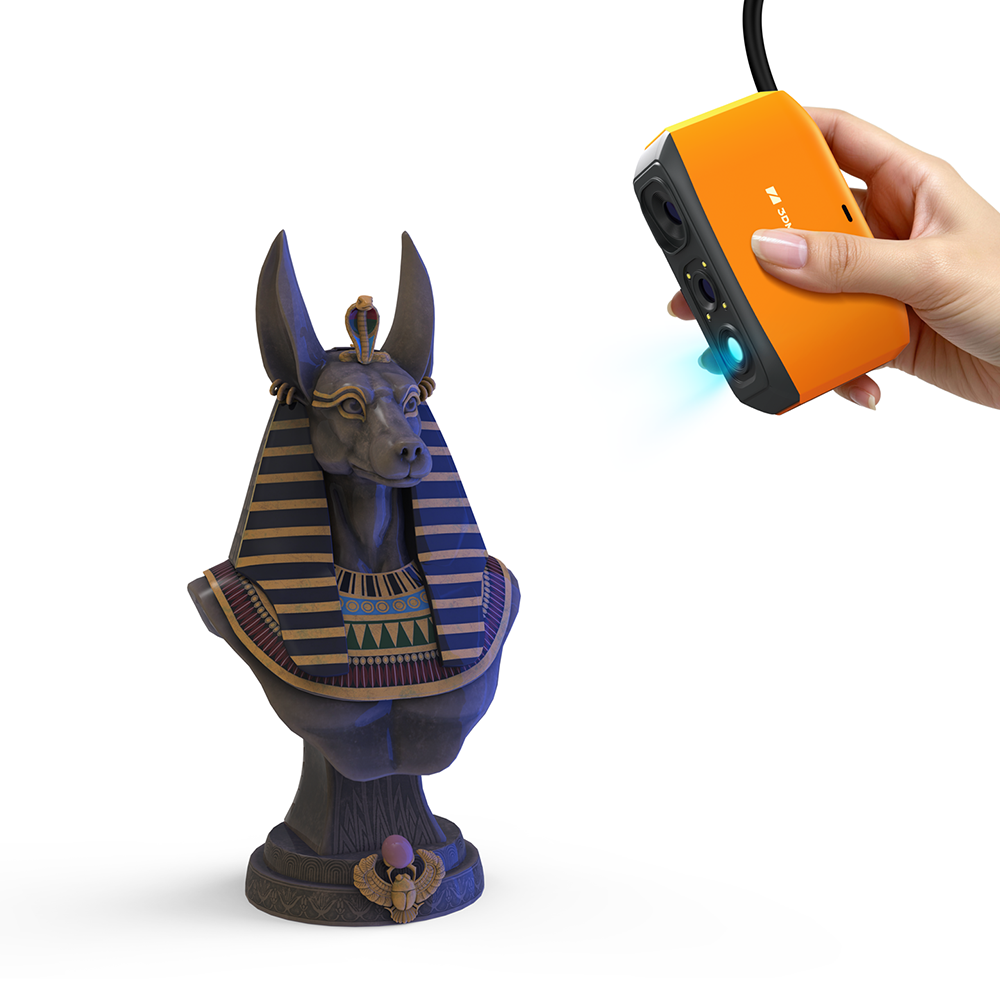

- Ultralight 210g body, ideal for handheld scanning
- AI SLAM markerless tracking with instant re-lock after tracking loss
- Scans objects from 40mm to 1,200mm, single capture range 200×100mm
- NIR optical system needs less anti-glare spray on matte and dark surfaces
- Free JMStudio software: real-time capture, one-click optimize, export to OBJ/STL/PLY/ASC
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:
Beginner-Friendly, Professional Accuracy
The 3DMakerpro Fox is an entry-level medium-format 3D scanner built for makers, students, and hobbyists. At 0.07mm accuracy and 0.10mm resolution, it captures fine detail well beyond typical entry-level scanners, all wrapped in a vibrant orange, 210g ultralight body.
Real-Time Guidance, No Guesswork
JMStudio, 3DMakerpro’s free scanning software, shows a live 3D preview with on-screen distance and tracking indicators as you scan, plus a guided setup for first-time users.
Smart Recovery with AI SLAM
Fox’s markerless AI visual tracking relocks onto your object within seconds if tracking is lost mid-scan — point the scanner back at an already-scanned area and continue, no restart required.
One-Click Processing
After scanning, JMStudio auto-corrects misaligned point clouds and runs fusion, noise removal, and mesh simplification in a single click, exporting directly to OBJ, STL, PLY, or ASC.
Handles More Surfaces, With Less Prep
Fox’s NIR algorithm performs well on matte dark surfaces, brushed metals, and painted parts, reducing the need for anti-glare scanning spray on many common objects.
Specifications
| Accuracy | 0.07 mm |
| Resolution | 0.10 mm |
| Single Capture Range | 200 × 100 mm |
| Typical Object Sizes | 40 – 1,200 mm |
| Frame Rate | 10 fps |
| Working Distance | 150 – 400 mm |
| Weight | 210 g |
| Dimensions | 115 × 70 × 35 mm |
| Light Source | NIR (Near-Infrared) |
| Color Texture | Mono textures |
| USB Interface | USB 2.0 |
| Output Format | OBJ / STL / PLY / ASC |
| Compatible System | Windows 10/11 (64-bit), macOS 12/13 |
| Capture On | Windows 10/11, macOS 12/13 (M1/M2), Android 10+, iOS 15+ (with Smart Grip) |
| Min. PC Specs | Intel Core i5 8th gen, 16GB RAM, MX250 2GB VRAM |
| Recommended PC | Intel Core i7 8th gen, 16GB RAM, RTX 3060 4GB VRAM |

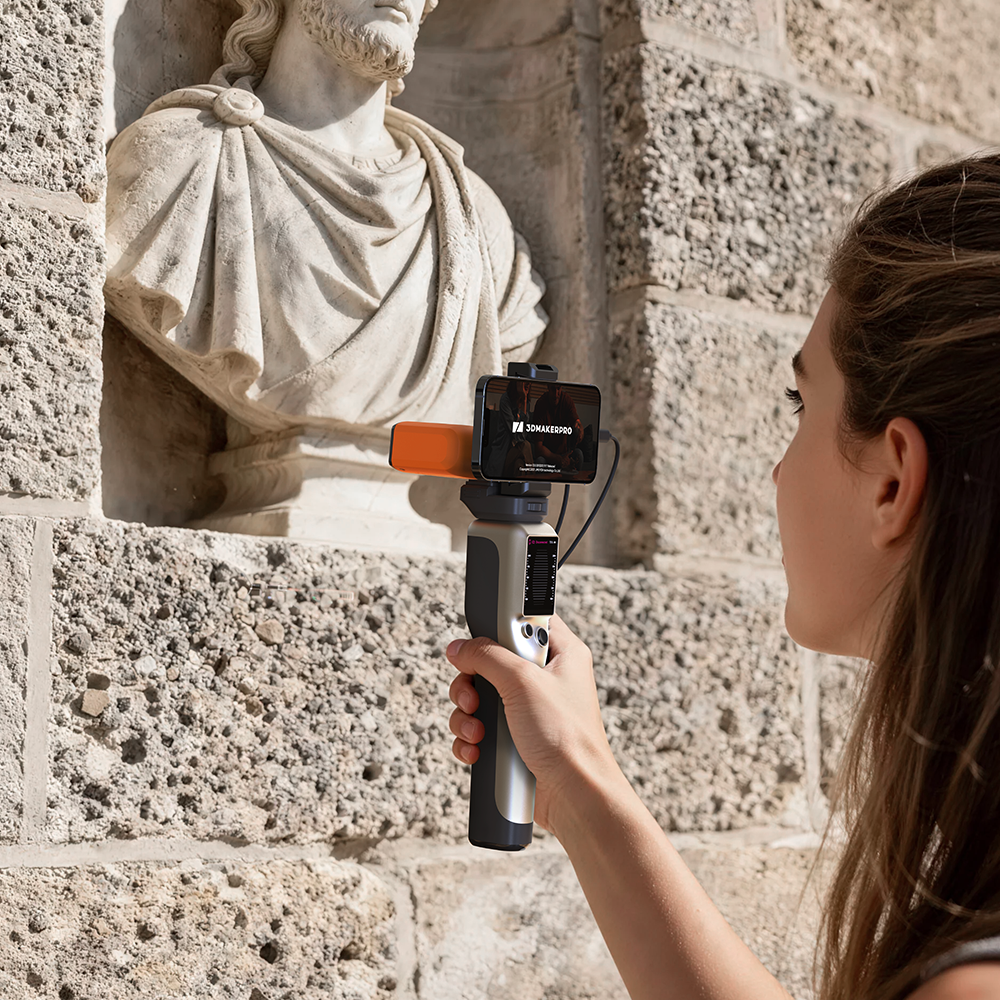

| Extended Accessory | Smart Grip (sold separately) for mobile scanning |

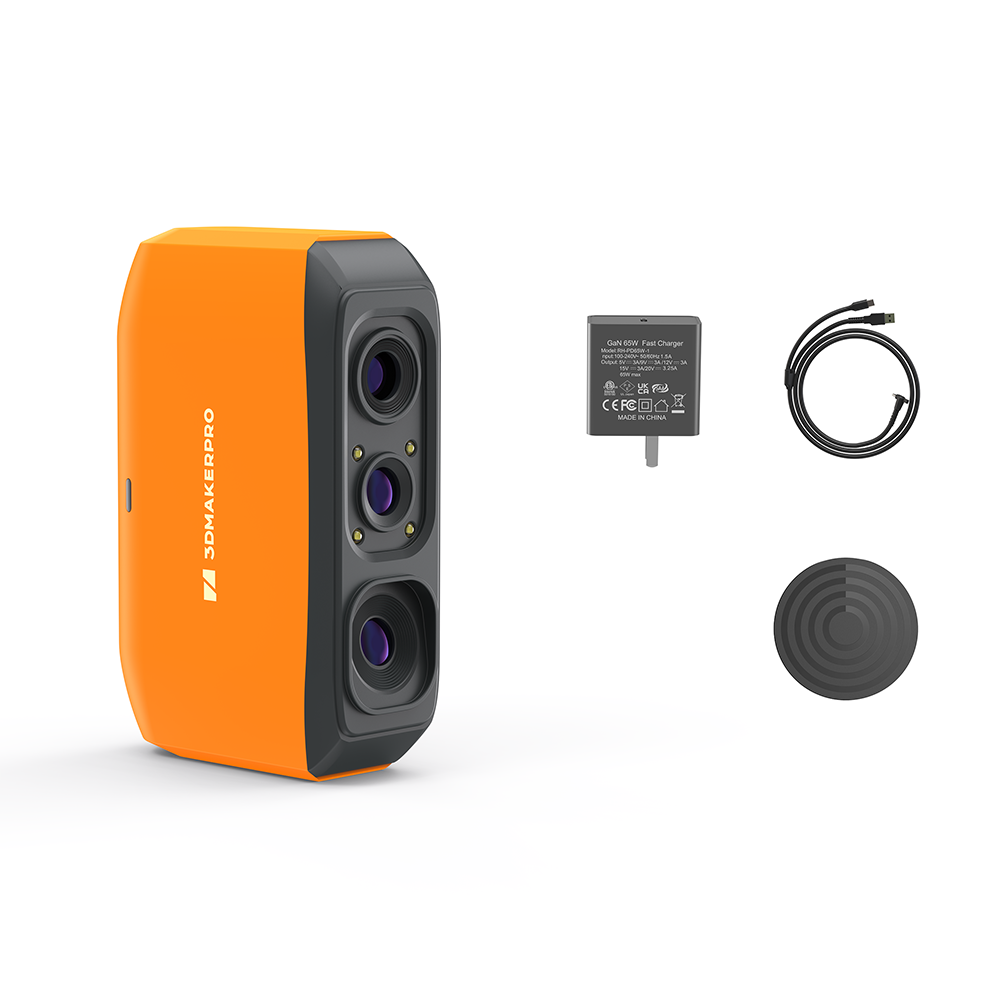

What’s in the Box
- Fox 3D Scanner

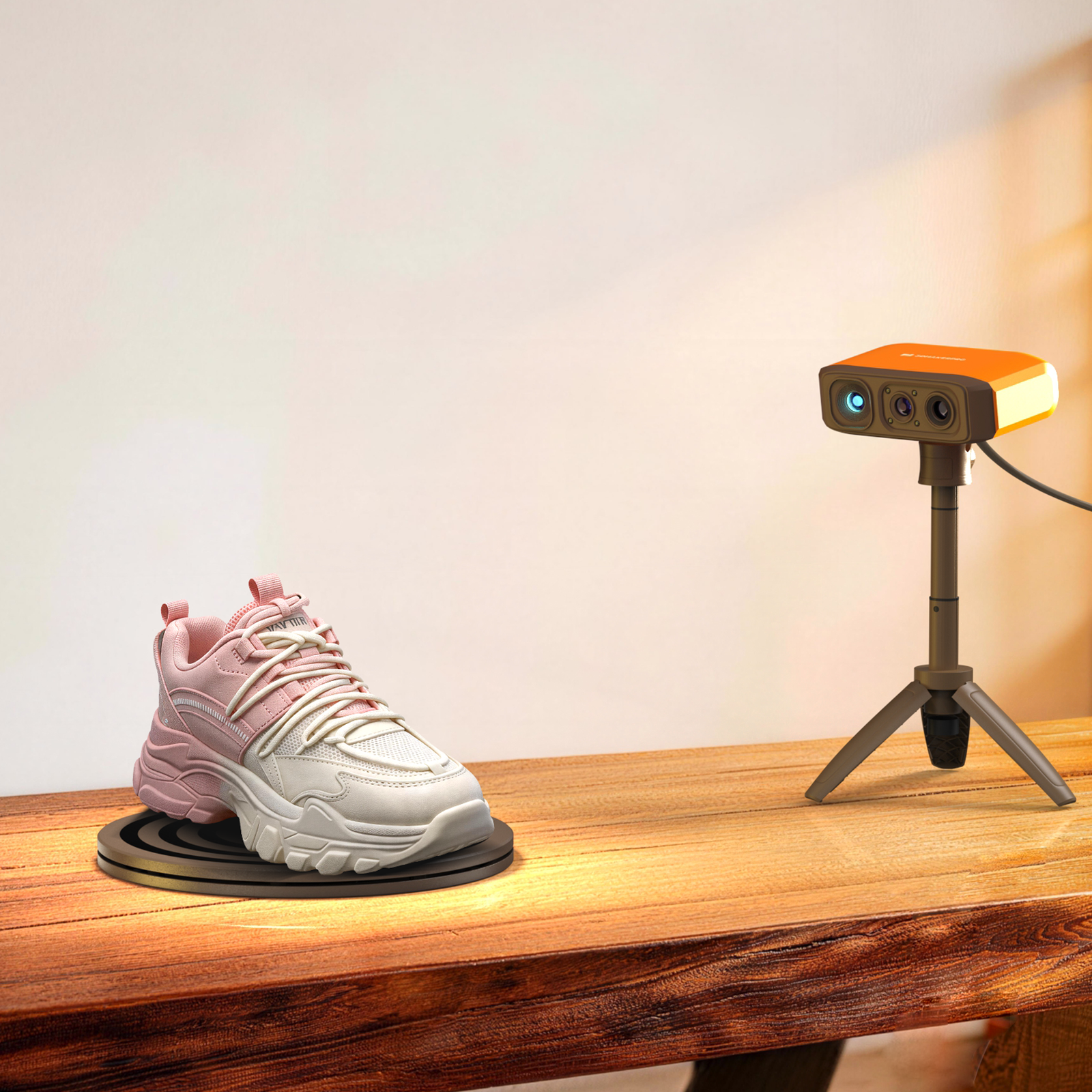

- Manual Turntable
- Power Adapter & Cable
