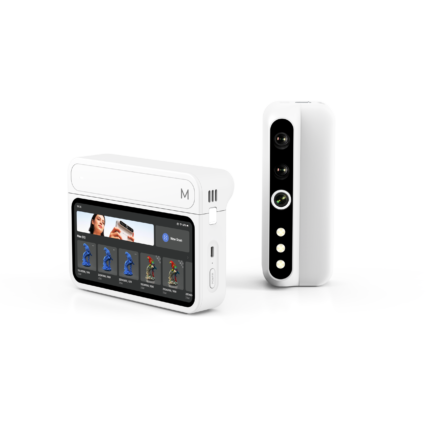

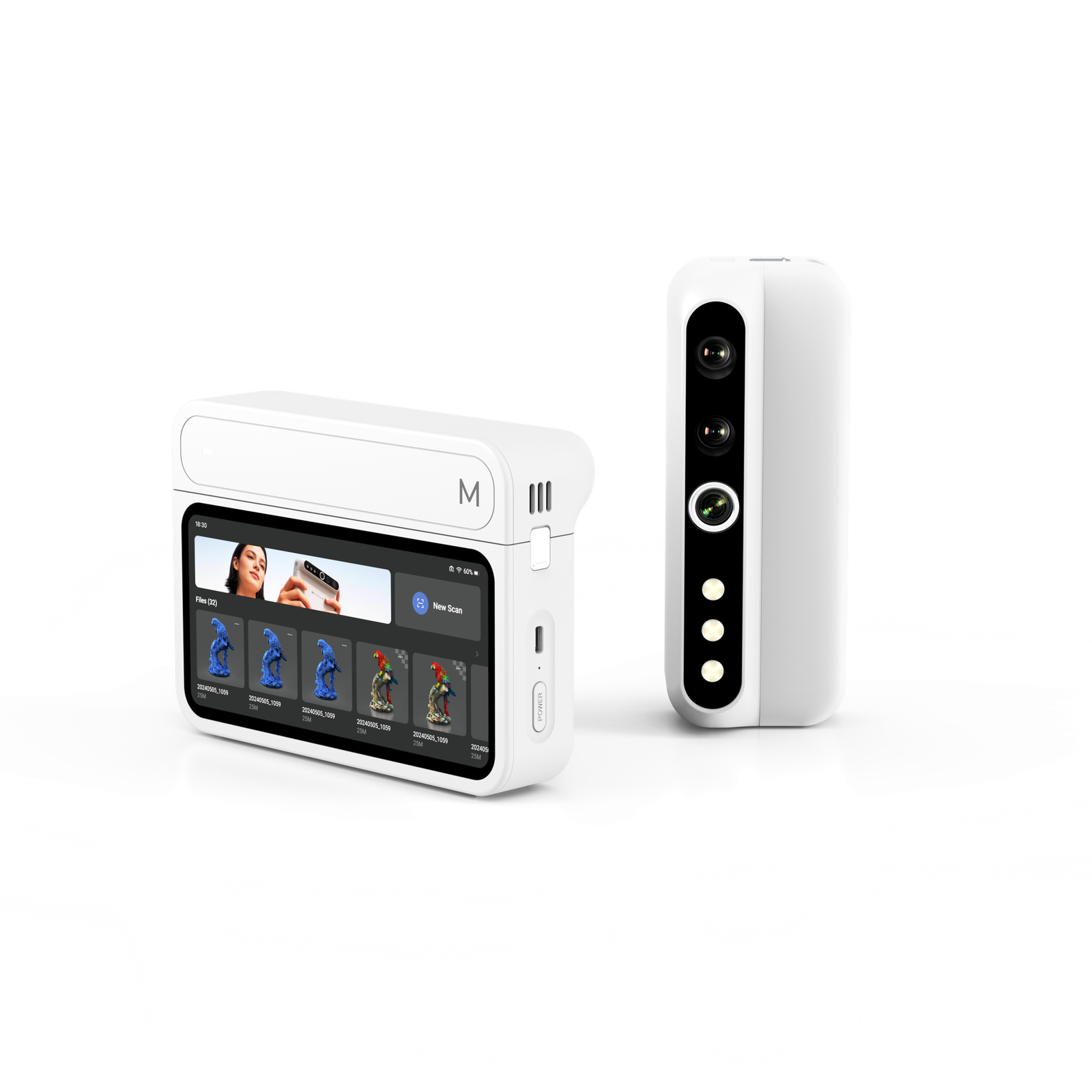

3DMakerpro Turtle 3D Scanner - Control Pad with M Module

3DMakerpro Turtle 3D Scanner - Product Angle 1

3DMakerpro Turtle 3D Scanner - Product Angle 2

3DMakerpro Turtle 3D Scanner - Product Angle 3

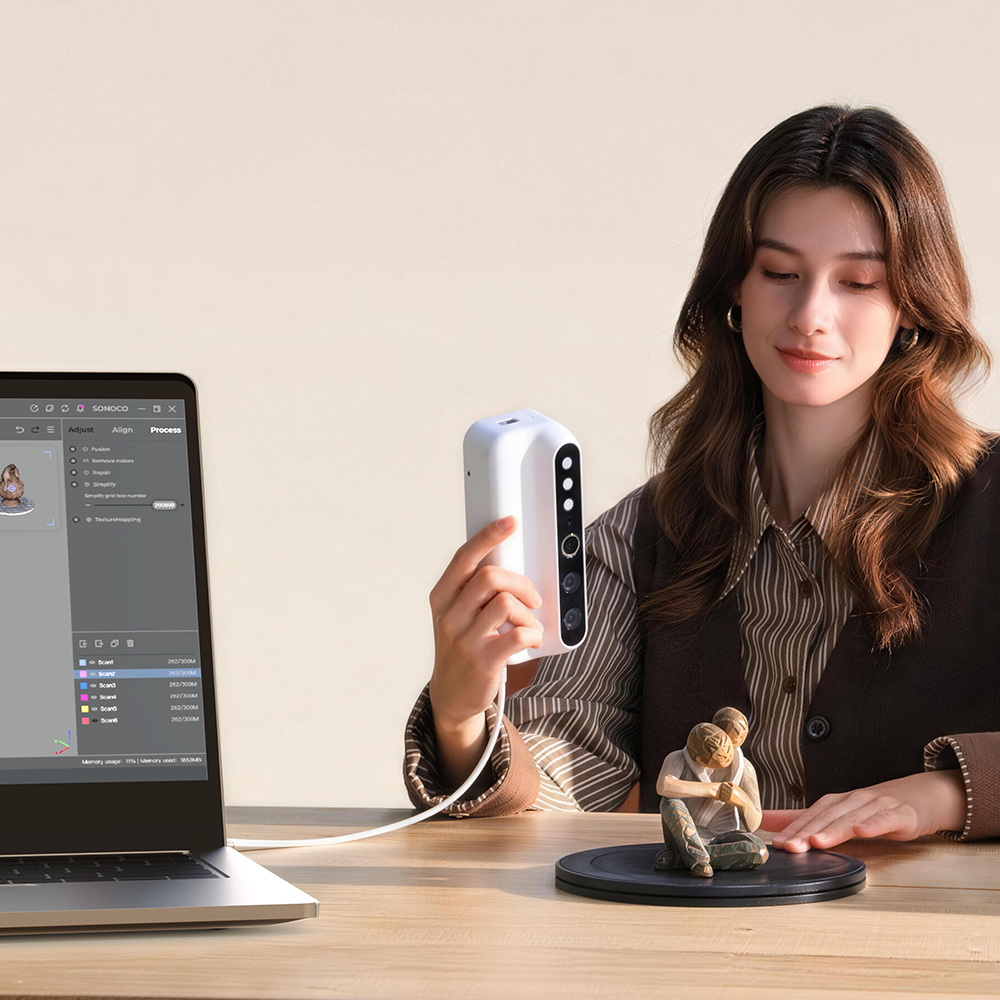

3DMakerpro Turtle 3D Scanner module captures a figurine through computer-connected split 3D scanning.

3DMakerpro Turtle 3D Scanner

3DMakerpro

SKU: Turtle 3D Scanner Categories: 3D SCANNERS, 3DMakerpro 3D SCANNERS Tag: Turtle

World’s First Modular Scanner: Swap S/M/L optical modules on one host to match miniatures, everyday parts, or large panels.
High Precision: Up to 0.01mm accuracy and 0.05mm resolution on the S (precision) module.
Wide Coverage: 10mm to 2000mm object range across the three modules.
On-Device Processing: Scan, process and export from the 6.4-inch 2K AMOLED Control Pad, no laptop required.
Markerless Tracking: AI visual tracking with feature relocalization resumes scans instantly after a lost lock.
Auto-Calibration: Calibration loads automatically the moment a module is connected.
Flexible Setups: Handheld, split modular, or PC-wired desktop scanning with the same modules.
High Frame Rate: Up to 30fps in PC-connected mode.
Fast File Transfer: A 3GB project transfers in about 35 seconds over 5GHz Wi-Fi.
Free Scanning Software: Includes JMStudio with real-time capture and one-click optimization.

Fast Shipping

Secure Payment

Tracking Updates

Best Prices

Chat Support

In Stock Alert

Payment Methods:

Description
Reviews (0)

3DMakerpro Turtle 3D Scanner

Swap the module, upgrade the scan. Turtle is 3DMakerpro’s newest flagship and the world’s first modular swappable 3D scanner — a wireless system for CAD, mechanical parts, and 3D printing where one host runs three different scanners.

One Host, Three Scanners

Instead of buying multiple dedicated scanners, swap in the S, M, or L optical module to match the job. Capture, processing, and export all stay on the same Control Pad host, and calibration loads automatically the moment a module clicks in — no manual setup, no calibration board.

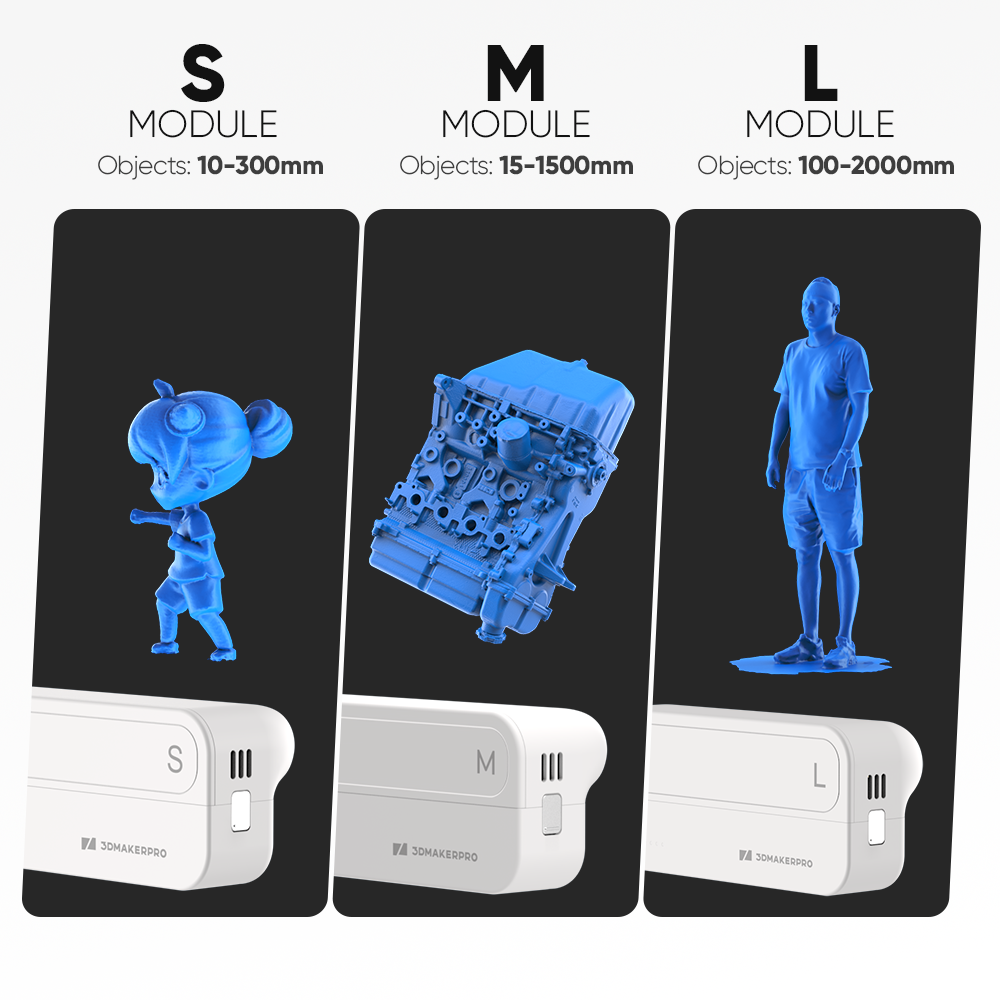

S / M / L Independent Optics — 10mm to 2000mm Coverage

S module — 10–300mm working range, for fine detail work such as jewelry and dental
M module — 15–1500mm, the everyday workhorse for figures and mechanical parts
L module — 100–2000mm, for large furniture, panels, and automotive parts

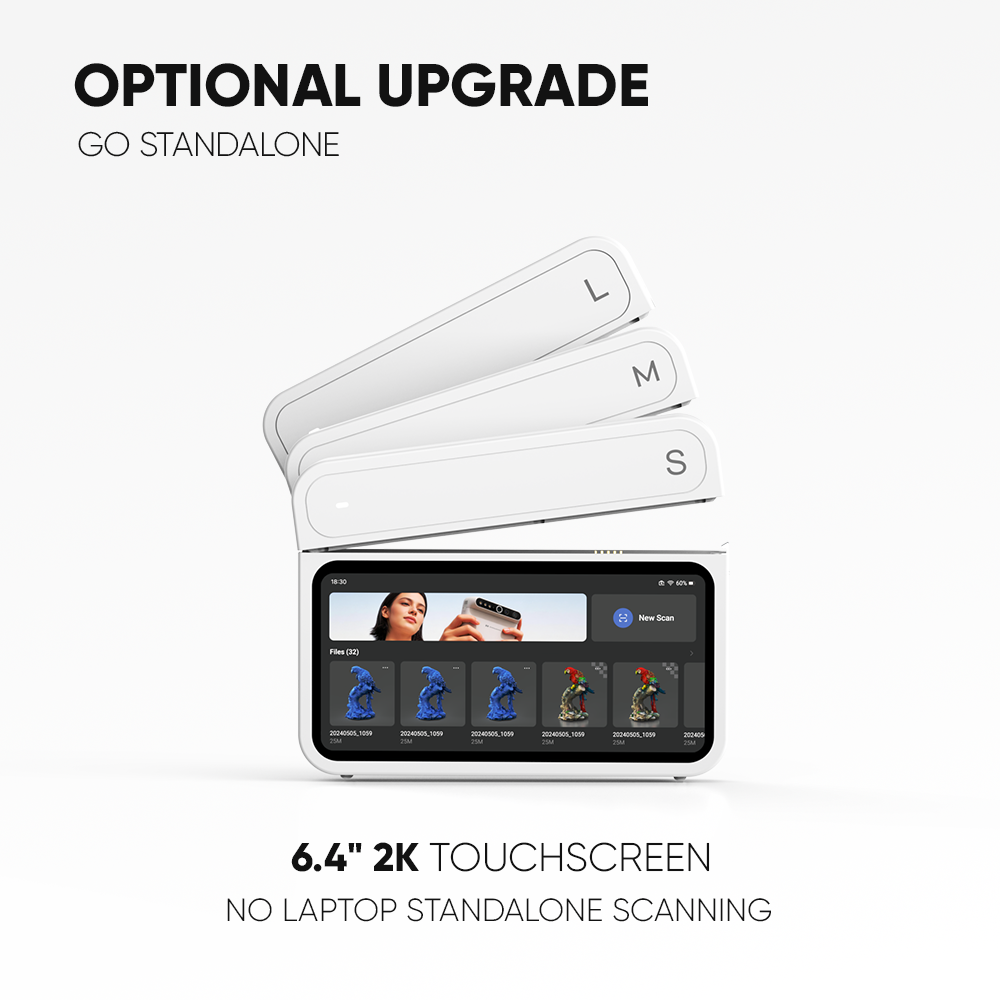

On-Device Processing — No Laptop Required

Scan, process, and export without a computer in the loop. Review the model on the 6.4-inch 2K AMOLED screen the moment you finish scanning, then export ASC/PLY point clouds and OBJ/STL meshes directly from the device — no format lock-in with CloudCompare, MeshLab, Geomagic, or CAD tools. A 3GB project transfers in about 35 seconds over 5GHz Wi-Fi; direct hotspot and USB drive transfer are also supported.

Markerless Tracking with Feature Relocalization

Turtle aligns on the object’s own geometry and texture — no markers to place, no cleanup afterward. If tracking drops, point the scanner back at any previously captured area and it picks up where it left off, so a lost lock never means starting over.

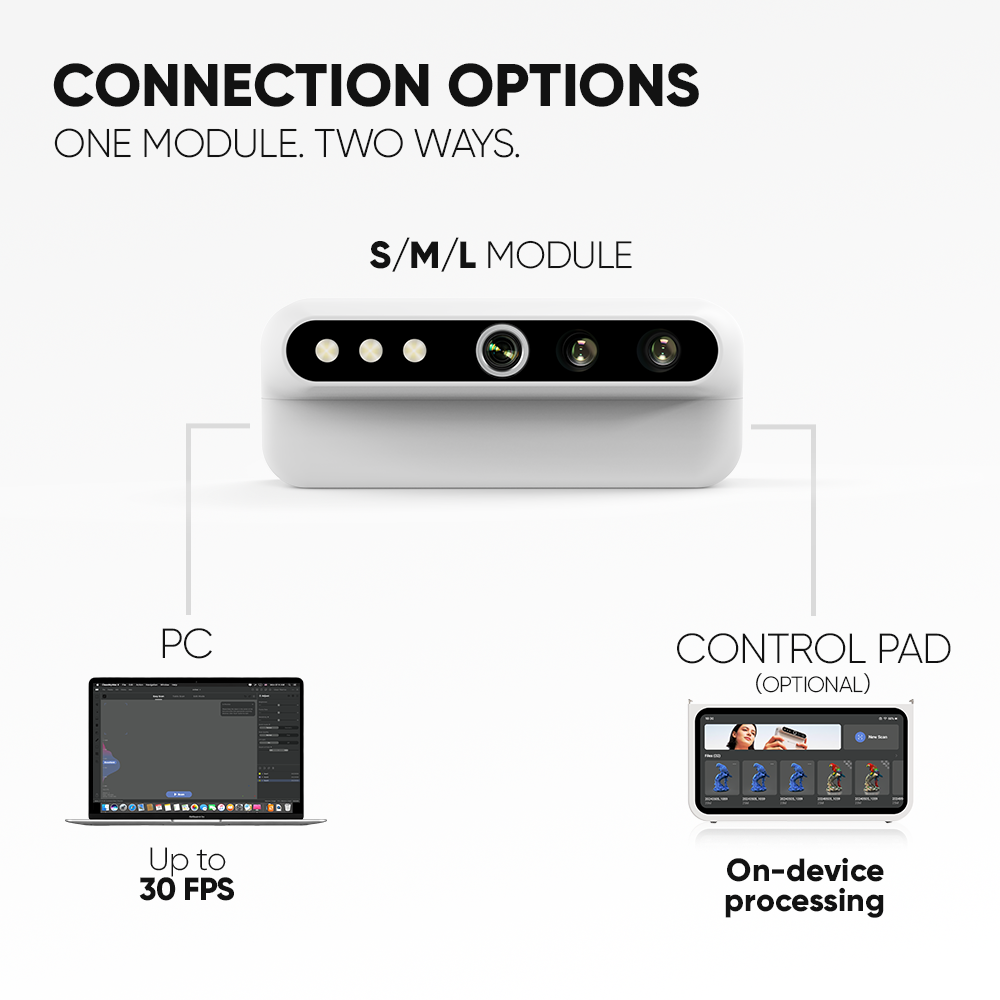

Three Setups, One Kit

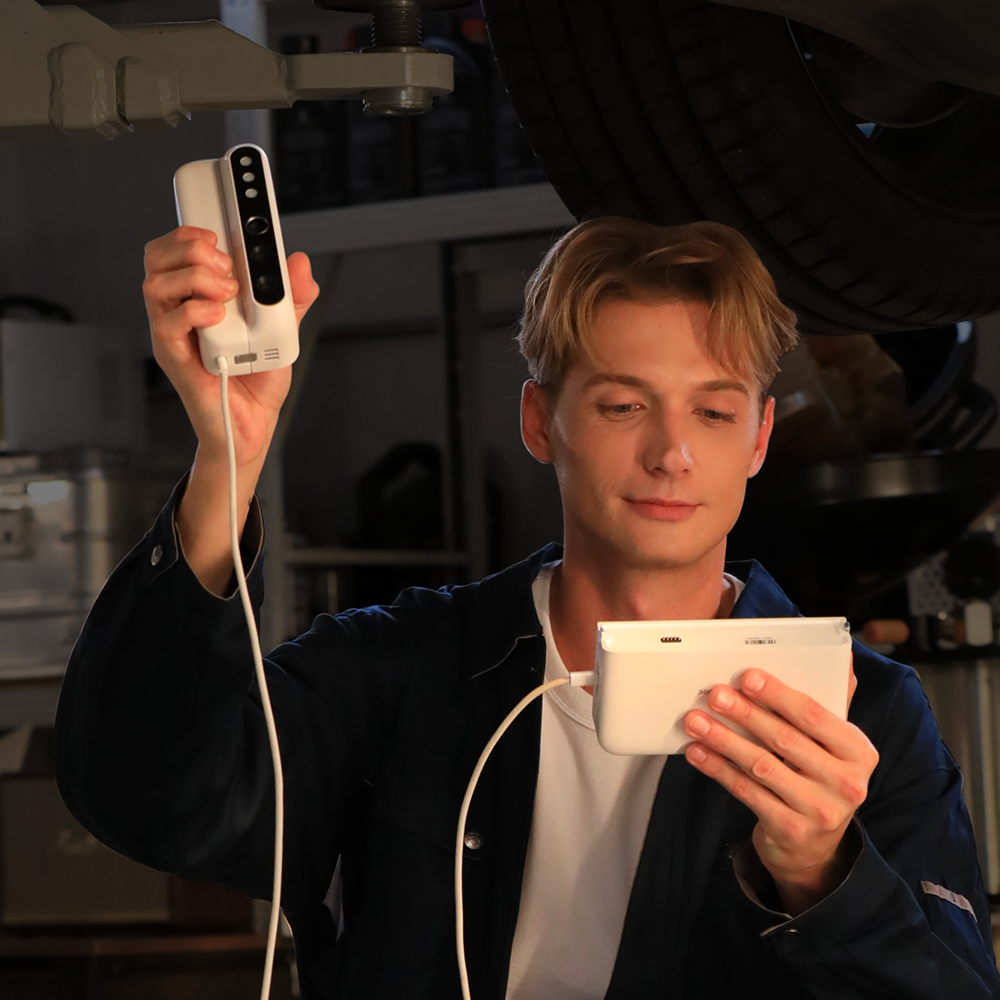

Any module works in any setup: handheld (cable-free, portable), split modular mode (for hard-to-reach angles), or wired desktop mode (for peak performance on a PC). Connected to a computer, Turtle’s high frame rate mode reaches up to 30 fps — three times the standalone rate.

Specifications

S Module (Precision)
Accuracy	0.01mm
Resolution	0.05mm
Single capture range	160 × 120mm
Work distance	180–280mm
Typical object sizes	10–300mm
Frame rate	10 fps standalone / 30 fps PC-connected
Light source	Blue LED
Color texture	24-bit color
USB interface	USB Type-C
Output formats	OBJ / STL / PLY / ASC
M & L Modules
M module working range	15–1500mm
L module working range	100–2000mm
Control Pad (base unit)
Screen	6.4-inch 2K AMOLED
CPU	2GHz × 8 cores
RAM	16GB
Storage	256GB SSD
USB interface	USB Type-C
Wireless	Wi-Fi 5
Battery	10,000mAh, approx. 2 hours
Capture OS support	Windows 11, macOS 12/13 (M1/M2)
Process & export OS support	Windows 11, macOS 12/13

Specifications are subject to change. Actual accuracy depends on scanning conditions and object surface.

What’s Included

Turtle ships module-first: choose an S, M, or L scanning module, with the Control Pad base unit, 65W charger, manual turntable, and carrying case available as bundled kits from 3DMakerpro. Modules and the Control Pad can also be purchased separately and mixed later.

Software

Free JMStudio scanning software is included with every Turtle module — real-time capture, one-click optimization, and export to STL, OBJ, PLY, and ASC formats.
