3DMakerpro Raven LiDAR Scanner
- Up to 100 m scan range with 50 m radius at 80% reflectivity
- 2 cm accuracy at 10 m, backed by SLAM + GPS + IMU cross-validation
- 360° × 40° ultra-wide field of view for fast single-pass capture
- 12MP 1/2″ camera system (dual on Max) for true-color 4K imagery and Gaussian Splatting
- 2-hour quick-swap 12,000 mAh battery for continuous field use
- 1.1 kg pocket-portable design with 3.9″ AMOLED display
Fast Shipping
Secure Payment
Tracking Updates
Best Prices
Chat Support
In Stock Alert
Payment Methods:
Your Personal Spatial Scanner
The 3DMakerpro Raven is a pocket-sized LiDAR scanner built for fast, professional-grade spatial capture. With a 50 m scanning radius and an ultra-wide 360°×40° field of view, Raven maps entire rooms, stadiums, and outdoor sites in minutes, delivering colorized point clouds and Gaussian Splatting scenes straight out of the box.
Precision Scanning, Simplified
Raven combines robust SLAM algorithms with GPS and IMU cross-validation to reduce point-cloud drift, holding 2 cm accuracy at 10 m, 3 cm at 20 m, and 5 cm at 40 m even in large, complex environments.
High-Fidelity Visual Reconstruction
A 12MP 1/2″ fisheye camera system (dual camera on Raven Max and Raven Max RTK) auto-adapts to indoor and outdoor lighting to capture true-color 4K imagery, used to generate realistic RGB point clouds and Gaussian Splatting assets. External 360° camera support (Insta360 X4/X5) is available for higher-resolution capture.
Built for the Field
Each 12,000 mAh quick-swap battery delivers up to 2 hours of continuous scanning, and the whole unit weighs just 1.1 kg, making Raven easy to carry into caves, construction sites, or on a bicycle, vehicle, or backpack mount for extended surveys.

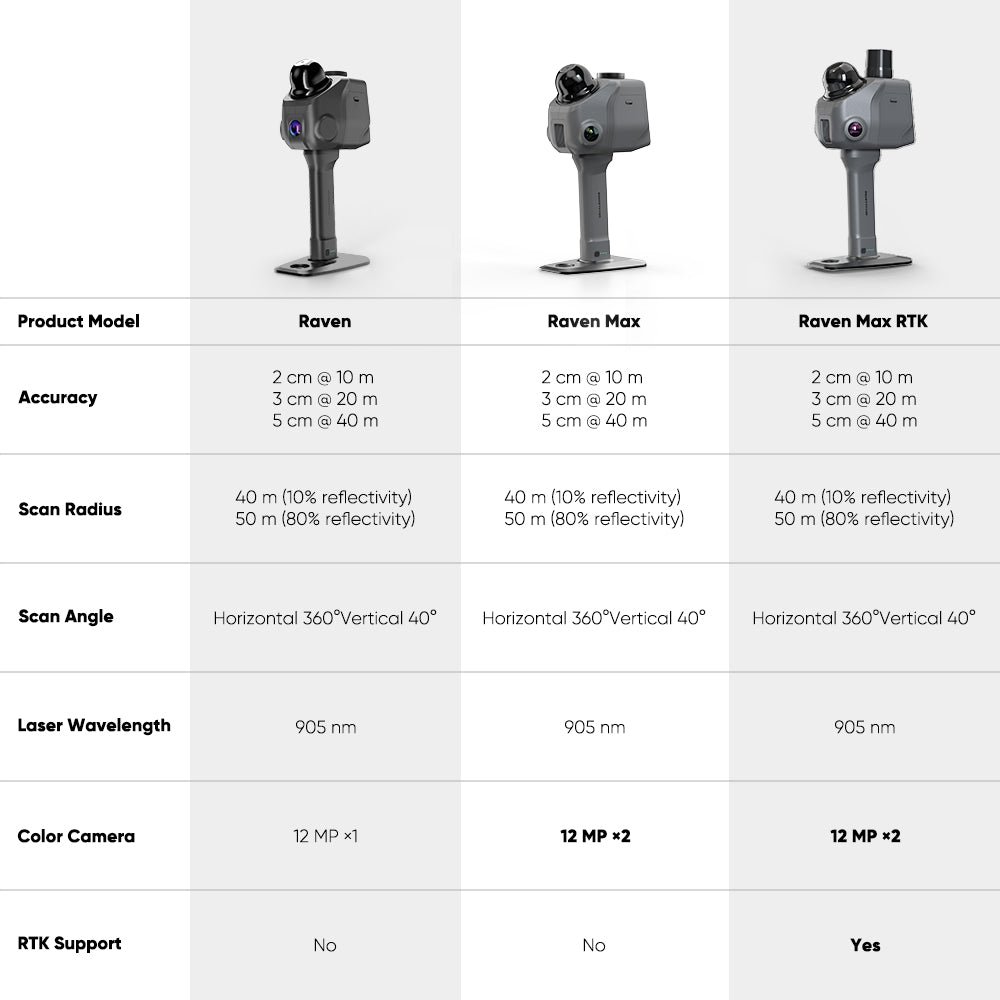

Specifications
Scanning Performance
| Accuracy | 2 cm @10 m / 3 cm @20 m / 5 cm @40 m |
| Scan Radius | 40 m @10% reflectivity, 50 m @80% reflectivity |
| Scan Range | 80–100 meters |
| Scan Angle (FOV) | Horizontal 360° / Vertical 40° |
| Point Cloud Frequency | 150,000 points/second |
Imaging & Optics
| Sensor Size | 1/2″ |
| Color Texture | Raven: 1× 12MP camera | Raven Max / Max RTK: 2× 12MP camera system |
| HDR Mode | No |
| Laser Light Source | 905 nm |
| Eye Safety | Class 1 (IEC60825-1:2014) eye-safe |
Hardware & Interfaces
| Configuration | 8-core 2.4GHz, 32GB storage (supports TF card expansion) |
| Screen | 3.9″ AMOLED |
| Handle Battery | 12,000 mAh — up to 2 hours of work; supports external power while charging |
| Data Interface | 1× USB Type-C |
| Power Delivery | 1× PD 65W USB Type-C |
| Network | Wi-Fi 5 |
| Expansion Support | RTK expansion kit (Raven Max RTK), Insta360 X4/X5 kit, Bicycle/Automotive/Backpack/Drone kits |
Physical & Software
| Weight | 1.1 kg |
| Volume | 148 × 288 × 98 mm |
| Output Format | LAS, PCD, PLY, OBJ, E57, XYZ |
| OS Requirements | Windows 11+ (not compatible with macOS) |
| Recommended PC | Intel Core i7, 64GB RAM, NVIDIA RTX 4060 16GB VRAM (Gaussian Splatting requires NVIDIA GPU) |
| Minimum PC | Intel Core i7, 32GB RAM, NVIDIA RTX 3060 8GB VRAM |

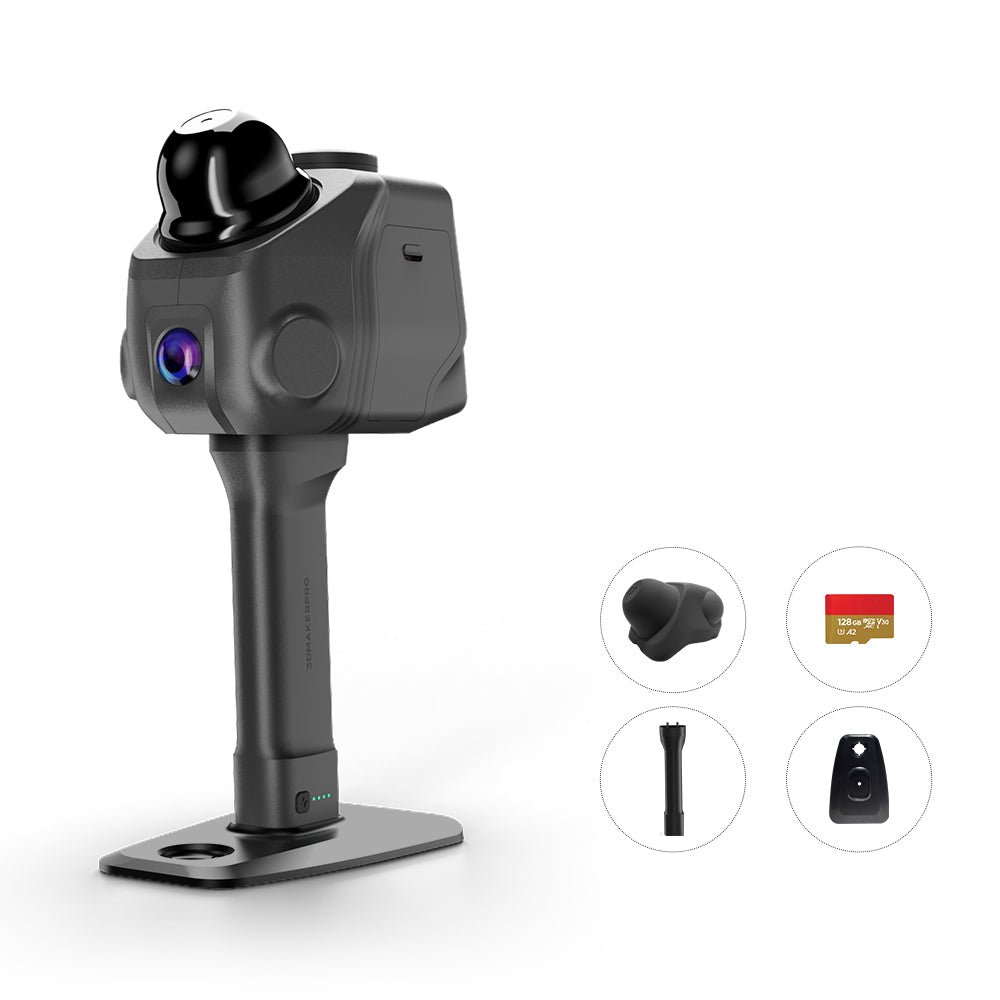

What’s in the Box
- Raven LiDAR scanner
- Battery grip
- Holder base
- Protective case
- TF card (128GB)
Contents vary by edition — Raven, Raven Max, and Raven Max RTK kits include model-specific accessories.
